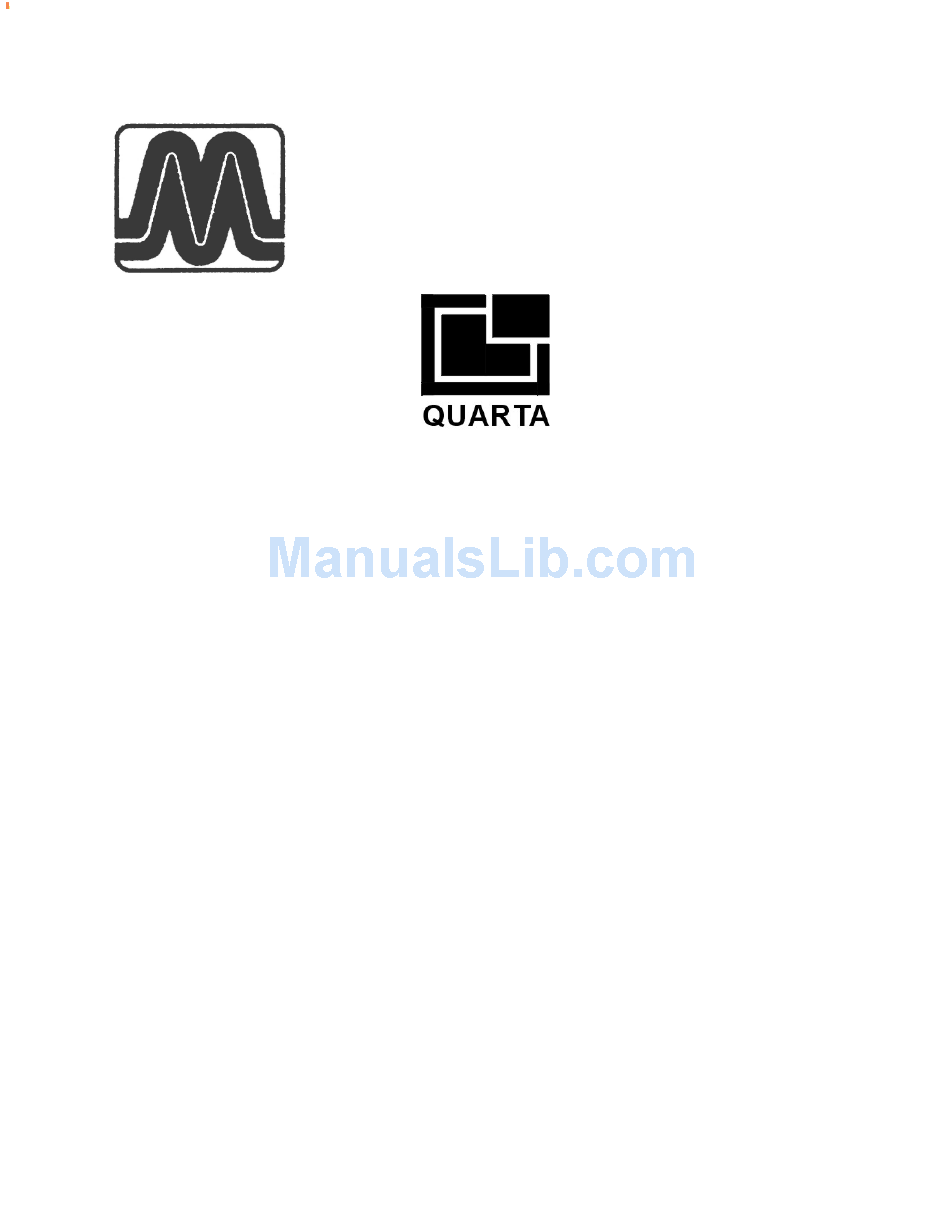

- Page 1 RADIATION MONITOR RADEX RD1503 OPERATING MANUAL 10.ÊÐ.01.00.00.000ÐÝ...
- Page 2 Standard of Russian Federation. The Certificate is valid till 24.11.2008. The device obtained with this article, can not be used for official opinion on radiation environment and degree of pollution. RADEX and ÐÀÄÝÊÑ are the registered brands of the firm QUARTA-RAD Ltd.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Precaution............4 Physical configuration of the device........5 Compendium..............8 Installation of power elements........10 Switching on and switching off of the device......11 Operations in the menu...........11 Monitor menu Units.................12 Levels................13 Setup..............14 Where to buy..............16 News................16 Use of the device...............17 How to conduct the examination correctly......19 Marking and sealing............20... -
Page 4: Safety Precaution
Safety Precaution. The body of the device is not waterproof, therefore article cannot be used under a rain or to place it in water. If the water comes into the device, it is necessary to switch it off, wipe it by soft tissue, place in a warm dry premise and dry it up before complete dehumidification from the interior of the device. -
Page 5: Physical Configuration Of The Device
Physical configuration of the device. 1. LCD display ( page 6). 2. Button “MENU” and its icon on the display. The button has three functions: “MENU”, “SELECT”, “CHANGE”. 3. Button “CURSOR” and its icon on the display. The button will be used in the menu for moving cursor. - Page 6 LCD display 1. Icon of battery condition: -Complete charge of battery; -Discharged battery; -The discharged below allowed level, the replacement is needed. 2. Units: - microSievert per hour. - microRoentgen per hour. 3. Icon of a threshold of audible signal. For unit of a µSv/h: - 0,30 µSv/h;...
- Page 7 4. Icon of setup of a audio: - The sound is set “UP” or “DOWN”; - The sound is switched off. 5. Icon of setup of backlight: - the backlight is switched on; - the backlight is switched off. 6. Function of the button “OFF” ( page 5) 7.
-
Page 8: Compendium
Switch on the device. Push the big button, then the screen “RD1503” is displayed. s c r e e n s c r e e n s c r e e n... - Page 9 Entering the menu. For entering the menu and changing the properties push the button “MENU” . The contents of the menu appear. By default the menu menu menu menu menu following properties are set: units –µSv/h, level–0.30 µSv/h, sound – down, backlight –...
-
Page 10: Installation Of Power Elements
Installation of power elements. Take off the cover of battery compartment 2. Install into the battery compartment two (or one) power elements “size AAA” , the polarity of contacts is indicated in the battery compartment. 3. Install the cover of battery compartment on the body of device. -
Page 11: Switching On And Switching Off Of The Device
Switching on and switching off of the device. To switch on the device one should push the big button after it the message” RD1503” appears on the display. To switch off the device one should long push the button “OFF”... -
Page 12: Monitor Menu Units
MONITOR MENU Units n section “UNITS” change of dimensionality of units is carried µSv/h or µRem/h. out: Place the cursor on the word “UNITS”. Push the button “SELECT”. Screen 2 will be displayed. Select unit with the help of the button “CURSOR” and icons «... -
Page 13: Levels
Levels. In section “LEVELS” change of one of three levels of the threshold is carried out. If the rate level of a dose exceeds level value, at registration of each following quantum « » the audible signal sounds. Unit corresponds to the unit set earlier (page 12). 1. -
Page 14: Setup
Setup. In section “SETUP” the change of tuning up of the device is carried out: backlight and audio. Setup of backlight: With the help of the button “CURSOR” place « » on inscription “SETUP”. Push the button “SELECT”, screen 2 will be displayed. - Page 15 The backlight allows to see the registrations of the device in twilights and darkness. At bright illumination, the influence of backlight is insignificant. Please remember, that usage of backlight reduces time of continuous operation of the device considerably. Setup of a audio: With the help of the button “CURSOR”...
-
Page 16: Where To Buy
Where to buy. In section « WHERE TO BUY » the telephone of organization is specified, where it is possible to acquire a radiation monitor RADEX RD1503. . With the help of the button “CURSOR” place « » on an inscription «WHERE TO BUY». -
Page 17: Use Of The Device
Use of the device Switching on the device. To switch on the article it is necessary to press the big button, then the screen “ÐÄ1503” will be displayed. The order of survey. After switching on the article the examination of the radioactive environment starts. During time of observations each registered quantum of radiation is accompanied by a display presentation of the icon «... - Page 18 40 seconds after switching on the article the first result and icon in form of side of a square will be displayed, which displays amount of the executed observations: - corresponds to one cycle of observation; - corresponds to two cycles of observation; - corresponds to three cycles of observation;...
-
Page 19: How To Conduct The Examination Correctly
How to conduct the examination correctly. At an examination of the radiological situation it is necessary to remember, that the ionizing radiation has static random character, therefore the indications of the monitor in identical conditions will not remain strict stationary values. For more precise definition of a power level of a dose it is necessary to conduct from 3 up to 5 cycles of inventory, not turning off the device. -
Page 20: Marking And Sealing
On the front side of the monitor there are marked: trade mark of the manufacturing plant; trade mark – RADEX. Conventional designation of the monitor - RD1503 appears on display at its turning on. The assembly number of the device is in the main menu. -
Page 21: Transportation And Keeping
Transportation and keeping custody. The device in the package of the manufacturer may be transported by any mode of transport on any distance. At transportation of the device it is necessary to ensure its protection from the atmospheric precipitates. The conditions of transportation of the device in the package must correspond to: temperature span, ………………..….from –20 up to +40 RH at temperature +25... -
Page 22: Possible Malfunctions And Ways Of Its Clearance
Possible malfunctions and ways of its clearance Possible Possible cause Way of malfunction of malfunction clearance The power elements are not There is no information Install installed t h e p o w e r on display after turning power elements e l e m e n t s a r e i n s t a l l e d... -
Page 23: Performance Attributes
Performance attributes Performance attributes Performance attributes Performance attributes Performance attributes Range of dose rate indications, µSv/h........0.05 to 9.99 Range of exposure dose rate indications,mRem/h......5 to 999 Range of gamma radiation energy, ÌeV........0.1 to 1.25 Reproducibility of indications (at confidential probability 0.95), %........15+6/P where P is a doze rate in µSv/h Chime levels (alarm...
