This document is intended to help you get your LX-4000 unit up and running quickly. It includes
basic hardware installation, POST test information, how to obtain IP information, and how to
perform a first time quick software installation. If you prefer a more detailed explanation of these
procedures, refer to the Getting Started with the LX-4000 Series manual.
Rack-Mounting the Unit
•
Do not choose a location where the unit will be exposed to direct sunlight or subjected to vibration.
•
Unit must be installed in an environment with 5% to 90% humidity, noncondensing, 0° - 40° C
(32°-104° F).
•
Do not place an object on the side(s) of the unit that might block airflow through the unit.
•
The unit may be front, rear, or center mounted.
•
There is no mounting difference between the 19" and 23" rack mount ears.
•
MRV provides the following mounting screws: Eight 6-32 x 5/16" flathead screws for attaching the
ears to the unit, and four 10-32 screws to attach to the rack.
The three bottom side screws hold
the cover on the unit. To front-mount
the unit, you must
and center top and bottom screws before
attaching the rack-mount brackets.
Then insert the supplied screws through
the brackets and into the same holes.
451-0312M
LX-4000 Quick Start Instructions
remove the front

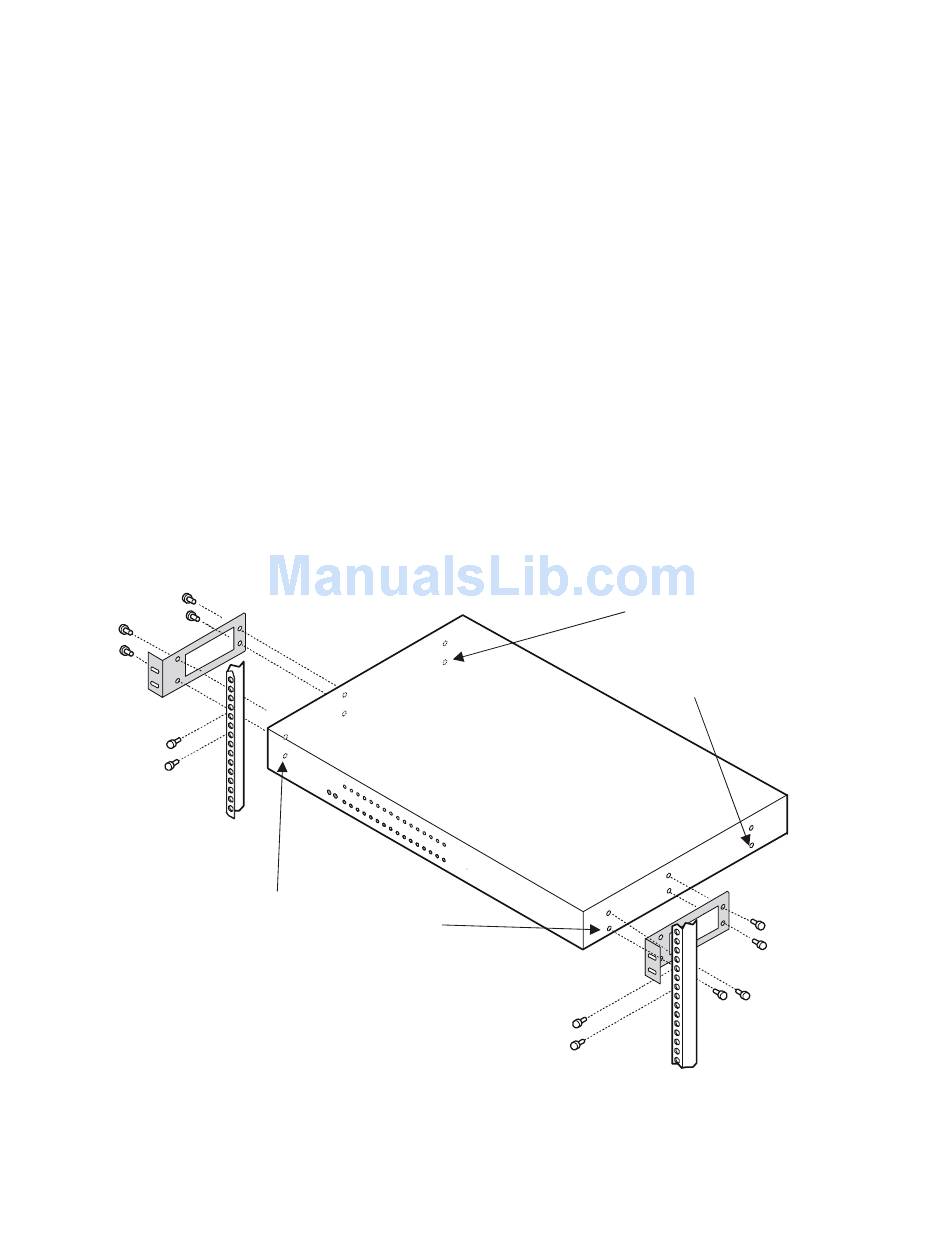

Figure 1 - Mounting an LX-4000 Series in Rack
MRV Communications, Inc.
If you reverse-mount
the unit, remove the rear
and center top and bottom
screws, and insert the
supplied screws through
the rack-mount ears.
www.mrv.com
451-0312M
1
Advertisement
Table of Contents
Related Manuals for MRV LX-4000
Summary of Contents for MRV LX-4000
- Page 1 LX-4000 Quick Start Instructions 451-0312M This document is intended to help you get your LX-4000 unit up and running quickly. It includes basic hardware installation, POST test information, how to obtain IP information, and how to perform a first time quick software installation. If you prefer a more detailed explanation of these procedures, refer to the Getting Started with the LX-4000 Series manual.
- Page 2 Lugs Figure 3 - Connecting DC Power After you have installed the LX-4000 unit, you can connect the DC power as described in the following procedure (refer to Figure 3): 1. Connect the LX-4000 to the facility's bonding network (or earth ground), using the points on the rear panel of the LX-4000.
- Page 3 The DC leads should be 22 AWG or larger. They should be terminated with a #5 ring terminal or larger depending on the wire size used. NOTE: The LX-4000 will run with only one DC power feed connected. The second input is provided for redundant system power, which is used in high reliability installations.
- Page 4 Xon/Xoff flow control). The Main Menu appears. 2. Press b to boot the LX-4000 unit. The setup takes a minute or two. The “The unit has loaded to factory defaults, would you like to run Initial Connectivity Setup? y/n”...
- Page 5 11. Press Enter several times to display the Login: prompt. You can now use the LX-4000 unit. You can access the LX-4000 via the Graphical User Interface (GUI) by typing the unit’s IP address in your browser. Refer to Getting Started with the LX-4000 Series for more information on how to access and configure the GUI.
- Page 6 At the Configuration Console window, select Ports: Async. The Async window appears. Here you can modify any of the port default parameters you want. Refer to Getting Started with the LX-4000 Series for more information on the Graphic User Interface (GUI).
