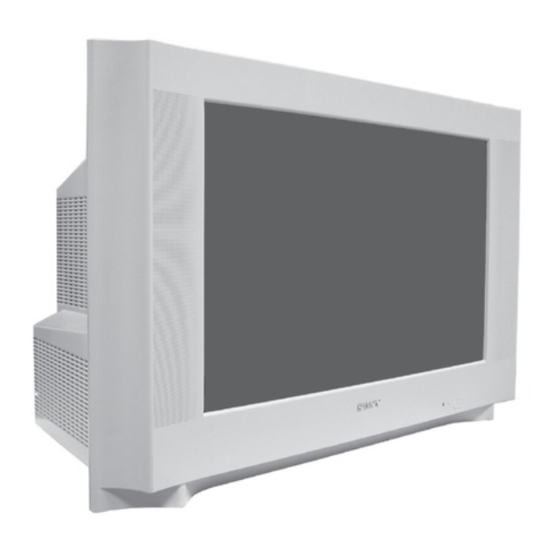

SERVICE MANUAL
MODEL
KV-28HX15B
KV-28HX15E
KV-28HX15U
COMMANDER
DEST
CHASSIS NO.
RM-947
FR
SCC-Q54X-A
RM-947
ESP
SCC-Q53Y-A
RM-947
UK
SCC-R42A-A
MODEL
KV-32HX15B
KV-32HX15E
KV-32HX15U
KV-28/32HX15
- 1 -
FE-2
CHASSIS
COMMANDER
DEST
CHASSIS NO.
RM-947
FR
SCC-Q54W-A
RM-947
ESP
SCC-Q53X-A
RM-947
UK
SCC-Q52Y-A
RM-947
Advertisement
Table of Contents
Related Manuals for Sony Trinitron KV-28HX15B
Summary of Contents for Sony Trinitron KV-28HX15B
-
Page 1: Service Manual
SERVICE MANUAL FE-2 CHASSIS MODEL MODEL COMMANDER DEST CHASSIS NO. COMMANDER DEST CHASSIS NO. KV-28HX15B KV-32HX15B RM-947 SCC-Q54W-A RM-947 SCC-Q54X-A KV-28HX15E KV-32HX15E RM-947 SCC-Q53X-A RM-947 SCC-Q53Y-A KV-28HX15U KV-32HX15U RM-947 SCC-Q52Y-A RM-947 SCC-R42A-A KV-28/32HX15 RM-947 - 1 -... -
Page 2: Table Of Contents
TANCE CRITIQUE POUR LA SÈCURITÈ DU FONCTIONNEMENT, THESE COMPONENTS WITH SONY PARTS WHOSE PART NE LES REMPLACER QUE PAR DES COMPSANTS SONY DONT NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN LE NUMÈRO DE PIÈCE EST INDIQUÈ DANS LE PRÈSENT SUPPLEMENTS PUBLISHED BY SONY. -
Page 3: Caution
Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade. This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics. For more information on the use of Lead Free Solder, please refer to http://www.sony-training.com - 3 -... - Page 4 . s l . s l . s l . s l e i l n i l i n i WARNING (UK Models only) The flexible mains lead is supplied connected to a B.S. 1363 fused plug having a fuse of 5 AMP rating. Should the fuse need to be replaced, use a 5AMP FUSE approved by ASTA to BS 1362, ie one that carries the mark.
-
Page 5: Connectors
21 pin connector Pin No Signal Signal level Audio output B Standard level : 0.5V rms (right) Output impedence : Less than 1kohm* Audio input B Standard level : 0.5V rms (right) Output impedence : More than 10kohm* Audio output A Standard level : 0.5V rms (left) Output impedence : Less than 1kohm*... -
Page 6: Self Diagnostic Software
FE-2 SELF DIAGNOSTIC SOFTWARE The identification of errors within the FE-2 chassis is triggered in one of two ways :- 1: Busy or 2: Device failure to respond to IIC. In the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with a continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty. -
Page 7: General
SECTION 1 GENERAL - 7 -... - Page 8 - 8 -...
- Page 9 - 9 -...
- Page 10 - 10 -...
- Page 11 - 11 -...
- Page 12 - 12 -...
-
Page 13: Disassembly
SECTION 2 DISASSEMBLY 2-1. Rear Cover Removal => => => => Remove the rear cover fixing screws indicated and withdraw the rear cover from the Beznet. 2-2. Chassis Removal and Refitting When refitting the chassis ensure that the main bracket is located in the beznet guide slots before sliding the chassis forwards. -
Page 14: A Board Removal [Step 1]
2-3. A Board Removal [ Step 1 ] 2-4. A Board Removal [ Step 2 ] Clip. Screw. Remove the 3 screws securing the PWB to the main bracket. Release the 5 securing clips located around the side of the 1 can be seen in the photo above and the other 2 are either chassis and slide the PWB clear of the bracket. -
Page 15: Picture Tube Removal
2-7. Picture Tube Removal WARNING: BEFORE REMOVING THE ANODE CAP High voltage remains in the CRT even after the power is disconnected. To avoid electric shock, discharge CRT before attempting to remove the anode cap. Short between anode and CRT coated earth ground strap. - Page 16 - 16 -...
-
Page 17: Set-Up Adjustments
SECTION 3 SET-UP ADJUSTMENTS • Carry out the adjustments in the following order : When complete readjustment is necessary or a new picture 3-1. Beam Landing. tube is installed, carry out the following adjustments. 3-2. Convergence. • Unless there are specific instructions to the contrary, carry 3-3. -
Page 18: Convergence
If the V.STAT magnet is moved in the direction of the (a) 3-2. Convergence and (b) arrows, the Red, Green and Blue points move as indicated below. Preparation: • Before starting this adjustment, adjust the focus, horizontal size and vertical size. •... - Page 19 Geometry Adjustment. YCH Adjustment Preparation: YCH VR 28" YCH VR 32" Before starting this adjustment, adjust the horizontal and vertical static convergence. Deflection Yoke Deflection Yoke Remove the deflection yoke spacer. Tilt the deflection yoke as indicated in the figure below and TLV Adjustment optimise the geometry.
-
Page 20: Focus Adjustment
Layout of each control 3-4. Screen (G2), White Balance [Adjustment in the service mode using the remote commander] G2 adjustment Input a dot signal from the pattern generator. Set the Picture, Brightness and Colour to minimum. Apply 165V DC from an external power supply to the R, G V.STAT and B cathodes of the CRT. -
Page 21: Circuit Adjustments
SECTION 4 CIRCUIT ADJUSTMENTS 4-1. Electrical Adjustments Service adjustments to this model can be performed using the supplied remote Commander RM-947. How to enter into the Service Mode Turn on the main power switch and enter into the stand-by mode. Press the following sequence of buttons on the Remote Commander. - Page 22 Deflection System Adjustment Sub Brightness Adjustment Set the TV set or operation in Service Mode [ See Page 21 ] Input a Monoscope pattern. and enter into the ‘Geometry’ service menu. Set the TV set or operation in Service Mode. [ See Page 21 ]. Select and adjust each item in order to obtain the optimum image.
-
Page 23: Test Mode
4-2. TEST MODE 2: Test Mode 2 is available by programming the TV set for operation in Service Mode [ As shown on Page 21 ], OSD ‘TT’ appears. The functions described below are available by selecting the two numbers. To release the ‘Test mode 2’, press 00, 10, 20 ... twice or switch the TV set into Stand-by mode. -
Page 24: Block Diagrams
5-1. BLOCK DIAGRAMS (1) CN8801 CN707 T3602 SMART LIGHTNING LINE FILTER R.G.B. OUT 200V CN3601 FUSE TO A BOARD (2/2) CN3603 F3601 CN508 AC IN AC OUT MOSFET SWITCH F5 BOARD CN706 Q8801 AC IN AC OUT SWITCH CN6100 A BOARD (2/2) SWITCH TO A BOARD (2/2) Q8802... -
Page 25: Block Diagrams
5-1. BLOCK DIAGRAMS (2) CN1201 R AUDIO TO SPEAKERS L AUDIO CN1200 HP PLUGGED IC1201 AUDIO AMP R OUT OUT/R R IN TO H6 BOARD IN/INL CN4502 MUTE SW L OUT LOW B MUTE OUT/L Q212 L IN IC001 MICRO, VIDEO PROCESSOR, ROM, AUDIO, J404 VIDEO SWITCH... -
Page 26: Block Diagrams
5-1. BLOCK DIAGRAMS (3) A 2/2 ( POWER SUPPLY, DEFLECTION, VIDEO, AUDIO IC501 CN605 V OUTPUT PH601 ISOLATOR CN501 LOW B V- DY+ BOOST MAIN RECT CN606 D601 V- DY- AC IN RELAY RY601 H- DY- F5 BOARD AC IN CN6102 TO DY H- DY-... -
Page 27: Circuit Board Location
~ A Board Difference Table 1~ ~ A Board IC Voltage Table~ ~ A Board Waveforms ~ 5-2. CIRCUIT BOARD LOCATION Reference Information RESISTOR : METAL FILM 20us/div 20us/div : SOLID C Board FPRD : NON FLAMMABLE CARBON FUSE : NON FLAMMABLE FUSIBLE : NON FLAMMABLE METAL OXIDE VM Board H6 Board... - Page 28 ~ A Board Semiconductor Location Table ~ NOTE: Portions of the circuit marked as shown are high voltage areas. Use care to prevent electric shock during inspection or repair. ~ A Printed Wiring Board Conductor side ~ - 28 -...
-
Page 29: A Board Schematic
A..-28/32HX15 POWER SUPPLY R603 C621 470p 1/2W 500V JW643 D601 FB602 R613 D4SB60L-F C603 8.2M 1.1uH T603 1000p C613 D639 R608 R611 JW644 250V 1500p 2.7k CN606 L603 PS1201 1/10W 1/10W C428 AUDIO_VCC 6.8uH JW645 R606 1000p OCP DETECT TO F5 BOARD AC IN C612 R625... - Page 30 A..-28/32HX15 COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL JR505 CN512 CHIP R045 IC501 STV9379 1/10W V OUTPUT L504 SMART C516 TP10 H.DY- 1200V JR508 C582 CHIP R589 1200V D502 R588 R564 R542 C503 CHIP PDZ22B-115 CN501 L505 D512 Q576 EL1Z...
- Page 31 SERVICE CN001 TU101 CN301 CN102 CN101 MONO TUNER+IF STEREO A..-28/32HX15 C106 C105 0.01 L101 JW217 L104 56uH JW411 22.5MM 4.7uH J404 VIDEO 7.5MM JW218 L103 C101 C112 JR114 L102 22.5MM R100 JW409 17.5 4.7uH 0.01 C100 47uH C108 XX D102 XX C435 L403 L OUT...
- Page 32 TO H6 BOARD CN4502 A..-28/32HX15 CN1201 CN1200 CN1202 J1200 IC1201 C1225 TDA7495S AUDIO AMP R1217 R1202 JW1232 XX JW1227 XX 1/10W JW1209 4/4 AUDIO & VIDEO JW1216 XX C1203 JW1217 C1227 C1204 XX C1200 C1232 JW1220 R1216 C1229 R1201 220p C1206 C1230 C1221...
-
Page 33: H6 Board Schematic
F3.-28/32HX51 F5.-28/32HX15 COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL LIGHTNING DISCHARGE, FUSE, LINE FILTERS CN6102 S6100 CN6100 F001 AC OUT TO A BOARD AC IN TO F3 BOARD CN606 CN3603 AC IN AC OUT T3604 R6100 VDR6100 T3603 FH001 XX CN1101... - Page 34 ~ H6 Printed Wiring Board Conductor Side ~ ~ F3 Printed Wiring Board Conductor Side ~ ~ F5 Printed Wiring Board Conductor Side ~ - 34 -...
-
Page 35: C Board Schematic
~ C Board Semiconductor Voltages ~ ~ C Board Difference Table ~ ~ C Board IC Voltages ~ ~ C Board Waveforms ~ 20us/div 20us/div 2.32 Vp-p (H) 2.32 Vp-p (H) 20us/div 20us/div C..-28/32HX15 2.32 Vp-p (H) 116 Vp-p (H) CN704 COMPONENTS MARKED AS XX ARE NOT FITTED ON THIS MODEL 20us/div... - Page 36 ~ D2 Printed Wiring Board Conductor Side~ ~ C Printed Wiring Board Conductor Side ~ ~ VM Printed Wiring Board Conductor Side~ - 36 -...
-
Page 37: Vm Board Schematic
VM.-28/32HX15 R1954 R1955 D1909 220k 330k 1SS133 CHIP CHIP VELOCITY MODULATION C1952 C1953 3300p CN1901 R1956 R1953 C1951 8.2M 270k CHIP TO DY IC1902 L1904 L1903 LM358N R1957 C1957 R1965 R1968 R1966 C1918 150uH 0.22 DF/DQP TIMING CHIP CHIP Q1906 R1960 2SC2412K-T-146-R R1958... -
Page 38: Semiconductors
5-4. SEMICONDUCTORS CXA1875AM-T4 NJM4556AD TDA6108JF/NIB ( TOP VIEW ) L78L33ABZ-AP PCF8593/T118 TDA7495S 2SC3840(3) LA6393DLL PC123F2 TDA9394H/N1/5/0716 LM2940T-9.0 PQ05RF11 PQ3RF33 ( MARKING SIDE VIEW ) LM358N BA09T TLP721(D4-GR.T) LM393DT SE-012N-LF4 LM393PS ( TOP VIEW ) M24C32-WMN6T(A) SE135N-LF4 TOP209P MC14053 BDR2 TOP VIEW 8 PIN SOP ( TOP VIEW ) 3 GND... - Page 39 1SS119-25 BAS316-115 L-59SRSGC-CC 1SS133T-77 DTZ-TT11-6.8B ERA38-06 MM3Z12VT1 ANODE FUF4005 MM3Z4V7T1 CATHODE HZS9.1NB2 MM3Z6V8T1 MTZJ-4.7C MM3Z9V1ST1 CATHODE MTZJ-T-77-9.1A PDZ9.1B-115 MTZJ-33A PDZ22B-115 MTZJ-7.5B UDZSTE-175.6B P6KE200ASY ANODE RK46LFT2 RD3.6ES-B2 RD5.1ESB2 AG01ZV0 RD5.6ESB2 D2S4MF RD6.8ES-B2 RD10ESB2 2SA1162-G 2SA1037AK-T146 2SC1623-L5L6 D4SB60L UGB8BT-31 2SC2412K-T-146-R 2SD601A-Q-TX DTC114EKA-T146 –...
- Page 40 5-5. IC BLOCK DIAGRAMS A BOARD IC501 STV9379A A BOARD IC401/IC531 LM393DT FLYBACK GENERATOR POWER AMPLIFIER THERMAL PROTECTION A BOARD IC601 MCZ3001D Remote DVLD Internal Driver Sel=34v ref 5v Reg. 10v 15v/8v Level Shift Vsense Control Logic Latch Centre Timer A BOARD IC1201 TDA7495S VOLUME OP AMP...
-
Page 41: Exploded Views
SECTION 6 EXPLODED VIEWS NOTE : Items with no part number and no description are not Items marked “*” are not stocked stocked because they are seldom required for routine since they are seldom required for service. routine service. Some delay should The construction parts of an assembled part are indicated be anticipated when ordering these with a collation number in the remarks column. -
Page 42: Picture Tube
6-2. PICTURE TUBE REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK X-2022-358-1 BEZNET ASSY(KV-28HX15) 52-60 4-089-228-01 SPRING, EXTENSION (KV-32HX15) X-2021-252-1 BEZNET ASSY(KV-32HX15) 52-60 *4-203-390-71 CUSHION, DGC 4-205-375-11 GUIDE LIGHT £ 1-416-466-21 COIL, DEMAGNETIC (KV-28HX15) 4-102-532-31 POWER, BUTTON £ 1-416-769-11 COIL, DEMAGNETIC (KV-32HX15) 4-202-964-11 SPRING 4-079-355-01 CLIP DGC (KV-28HX15) 4-102-700-11 SIDE COVER... -
Page 43: Electrical Parts List
SECTION 7 ELECTRICAL PARTS LIST PARTS LISTING TABLE OF CONTENTS Page A BOARD COMMON Parts List : Parts common to all models listed in this manual ...... 44 Model Parts that belong only to the model specified KV-28HX15 ....................51 KV-32HX15 .................... - Page 44 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK * A-1059-323-A A Board Complete KV-28HX15B C112 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V * A-1066-097-A A Board Complete KV-28HX15E C204 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V * A-1066-084-A A Board Complete KV-28HX15U C211 1-162-970-11 CERAMIC CHIP 0.01UF...
- Page 45 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C430 1-102-114-00 CERAMIC 470PF 10.00% 50V C606 1-117-751-11 ELECT(BLOCK) 220UF 20.00% 450V C435 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V C607 1-126-964-11 ELECT 10UF 20.00% 50V C436 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V C608 1-126-963-11 ELECT...
- Page 46 D1 A REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C1228 1-126-952-11 ELECT 1000UF 20.00% 35V D019 8-719-978-33 DIODE DTZ-TT11-6.8B C1229 1-163-001-11 CERAMIC CHIP 220PF 10.00% 50V D021 8-719-978-33 DIODE DTZ-TT11-6.8B C1230 1-163-001-11 CERAMIC CHIP 220PF 10.00% 50V D022 8-719-069-55 DIODE UDZSTE-175.6B C1231 1-163-001-11...
- Page 47 F4 A REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK D534 8-719-302-43 DIODE EL1Z IC004 8-759-675-65 IC M24C08-WMN6T(A) D536 6-500-951-01 DIODE RH4FLFL1 IC201 6-700-411-02 IC MSP3411G-PP-B8V3 D537 8-719-070-62 DIODE PDZ9.1B-115 IC401 8-759-665-11 IC LM393DT D539 8-719-312-10 DIODE RU4AM-T3 IC501 8-759-696-71 IC STV9379A D541 1-216-295-91...
- Page 48 D2 A REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK L603 1-412-523-41 INDUCTOR 6.8UH JR206 1-216-295-91 SHORT CHIP L1201 1-535-303-00 LEAD, JUMPER (5.0MM) JR207 1-216-295-91 SHORT CHIP L1203 1-535-303-00 LEAD, JUMPER (5.0MM) JR208 1-216-295-91 SHORT CHIP JR209 1-216-295-91 SHORT CHIP <...
- Page 49 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R048 1-216-073-91 RES-CHIP 1/10W R252 1-216-069-00 RES-CHIP 6.8K 5% 1/10W R049 1-216-049-11 RES-CHIP 1/10W R253 1-216-025-11 RES-CHIP 1/10W R050 1-216-025-11 RES-CHIP 1/10W R254 1-216-025-11 RES-CHIP 1/10W R051 1-216-295-91 SHORT CHIP R401 1-410-993-42 INDUCTOR R052 1-216-295-91...
- Page 50 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R453 1-216-171-00 RES-CHIP 1/8W R609 1-218-873-11 METAL CHIP 0.5% 1/10W R454 1-216-001-00 RES-CHIP 1/10W R610 1-215-481-00 METAL 330K 1% 1/4W R460 1-216-049-11 RES-CHIP 1/10W R611 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R461 1-216-022-00 RES-CHIP 1/10W R612...
- Page 51 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R1236 1-216-073-91 RES-CHIP 1/10W < TRANSISTOR > < RELAY > Q570 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R RY601 £ 1-755-388-11 RELAY (AC POWER) < RESISTOR > < SWITCH > JR101 NOT FITTED SW532 1-572-707-11 SWITCH, LEVER R022 1-216-089-91 METAL CHIP...
- Page 52 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK A Board Variant Parts KV-28HX15B & KV-32HX15B < CONNECTOR > CN503 * 1-816-974-51 PLUG, CONNECTOR 3P < TUNER > < DIODE > TU101 1-693-555-14 FRONTEND (TUNER+IF) D535 8-719-908-03 DIODE GP08D A Board Variant Parts KV-28HX15E & KV-32HX15E D538 8-719-908-03 DIODE GP08D...
- Page 53 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK < CONNECTOR > < DIODE > CN4501 * 1-564-512-11 PLUG, CONNECTOR 9P D8801 8-719-923-60 DIODE MTZJ-T-77-9.1A CN4502 * 1-816-977-51 PLUG, CONNECTOR 6P D8802 8-719-302-43 DIODE EL1Z D8803 8-719-921-40 DIODE MTZJ-4.7C < DIODE > <...
- Page 54 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C1902 1-137-374-11 MYLAR 0.047UF 5.00% 50V < TRANSISTOR > C1903 1-126-964-11 ELECT 10UF 20.00% 50V C1904 1-130-475-00 MYLAR 0.0022UF 5.00% 50V Q1840 8-729-119-76 TRANSISTOR 2SA1175-HFE C1905 1-137-374-11 MYLAR 0.047UF 5.00% 50V Q1841 8-729-926-76 TRANSISTOR IRF620 C1906...
- Page 55 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK VM Board Variant Parts 28HX15 < FERRITE BEAD > < CAPACITOR > FB1701 1-535-303-00 LEAD, JUMPER (5.0MM) C1732 1-216-295-91 SHORT CHIP < COILS > C1848 1-136-601-11 FILM 0.001UF 5.00% 630V C1912 NOT FITTED L1903 1-412-533-21 INDUCTOR...
- Page 56 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK R1105 1-216-825-11 METAL CHIP 2.2K 5% 1/10W < IC > R1106 1-216-809-11 METAL CHIP 1/10W IC701 8-759-562-43 IC TDA6108JF/N1B < SWITCH > IC1801 8-759-603-37 IC M5216P S6100 £ 1-786-649-11 SWITCH, AC POWER PUSH <...
- Page 57 REF.NO. PART.NO DESCRIPTION REMARK REF.NO. PART.NO DESCRIPTION REMARK C Board Variant Parts 28HX15 MISCELLANEOUS < RESISTOR > £ 1-786-649-11 SWITCH, AC POWER PUSH £ 1-783-083-11 CORD, POWER (WITH FILTER) R704 1-216-361-00 METAL OXIDE 0.22 5% 2W £ 1-776-860-12 POWER CORD, FILTER (UK) £...
- Page 58 • User programmable Functional Check through Infrared • Fast and documented Test Mode setting of all Sony TV chassis Additional features such as Adjustments and Troubleshooting are available in chassis-dependent software modules. Please contact your local Sony Service organisation for the latest information.
