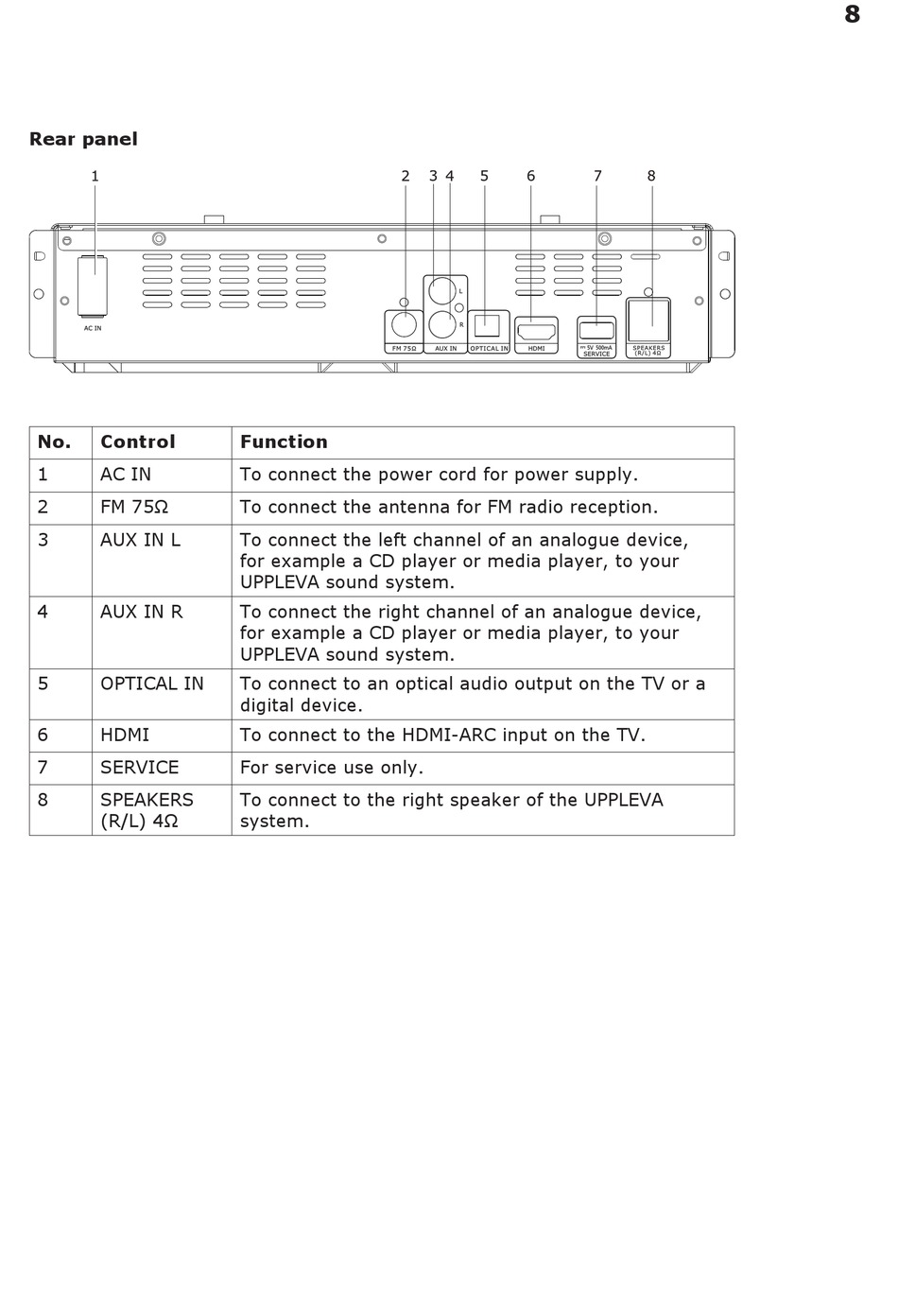

Rear panel

No� Control
1 AC IN
2 FM 75Ω
3 AUX IN L
4 AUX IN R
5 OPTICAL IN
6 HDMI
7 SERVICE
8 SPEAKERS
(R/L) 4Ω
Function
To connect the power cord for power supply�
To connect the antenna for FM radio reception�
To connect the left channel of an analogue device,
for example a CD player or media player, to your
UPPLEVA sound system�
To connect the right channel of an analogue device,
for example a CD player or media player, to your
UPPLEVA sound system�
To connect to an optical audio output on the TV or a
digital device�
To connect to the HDMI-ARC input on the TV�
For service use only�
To connect to the right speaker of the UPPLEVA
system�
