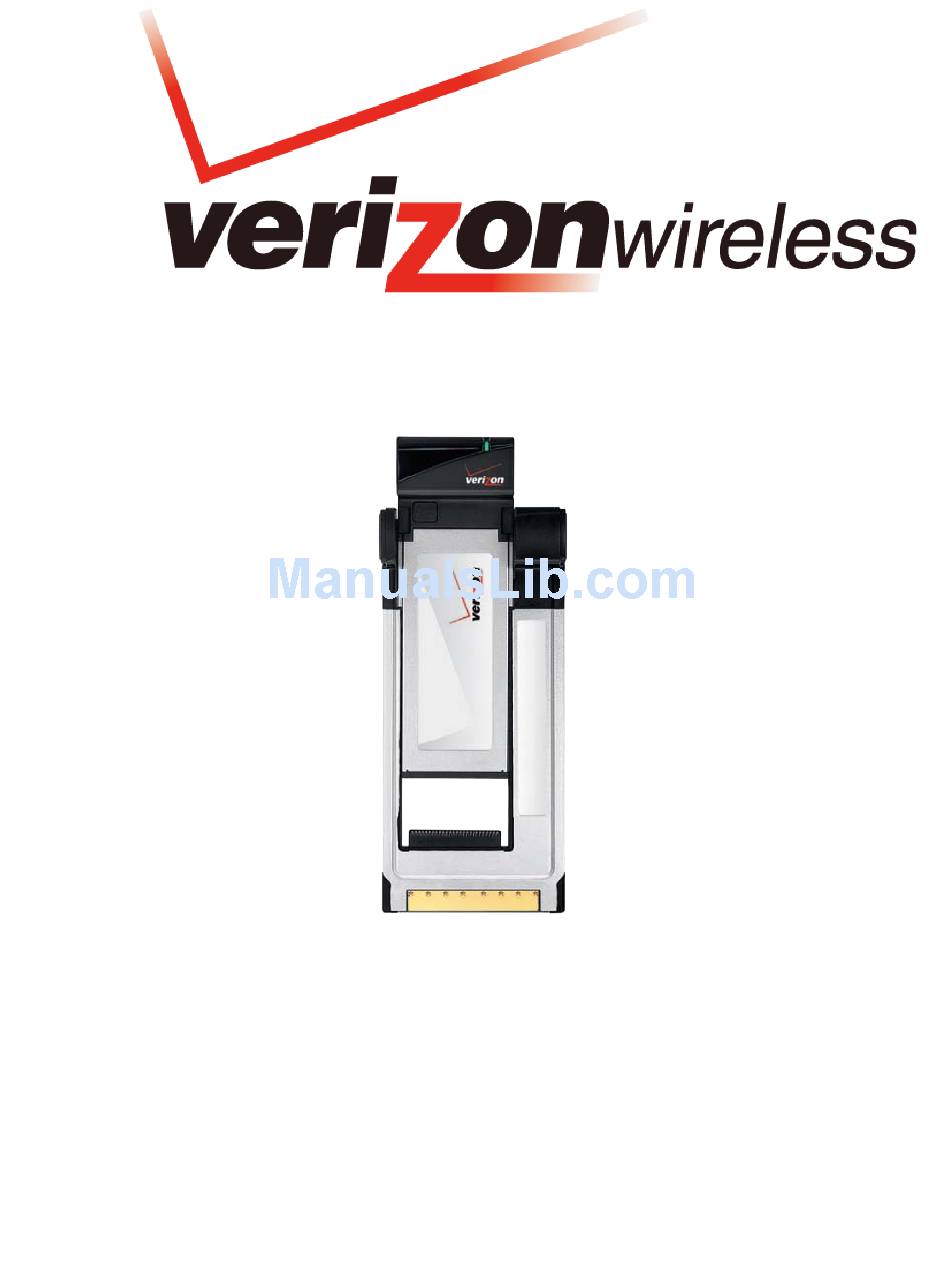

- Page 1 Mobile Broadband 2-in-1 PC770 PC Card and ExpressCard® Product user guide...
-
Page 2: Table Of Contents
Ways to Access......................................... 9 How to Use Your PC770 Card ....................10 Basics............................................10 Inserting the PC770 Card in a PC Card or ExpressCard Slot ........................12 Removing the PC770 Card from Your Computer............................15 PC770 Card External Antenna Connector.................. 17 ... -
Page 3: Welcome
Welcome Congratulations on purchasing the Verizon Wireless 2-in-1 PC770 PC Card and ExpressCard® for Mobile Broadband service! Before installing the PC770 Card‘s VZAccess Manager software and drivers, review this manual, which outlines the features of the PC770 Card hardware. This dual-band PC Card modem operates over the high-speed Mobile Broadband networks in the 800/1900 bands enabling you to connect at high speeds to the Internet, your corporate Intranet, and your email while you're away from the office. -
Page 4: Wireless Communications
Verizon Wireless or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the PC770 Card, or failure of the PC770 Card to transmit or receive such data. -
Page 5: Limitation Of Liability
Software Drivers License Proprietary Rights Provisions: The software drivers provided with this product are copyrighted by Verizon Wireless and/or Verizon Wireless’ suppliers. And although copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Verizon Wireless and/or Verizon Wireless’ suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is strictly prohibited by international law. -
Page 6: Pc770 Card Hardware: Overview
PC770 Card Hardware: Overview Thank you for choosing the Verizon Wireless 2-in-1 PC770 Card PC Card and ExpressCard for Mobile Broadband by Novatel Wireless! This 2-in-1 device empowers you with high-speed data access on the Verizon Wireless Mobile Broadband wireless data network. This device allows you to connect to Mobile Broadband from any notebook computer that is equipped with a Type II PCMCIA (PC Card) slot or an ExpressCard slot. -
Page 7: Care Of Your Pc770 Card
Care of Your PC770 Card As with any electronic device, the PC770 Card must be handled with care to ensure reliable operation. Verizon Wireless recommends the following handling guidelines: Do not apply adhesive labels to the PC770 Card; they may cause the device to potentially overheat •... -
Page 8: Getting Started
Getting Started IMPORTANT: The PC770 Card requires an activated account with Verizon Wireless in order to function. The modem can be activated three ways: in a Verizon Wireless store • by contacting Verizon Wireless Telesales • self-activated through the Verizon Wireless activation website. -
Page 9: Your Verizon Wireless Pc770 Card
(See SAR and FCC requirements on page 19.) Adapter: Locks to the card. Required for use in PC Card slots. Locking Mechanism: Locking Mechanism: Detaches the PC770 ExpressCard from the PCMCIA card slot adapter PC770 Card Product User Guide... -
Page 10: The Pc770 Card Package
LED Indicator (Service Status) The PC770 Card is designed with a status light that simply indicates whether or not the device is powered on and what the connection status is. LED Color Meaning LED not lit No Power to Modem... -
Page 11: Ways To Access
Subject to Customer Agreement, Calling Plan, credit approval & other service terms. * Speed claim based on our network tests with 5 MB FTP data files without compression. Verizon Wireless is rapidly adding Rev. A capability to your Mobile Broadband service area. Your Mobile Broadband Rev. A-enabled device will indicate coverage when you are in a Mobile Broadband Rev. -
Page 12: How To Use Your Pc770 Card
Turn on your computing device and close all applications. Insert the PC770 Card into your computer’s PC Card or ExpressCard slot and wait a few moments for the drivers to install. (See Page 12, Inserting the device into a PC Card or ExpressCard slot.) Choose “Install VZAccess Manager”... - Page 13 The User Guides may be easily accessed after VZAccess Manager has been installed. Your device includes two User Guides: VZAccess Manager Software User Guide – Details the functions of VZAccess Manager • PC770 Card Product User Guide – Details the PC770 Card ’s hardware features • To access the User Guides: Windows 1.
-
Page 14: Inserting The Pc770 Card In A Pc Card Or Expresscard Slot
IMPORTANT: When inserting or removing the device, always grip it by its sides, as this prevents damage to the piece. The PC770 Card may be used in computers equipped with a Type II PCMCIA (PC Card) slot or an ExpressCard slot. - Page 15 2. Push the lock slightly out. 3. Pull the device out of the adapter. 4. Insert the device into your computer’s ExpressCard slot, Verizon Wireless label facing up. (Do not forcefully insert the device, as this may damage it.) NOTE: If you are experiencing trouble inserting the device into you computer’s card slot: 1.
- Page 16 To properly reconnect the PC770 Card ExpressCard portion with the integrated adapter: 1. Locate the locking mechanism on the bottom of the adapter and push the lock slightly out. 2. Slide the PC770 Card ExpressCard portion back into the integrated adapter.
-
Page 17: Removing The Pc770 Card From Your Computer
ExpressCard slot and PC Card slot) to remove the card. NOTE: Once you have connected the PC770 Card , avoid removing it before your Internet connection is terminated, as some operating systems may be unable to respond to the sudden change in operation, causing automatic shutdowns or screen freeze issues. - Page 18 1. End your Mobile Broadband session by selecting “Disconnect” from VZAccess Manager and exit VZAccess Manager to ensure that the PC770 Card is powered off. Or, disconnect your session from Internet Connect. 2. Right-Click (Option-Right Click) the VZAccess Manager desktop icon and select Eject.
-
Page 19: Pc770 Card External Antenna Connector
PC770 Card External Antenna Connector External Antenna Connector This device is equipped with an external antenna connector. NOTE: External antenna sold separately. To access the External Antenna Connector: 1. Locate the External Antenna Connector on the side of the device. -
Page 20: Technical Support
Technical Support Data Technical Support For additional information and technical support for VZAccess Manager and Verizon wireless devices, you can visit the Verizon Wireless Data Technical Support page at: http://www.verizonwireless.com/b2c/support/data.jsp. PC770 Card Product User Guide... -
Page 21: Troubleshooting
(coverage area or because of an account or network problem). Please visit verizonwireless.com for network details. My notebook does not reboot when the PC770 Card is inserted. I experience an error or a blank screen. When this happens, simply remove the device and reboot the system. -
Page 22: Product Specification
-20° C to +65° C Storage Temperature (-4° F to 149° F) 5% to 90% over operating temperature Relative Humidity 1 meter drop, no damage – fully operational Drop 5 Hz to 500 Hz, 0.1 octave/second Vibration Stability PC770 Card Product User Guide... -
Page 23: Regulatory Notices
MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Verizon Wireless, Inc. may void your authority to operate the equipment. -
Page 24: Rf Exposure/Specific Absorption Rate (Sar) Information
THE FCC HAS GRANTED AN EQUIPMENT AUTHORIZATION FOR THIS WIRELESS MODEM WITH ALL REPORTED SAR LEVELS EVALUATED AS IN COMPLIANCE WITH THE FCC RF EXPOSURE GUIDELINES. THE HIGHEST SAR VALUE FOR THIS MODEM WHEN TESTED FOR COMPLIANCE AGAINST FCC STANDARDS WAS 1.179 W/KG USER-LAP POSITION. PC770 Card Product User Guide... -
Page 25: Limited Warranty And Liability
Product by the purchaser without prior written consent from Novatel Wireless, (VII) products designated by Novatel Wireless as beta site test samples, experimental, developmental, reproduction, sample, incomplete or out of specification Products, or (VIII) returned products if the original identification marks have been removed or altered. PC770 Card Product User Guide... -
Page 26: Glossary
Computing Device Personal Computing device (notebook, desktop computer, tablet PC, PDA, etc). Hot-Swappable The ability to remove and replace the microSD Card from the PC770 Cardwhile it is still connected to the computer and online without damaging the device. Kbps Kilobits per second –... - Page 27 (WWANs) use cellular towers to transmit a wireless signal over a range of several miles to a mobile device compared to wireless Wi-Fi LANs (WLANs), which span only a few hundred feet and generally to only stationary devices. PC770 Card Product User Guide...
-
Page 28: Trademarks And Service Marks
Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Verizon Wireless or any other Trademark displayed in this user manual without the written permission of Verizon Wireless or its respective owners.
