Summary of Contents for Edge ED510-E2

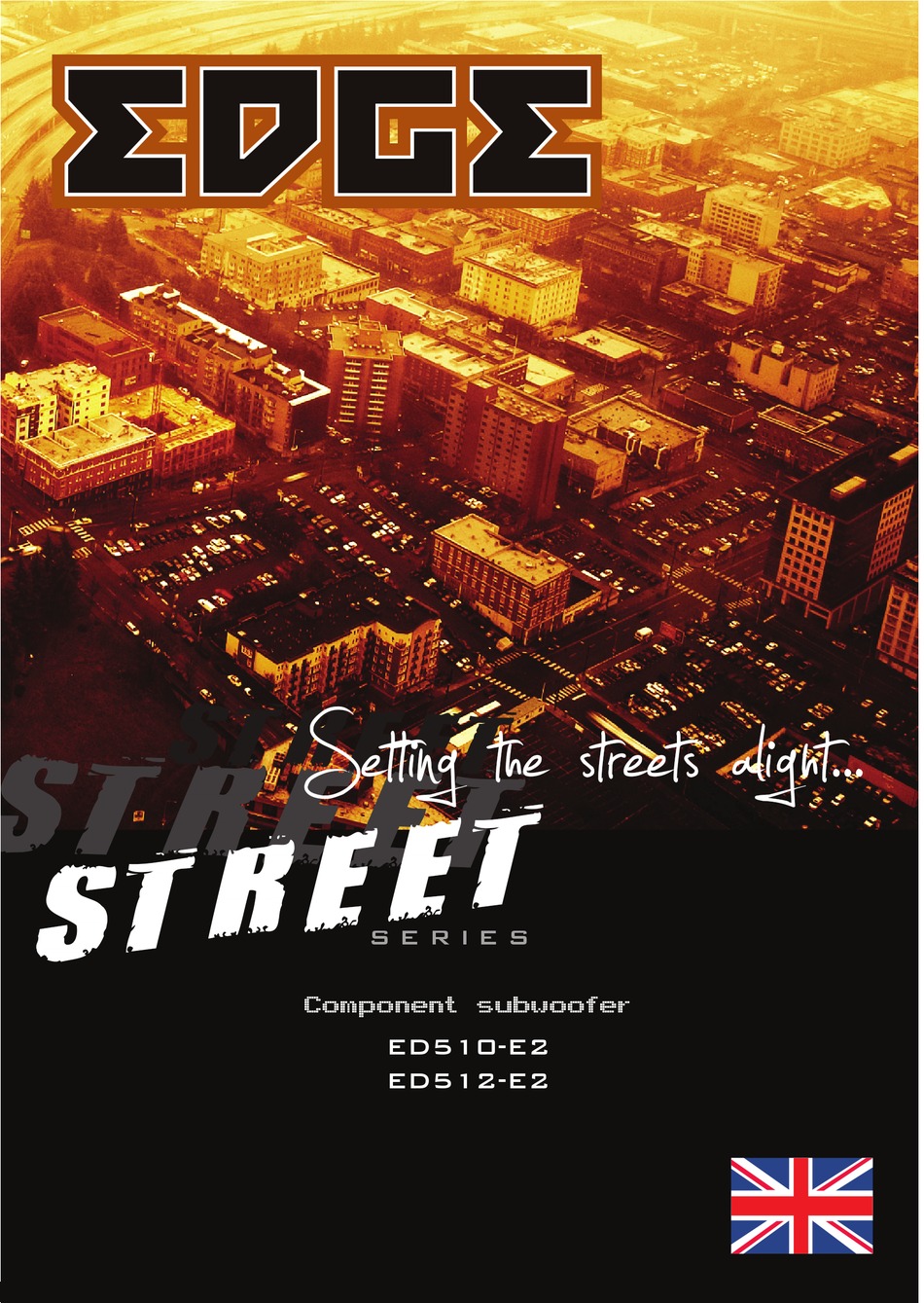

- Page 1 Component subwoofer ED510-E2 ED512-E2...
-
Page 2: Installation
Thank you for buying EDGE, we hope you enjoy listening to your product as much as we enjoyed creating it. -
Page 3: Limited Warranty
For the avoidance of doubt, EDGE does not limit its liability for death or personal injury to the extent only that it arises as a result of negligence of EDGE, its affiliates, directors, employees or other... -
Page 4: Run-In Procedure
RUN IN PROCEDURE EDGE recommends that you follow the run in procedure for the subwoofer detailed below. When your Subwoofer is used for the first time, like most brand new items it is naturally very stiff and rigid. It will take time for the moving parts of this Subwoofer to loosen up before the Subwoofer will be ready to deliver its full potential. - Page 5 WIRING Please follow the wiring diagram below and ensure that correct polarity is observed as incorrect wiring may cause the subwoofer to be out of phase with the rest of the system and result in a loss of bass.
- Page 6 Sealed enclosures are ideally suited to rock, jazz and live music. ED510-E2 Tight bass: 1 cubic feet Deep bass: 1.5 cubic feet ED512-E2 Tight bass: 1.25 cubic feet...
- Page 7 at least 3/4 inch MDF (medium density fibreboard) or Birch ply to construct your enclosure at least 1 inch is recommended for the baffle. It is recommend that the panels are glued, this wed and braced with sections of the same material you have used to build the enclosure The BlackAir woofer is capable of producing internal pressures that can literally blow badly made enclosures, so great care needs to be taken with the construction and ng of your enclosure.
- Page 8 ENCLOSURE VOLUME (CONT) If we require a volume of 2.5cuft then we multiply this by 1728 2.5 x 1728= 4320 cubic inches. our enclosure We now take 2 known enclosure dimensions that we will use, e.g height and width and divide s are glued, If we require a volume of 2.5cuft then we multiply this by 1728 2.5 x 1728= 4320 cubic inches.
-
Page 9: Specification
TS PARAMETERS Parameter ED510-E2 ED512-E2 Revc 4Ω 3.9Ω F0 39.8Hz 34.1 Hz Sd 33 cm 51.47 cm Md 75g 110g BL 9.9 Tm 10.49 Tm Qms 7.17 6.251 Qes 1.040 1.051 Qts 0.908 0.900 N0 0.283 % 0.321 % SPL 85.6dB 86.5 dB... - Page 10 UK TECHNICAL ENQUIRIES Call 09067031420 Calls cost 50p per minute. Call costs correct at date of publication (01/02/12) Hours of business 9.00am - 5.30pm GMT Monday - Friday. All calls are recorded for training purposes. MIDBASS Distribution PO Box 11000 B75 7WG...
- Page 11 INTERNATIONAL TECHNICAL ENQUIRIES For international technical support please contact the distribution agent for your country. www.edgecaraudio.co.uk/contact-us Please visit for more details.
- Page 12 www.edgecaraudio.com www.facebook.com/edgeaudio...
