Sanyo VMC-8621P Instruction Manual

Hide thumbs Also See for VMC-8621P:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

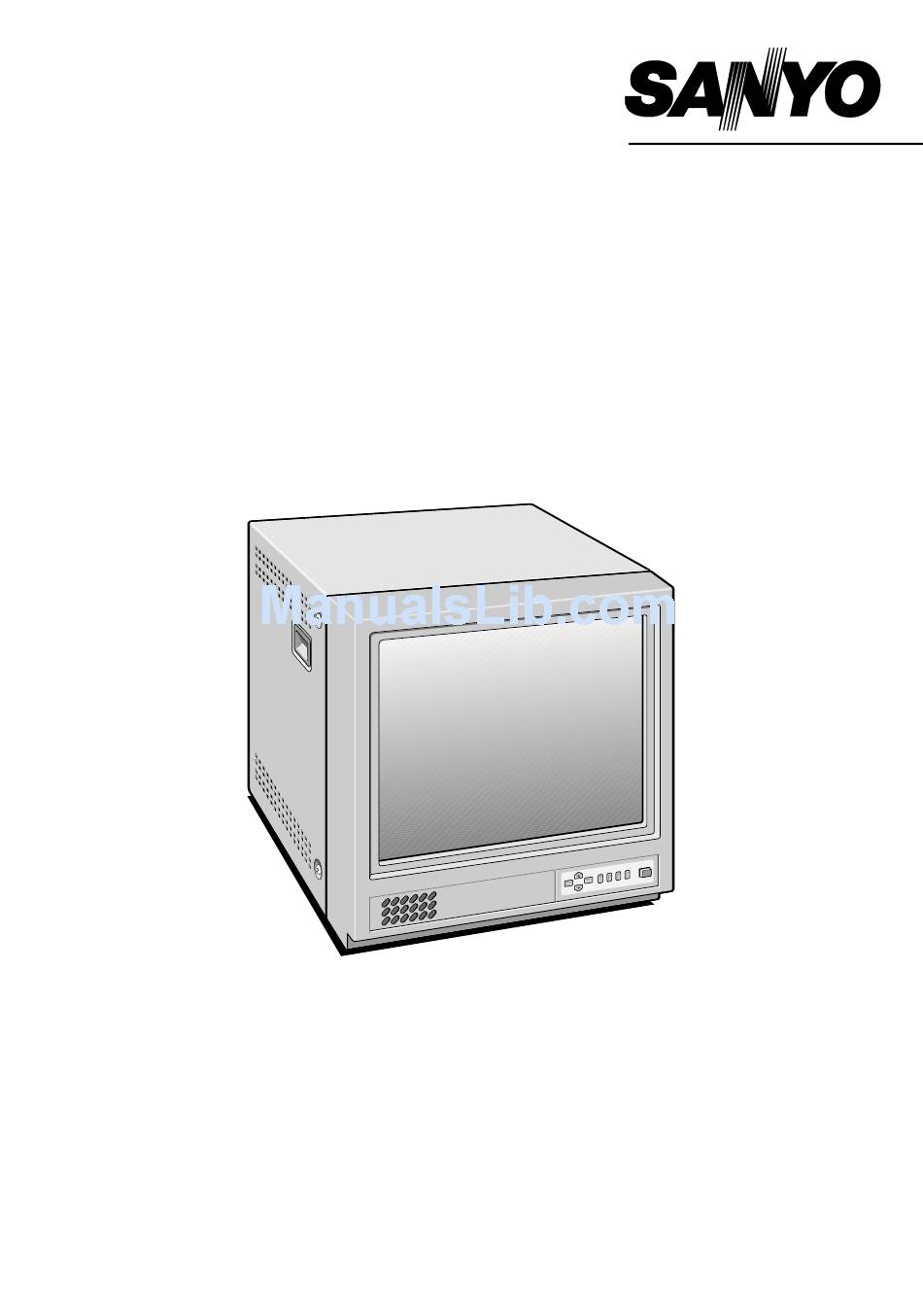

INSTRUCTION MANUAL

Colour Video Monitor
About this manual
Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for later reference.
VMC-8621P

Advertisement

Table of Contents
loading

Related Manuals for Sanyo VMC-8621P

Summary of Contents for Sanyo VMC-8621P

  • Page 1: Instruction Manual

    VMC-8621P INSTRUCTION MANUAL Colour Video Monitor About this manual Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for later reference.
  • Page 2 Servicing should always be referred inside, and there is a high risk of fire or electric shock if they are to your dealer or Sanyo Authorized Service Centre. touched. Any internal checks, settings, or repairs should be performed by the dealer.

  • Page 3: Table Of Contents

    CONTENTS FEATURES PARTS NAMES ..... . . 21 inch, PAL/NTSC dual colour system Horizontal resolution more than 450 TV CONNECTION ......lines BASIC OPERATION .

  • Page 4: Parts Names

    PARTS NAMES Front Panel 2 4 5 6 7 8 9 SCAN Speaker Cursor (j) button (») When the monitor selector button (A, B or Y/C) is pressed, When this button is pressed, the cursor moves up. When it the speaker lets you hear the sound from the components reaches the top, it reappears at the bottom.

  • Page 5: Rear Panel

    PARTS NAMES Rear Panel AC INPUT socket Connect the AC power cord (supplied) securely to this socket and to a wall outlet. Rear A terminals (AUDIO/VIDEO A terminals) When the monitor A selector button at the front of the monitor is pressed, the audio and video signals from the component which is connected to these terminals can be monitored.

  • Page 6: Connection

    CONNECTION Before making any connection, make sure all the devices are turned off. Before making the connections, please refer to the instruction manual accompanying each device. If the devices are not connected properly, that may cause a fire and/or damages. Basic connections Connections to the S-Video terminals Monitor...

  • Page 7: Basic Operation

    BASIC OPERATION 3 Select the desired menu item and then press Press the POWER button to turn on the the ENTER button. power. If you press the ENTER button repeatedly while ON: The power is turned on (the POWER indicator is the menu screen is being displayed, the display lit).

  • Page 8: Adjust The Osd Menu Item

    ADJUST THE OSD MENU ITEM Open the menu screen (press the OSD button), use the BRIGHTNESS adjustment cursor buttons to select the desired menu item, and then 1 Select “ 3. BRIGHTNESS 75%” and then press press the ENTER button. the ENTER button.
  • Page 9 ADJUST THE OSD MENU ITEM VOLUME adjustment 1 Select “ 6. VOLUME 50%” and then press the ENTER button. 2 Use the cursor (l) and (j) buttons to adjust the sound volume. Menu screen language setting 1 Select “ 8. LANGUAGE” and then press the ENTER button.
  • Page 10 ADJUST THE OSD MENU ITEM Displaying characters such as for setting Press the ENTER button, and then use the cursor l (j) button to select “D”. location on the monitor screen (Refer to “ CHARACTERS TABLE” .) Note: If there is no signal being input from the input terminals selected (A, B or Y/C) at the rear of the monitor, the title cannot be set for those terminals.

  • Page 11: Language Screen Table

    LANGUAGE SCREEN TABLE English Français Deutsch Menu Title/channel Automatic title/ channel selection Title settings COLOR adjustment TINT adjustment BRIGHTNESS adjustment CONTRAST adjustment SHARPNESS adjustment VOLUME adjustment...
  • Page 12 LANGUAGE SCREEN TABLE Español Italiano Russian Menu Title/channel Automatic title/ channel selection Title settings COLOR adjustment TINT adjustment BRIGHTNESS adjustment CONTRAST adjustment SHARPNESS adjustment VOLUME adjustment...

  • Page 13: Troubleshooting

    TROUBLESHOOTING Solutions to common problems related to your monitor are describe here. If none of the solutions presented here solve the problem, unplug the monitor and consult a SANYO-authorized dealer or service center for assistance. Problems Points to be checked...

  • Page 14: Specifications

    SPECIFICATIONS Colour system PAL/NTSC, selected automatically Picture tube 21 inch Resolution More than 450 TV lines Input terminals S-Video signal (VIDEO C) Separate Y/C signal, mini-DIN connector (1) Y signal: 1.0 Vp-p, 75 Ω negative sync C signal: 0.286 Vp-p, 75 Ω negative sync, bridge connection possible Composite sync signal, 1.0 Vp-p, 75 Ω...
  • Page 15 SPECIFICATIONS Dimensions...
  • Page 16 SANYO Electric Co., Ltd. 1AC6P1P2529-- L8MZ5/XE, AU, UK (0901KP-TVS) Printed in Taiwan 312-0147-101...
