Summary of Contents for Sanyo VMC-8618

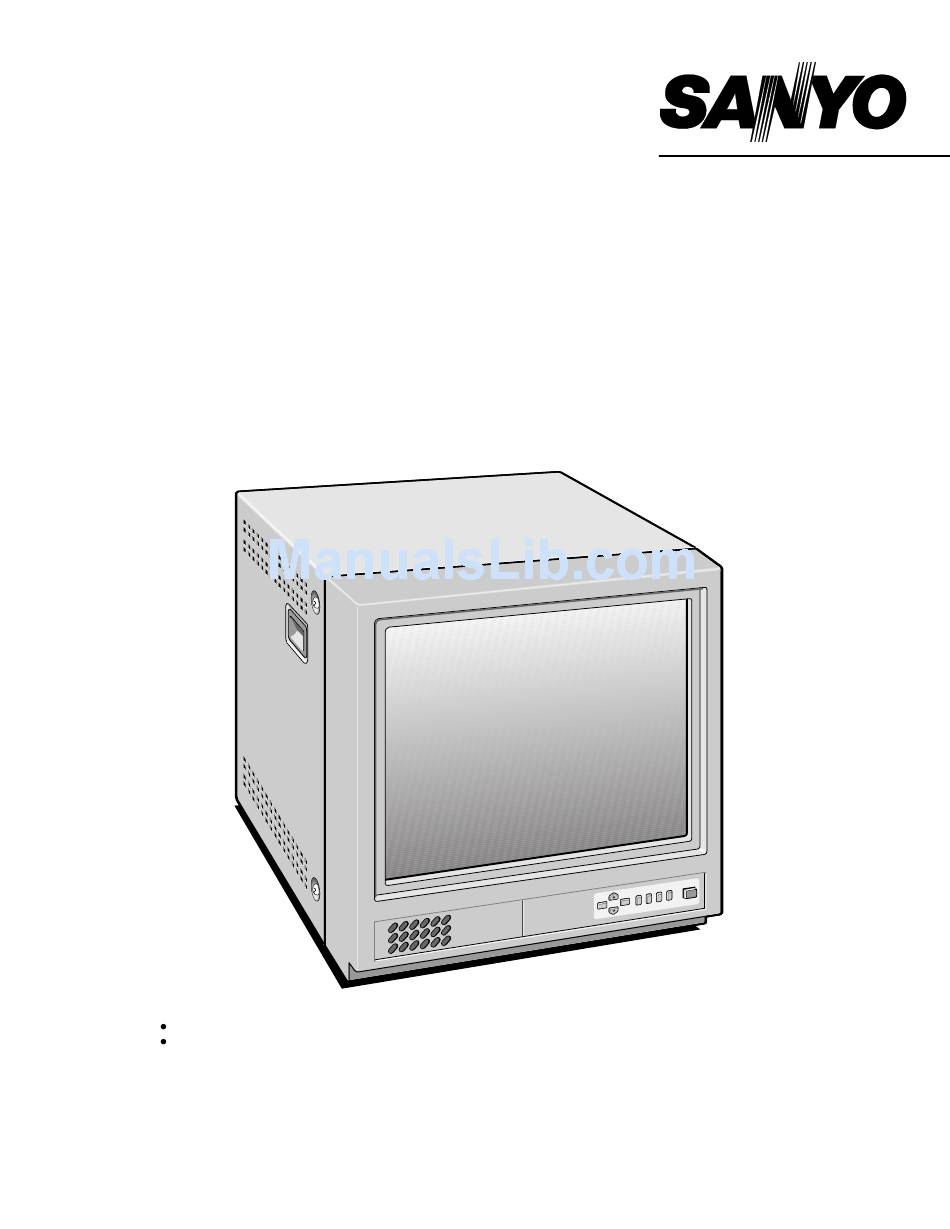

- Page 1 INSTRUCTION MANUAL Color Video Monitor About this manual Before installing and using this unit, please read this manual carefully. Be sure to keep it handy for later reference. This manual gives basic connections and operating instructions for 2 models. VMC-8618 VMC-8613...
- Page 2 VIDEO MONITOR LIMITED WARRANTY In order to obtain warranty service, the product must be delivered to and picked up from an Authorized Sanyo Service Center at the user’s expense, unless specifically stated otherwise in this warranty. The names and addresses of Authorized Sanyo Service Centers may be obtained by calling the toll-free number listed below.
-
Page 3: Information To User
INFORMATION TO USER WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS READ INSTRUCTIONS -- All the safety and operating instructions should be read before the appliance is operated. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. CLEANING -- Unplug video monitor or equipment from the wall outlet before cleaning. -
Page 5: Table Of Contents
Servicing should always be referred to your dealer or Sanyo Authorized Service Centre. CONTENTS PARTS NAMES ..... . . 4 CONNECTION . -
Page 6: Parts Names
6 7 8 9 Model: VMC-8613 2 4 5 6 7 8 9 Model: VMC-8618 SCAN Cursor (l) button (ã) When this button is pressed, the cursor moves down. When it reaches the bottom, it reappears at the top. In addition, this button is used to make adjustment values smaller. -
Page 7: Rear Panel
PARTS NAMES Rear Panel AC INPUT socket Connect the AC power cord (supplied) securely to this socket and to a wall outlet. Rear A terminals (AUDIO/VIDEO A terminals) When the monitor A selector button at the front of the monitor is pressed, the audio and video signals from the component which is connected to these terminals can be monitored. -
Page 8: Connection
CONNECTION Before making any connection, make sure all the devices are turned off. Before making the connections, please refer to the instruction manual accompanying each device. If the devices are not connected properly, that may cause a fire and/or damages. Basic connections Monitor Video recorder... -
Page 9: Basic Operation
BASIC OPERATION Press the POWER button to turn on the power. ON: The power is turned on (the POWER indicator is lit). The signals from the channel (A, B or Y/C) which was being used when the power was last turned off will be input. -
Page 10: Adjust The Osd Menu Item
ADJUST THE OSD MENU ITEM Open the menu screen (press the OSD button), use the cursor buttons to select the desired menu item, and then press the ENTER button. Note: The setting characters which are displayed on each adjustment screen (such as 50%) may not display correctly (dropout) in some cases. - Page 11 ADJUST THE OSD MENU ITEM VOLUME adjustment 1 Select “6. VOLUME 50%” and then press the ENTER button. 2 Use the cursor (l) and (j) buttons to adjust the sound volume. Monitor switching time (dwell time) setting For Model 8613 only 1 Select “7.
- Page 12 ADJUST THE OSD MENU ITEM Displaying characters such as for setting location on the monitor screen (Refer to “CHARACTERS TABLE”.) Note: If there is no signal being input from the input terminals selected (A, B or Y/C) at the rear of the monitor, the title cannot be set for those terminals.
-
Page 13: Language Screen Table
LANGUAGE SCREEN TABLE English Français Deutsch Menu Title/channel Automatic title/ channel selection Title settings COLOR adjustment TINT adjustment BRIGHTNESS adjustment CONTRAST adjustment SHARPNESS adjustment VOLUME adjustment DWELL TIME setting... - Page 14 LANGUAGE SCREEN TABLE Español Italiano Russian Menu Title/channel Automatic title/ channel selection Title settings COLOR adjustment TINT adjustment BRIGHTNESS adjustment CONTRAST adjustment SHARPNESS adjustment VOLUME adjustment DWELL TIME setting...
-
Page 15: Troubleshooting
TROUBLESHOOTING Solutions to common problems related to your monitor are describe here. If none of the solutions presented here solve the problem, unplug the monitor and consult a SANYO-authorized dealer or service center for assistance. Problems Points to be checked... -
Page 16: Specifications
–10 ~ 45˚C, storage temperature 10 ~ 90% 350 x 350 x 378 mm 14 kg AC power cord x1 Y/C (Mini DIN 4 pin) terminal specification VMC-8618 18 inch More than 800 TV lines negative sync BNC connector (2) negative sync BNC connector (2), automatic termination setting –...
