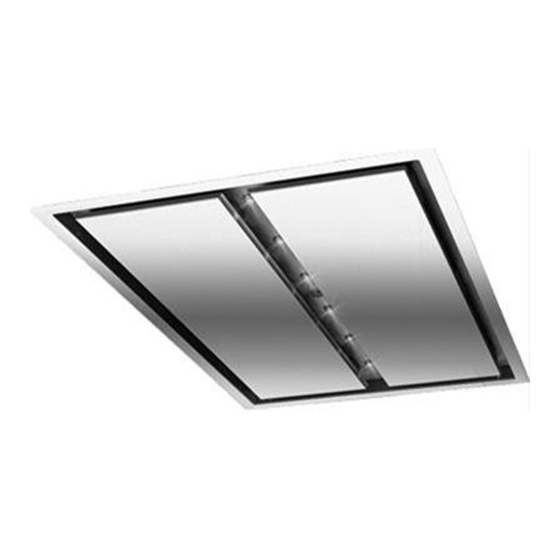

Model CC34E6SB
ENGLISH.....................................1
FRANÇAIS.................................17
ESPAÑOL.................................. 33

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC34E6SB and is the answer not in the manual?

Questions and answers

Related Manuals for Best CC34E6SB

Summary of Contents for Best CC34E6SB

  • Page 1 Model CC34E6SB ENGLISH........1 FRANÇAIS.........17 ESPAÑOL........33 In USA - BEST Hartford, Wisconsin In CANADA - BEST Drummondville, QC, Canada REGISTER YOUR PRODUCT ONLINE AT : www.BestRangeHoods.com/register For additional Information visit www.BestRangeHoods.com...

  • Page 2: To Reduce The Risk Of A Range Top Grease Fire

    READ AND SAVE THESE INSTRUCTIONS INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

  • Page 3: To Reduce The Risk Of Injury To Persons In The Event Of A Range Top Grease Fire, Observe The Following

    11. Please read specification label on product for further information and requirements. 12. To reduce the risk of fire and electric shock, install this range hood only with Best Exterior Blower Models EB6, EB9, EB12, EB15, or Best In-Line Blower Models ILB3, ILB6, ILB9 or ILB11. Other blowers cannot be substituted.

  • Page 4: Operation

    OPERATION Controls (Fig. 1) The hood is operated using the (5) push-buttons located on the hood and the remote control. LED colors are displayed on hood control only. P1: Activate/deactivate delay-off (10 minute) P2: Filter change indication timer reset ¤ P3: Decreases fan motor speed until turned off (4>3>2>1>OFF) (P1) P4: Turns fan motor on and increased speed (ON>1>2>3>4)

  • Page 5: Remote Control

    REMOTE CONTROL The remote control is linked to the hood at the factory. If, for some reason, the link is lost - follow the directions below: To Link Remote Control to Hood 1. Turn off hood motor and hood lights. 2.

  • Page 6: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Motor The motor is permanently lubricated and never needs oiling. If the motor bearings make excessive or unusual noise, replace the motor with the exact service motor. The impeller should also be replaced. Grease Filters The grease filters should be cleaned frequently.

  • Page 7: Prepare The Hood

    Either an exterior blower or an in-line blower may be used with this range hood. The Model CC34ESB range hood must be installed only with Best Exterior Blower Models EB6, EB12, or Best In-Line Blower Models ILB3, ILB6, or ILB9. Other blowers cannot be substituted.

  • Page 8: Install The Ductwork

    Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs. 3. Install an exterior or in-line blower.
  • Page 9 PREPARE THE HOOD SUPPORT 1. Construct a wood framing system as shown in Fig. 6. 2 x 4 FRAMING 2. The structure must be capable of support- ing its own weight, plus the weight of the hood (58 pounds). 11” 11”...

  • Page 10: Install The Hood

    INSTALL THE HOOD CAUTION: At least two installers are recommended because of the large size and weight of this range hood. WOODEN FRAME 1. Lift range hood into the ceiling opening. 2. Secure each support frame to the wooden hood support frame using (6) 6 x 70 mm lag bolts and washers provided.

  • Page 11: Connect The Wiring

    CONNECT THE WIRING WARNING: All electrical wiring should be done by a qualified person (s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Do not turn blower on at the service panel until all wires have been connected.

  • Page 12: Install The Filters

    INSTALL THE FILTERS 1. Pull down both closure panels as shown. 2. To install the grease filters, align rear filter tabs with slots in the hood. Push latch tab in, push filter into position and release. Make sure filter is securely engaged after installation.

  • Page 13: Warranty

    ONE YEAR LIMITED WARRANTY FOR BEST PRODUCTS Broan-NuTone LLC (Broan-NuTone) warrants to the original consumer purchaser of Best products that such products will be free from defects in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRAN- TIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 14: Service Parts

    SERVICE PARTS Model CC34E6SB KEY NO. PART NO. DESCRIPTION B003102866 FRAME B08087804 GREASE FILTER B08092517 CONNECTION AIR OUTLET B02011341 DAMPER FLAP B03115251 BOTTOM BRACKET B004203477 WIRES BE3350233 FEEDER CABLE CONNECTION BOX BE3334252 FEEDER CABLE CONNECTION BOX COVER B02011389 RING NUT...
  • Page 15 SERVICE PARTS Model CC34E6SB - 15 -...
  • Page 16 99044973D - 16 -...
