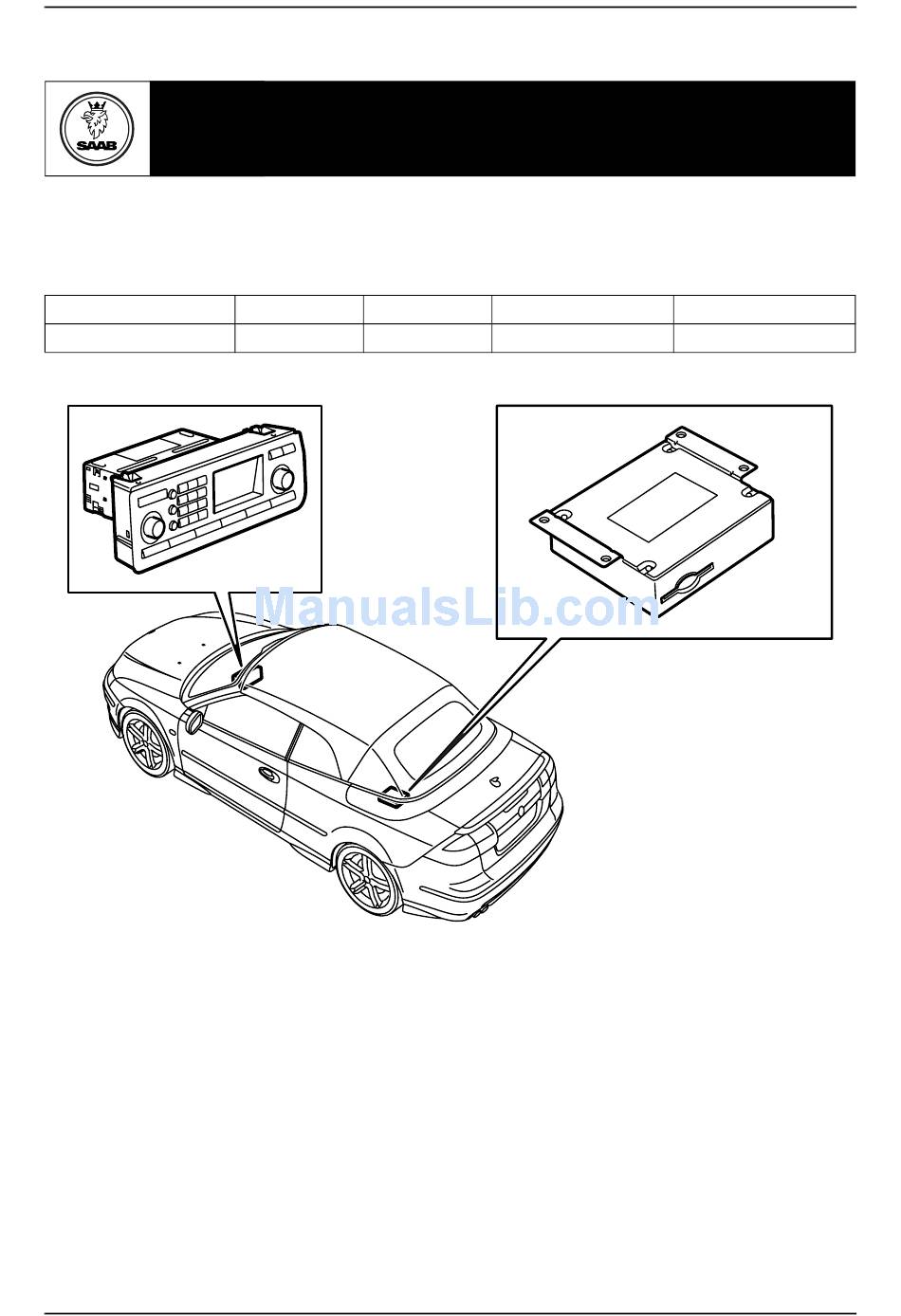

  • Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 CV M04- Integrated telephone Accessories Part No. Group Date Instruction Part No. Replaces 12 832 505 9:39-13 Nov 03 12 832 515 F930A301 Saab 9-3 CV M04-...
  • Page 2 6 Screw (x2) 7 Antenna, Bluetooth 8 Cable tie (x17) In addition, the following items are required (ordered separately) · Telematics unit · Control panel (certain cars) · Antenna cable (certain models) · Steering wheel (certain cars) Saab 9-3 CV M04-...

  • Page 3: Bus Communication

    AMP1 is an amplifier behind the left-hand rear side trim AMP2 is an amplifier by the REC CDC is a CD changer by the REC DVD is a DVD player by the REC Saab 9-3 CV M04-...
  • Page 4 Continue with step 61. No telematics unit, but blue antenna cable connection fitted and violet antenna cable connection fitted: Continue with step 22. Saab 9-3 CV M04-...
  • Page 5 16 Press out the seat belt guide from the backrest cushion and move the seat belt out from the guide and the backrest cushion. 17 Lift out the backrest cushion. Saab 9-3 CV M04-...
  • Page 6 21 Guide the antenna cable into the torsion compartment and position the antenna cable connection, together with the blue antenna cable connection if fitted, at the centre of the torsion compartment. Without navigation: Continue with step 22. With navigation: Continue with step 61. Saab 9-3 CV M04-...
  • Page 7 26 Remove the speaker connector and remove the side trim. 27 Remove the left-hand bass speaker or the left- hand cover. Saab 9-3 CV M04-...
  • Page 8 8 12 832 515 F930A307 28 Remove the left-hand scuff plate. 29 Remove the lower section of the A-pillar trim on the left-hand side. Saab 9-3 CV M04-...
  • Page 9 Such damage can cause an interruption to communication. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
  • Page 10 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
  • Page 11 31 in position 1 in the kit's connector. 39 Cars where the bracket at the REC is fitted: Continue with step 48. Cars where there is no bracket at the REC: Continue with step 40. Saab 9-3 CV M04-...
  • Page 12 40 Remove the connector from the amplifier. 41 Remove the small connector from the large connector. 42 Remove the fibre optic cable connected to posi- tion 1 by opening the connector locking clip and carefully lifting the hook. Saab 9-3 CV M04-...
  • Page 13 47 Remove the protective cover from the fibre optic cable's other connection and fit the connection in position 2 in the connector inside the torsion compartment. Fit the lock. Continue with step 51. Saab 9-3 CV M04-...
  • Page 14 REC. Secure with cable ties, but do not tighten them fully as two further cables will be secured. Continue with step 51. Saab 9-3 CV M04-...
  • Page 15 Red (RD) cable (+) in position 10 Black (BK) cable (-) in position 20 Fit the connector for the telematics unit in the large connector in the kit's wiring harness. Saab 9-3 CV M04-...
  • Page 16 Red (RD) cable (+) in position 1 Black (BK) cable (-) in position 2 57 Fit the lock, plug in the connector and secure it at the wiring harness to the REC. Saab 9-3 CV M04-...
  • Page 17 60 Connect the antenna cable(s) and the bluetooth antenna to the telematics unit. Important Be careful with the bluetooth antenna as it is very easily damaged. Continue with step 67. Saab 9-3 CV M04-...
  • Page 18 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
  • Page 19 1 in the removed connector by opening the connector locking clip and carefully lifting the hook. Care- fully guide the fibre optic cable away so that it is not damaged. Saab 9-3 CV M04-...
  • Page 20 70 Amplifier and/or CD changer fitted: Fit the small connector in the amplifier and the CD changer connector. 71 Amplifier and/or CD changer fitted: Plug in the amplifier and CD-changer connector. Continue with step 72. Saab 9-3 CV M04-...
  • Page 21 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
  • Page 22 75 Fit the side scuff plate. 76 Fit the front section of the luggage compartment trim, the scuff plate and fit the carpet to the luggage compartment floor. Without navigation: Continue with step 77. With navigation: Continue with step 85. Saab 9-3 CV M04-...
  • Page 23 77 Fit the A-pillar trim. 78 Fit the scuff plate. Cars where the infotainment control panel has no screen: Continue with step 79. Cars where the infotainment control panel has a screen: Continue with step 85. Saab 9-3 CV M04-...
  • Page 24 The visible red light is a class 1 laser. Do not look directly into the optical fibre or the control module connector at close range. A distance of less than 20 mm between your eyes and the light source may cause eye injury. Saab 9-3 CV M04-...
  • Page 25 12 832 515 25 F930A324 82 Connect the connector to the kit's control panel. 83 Fit the control panel. 84 Position and fit the air vent. Saab 9-3 CV M04-...
  • Page 26 Saab 9-3 CV M04-...
  • Page 27 Position the seat cushion and fit the screws in the front edge of the seat cushion. 98 Cars where the left-hand rear side trim and/or rear seat have been removed: Raise the soft top completely. Saab 9-3 CV M04-...
  • Page 28 "All", select "Add/Remove", select the accessory and select "Add". Note The diagnostic tool will on some occasions need to retrieve a security code in TIS. Information on what to do will be displayed on the diagnostic tool display. Saab 9-3 CV M04-...
