900
SITdefault
Saab 9-3 4D M03-
Integrated telephone
Accessories Part No.
12 787 156
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:39-12
SCdefault
Installation instructions
Date
Instruction Part No.
Oct 03
12 788 466
Saab 9-3 4D M03-
Replaces
F930A145
Advertisement
Related Manuals for Saab 12 787 156
Summary of Contents for Saab 12 787 156

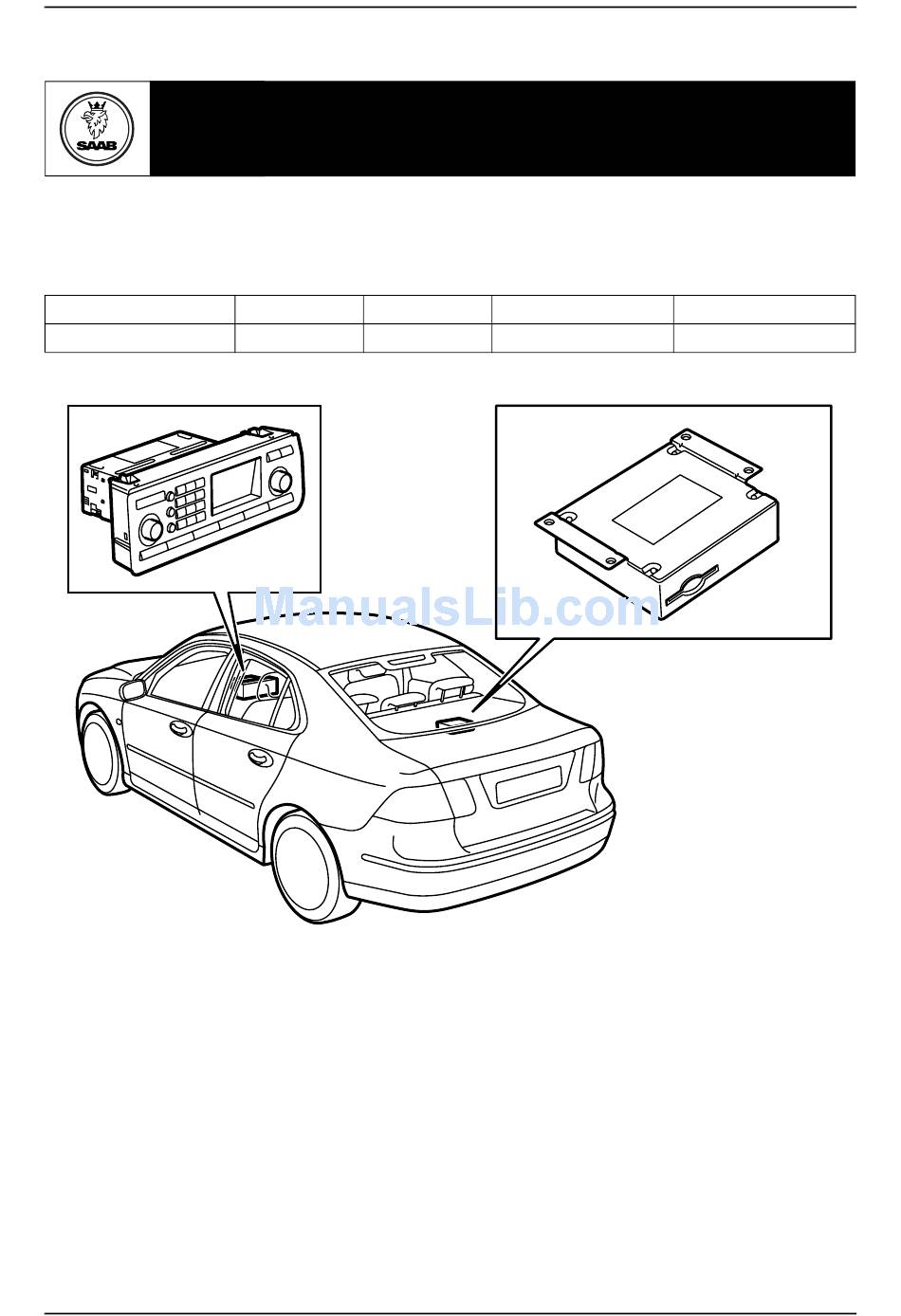

- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 4D M03- Integrated telephone Accessories Part No. Group Date Instruction Part No. Replaces 12 787 156 9:39-12 Oct 03 12 788 466 F930A145 Saab 9-3 4D M03-...
- Page 2 (ordered separately) · Telematics unit (no. 1) · Wiring harness (certain cars) · Antenna cable GPS/GSM (certain cars) · Antenna cable GSM (certain cars) · Control panel (certain cars) · Steering wheel with switch (certain cars) Saab 9-3 4D M03-...
-
Page 3: Bus Communication
AMP1 is an amplifier below the left-hand front seat AMP2 is an amplifier by the REC CDC is a CD changer by the REC DVD is a DVD player by the REC Saab 9-3 4D M03-... - Page 4 4 Cars without navigation: Remove the hatch in the luggage compartment's left-hand side trim. 5 Cars without navigation: Remove the clips for the left-hand side trim and fold the trim away. 6 Open the rear doors. 7 Lower the rear seat backrest. Saab 9-3 4D M03-...
- Page 5 Telematics unit fitted: Continue with step 31. Cars with double antenna cable which continues to the centre of the parcel shelf. No telematics unit: Continue with step 26. Saab 9-3 4D M03-...
- Page 6 18 Undo the ceiling trim from the weatherstrip by the rear doors. 19 Carefully lower the roof at the rear edge so that the antenna can be reached. The brake light connector may have to be removed. Saab 9-3 4D M03-...
- Page 7 C-pillar. – Fit the plastic foam tape to the body behind the excess connectors in order to prevent rattling. – Guide the antenna cable down from the C-pillar to the centre of the parcel shelf. Saab 9-3 4D M03-...
- Page 8 25 Plug the connector into the upper brake light (if it has been removed), fit the cover and press in the headlining clip. Cars without navigation: Continue with step 26. Cars with navigation: Continue with step 31. Saab 9-3 4D M03-...
- Page 9 REC without attaching it. 30 Connect and fit the speakers and any cover. Important If the car has no bass speakers then the connectors must be fitted on the underside of the speaker covers. Saab 9-3 4D M03-...
- Page 10 33 Fit the telematics unit and screw it into the parcel shelf. Tightening torque 8 Nm (6 lbf ft) 34 Secure the wiring harness and antenna cables to the cable clamps on the parcel shelf. Saab 9-3 4D M03-...
- Page 11 Cars where there is no bracket at the REC: Continue with step 41. Cars without navigation where the bracket at the REC is fitted: Continue with step 72. Cars with navigation: Continue with step 98. Saab 9-3 4D M03-...
- Page 12 44 Remove the two rear retaining screws from the seat. 45 Angle the seat forwards. 46 Pull the seat back so that the fitting hooks loosen from their positions. Fold the whole seat backwards. 47 Remove the amplifier. Saab 9-3 4D M03-...
- Page 13 · The cable should not lie against any sharp edges as this may cause increased signal reduction. 49 Unplug the fibre-optic cable connector (the small connector) from the amplifier connector. Saab 9-3 4D M03-...
- Page 14 54 Fit the small connector to the large connector. 55 Fit the cover to the cable duct, draw back the carpet and guide out the connector and the cables through the hole in the carpet. 56 Connect and fit the amplifier. Saab 9-3 4D M03-...
- Page 15 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 4D M03-...
- Page 16 Tightening torque 30 Nm (22 lbf ft) 65 Push the seat backwards and reset the position of the back rest. 66 Fit the A-pillar trim and the scuff plate. Saab 9-3 4D M03-...
- Page 17 70 Fit the small connector to the connector. Fit the lock tab. 71 Secure the fibre optic cables in the REC using two cable ties of which one is fitted on the fibre optic cables coming from the parcel shelf. Continue with step 84. Saab 9-3 4D M03-...
- Page 18 18 12 788 466 F930A161 72 Remove the bracket and take it out to facilitate access. Saab 9-3 4D M03-...
- Page 19 79 Amplifier and/or CD changer fitted: Locate the connector with the fibre optic cables at the REC. 80 Amplifier and/or CD changer fitted: Fit the small connector in the connector. Fit the lock tab. Saab 9-3 4D M03-...
- Page 20 85 Fit the hatch in the luggage compartment's left-hand side trim. 86 Lower the luggage compartment floor. Cars where the infotainment control panel has no screen: Continue with step 87. Cars where the infotainment control panel has a screen: Continue with step 93. Saab 9-3 4D M03-...
- Page 21 The visible red light is a class 1 laser. Do not look directly into the optical fibre or the control module connector at close range. A distance of less than 20 mm between your eyes and the light source may cause eye injury. Saab 9-3 4D M03-...
- Page 22 22 12 788 466 F930A166 90 Plug in the connector to the new control panel. 91 Fit the control panel. 92 Position and fit the air vent. Saab 9-3 4D M03-...
- Page 23 Locate the unmarked connector with two cables and plug in the connector to the microphone. Position the previously connected cable where the currently connected cable was located. Fit the microphone. Saab 9-3 4D M03-...
- Page 24 “Add”. Note The diagnostic tool will on some occasions need to retrieve a security code in TIS. Information on what to do will be displayed on the diagnostic tool display. 105Check the system's function. Saab 9-3 4D M03-...
