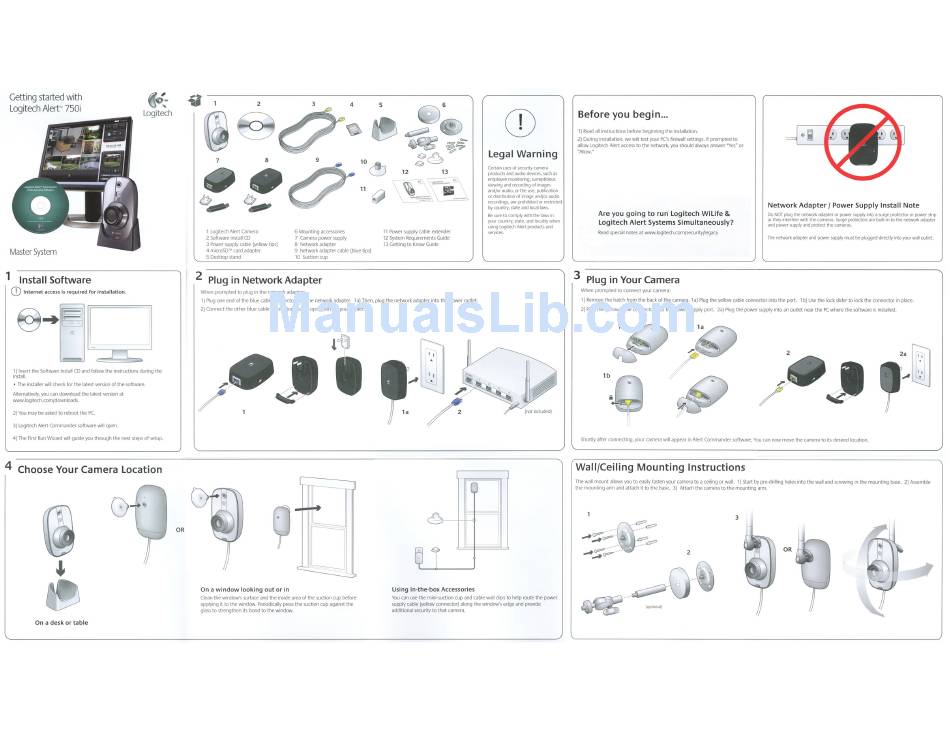

Logitech ALERT 750i Getting Started Manual

1
~~
Getting started with
Logitech Alert' 750i
Logitech
Master System
Install Software
(D
Intern et access is required for insta llation.
1) Insert the Software Install CD and follow the instructions during the
instalL
• The installer will che<k for the latest version of the software.
Alternatively, you can download the latest version at
www.logitech.com{downloads.
2) You may be asked to reboot the PC.
3) Logitech Alert Commal1der software will open.
4) The First Run Wizard will guide you through the next steps of setup.
4
Choose Your Camera Location
On a desk or table
OR
CD
10
c!J
Legal Warning
Certainusesolsecuritycarnefa
productsandaudiodevices,suchas
employee monitoring, surreptitious
viewing and recording of images
and{oraudio,Oftheuse,publication
ordistributionolimageand{oraudiO
recordings,areprohibitedorrestricted
bycountry.stateandlocallaws.
, ~
1 Logitech Alert camera
2 Software install CD
3 Power suppty cable (yellow tips)
4 microSD'" card adapter
5 Desktop stand
6Mountingaccessories
7 Camera power supply
8 Network adapter
9 Network adapter cable (blue tips)
10 Suction cup
2
Plug in Network Adapter
When prompted to plug in the network adapter:
11 Powersupplycableextender
12 System Requirements Guide
13 Getting to Know Guide
Be sure to comply with the
laws
in
yourcountry,state.andlocalitywhen
using Log1techAiertproductsand
1) Plug one end of the blue cable conne<tor into the network adapter. 1 a) Then, plug the network adapter into the power outleL
2) Conne<t the other blue cable conne<tor into an open port on your router.
On a window looking out or in
Oean the window's surface and the inside area of the suction cup before
applying it to the windOVv'. Periodically press the suction cup against the
glass to strengthen its bond to the window.
0
I
Using In-the-box Accessories
You can use the mini-suction cup and cable wall clips to help route the power
supply cable (yellow conne<tor) along the window's edge and provide
additional security to that camera.
Before you begin ...
1) Read all instructions before beginning the installation.
2) During installation. we will test your PCs firewall settings. If prompted to
allow logite<h Alert access to the network, you should always answer "Yes" or
"Allow."
Are you going to run Logitech Wilife
&
logitech Alert Systems Simultaneously?
Read special notes at \VINW.Iogite<h.comfsecurityflegacy
3
Plug in Your Camera
When prompted to connect your camera:
Network Adapter
f
Power Supply Install Note
Do NOT plug the network adapter Of power supply into a surge protectOf or power strip
as they interfere with the cameras. Surge protectors are built-in to the network adapter
andpowersupplyandprotectthecarnefas.
The network adapter and power supply must be plugged directly into your wall outlet.
1) Remove the hatch from the back of the camera. la) Plug the yellow cable connector into the port. 1 b) Use the lock slider to lock the conne<tor in place.
2) Plug the yellow cable connector into the power supply port. 2a) Plug the power supply into an outlet near the PC where the software is installed.
Shortly after connecting, your camera will appear in Alert Commander software. You can now move the camera to its desired location.
Wall/Ceiling Mounting Instructions
The wall mount allows you to easily fasten your camera to a ceiling or wall. 1) Start by pre-drilling holes into the wall and screwing in the mounting base. 2) Assemble
the mounting arm and attach it to the base. 3) Attach the camera to the mounting arm,
- ;::;;;.··
- <>"' " ;;;:
-
OR
