LBI-38976
Mobile Communications
MDX
DESK TOP STATION
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDX and is the answer not in the manual?

Questions and answers

Related Manuals for Ericsson MDX

Summary of Contents for Ericsson MDX

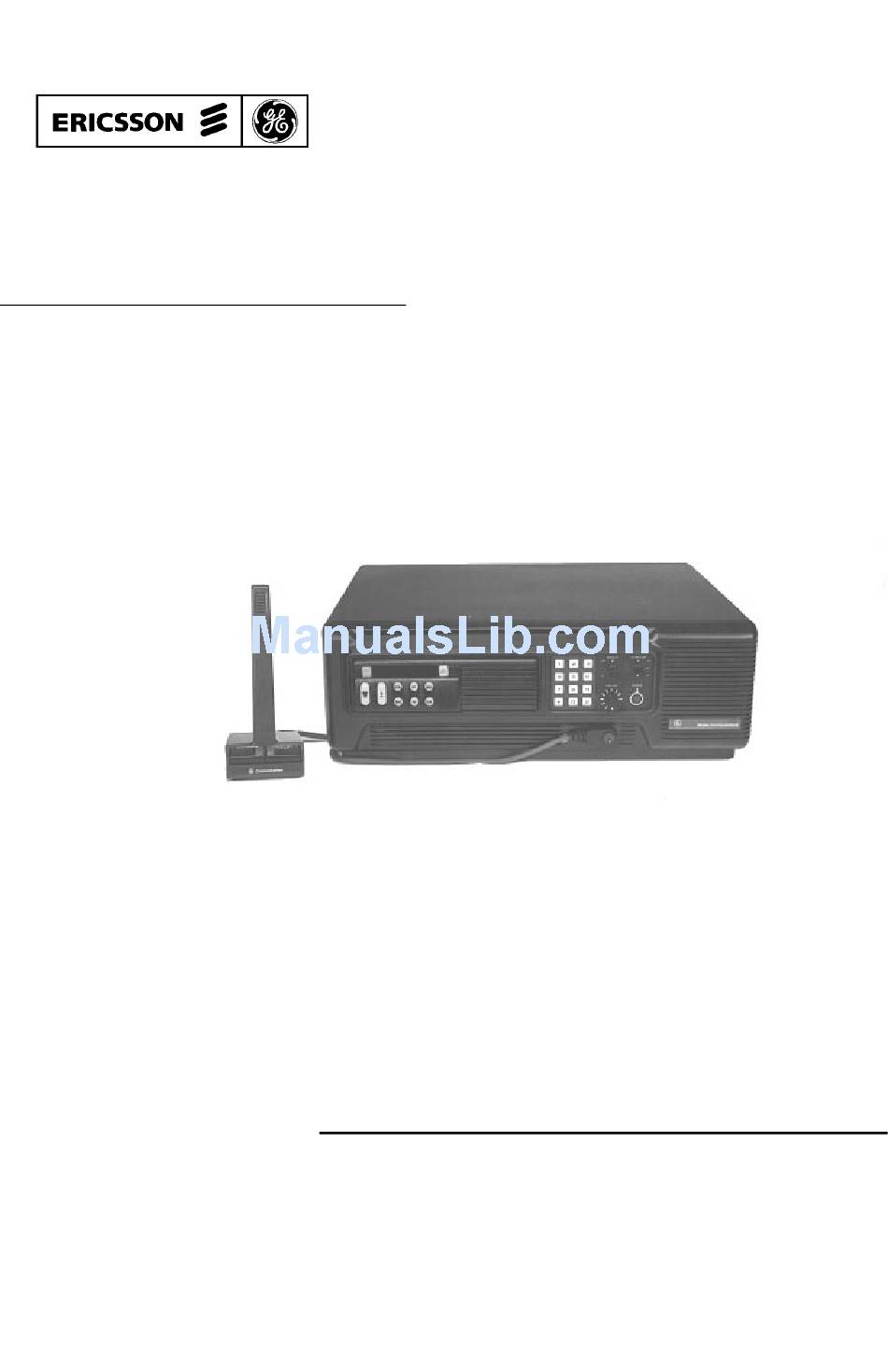

  • Page 1 LBI-38976 Mobile Communications DESK TOP STATION Operator's Manual...

  • Page 2: Table Of Contents

    LED Power Indicator ....... Figure 3 - Control Panel With Remote Option ..Figure 4 - Control Panel With Keypad Option ..Figure 5 - Control Panel With Remote and Keypad Options ......... Copyright © September 1993, Ericsson GE Mobile Communications Inc.

  • Page 3: Introduction

    INTRODUCTION Figure 1 - Base Station Controls and Indicators The front panel of the Ericsson GE Desk Top Station, as shown in Figure 1, includes the front of an MDX conventional/ EDACS™ radio, as well as a Control Panel. The Station is assembled as a standard Station with or without one of the combinations of options.

  • Page 4: Figure 2 - Control Panel With Single Led Power Indicator

    Figure 2 - Control Panel With Single LED Power Indicator • • Standard Station with Remote Option - In addition to the LED POWER indicator, there is a REMOTE ON/OFF switch, an INTERCOM ON/OFF/Momentary switch and a VOLUME control (see Figure 3). Figure 3 - Control Panel With Remote Option...

  • Page 5: Operation Of The Standard Station

    Station. The radio's internal speaker is not used. The radio must be programmed for a variable volume control. Further operation of the Station is that of the MDX radio. Refer to the applicable Operator's Manual for more detailed information.
  • Page 6 1. Desk Top Intercom Switch ON, Remote Switch ON With this switch arrangement, intercom communication is possible between the Desk Top Station and the Remote Console. Also, the Remote Console can key the radio transmitter and hear the receiver's audio output. When the Desk Mic PTT is keyed, there is no connection to the radio transmitter.
  • Page 7 3. Desk Top Intercom Switch OFF, Remote Switch ON These switch settings are for remote control of the radio, without an intercom connection. When the Desk Mic is keyed, the radio transmitter is keyed and the Remote Console is able to monitor the transmission. The Remote Console microphone is connected to the radio transmitter if the Remote Console Mic is keyed and the Desk Mic...

  • Page 8: Keypad/Frequency Select Board Option

    KEYPAD/FREQUENCY SELECT BOARD OPTION The Keypad Option is compatible with the MDX radio (see Figures 4 & 5). When the desktop station is equipped with the Keypad/Remote board, the unit is capable of placing individual calls to other mobiles on the system as well as making interconnect calls.

  • Page 9: To Make A Telephone Interconnect Call From The Keypad

    To Make A Telephone Interconnect Call From The Keypad: 1. Push the MENU button on the radio to select the special call mode. 2. Enter the desired phone number using the keypad. 3. Push the star (*) key on the keypad and wait for the radio to dial the number.

  • Page 10: Edacs Remote Operation

    Figure 5 - Control Panel With Remote and Keypad Options EDACS REMOTE OPERATION The RCN-1000 Remote Controller is capable of selecting up to five (5) predefined radio system/group/special call combinations. The presets are programmed into the radio by the PC Programmer. The remotes and desktop station can operate as an intercom by setting the INTERCOM switch to ON or M.

  • Page 11: Interface Summary

    TABLE - REMOTE & INTERCOM AUDIO INTERFACE SUMMARY Desk Top Intercom Switch ON, Remote Switch ON Remote Mic>Radio Xmtr Remote Mic>Station Spkr Desk Mic />Radio Xmtr Desk Mic >Remote Spkr, If Rx is muted, otherwise Rx>Remote Spkr and Station Spkr Rx Audio >Station Spkr &...
  • Page 12 NOTES...
  • Page 13 NOTES...
  • Page 14 NOTES...
  • Page 15 WARRANTY Ericsson GE Mobile Communications Inc. (hereinafter "Seller") warrants to the original purchaser for (hereinafter "Buyer") that Equipment manufactured by Seller shall be free from defects in material, workmanship and title, and shall conform to its published specifications. With respect to any Equipment not manufactured by Seller (except for integral parts of Seller's Equipment to which the warranties set forth above shall apply).
  • Page 16 Printed in U.S.A.
