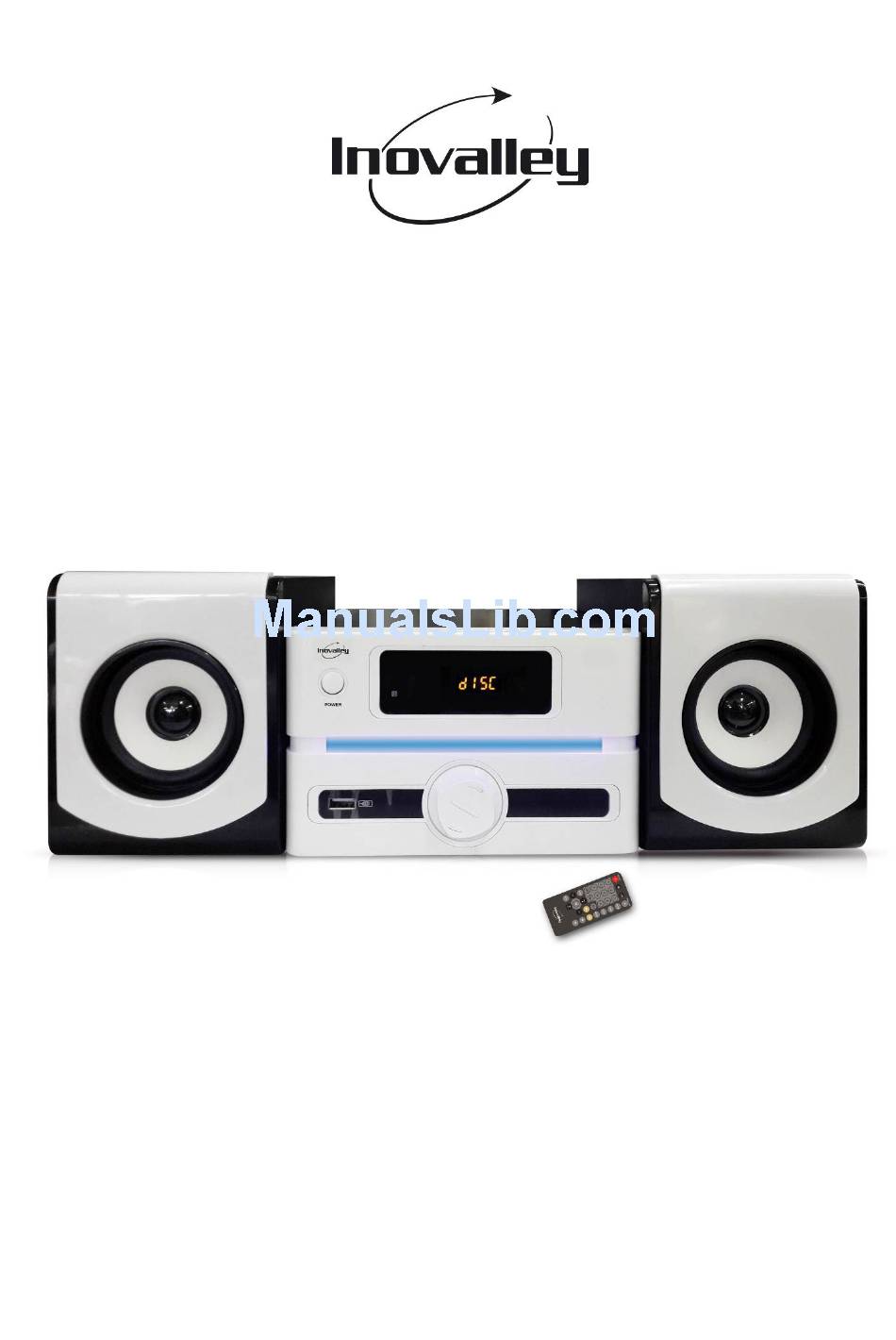

- Page 1 HI‐FI SYSTEM – CD PLAYER Ref: CH12CD ‐ USER MANUAL ‐ ...
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION ‐ Thank you very much for your purchase of our HiFi System. ‐ To optimize the performance of this system, please take the time to read through this manual and become familiar with the operation procedures. ‐ Be sure to keep this manual for future reference. ‐ On the machine should not receive the water drop or the water splashes, on the machine could not lay object filled with liquid, like vase. ‐ The power cord must remain easily accessible. Power sources: this unit should Never handle the power plug with only be used with indicated on wet hands. the marking label. Do not place a heavy object on or Never open the cover. Avoid small step on the unit. Avoid to place metals and liguids dropping into the unit under sunlight. ... - Page 3 Please read this user manual carefully before you use this product. Please reserve it properly for reference in the future. Please do not expose the unit in the raining or moist environment to avoid fire hazard or electric shock. This set employs an optical laser beam system in the CD mechanism designed with built‐in safeguards. Do not attempt to disassemble. Exposure to this invisible laser light beam may be harmful at the human eye. This is a Class 1 laser product. Use of controls, adjustments or procedures other than those specified here in may result in hazardous laser light beam exposure. This compact disc player should not be adjusted or repaired by anyone except qualified service personnel. The laser mechanism in the set corresponds to the stylus (needle) of a record player. Although this product uses a laser pick‐up lens, it is completely safe when operated according to directions. Apply the advices below for your security. PROTECTION AGAINST THE EXPOSURE TO THE LASER ...
-
Page 4: Electric Supply
ELECTRIC SUPPLY 1. Please unplug the product in case of prolonged non‐use. 2. If the supply cable is damaged, it must be replaced by the manufacturer or qualified after‐sales personnel to avoid any danger. 3. This product must be connected to an electrical supply 100‐240V ~ 50/60Hz. 4. The plus must be accessible after installation. 5. Hold the plug well when you plug the power cord in or out. 6. Please do not put the AC power cord near any heat source equipment. 7. Please do not place any heavy objects on the AC power cord. 8. Please do not overhaul the AC power cord. 9. This product contains a low power laser device. In order to keep safety, please do not open the unit to expose the inside parts. If there is some problem need to be repaired, please let the professional people check and repair it. PLACEMENT AND MAINTAIN FOR THE UNIT 1. Please do not put the unit in a sealed place or cover something onto the unit, to avoid the unit damaged by its inside temperature’s abrupt rising. 2. Please do not expose the unit under the sunshine directly or place it near the heat source equipment. ... - Page 5 11. If there is Dirt or Friction on the Lens, It will impair sound, or even make it no sound when disc playing. TABLES OF CONTENT IMPORTANT SAFETY INSTRUCTION PLACEMENT AND MAINTAIN FOR THE UNIT TABLES OF CONTENTS MAIN CHARACTERISTICS PACKING CONTENT OPERATION AND MAINTENANCE OF CD DISCS OPERATION INTERFACE REMOTE CONTROL BASIC OPERATION TECHNICAL SPECIFICATIONS USEFUL TIPS TROUBLESHOOTING ...
- Page 6 Full compatible with CD, WMA, MP3, CD‐R/RW discs etc. With USB2.0 and SD card Slot. The unit can read information from USB or SD card quickly. With Digital FM function. It can play MP3 file both from CD disc and USB driver. With Full Function Remote Control. PACKING CONTENT Please refer to the following accessories. If you found there is any shortage for the contents, please contact the dealer immediately. Remote Control 1pc User Manual 1pc Audio Cable 1pc OPERATION AND MAINTENANCE OF CD DISCS ◇ Please take out the disc by holding the brim of the discs as below, please try to not touch the shinning side of the disc (Data Storage Side) ◇Please don’t attach any labels on the side of the disc. Do not scratch the surface of the disc. ◇When the disc is being played, the rotate speed will be very high. Please do not use any damaged, scratched, cracked or bent discs to avoid causing unit damaged. ◇Fingerprints or Dirt on a disc will impair the reflective light of the disc and will affect the signal’s quality directly. The poorer the signal’s quality is, the poorer the playing effect is. Please use the soft cloth to wipe the disc from the disc center towards the outside direction. ...
-
Page 7: Operation Interface
OPERATION INTERFACE FRONT PANEL 1. POWER: Press this key to turn on or turn off the power for the unit. 2. LED DISPLAY 3. FUNCTION: Press this key to choose CD/USB/CARD mode. 4. PLAY/PAUSE: Use this key to start or pause CD playback. When you press this button during playback, the unit enters Pause mode. 5. PREV: Press this key to choose last song or file. 6. NEXT: Press this key to choose next song or file. 7. OPEN/CLOSE: Press this key to open or close the disc tray. 8. USB: Connect a USB Driver here. 9. VOLUME+/‐: Rotate this button, “Volume+” will make the volume become bigger, “Volume‐“will make volume become smaller. 10. DISC TRAY ... -
Page 8: Rear Panel
REAR PANEL 1. AUDIO Out These terminals are for connecting audio output of external devices, such as TV. 2. AUX IN These terminals are for connecting PC, Mobile, MP3 etc.. These terminals are for connecting audio output of external devices, such as TV. 3. SD/MMC Card: Insert SD/MMC card to this slot, and then press the “FUNCTION” key to choose Card status, and then press PLAY key, it will begin to playing the file from SD/MMC card. ： 4. FM Antenna When you choose FM status and search for the FM channels, you need to use it. ： 5. L/R Speaker output These terminals are for connecting speakers. REMOTE CONTROL ◇Method for installing the batteries of the remote control 1. Turn to the back side of the remote control and remove the small cover; 2. Install 2 x AAA batteries properly, respecting polarity batteries 3. Fit on the small cover. Note： 1. Please do not use the rechargeable battery ... - Page 9 2. Do not mixes use the battery with different brand and type for the remote control. Please do not use the new and old batteries together. 3. When the remote control’s function is not so strong or the control range becomes smaller, please change the 2pcs x AAA batteries together. If the unit will not be used for a long time, please take out the batteries from the remote control so as not lead to battery liquid leak, corrosion and unit damaged. ...
- Page 10 It includes 0‐10 number keys and 10+/10‐ keys. You can press them to select the file which you want directly. ． SLEEP: When pressing this key, there are several options: 15mins, 30mins, 60mins and 90mins. That means the unit will be power off automatically after playing the music for 15mins, 30mins, 60mins or 90mins which you choose. This function is suitable for listening the music before sleep. ...
-
Page 11: Basic Operation
． CH‐ Press this key, it will choose the last FM station. BASIC OPERATION I. FUNCTION CHOOSE Press the "FUNCTION" key on the remote control, you can choose to play CD, MP3, USB OR SD file or FM radio as you like. II. USB PLAYING Insert USB flash driver, and then press the "FUNCTION" key to choose USB status, and then press PLAY key, it will begin to playing the file from USB flash driver. III. SD/MMC PLAYING Insert SD/MMC card, and then press the “FUNCTION” key to choose Card status, and then press PLAY key, it will begin to playing the file from SD/MMC card. IV. FM RADIO Using the FM antenna, if it is the first time for you to use this unit, please choose FM status by ... -
Page 12: Useful Tips
USEFUL TIPS ● In order to extend the local machine life, the switch me between machines turn on and off must be more than 30 seconds. ● Turn off the power a er using. ● The use of power should correspond with the mark voltage values, otherwise it will not play. ● For some of the discs, using some of the features of this machine, it can not be achieved. ● If appear con ngent dead halt, please restart the machine. TROUBLESHOOTING Before contact with the repair person, you should check the problem reason follow the instructions. Phenomenon Reasons Countermeasures 1.Please correctly connect the 1.Audio line is not properly audio line ... - Page 13 DETAILS AND PRECAUTIONS ON THE USE OF BATTERIES ‐ Discard a used battery in nature or garbage pollutes and prevents the recovery of recyclable materials. It is therefore important to limit consumption of batteries and follow these guidelines: ‐ focus on alkaline batteries (that last longer than the saline batteries) and when possible, rechargeable batteries ‐ deposit batteries and accumulators in specific containers arranged among traders. For example, metals will be valued and polluted the environment because they contain ...
- Page 14 ...
