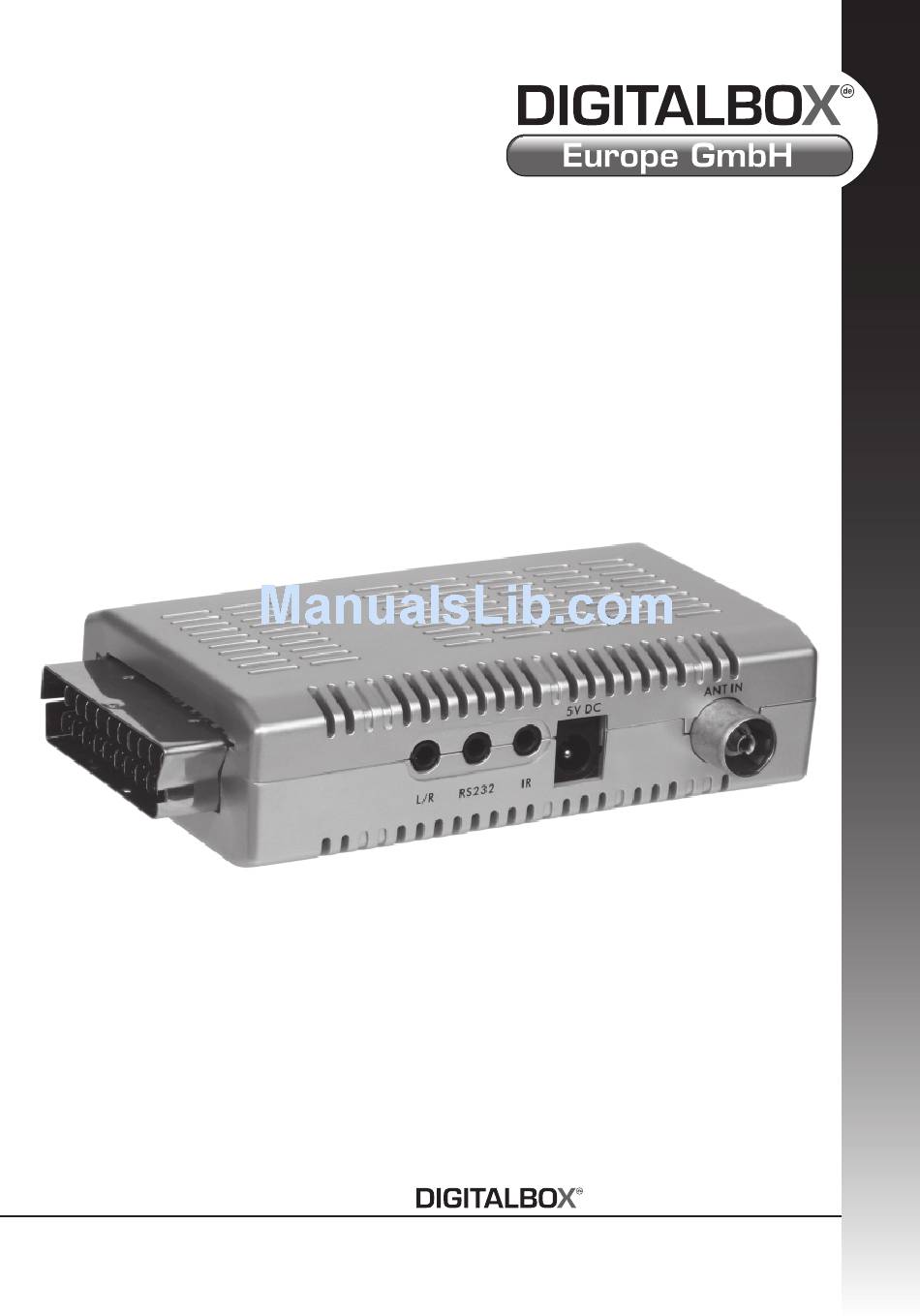

- Page 1 Installation Guide DVB-T Scartreceiver See the world through...
-
Page 2: Read This First
READ THIS FIRST! This user manual helps you to get familiar with the installation and operation of the terrestrial receiver. Please read this user manual before using the receiver. Store this user manual on a safe place so you will always be able to use it for reference. Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an authorized technician if service is required. - Page 3 INTRODUCTION Features: This user manual covers the installation of the terrestrial receiver and the necessary steps to operate various features. This manual also explains special features available only in this receiver and will allow you to get full advantage of these features. This receiver offers: •...
-
Page 4: Back Panel
BACK PANEL Connect to audio R/L to TV Infrared remote or audio tuner Connect to a PC for s/w upgrade Ant IN: Connect to antenna Connect to tv using scart cable Connect to the power supply with 5V Installation guide... -
Page 5: Remote Control Functions
REMOTE CONTROL FUNCTIONS Power Press key to on/off mute the sound Press to change channel Press key to return Press to switch to to previous channel TV or Radio mode Press key to enter Press key to the menu or exit display EPG screen current menu Press key to... -
Page 6: Installation
INSTALLATION Channel setup: When fi rst time power on, it will show welcome page like below: • Press [Up/Down] key to select submenu. • Press [Left/Right] key to select region and OSD language. • Press [Left/Right] key to select “scan mode”. •... -
Page 7: Operation
OPERATION Main Menu: • Press [Up/Down] key to select submenu. • Press [OK] key to enter the selected item. Channel menu: • Press [Up/Down] to select submenu. • Press [OK] to enter the selected item. TV Channel List: • Press [Up/Down] key to preview the current highlighted program. - Page 8 Radio Channel List: The operation of the “Radio Channel List” is the same as “TV Channel List” TV Favorite List: The “TV Favorite List” will show all the favorite channels in the list. • Press key [0] ~ [4] to: 0: Delete all favorites 2: Lock selected channel 4.
-
Page 9: System Setup
SYSTEM SETUP • Press [Up/Down] key to select submenu. • Press [OK] key to enter the selected item. OSD Language: • Press [Left/Right] key to select language. • Press [Exit]. TV System: • Press [Left/Right] key to select Auto, PAL or NTSC. •... - Page 10 Sleep Timer: • Press [Left/Right] key to select on/off. • Press [Left/Right] key to choose: Off /10min. /30min. /60min. / 90min. /120min. • Press [Exit]. OSD Setting: • Press [Left/Right] key to set OSD transparency. • Press [Exit]. Parental Lock: You can set a password for anyone who wishes to operate in the “Installation”...
- Page 11 TOOL • Press [Up/Down] key to select submenu. • Press [OK] key to enter the selected item. Information Menu: • When you enter the “Information” menu you will see a screen like above. The screen displays some parameters of information of current channel •...
-
Page 12: Technical Specifications
No guarantee or liability can be accepted for any changes and modifi cations of the product or damage caused due to incorrect use of this product. DigitalBox Europe GmbH Sandstraße 65 · D-40878 Ratingen Service-Hotline: 0180 - 500 60 50...
