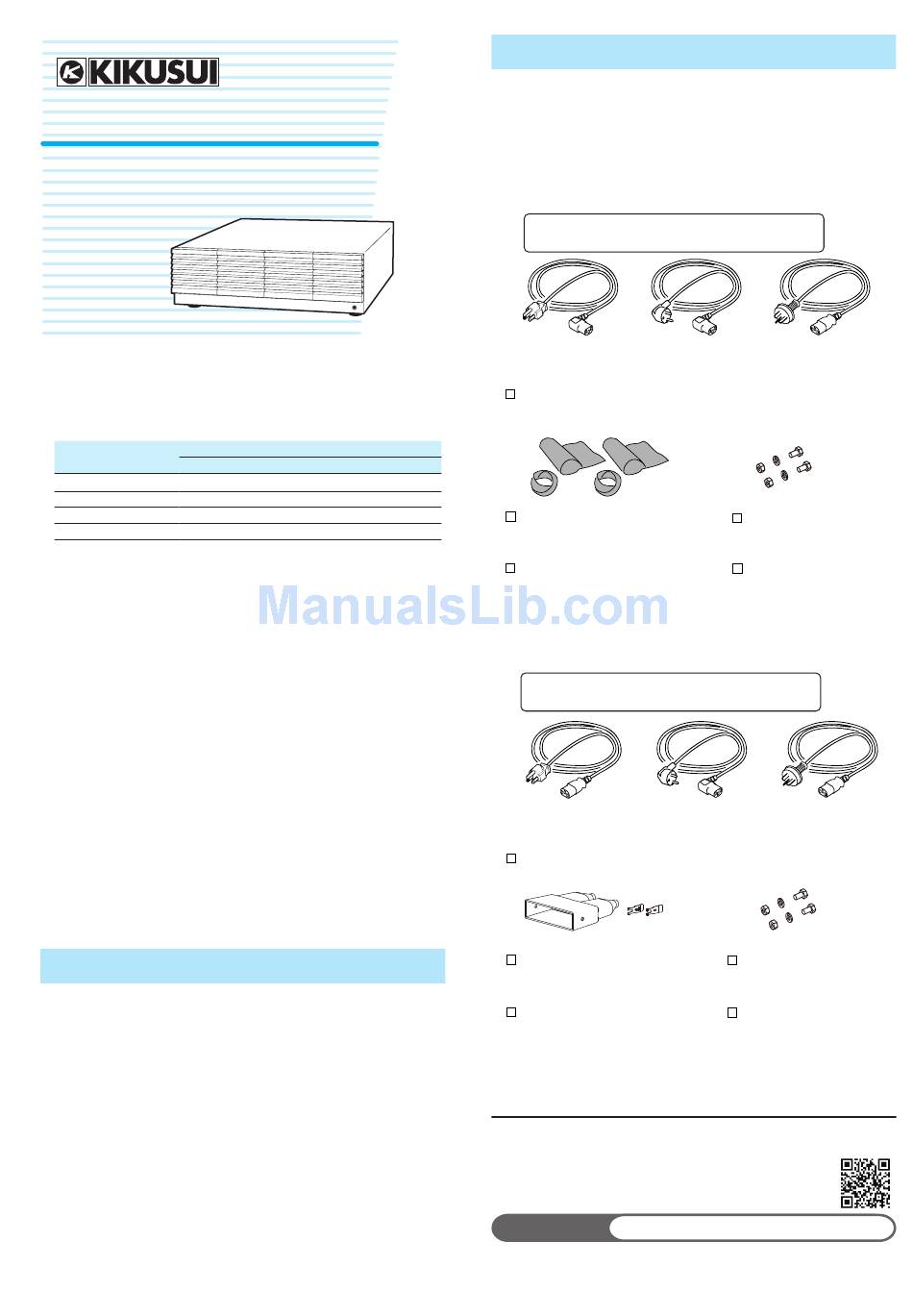

Operation Manual
Electronic Load Booster
PLZ2004WB
PLZ2004WHB
The PLZ2004WB/PLZ2004WHB Load Booster is used to increase the
input current to the PLZ1004W/PLZ1004WH Electronic Load. One
PLZ1004W/PLZ1004WH is made the master unit, and load boosters
connected in parallel operate as slave units.
Number of load
boosters
PLZ2004WB
1
600 A / 3 000 W
2
1 000 A / 5 000 W
3
1 400 A / 7 000 W
4
1 800 A / 9 000 W
About the Operation Manual
This manual contains an overview of the PLZ2004WB/PLZ2004WHB
electronic load booster and information about connecting,
maintenance, and using it. For information on how to perform parallel
operation, see the PLZ-4W/PLZ-4WH Series Electronic Load User's
Manual.
These operation manuals are intended for users of electronic loads
and their instructors. Explanations are given under the presumption
that the reader has knowledge about Power Supply.
Every effort has been made to ensure the accuracy of this manual.
However, if you have any questions or find any errors or omissions,
please contact your Kikusui agent or distributor.
If you find any misplaced or missing pages in the manuals, they will
be replaced. If the manual gets lost or soiled, a new copy can be
provided for a fee. In either case, please contact your Kikusui agent
or distributor, and provide the "Kikusui Part No." given on the cover.
After you have finished reading this manual, store it so that you can
use it for reference at any time.。
Features
Up to four load boosters can be connected in parallel.
The combination of PLZ2004WBs and a PLZ1004W master unit
can create an electronic load of up to 9 kW and 1 800 A.
The combination of PLZ2004WHBs and a PLZ1004WH master unit
can create an electronic load of up to 9 kW and 450 A.
The master unit displays the total current and total wattage. The
units connected in parallel can be used as a single electronic load.
The connection of the control cables is easy. The control cable
used to connect between the master unit and the load booster and
between each load booster is one flat cable each.
There is no power switch. The AC input power is turned ON/OFF
by the master unit.
PLZ2004WB/PLZ2004WHB
PART NO. Z1-005-160, IB022735
Oct. 2015
Maximum current/ Maximum power
PLZ2004WHB
150 A / 3 000 W
250 A / 5 000 W
350 A / 7 000 W
450 A / 9 000 W
Checking the Package Contents
When you receive the product, check that all accessories are
included and that the product and accessories have not been
damaged during transportation. If any of the accessories are
damaged or missing, contact Kikusui distributor/agent.
Accessories (PLZ2004WB)
The power cord that is provided varies depending on the
destination for the product at the factory-shipment.
or
Plug: NEMA5-15
Plug: CEE7/7
Rating: 125 Vac/10 A
Rating: 250 Vac/10 A
[85-AA-0003]
[85-AA-0005]
Power cord
(1 pc.)
[Q1-500-096]
[Q1-900-020]
Load input terminal cover (2 pcs.)
[with auxiliary band]
Heavy object warning label
If necessary, attach to the product.
Accessories (PLZ2004WHB)
The power cord that is provided varies depending on the
destination for the product at the factory-shipment.
or
Plug: CEE7/7
Plug: NEMA5-15
Rating: 250 Vac/10 A
Rating: 125 Vac/10 A
[85-AA-0005]
[85-AA-0004]
Power cord (1 pc.)
[P2-000-228]
[Q1-500-085]
Load input terminal cover (1 pc.)
Lock plate (2 pcs.)
Heavy object warning label
If necessary, attach to the product.
KIKUSUI ELECTRONICS CORP.
1-1-3, Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
TEL: +81-45-593-0200 Fax: +81-45-593-7571
http://www.kikusui.co.jp/en
Website
The newest version of the operation manual can be downloaded from
Download service of Kikusui website.
or
Plug: GB1002
Rating: 250 Vac/10 A
[85-10-0790]
[M1-100-027]
[M5-101-009]
[M4-100-009]
Set of screws for the load
input terminal (2 sets)
Operation manual
(1 pc.)
(1 copy)
or
Plug: GB1002
Rating: 250 Vac/10 A
[85-10-0790]
[M1-100-012]
[M5-101-007]
[M4-100-007]
Set of screws for the load
input terminal (2 sets)
Operation manual
(1 pc.)
(1 copy)
1
