Rear-Scart Version - Ellion HMR-350H User Manual

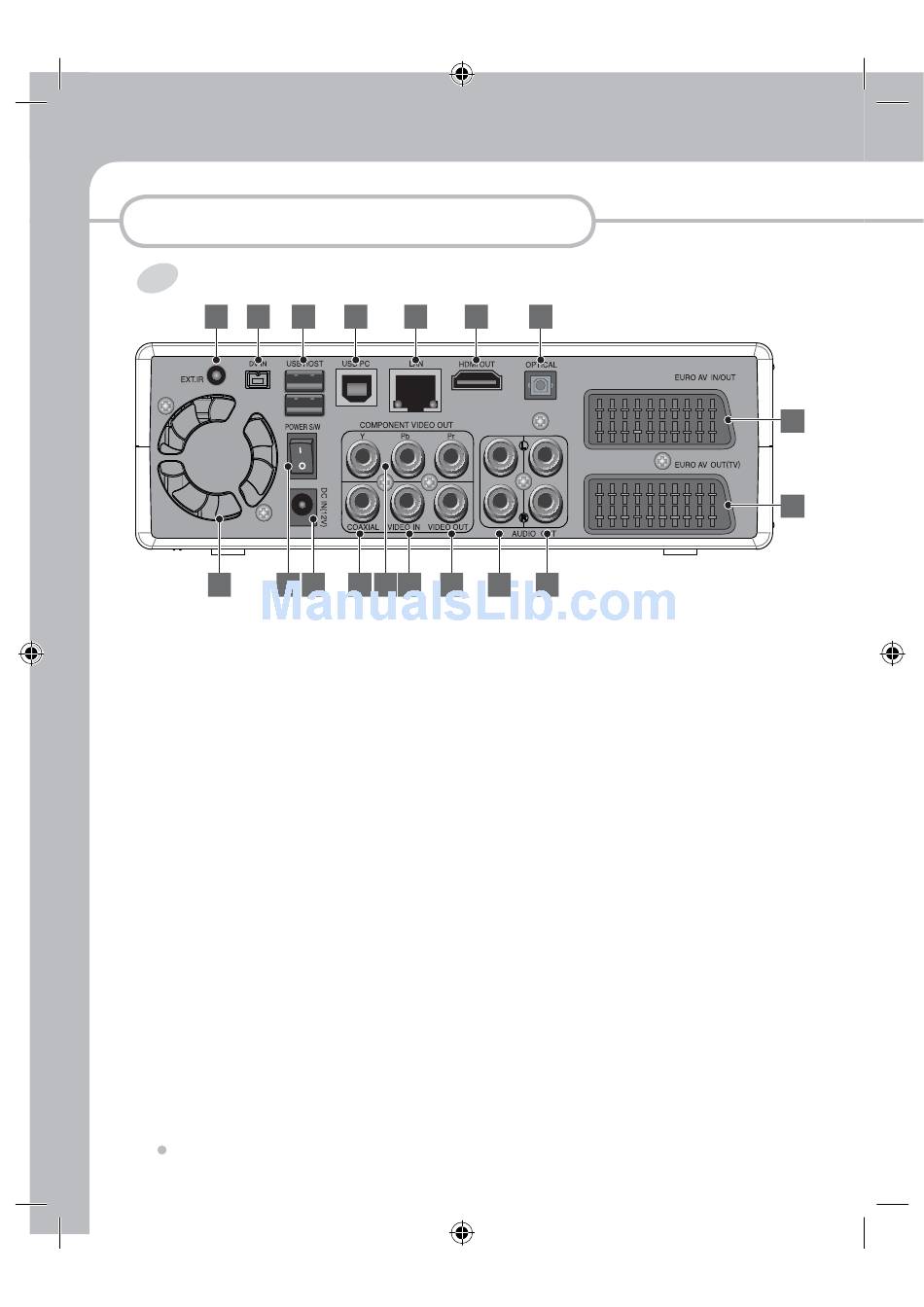

Control & Name
Rear - Euro Scart Verion
1 2 3
8 9 10
1
EXT. IR
For the extension IR cable
2
DV In
Digital Input jack (IEEE1394) for Digital
Camcorder
3
USB HOST
Digital Input jack for USB Storage (USB
external HDD or USB memory) It can be
used for the Digital TV or Wireless Option.
4
USB PC
To Connect to USB host of Computer for
using HMR as an external HDD
5
LAN
To Connect to LAN cable
6
HDMI OUT
To Connect to HDMI input of TV
7
OPTICAL
To Connect to Optical Input of Digital Amplifier
8
FAN
Cooling Fan
9
Power S/W
Mechanical Power Switch to supply power to
HMR or to cut it off
8
Control & Name
4 5 6
11 12 13 14 15
10
DC IN (12V)
To Connect Power Adapter cable
11
COAXIAL
To Connect to Coaxial Input of Digital Amplifier
12
COMPONENT VIDEO OUT
To Connect to Component Video Input of TV
13
VIDEO IN
To Connect to Composite Output of AV
device such as Set Top Box or VCR
14
VIDEO OUT
To Connect to Composite Video Input of TV
15
AUDIO IN
To Connect to Audio out of AV device such as
Set Top Box or VCR.
16
AUDIO OUT
To Connect to Audio Inputs (L, R) of TV
17
EURO AV IN/OUT
To Connect to Scart Output of AV device
such as Set Top box or VCR
18
EURO AV OUT (TV)
To Connect to Scart Input of TV
7
16
17
18
