Summary of Contents for German Light Products IMPRESSIONX4S

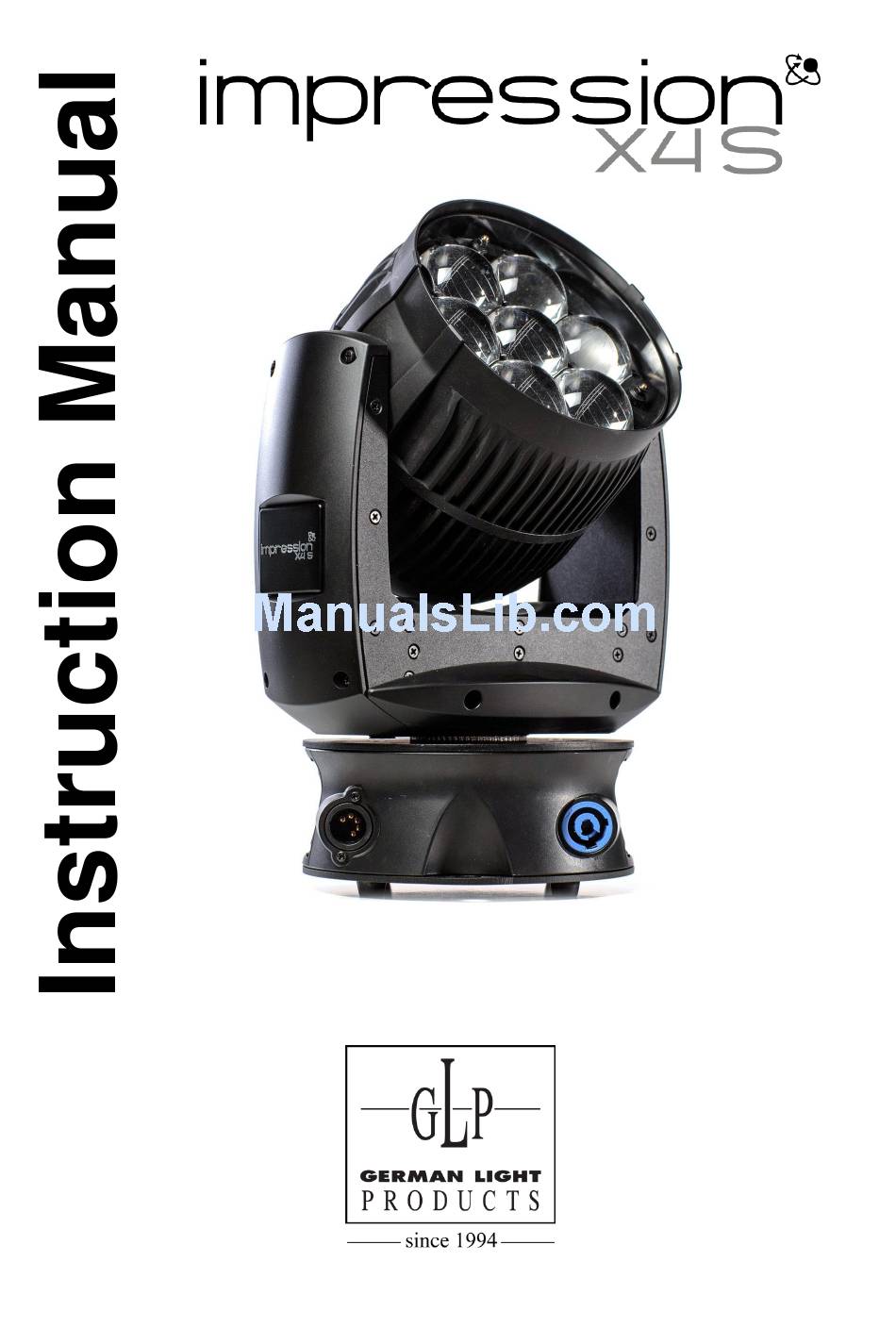

- Page 1 from software version: V1.16 support@glp.de www.glp.de...
- Page 2 GLP German Light Products GmbH Notes: impression X4 S manual (v1.3) from software version: v1.16...
-
Page 3: Table Of Contents
GLP German Light Products GmbH Table of contents Description of Device....................4 1.1 Safety Instructions .................... 5 Preparation and Installation ................... 6 2.1 Safety information ..................... 6 2.2 Mounting ......................7 2.2.1 Operating on the Floor (Upright) ............8 2.2.2... -
Page 4: Description Of Device
GLP German Light Products GmbH 1 Description of Device 1. Moving head (actively and passively cooled) 2. Arm of device 3. LCD-Display/Menu (data entry) 4. Base with various connectors, air in/outlets and mounting system 5. Fuse holder (2x) Base sideview: base side 1 6. -
Page 5: Safety Instructions
GLP German Light Products GmbH Safety Instructions S is a High-Tech Product. To guarantee a smooth operation, it is necessary to respect the following rules. The manufacturer of this device will not take responsibility for damages through any disregard of the information provided in this manual. -
Page 6: Preparation And Installation
GLP German Light Products GmbH 2 Preparation and Installation 2.1 Safety information S fixture from GLP is fitted with a number of plano-convex lenses in a highly efficient collimator cluster. This type of lens can act as a strong magnifying glass. -
Page 7: Mounting
GLP German Light Products GmbH 2.2 Mounting S is fully operational whether it hangs or is mounted to the wall. It can also be operated while standing on the floor. Keep a safety distance of min. 0.5 m towards any easily inflammable materials (decoration etc.). -
Page 8: Operating On The Floor (Upright)
GLP German Light Products GmbH 2x safety eyelets 3x M10 (length max.11mm) 4x rubber feet Fixture from below 2.2.1 Operating on the Floor (Upright) S is fitted with 4x solid rubber feet which allows a stable standing of the fixture. -
Page 9: Mounting In Sideways Position
GLP German Light Products GmbH 2.2.3 Mounting in sideways Position To operate the S in a sideways position please use two half-couplers (clamps) attached to the bottom side of the base. They should be attached with M10 mm thread bolts (max. length 11mm). -
Page 10: Securing The Fixture
GLP German Light Products GmbH 2.3 Securing the Fixture Regardless of the mounting method of the S you'll have to use a stipulated safety wire. Attach the safety wire through one of the two holes provided on the base of the fixture and connect it to the primary support structure. -
Page 11: Dmx
GLP German Light Products GmbH 2.4.3 DMX USITT DMX-512 Standard input/output in 5-pin connectors. Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4 & 5 N.C. The DMX- Addressing starts at the DMX- Address [001]. - Page 12 GLP German Light Products GmbH Speed Manual control for Pan/Tilt movements Movements Pan/Tilt Manual control for Pan/Tilt movements Movements Special Manual control for Special functions White Manual control for Color temperature Temperature Dimmer Manual control for Dimmer Shutter Manual control for Shutter...
- Page 13 GLP German Light Products GmbH Pattern Instantaneous value for Pattern channel / bank Zoom Instantaneous value for Zoom Speed adjustment for Pan/Tilt movements Speed Movements see item below Pan/Tilt Instantaneous value for Pan/Tilt movements Movements Special Instantaneous value for Special...
-
Page 14: Dmx Channel Selection (Dmx Protocol)
GLP German Light Products GmbH 4 DMX Channel Selection (DMX Protocol) 4.1 Normal-Mode 18 DMX channels Channel Function Time and Value 1) PAN- 0..255 00..FF 0..100 coarse 2) PAN-fine 0..255 00..FF 0..100 3) Tilt- 0..255 00..FF 0..100 coarse 4) Tilt-fine 0..255... - Page 15 GLP German Light Products GmbH Channel Function Time and Value 270° 06..07 06..07 0° 08..09 08..09 90° 10..11 0A..0B 180° 12..13 0C..0D 270° 14..15 0E..0F 0° 16..17 11..11 90° 18..19 12..13 180° 20..21 14..15 270° 22..23 16..17 0° 24..25 18..19...
-
Page 16: Compress-Mode 14 Dmx Channels
GLP German Light Products GmbH 4.2 Compress-Mode 14 DMX channels Channel Function Time and Value 1) PAN- 0..255 00..FF 0..100 coarse 2) PAN-fine 0..255 00..FF 0..100 3) Tilt- 0..255 00..FF 0..100 coarse 4) Tilt-fine 0..255 00..FF 0..100 5) Color Colors adjustable via RGBW 0..7... -
Page 17: High Resolution (Extended) -Mode 19 Dmx Channels
GLP German Light Products GmbH 4.3 High Resolution (Extended) -Mode 19 DMX Channels Channel Function Time and Value 1) PAN- 0..255 00..FF 0..100 coarse 2) PAN-fine 0..255 00..FF 0..100 3) Tilt- 0..255 00..FF 0..100 coarse 4) Tilt-fine 0..255 00..FF 0..100... - Page 18 GLP German Light Products GmbH Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued from the current color. The Rainbow-effect will run synchronously only if started from one of the predefined colors (see also point before).
-
Page 19: Maintaining And Cleaning The I M P R E S S I O Nx
GLP German Light Products GmbH 5 Maintaining and Cleaning the S is a fixture of very low maintenance. It is only necessary to clean the air inlets and outlets as well as the optical LED lenses from time to time. -
Page 20: Changing The Fuse
GLP German Light Products GmbH 5.3 Changing the Fuse Follow the safety regulations as described above! There are two micro-fuses (2) located opposite of each other on the topside of the base. In order to attain access you first need to remove one of the two plastic side covers of the fixture arm. -
Page 21: Technical Specifications
GLP German Light Products GmbH 6 Technical Specifications Power supply Power consumption 200 VA (Watt) Power Input ~100-240 V AC, 50-60 Hz (wide range input) Power connectors NEUTRIK powerCON Power-in: NAC3FCA / NAC3MPA (blue) Power-out: NAC3FCB / NAC3MPB (grey) -
Page 22: Dimensions
GLP German Light Products GmbH 7 Dimensions Ø150,5 Ø165,5 3x M10 (length max.11mm) Fixture from below impression X4 S manual (v1.3) from software version: v1.16... -
Page 23: Index
GLP German Light Products GmbH 8 Index s ............ 6 NEUTRIK powerCON ......... 10 BGV C1............7 Normal-Mode ..........14 Cleaning............19 Optical parts ..........19 Compress-Mode ..........16 Pan- Movement ..........21 Danger of BURNING ........5 plano-convex lenses ........ - Page 24 GLP German Light Products GmbH impression X4 S manual (v1.3) from software version: v1.16...
