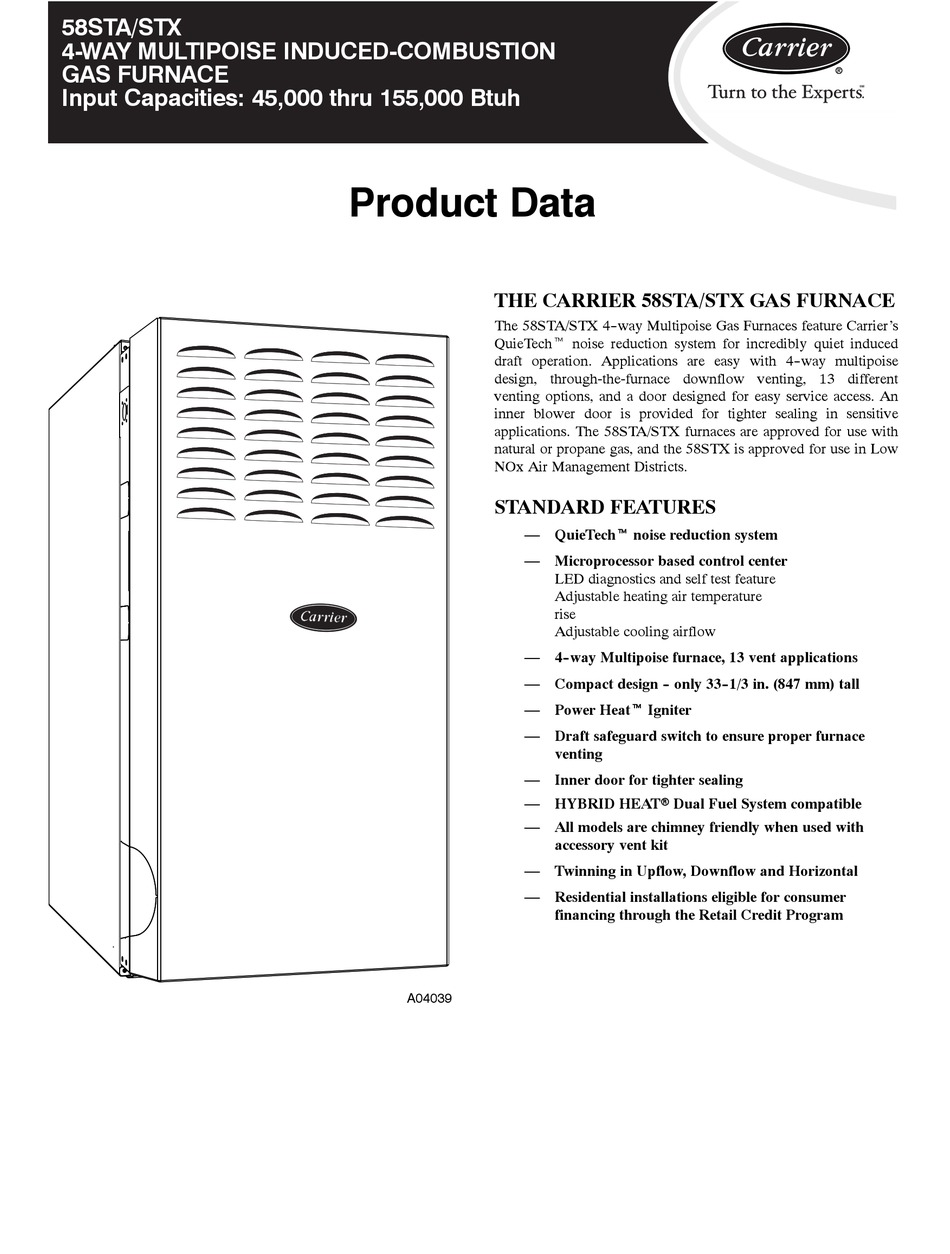

58STA/STX
4-WAY MULTIPOISE INDUCED-COMBUSTION
GAS FURNACE
Input Capacities: 45,000 thru 155,000 Btuh
Product Data
THE CARRIER 58STA/STX GAS FURNACE
The 58STA/STX 4- -way Multipoise Gas Furnaces feature Carrier's
QuieTecht noise reduction system for incredibly quiet induced
draft operation. Applications are easy with 4- -way multipoise
design, through-the-furnace downflow venting, 13 different
venting options, and a door designed for easy service access. An
inner blower door is provided for tighter sealing in sensitive
applications. The 58STA/STX furnaces are approved for use with
natural or propane gas, and the 58STX is approved for use in Low
NOx Air Management Districts.
STANDARD FEATURES
— QuieTecht noise reduction system
— Microprocessor based control center
— 4- -way Multipoise furnace, 13 vent applications
— Compact design - - only 33- -1/3 in. (847 mm) tall
— Power Heatt Igniter
— Draft safeguard switch to ensure proper furnace
— Inner door for tighter sealing
— HYBRID HEATr Dual Fuel System compatible
— All models are chimney friendly when used with
— Twinning in Upflow, Downflow and Horizontal
— Residential installations eligible for consumer
A04039
LED diagnostics and self test feature
Adjustable heating air temperature
rise
Adjustable cooling airflow
venting
accessory vent kit
financing through the Retail Credit Program

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 58STX and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier 58STX

  • Page 1 An inner blower door is provided for tighter sealing in sensitive applications. The 58STA/STX furnaces are approved for use with natural or propane gas, and the 58STX is approved for use in Low NOx Air Management Districts. STANDARD FEATURES —...
  • Page 2: Model Number Nomenclature

    HEAT EXCHANGER CONTROL BOARD INDUCER BLOWER MODEL NUMBER NOMENCLATURE 58STA 58STA 4--Way Multipoise Nominal Cooling Size 58STX Low NOx version (Airflow at .5 e.s.p.) (400 CFM per 12,000 Btuh) 08--- 800 CFM 12--- 1200 CFM 14--- 1400 CFM 16--- 1600 CFM...
  • Page 3: Furnace Components

    FURNACE COMPONENTS INDUCER MOROR ASSEMBLY VENT ELBOW* MAIN LIMIT SWITCH (BEHIND PRESSURE SWITCHES DRAFT SAFEGUARD SWITHCH FLUE COLLECTOR GAS MANIFOLD GAS VALVE GAS BURNER FLAME SENSOR MANUAL RESET LIMIT SWITCHES BLOWER DOOR SAFETY SWITCH HOT SURFACE IGNITER BLOWER AND MOTOR CONTROL RATING PLATE NOT SHOWN...
  • Page 4 Carrier thermostats maintain a easy connection when a AIR CLEANER By adding moisture to winter-dry constant temperature level in the return plenum already exists. air, a Carrier humidifier can often home. Cleans the air of smoke, dirt, Provides easy access for improve comfort...
  • Page 5 CARRIER ACCESSORIES DESCRIPTION PART NO. 045- 045- 070- 070- 070- 090- 090- 090- 110- 110- 110- 135- 135- 155- 58STA/STX FILCABCC0016 FILCABCC0020 Performance Series Filter Cabinet FILCABCC0024 FILCCCAR0016 FILCCCAR0020 Cartridge Media Filter FILCCCAR0024 EXPXXUNV0016 EXPXXUNV0020 EZ Flex Media Filter with End Caps...
  • Page 6: Physical Data

    PHYSICAL DATA UNIT SIZE 58STX Upflow; all 58STA 35,000 36,000 53,000 54,000 53,000 71,000 71,000 OUTPUT CAPACITY BTUH* (Nonweatherized ICS) † 58STX Downflow/Horizontal 34,000 34,000 51,000 51,000 51,000 68,000 68,000 44,000 44,000 66,000 66,000 66,000 88,000 88,000 58STX Upflow; all 58STA...
  • Page 7 Airflow shown is for bottom only return-air supply. For air delivery above 1800 CFM, see Air Delivery Table for other options. A filter is required for each return-air supply. An airflow reduction of up to 7 percent may occur when using a Carrier 4-5/16 in. (110 mm) high efficiency media filter.
  • Page 8 SEE NOTES: 1,2,4,7,8,9 SEE NOTES: 1,2,3,4,7,8,9 SEE NOTES: 1,2,4,5,7,8,9 UPFLOW UPFLOW DOWNFLOW A02058 A02059 A02061 SEE NOTES:1,2,3,4,5,7,8,9 SEE NOTES: 1,2,3,4,5,7,8,9 SEE NOTES: 1,2,4,5,6,7,8,9 DOWNFLOW DOWNFLOW DOWNFLOW A02060 A02063 A02062 Venting Notes 1. For common vent, vent connector sizing and vent material: United States, latest edition of the National Fuel Gas Code (NFGC), ANSI Z223.1/NFPA 54.
  • Page 9 SEE NOTES 1,2,4,5,7,8,9 SEE NOTES 1,2,4,5,7,8,9 HORIZONTAL RIGHT HORIZONTAL RIGHT A02068 A02070 SEE NOTES 1,2,4,7,8,9 HORIZONTAL RIGHT A02069 SEE NOTES 1,2,4,7,8,9 SEE NOTES 1,2,4,5,7,8,9 HORIZONTAL LEFT HORIZONTAL LEFT A02064 A02065 SEE NOTES 1,2,4,5,7,8,9 SEE NOTES 1,2,4,5,7,8,9 HORIZONTAL LEFT HORIZONTAL LEFT A02066 A02067...
  • Page 10 AIR DELIVERY - - CFM (With Filter) EXTERNAL STATIC PRESSURE (In. wc) RETURN-AIR UNIT SIZE SUPPLY SPEED Bottom High 1085 1035 045-08 Med-High — Side(s) Med-Low — Bottom High 1450 1375 1305 1225 1145 1050 045-12 Med-High 1360 1300 1240 1175 1115 1040...
  • Page 11 DIMENSIONS (733mm) (664mm) 28-7/8" 26-1/8" (FLUE COLLAR) (641mm) 25-1/4" 2-7/16" (62mm) 22-9/16" AIRFLOW 1-5/16" (573mm) (33mm) 19" 13/16" JUNCTION BOX 13/16" (483mm) (21mm) 1-1/8" LOCATION 5-15/16" (21mm) (29mm) OUTLE T 4-13/16" (135mm) (122mm) 1/2" DIA. K.O.THERMOSTAT (22mm) WIRE ENTRY 9-5/8" (13mm) 11/16"...
  • Page 12 A08471 MEETS DOE RESIDENTIAL CONSERVATION EFFICIENCY SERVICES PROGRAM STANDARDS. RATING CERTIFIED Before purchasing this appliance, read important energy cost and efficiency information available from your retailer.
  • Page 13: Typical Wiring Schematic

    TYPICAL WIRING SCHEMATIC A02186 ELECTRICAL DATA OPERATING MAXIMUM VOLTAGE RANGE WIRE MAXIMUM LENGTH FUSE OR CKT 58STA/STX VOLTS HERTZ MAXIMUM MINIMUM Maximum* Minimum* FT (M)‡ UNIT SIZE PHASE UNIT AMPS BKR AMPS† WIRE GAGE 045-08 115-60-1 49 (14.9) 045-12 115-60-1 39 (11.8) 070-08 115-60-1...
  • Page 14: Typical Installation

    TYPICAL INSTALLATION CONDENSING UNIT HUMIDIFIER GAS-FIRED WATER HEATER ELECTRONIC AIR CLEANER AIRFLOW A02184...
  • Page 16: Guide Specifications

    Furnace may have reusable- - type filters. Filter shall be _______ in. (mm) (x) _______in. (mm). An accessory Catalog No: 58ST ---6PD Copyright 2009 Carrier Corp. D 7310 W. Morris St. D Indianapolis, IN 46231 Printed in U.S.A. Edition Date: 02/09 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
