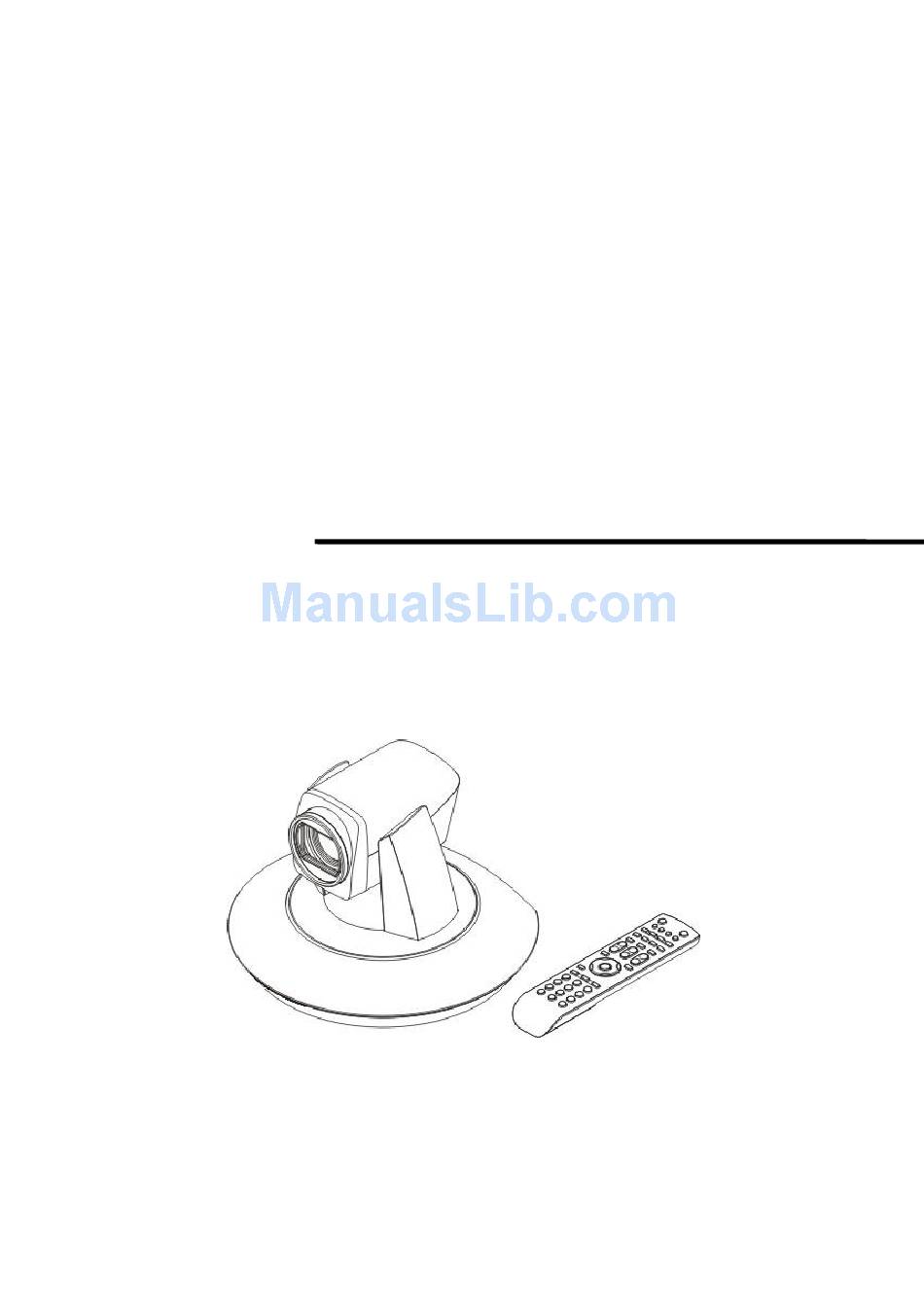

- Page 1 AMC 1080P/1080i HD PTZ Color Video Cameras User Manual V1.2...
- Page 3 SAFETY NOTICE-IMPORTANT!!! The following important notes must be followed carefully to run the camera and respective accessories in total safety. The camera and relative accessories are called video system in this section. Before installing the camera, please read this manual carefully. Please follow installation instructions indicated in this manual during installation.
- Page 4 Do not move the camera head manually. In doing so would result in malfunction of the camera. Do not hold the camera head when carrying the video camera. This camera is for indoor use only. It is not designed for outdoor use. ...
-
Page 5: Table Of Contents
CONTENTS ABOUT THE PRODUCT -------------------------------------------------------- 1 -------------------------------------------------------------------------------- 1 EATURES ------------------------------------------------------------ 1 & A IST OF ARTS CCESSORIES ---------------------------------------------------------------- 2 & I ARTS NTERFACES ------------------------------------------------------------------ 3 DIP S WITCHES ETTINGS -------------------------------------------------------------------- 4 EMOTE ONTROLLER CABLE CONNECTING INSTRUCTIONS --------------------------------------- 6 -------------------------------------------------------------------------- 6 DVI-I I NTERFACE -------------------------------------------------------------------------- 7... - Page 6 INSTALLATION INSTRUCTIONS--------------------------------------------- 13 ---------------------------------------------------------- 13 ESKTOP OUNT NSTALLATION -------------------------------------------------------------- 13 OUNT NSTALLATION ------------------------------------------------------------ 14 EILING OUNT NSTALLATION ---------------------------------------------------------- 15 ENDANT OUNT NSTALLATION MENU SETTINGS ------------------------------------------------------------ 16 ------------------------------------------------------------------- 16 ONFIGURATION ---------------------------------------------------------------------- 20 XPLANATION VIDEO ---------------------------------------------------------------------------------- 21 EXPOSURE ---------------------------------------------------------------------------- 21 WHITE BALANCE ----------------------------------------------------------------------- 22 PAN/TILT/ZOOM ------------------------------------------------------------------------ 22 SYSTEM -------------------------------------------------------------------------------- 23 STATUS -------------------------------------------------------------------------------- 24...
-
Page 7: About The Product
List of Parts & Accessories ABOUT THE PRODUCT When you open the box, check all accessories according to the packing list. Features Camera (1) 1/2.8 inch Exmor CMOS sensor, 2.2 megapixel； Supports full resolution up to1080/60P and SD video formats； ... -
Page 8: Main Parts & Interfaces
Main Parts & Interfaces Bottom View Camera Front View 8 DIP Switch Set camera address, protocol, baud rate, 1 Camera Module video format and mounting type. 2 Power Indicator 9 Mounting Hole 3 Remote Controller Indicator 1/4”inch screw thread for fixing camera. Rear View 10 Locating Hole To define installation direction of camera. -
Page 9: Dip Switches Settings
Sw2 settings DIP Switches Settings No. 1 and 2 of SW2 is used to set protocol; no. Before operating the camera, set the camera 3 and 4 is used to set baud rate; no. 5, 6, 7, 8 address, DVI-I output signal format and video is used to set video output format. -
Page 10: Remote Controller
Remote Controller 2 Camera Selection Button Used to switch among 4 cameras, press 1-4 number buttons to control cameras with 1-4 addresses respectively. For example, press button 1 to control the camera with address 3 Focus Press“AUTO”button to switch to Auto Focus, press “MANU”... - Page 11 8 Cancel 16 Direction / Menu Operation To cancel numbers inputted. In None-menu status, press these four buttons to pan left/right and tilt up/down. 9 Power In Menu status: button to select After the camera has been connected to among menu options, power source, in none-menu status, press change option / value.
-
Page 12: Cable Connecting Instructions
CABLE CONNECTING INSTRUCTIONS Connect the camera to relative devices with the cables supplied with the camera. DVI-I Interface... -
Page 13: Hd-Sdi Interface
Cable Package HD-SDI Interface Note Once the RS-422/RS-485 interface is used as RS485 control, simply connect R+ & T+ as RS485+ and R- & T- as RS485-. -
Page 14: Power Connection
Power Connection Use remote control to turn on / off camera Once camera started successfully, in Connect power adapter supplied together None-menu status, the Power button with the camera to power source, after can be used to turn on /off the camera. powered on, camera’s power indicator lights up, the camera will start self-testing, after finished, camera moves to Home... -
Page 15: Remote Controller Operation
Camera Selection REMOTE CONTROLLER OPERATION Before operating the camera, check if power and other devices have been correctly connected. Used to switch among 4 cameras, press 1-4 number buttons to control cameras with 1-4 Power addresses respectively. For example, press button 1 to control the camera with address 1. -
Page 16: Pattern
“ ” button to Auto Focus once every time it is pressed, then switch back to Manual Focus mode. Pattern Used to open / close back light compensation. Zoom Used to activate Pattern Scan1 and Pattern Scan2. Pattern Scan 1: camera pans between±45° of current position. -
Page 17: Back
Menu operation Press MENU button to enter /exit menu. In Menu status: button to select among menu options, to change Back option / value. Press “ ” button to go back to previous menu. In None-menu status: press this button to Direction / Menu Operation switch among pan / tilt control speeds. -
Page 18: Preset Setting
Preset Setting Cancel To cancel numbers inputted. Enter “ ” button to call a preset. Input number key(s), and then press this button to call a preset. “ ” button to set a preset. Move the camera to a specific position, adjust After inputting number(s), press this button to focus value and etc, and then press this confirm. -
Page 19: Installation Instructions
Note INSTALLATION Take effective measures to avoid camera from dropping. Do not grab the camera head when carrying. INSTRUCTIONS Do not rotate the camera head with hand. cause malfunction to the camera. The camera has 4 installation types: desktop, ceiling, wall, pendant mount installations. -
Page 20: Ceiling Mount Installation
Fix the mounting plate onto the ceiling or Use inch screws to fix the camera on the bracket, fix the limit screw according to cement roof with 3 screws which should actual requirement, and make sure the be prepared by you. camera is tightly fixed onto the bracket before your hands leave the camera. -
Page 21: Pendant Mount Installation
Pendant Mount Installation Use 2 screws to fix the upper pole and lower pole. The length is adjustable ranging from 350mm~600mm. According to diameter and position of the 4 holes on the pole (as shown below), drill 3 holes on the ceiling or cement roof. Use screws to fix camera on the lower pole. -
Page 22: Menu Settings
MENU SETTINGS Menu Configuration <VIDEO> SHARPNESS 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 Refer to Page 21 BRIGHTNESS -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7 CONTRAST -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,... - Page 23 <EXPOSURE> MODE FULL AUTO Refer to Page 21 MANUAL GAIN -3, 0, +2, +4, +6, +8, +10, +12, +14, +16, +18, +20, +22, +24, +26, +28 SPEED 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 IRIS...
- Page 24 <WHITE BALANCE> MODE AUTO Refer to Page 22 ONE PUSH INDOOR OUTDOOR MANUAL R.GAIN 0~255 B.GAIN 0~255 <PAN TILT ZOOM> PAN/TILT SPEED 1, 2, 3, 4, 5, 6, 7, 8 Refer to Page 22 PAN/TILT LIMIT ON, OFF -30°~+90° DOWN -30°~+90°...
- Page 25 <SYSTEM> DISPLAY INFO ON, OFF Refer to RATIO SPEED ON, OFF Page 24 PRESET FREEZE ON, OFF CVBS OUTPUT SQUEEZE, CROP, LETTER BOX RS422 PORT HALF-DUPLEX-1,HALF-DUPLEX-2, FULL-DUPLEX <STATUS> ADDRESS Refer to PROTOCOL VISCA Page 24 BAUDRATE 2400 VIDEO FORMAT 720P50 DVI-I OUTPUT YPBPR MOUNT MODE...
-
Page 26: Menu Explanation
Submenus Menu Explanation From main menu, navigate to select <EXPOSURE> menu, press OK to enter. Main Menu ❶ ❸ <EXPOSURE> MODE MANUAL Press MENU button to enter / exit menu. GAIN ❷ SPEED 1/25 ❶ IRIS <MENU> EXP-COMP VIDEO LEVEL EXPOSURE WHITE BALANCE ❷... -
Page 27: Video
VIDEO 3DNR LEVEL: OFF, LOW, MID, MAX. WIDE DYNAMIC: ON, OFF VIDEO menu is used to change video value. <VIDEO> EXPOSURE SHARPNESS BRIGHTNESS CONTRAST EXPOSURE menu is used to adjust exposure SATURATION value. 2DNR LEVEL 3DNR LEVEL <EXPOSURE> WIDE DYNAMIC MODE MANUAL GAIN... -
Page 28: White Balance
WHITE BALANCE SHUTTER PRI: Gain and Iris value are adjusted automatically according to working WHITE BALANCE menu is used to select environment; shutter speed value is from white balance modes. Available options: adjustable manually. < WHITE BALANCE> SPEED: 1/25, 1/50, 1/75, 1/100, 1/120, MODE MANUAL 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000,... -
Page 29: System
DISPLAY INFO: Turn ON / OFF display of PAN/TILT SPEED: 1， 2， 3， 4， 5， 6， 7， 8 the bigger the number is, the faster the speed is. pan / tilt angle and prompt message. The speed is the fastest when in 1x zoom RATIO SPEED: When RATIO SPEED is set as compared to other zooming times. -
Page 30: Status
confirm or press to cancel and return to messages. previous menu. HALF-DUPLEX-2:RS485 half duplex mode, in VISCA protocol, after executing the command message, the camera return confirmation / completion / error messages. STATUS < STATUS> ADDRESS PROTOCOL VISCA BAUD RATE 2400 VIDEO FORMAT 1080P50... -
Page 31: Annex 1 Technical Specifications
ANNEX 1 TECHNICAL SPECIFICATIONS Model AMC-K2001 Image Sensor 1/2.8" Exmor CMOS,2.2 megapixel 1080p/60, 1080p/30, 1080i/60, 720p/60, 720P/30 Signal System (HD) 1080p/50, 1080p/25, 1080i/50, 720p/50, 720P/25 Signal System (SD ) NTSC, PAL Focal Lens f=4.7mm-94.0mm Iris F1.6-F3.5 Optical Zoom Digital Zoom Min. - Page 32 ＜15W Power Consumption Operating 0° C~+40° C Temperature Storage Temperature -20° C~+60° C Dimensions(W×H×D) 226mm×206mm×159mm Weight 1.8KG Body color White / grey...
-
Page 33: Annex 2 Size And Dimension
ANNEX 2 SIZE AND DIMENSION Front Rear Side Bottom... -
Page 34: Annex 3 Sw1 Definition
ANNEX 3 SW1 DEFINITION DIP No. Address... - Page 35 DIP No. VGA, 5-BNC (HD-SDI or YPbPr output is not supported) Analog Video Format YPbPr DIP No. Ceiling Mounting Type Desktop...
-
Page 36: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution Power supply failure Check power supply No action or image Power adapter damaged Replace power adapter after powered on Power cable connection got loosen Check & reconnect Check & reconnect power cable Not enough power supply No self-testing after connection powered on, or with...
