Summary of Contents for Mazda mx-5 2007

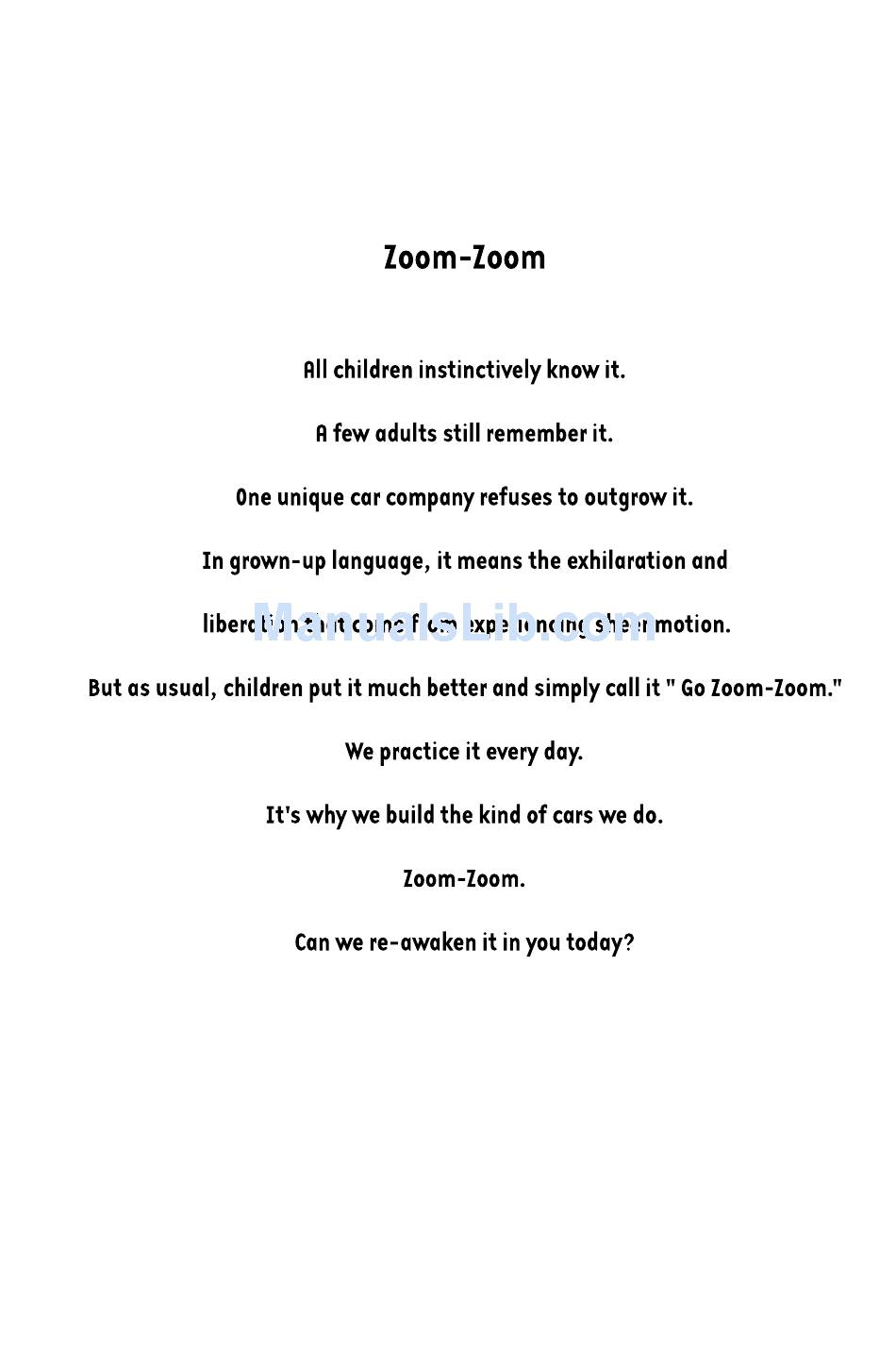

Page 3 HIROSHIMA, JAPAN Important Notes About This Manual Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
Page 4: How To Use This Manual
Illustrations complement the words of the manual to best explain how to enjoy your The symbol below, located on some parts Mazda. By reading your manual, you can of the vehicle, indicates that this manual find out about the features, important contains information related to the part.
Page 5: Table Of Contents
Table of Contents Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts.
Page 7: Your Vehicle At A Glance
Your Vehicle at a Glance Interior, exterior views and part identification of your Mazda. Dashboard and Interior Overview ..........1-2 Exterior Overview ................. 1-4...
Page 8 Your Vehicle at a Glance Dashboard and Interior Overview The equipment and installation position varies by model.
Page 9 Your Vehicle at a Glance Dashboard and Interior Overview Power door lock switch ..................page 3-29 Outside mirror switch ..................page 3-79 DSC OFF switch ....................page 5-24 Passenger airbag deactivation switch ..............page 2-30 Dashboard illumination ..................page 5-37 Lighting control/Turn signals ................
Page 10: Exterior Overview
Your Vehicle at a Glance Exterior Overview The equipment and installation position varies by model.
Page 11 Your Vehicle at a Glance Exterior Overview Trunk lid ......................page 3-31 Rear window defroster ..................page 5-56 Antenna ......................page 6-10 Doors and keys ....................page 3-28 Outside mirror ....................page 3-79 Tires ........................page 8-33 Light bulbs ......................page 8-38 Hood ........................
Page 13: Essential Safety Equipment
Essential Safety Equipment Use of safety equipment, including seats, seat belt system, child-restraint systems and SRS air bags. Seats ....................2-2 Seats ..................2-2 Seat Belt Systems ................2-5 Seat Belt Precautions ..............2-5 Seat Belt ..................2-8 Seat Belt Pretensioner and Load Limiting Systems ....2-10 Seat Belt Extender ..............
Page 14 Consult an qSeat Slide Authorized Mazda Dealer if there is any need to remove or reinstall the front seats. WARNING Do not drive with damaged front seats:...
Page 15 Essential Safety Equipment Seats Make sure the lever returns to its original WARNING position and the seat is locked in place by attempting to push it forward and backward. Do not drive with the seatback unlocked: qSeat Recline The seatback plays an important role in your protection in a vehicle.
Page 16 Essential Safety Equipment Seats CAUTION When returning a rear-reclined seatback to its upright position, make sure you hold onto the seatback with your other hand while operating the lever. If the seatback is not supported, it will flip forward suddenly and could cause injury.
Page 17: Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden stops. Mazda recommends that the driver and passenger always wear seat belts. All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when not in use.
Page 18 Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before they are used again.
Page 19 Essential Safety Equipment Seat Belt Systems qPregnant Women and Persons with Serious Medical Conditions Pregnant women should always wear seat belts. Ask your doctor for specific recommendations. The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS. The shoulder belt should be worn across your shoulder properly, but never across the stomach area.
Page 20 Essential Safety Equipment Seat Belt Systems 3. Insert the tongue into the buckle until Seat Belt you hear a click. WARNING Tongue Always wear the seat belt with it correctly routed in its guide: Wearing a seat belt without the seat belt routed in its guide is dangerous because the seat belt would not be able to provide adequate protection in an...
Page 21 Caution label Button NOTE If a belt does not fully retract, inspect it for kinks and twists. If it is still not retracting properly, have it inspected at an Authorized Mazda Dealer.
Page 22 Additionally, the load limiting function must be the load limiter will only limit loads on checked by an Authorized Mazda Dealer. the chest once in a collision and this is another reason to have the seat belts inspected.
Page 23 Ask an Authorized Mazda Dealer how to safely dispose of the qAir Bag/Seat Belt Pretensioner pretensioner system or how to scrap a pretensioner-equipped vehicle.
Page 24 ON position. If either of may be available to you at no charge from these occur, consult an Authorized Mazda your Authorized Mazda Dealer. Dealer as soon as possible. The system This extender will be only for you and for may not work in an accident.
Page 25 ON beep sound will not be warning light will not illuminate and position. heard. function properly. qBelt Minder NOTE The belt minder can be deactivated. Consult an Authorized Mazda Dealer to deactivate and restore the seat belt minder. 2-13...
Page 26 Essential Safety Equipment Seat Belt Systems Driver seated/Passenger not seated Driver seated/Passenger seated The belt minder is a supplemental The seat belt warning light/beep reminds warning to the seat belt warning function. the passenger to fasten the seat belt If the driver's seat belt is not fastened according to the chart below.
Page 27: Child Restraint
Essential Safety Equipment Child Restraint Child Restraint Precautions Mazda strongly urges the use of child-restraint systems for children small enough to use them. You are required by law to use a child-restraint system for children in the U.S. and Canada.
Page 28 Essential Safety Equipment Child Restraint To reduce the chance of injuries caused by the deployment of the passenger air bag, there are two methods to deactivate the passenger air bag for a child's safety as follows however the surest way to avoid the passenger air bag not deploying is to use the key and turn off the passenger air bag and not rely on the passenger seat weight sensors, which will also detect other loads or objects on and around the passenger seat;...
Page 29 Essential Safety Equipment Child Restraint WARNING Use the correct size child-restraint system: For effective protection in vehicle accidents and sudden stops, a child must be properly restrained using a seat belt or child-restraint system depending on age and size. If not, the child could be seriously injured or even killed in an accident. Follow the manufacturer's instructions and always keep the child-restraint system buckled down: An unsecured child-restraint system is dangerous.
Page 30 Essential Safety Equipment Child Restraint WARNING Seating a child in a child-restraint system on the front passenger seat is dangerous: This vehicle is equipped with both a passenger seat weight sensor and a passenger air bag deactivation indicator light (page 2-37). Even with the passenger seat weight sensors, seating a child in a child-restraint system on the passenger seat under the following conditions increases the danger of the passenger air bag deploying and could result in serious injury or death to the child.
Page 31 WARNING Always use a child-restraint system designed for use without a tether: Using a child-restraint system that requires a tether is dangerous. Your Mazda does not have a child-restraint tether. The child-restraint system cannot be properly secured. In a collision, it could move and injure other occupants as well as result in serious injuries or death to the child.
Page 32 Essential Safety Equipment Child Restraint Before installing a child-restraint system, Installing a Child- make sure the passenger air bag Restraint System deactivation indicator light illuminated by using the key to turn the passenger air bag The passenger lap/shoulder belt can easily off.
Page 33 Essential Safety Equipment Child Restraint 4. Push the child-restraint system firmly WARNING into the vehicle seat. Be sure the belt retracts as snugly as possible. Clicking from the retractor will be heard during Always make sure the passenger air retraction if the system is in automatic bag deactivation indicator light is locking mode.
Page 34 Essential Safety Equipment Child Restraint NOTE Inspect this function before each use of the child-restraint system. You should not be able to pull the shoulder belt out of the retractor while the system is in the automatic locking mode. When you remove the child-restraint system, be sure the belt fully retracts to return the system to emergency locking mode before...
Page 35 Child Restraint LATCH Child-Restraint System Your Mazda is equipped with LATCH lower anchors for attachment of specially designed LATCH child-restraint systems behind the passenger seat that slide through the passenger seat when it is in the fully rearward position. Only LATCH junior seats and infant carriers without upper tethers can be used in this position, as there is no good place to anchor the tether due to this vehicle's design.
Page 36 Essential Safety Equipment Child Restraint qLATCH Child-Restraint System 3. Secure the child-restraint system using BOTH LATCH lower anchors, Installation Procedure following the child-restraint system Before installing a child-restraint system, manufacturer's instruction, however if make sure the passenger air bag it uses an upper tether, it may not be deactivation indicator light illuminated by mounted properly in this vehicle as using the key to turn the passenger air bag...
Page 37 Essential Safety Equipment Child Restraint WARNING Always make sure the passenger air bag deactivation indicator light is illuminated when using a rear-facing child-restraint system: Seating a child in a rear-facing child- restraint system that is installed on the passenger seat with the passenger air bag deactivation indicator light not illuminated is extremely dangerous.
Page 38: Srs Air Bags
Essential Safety Equipment SRS Air Bags Supplemental Restraint Systems (SRS) Precautions The front and side supplemental restraint systems (SRS) include up to 4 air bags (verify SRS AIRBAG location indicator marks). They are located in: The steering wheel hub (driver air bag) The passenger dashboard (passenger air bag) í...
Page 39 Essential Safety Equipment SRS Air Bags WARNING Seat belts must be worn in air bag equipped vehicles: Depending only on the air bags for protection during an accident is dangerous. Alone, air bags may not prevent serious injuries. The appropriate air bags can be expected to inflate only in the first collision with frontal, near frontal or side forces that are at least moderate.
Page 40 Essential Safety Equipment SRS Air Bags WARNING Do not sit too close to a front door or lean against doors in vehicles with side air bags: Sitting too close to the side air bag modules or placing hands on them is extremely dangerous.
Page 41 Should you sell your Mazda, we urge you to tell the new owner of its air bag systems and that familiarization with all instructions about them, from the Owner's Manual, is important.
Page 42 For more government release information on air bag deactivation, contact an Authorized Mazda Dealer for the occupant categories as described in the request form for the air bag deactivation switch in the NHTSA rules. 2-30...
Page 43 Essential Safety Equipment SRS Air Bags The air bag deactivation switch turns off the passenger front and side air bags and the also seat belt pretensioner system. Make sure the passenger air bag deactivation switch is in the ON position except when a passenger fitting the previous categories occupies the front passenger seat.
Page 44 30 kg (66 lb). NOTE Have the passenger air bag deactivation switch inspected by an Authorized Mazda Dealer if any of these conditions occur: The indicator light does not illuminate for about 6 seconds when the ignition switch is turned to the ON position.
Page 45 Essential Safety Equipment SRS Air Bags 1. Insert the key into the passenger air bag deactivation switch and turn the key clockwise until the key points to OFF. 2. Remove the key. 3. Make sure the air bag deactivation indicator light remains illuminated when the ignition is in the ON position.
Page 46 Essential Safety Equipment SRS Air Bags Supplemental Restraint System Components The supplemental restraint systems (SRS) have two basic subsystems: The air bag system with inflators and air bags. The electrical system with crash sensors and diagnostic module. The air bags are mounted in the following locations: The steering wheel hub The passenger dashboard í...
Page 47 Essential Safety Equipment SRS Air Bags qFront Air Bag System Components (1) Front dual stage inflators and air bags (2) Front crash sensor (3) Passenger air bag deactivation indicator light (page 2-37) (4) Crash sensor and diagnostic module (SAS unit) (5) Seat belt pretensioner and load limiting systems (page 2-10) (6) Passenger seat weight sensors (page 2-37) (7) Driver and passenger seat belt buckle switches (page 2-37)
Page 48 Essential Safety Equipment SRS Air Bags í qSide Air Bag System Components (1) Crash sensor and diagnostic module (SAS unit) (2) Side crash sensors (3) Side inflators and air bags (4) Seats í 2-36 Some models.
Page 49 The front air bags will function only once. After that, the front air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the system components. The front, dual stage air bags control air bag inflation in two energy stages. During an impact of moderate severity the front air bags deploy with lesser energy, whereas during more severe impacts, they deploy with more energy.
Page 50 Essential Safety Equipment SRS Air Bags Passenger seat weight sensors Your vehicle is also equipped with the passenger air bag deactivation indicator light. The deactivation indicator light illuminates when the key is used to turn the passenger air bag off or the automatic function operates based on the passenger seat weight sensors. These sensors are located under both of the passenger seat rails.
Page 51 ON position and does not illuminate as indicated in the above chart, do not allow a child to sit in the passenger seat and consult an Authorized Mazda Dealer as soon as possible. The system may not work properly in an accident. You must deactivate the passenger air bag using the key (page 2-30) and consult an Authorized Mazda Dealer.
Page 52 Essential Safety Equipment SRS Air Bags WARNING Do not increase the total seated weight on the front passenger seat: When an infant or small child sits on the passenger seat, increasing the total seated weight on the passenger seat from the total seated weight of approximately 30 kg (66 lb) is dangerous.
Page 53 The side air bags will function only once. After that, the side air bags will not work again and must be replaced. Only an Authorized Mazda Dealer can replace the systems. The side air bag will deploy only on the side the vehicle receives the force of the impact.
Page 54 Essential Safety Equipment SRS Air Bags qAir Bag Activation/Deactivation NOTE If the passenger seat weight sensors detect a total seated weight on the passenger seat is less than approximately 42 kg (93 lb), the passenger front and side air bags and seat belt pretensioner may not deploy (page 2-37).
Page 55 Essential Safety Equipment SRS Air Bags Frontal offset impact to the vehicle Vehicle roll-over, may deploy the side may not provide the stopping force air bags but not the front air bags. necessary for air bag deployment. í Side air bag activation Rear-ending or running under a truck's The severity of impact above the designed tail gate may not provide the stopping...
Page 56 Essential Safety Equipment SRS Air Bags Side impacts involving trees or poles Collision from the front, but it may can cause severe cosmetic damage but deploy the front air bags. may not have enough impact force to activate the side air bags. qConstant Monitoring Vehicle roll-over may not provide The following components of the air bag...
Page 57 The air bag systems do not require regular maintenance. But if any of the following occurs, take your vehicle to an Authorized Mazda Dealer as soon as possible: The air bag system warning light flashes. The air bag system warning light remains illuminated.
Page 58 Authorized Mazda Dealer, which caused them to deploy or refer to Customer Assistance (U.S.A.) damage them. Only a trained (page 9-2).
Page 59: Knowing Your Mazda
Knowing Your Mazda Explanation of basic operations and controls; opening/closing and adjustment of various parts. Advanced Keyless Entry and Start System ........ 3-2 í Advanced Keys ..............3-2 Operation Using Advanced Keyless Functions ......3-7 Operation Using Advanced Key Functions ......3-14 Advanced Key Suspend Function ...........
Page 60: Advanced Keyless Entry And Start System
Knowing Your Mazda Advanced Keyless Entry and Start System í Advanced Keys The advanced keyless functions (advanced keyless entry and start system) enables the following operations while the advanced key is being carried (page 3-7). Locking/unlocking the doors, and opening the trunk lid, without operating the key.
Page 61 (not in the vehicle) for use if you need to make a replacement key. Also write down the code number and keep it in another safe and handy place, but not in the vehicle. If your key is lost, consult your Authorized Mazda Dealer with the code number ready.
Page 62 (green) flashes in the instrument cluster. Refer to Advanced Key Battery Dead Warning on page 3-19. Additional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6 advanced keys can be used with the advanced keyless functions per vehicle.
Page 63 Knowing Your Mazda Advanced Keyless Entry and Start System qAdvanced Key Maintenance Replacing the battery at an Authorized Mazda Dealer is recommended to prevent damage to the advanced key. If replacing CAUTION the battery by yourself, follow the instruction below.
Page 64 Authorized Mazda Dealer. If your advanced key is lost or stolen, bring all remaining advanced keys to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen advanced key inoperative.
Page 65: Operation Using Advanced Keyless Functions
Knowing Your Mazda Advanced Keyless Entry and Start System Opening the trunk lid Operation Using Advanced The operational range for opening the Keyless Functions trunk lid is an area of up to 80 cm (2.6 ft) from the center of the trunk lid.
Page 66 Knowing Your Mazda Advanced Keyless Entry and Start System qLocking, Unlocking the Doors NOTE with Request Switch The trunk is out of the operational Both doors can be locked/unlocked by range, however, starting the engine pressing the request switch on a door may be possible.
Page 67 Knowing Your Mazda Advanced Keyless Entry and Start System NOTE NOTE The setting can be changed so that (Without theft-deterrent system) The hazard warning lights will flash the doors are locked automatically twice to indicate that the doors are without pressing the request switch unlocked.
Page 68 Knowing Your Mazda Advanced Keyless Entry and Start System qOpening the Trunk Lid with qStarting the Engine Request Switch Ignition switch positions The trunk lid can be opened by pressing Without a traditional key, some of the the request switch on the under side of the ignition switch functions are different.
Page 69 Knowing Your Mazda Advanced Keyless Entry and Start System START NOTE The engine is started in this position. It If turning the ignition switch is will crank until you release the start knob; difficult, jiggle the steering wheel then it returns to the ON position. The from side to side.
Page 70 Knowing Your Mazda Advanced Keyless Entry and Start System 1. Make sure the advanced key is being 7. Verify that the KEY indicator light carried. (green) illuminates in the instrument cluster. The KEY warning light (red) 2. Occupants should fasten their seat means you cannot continue to start the belts.
Page 71 Knowing Your Mazda Advanced Keyless Entry and Start System 8. Turn the ignition switch to the ACC Turning off the engine position while pushing the start knob 1. Shift the shift lever to the P position (Automatic transmission). 2. Turn the ignition switch from the ON position to the ACC position.
Page 72: Operation Using Advanced Key Functions
Knowing Your Mazda Advanced Keyless Entry and Start System Operation Using Advanced NOTE Key Functions When turning the ignition switch to the LOCK position, the ignition qKeyless Entry System switch has to be pushed in from the ACC position and turned. Without...
Page 73 Knowing Your Mazda Advanced Keyless Entry and Start System NOTE NOTE If the transmitter does not operate The unlock button can be used to open when pressing a button or the the power windows. Refer to Opening operational range becomes too small, the Power Windows from Outside (page the battery may be dead.
Page 74 Knowing Your Mazda Advanced Keyless Entry and Start System Unlock button NOTE To unlock the driver's door, press the (With power retractable hardtop) unlock button. A beep will be heard twice The trunk lid can only be opened when and the hazard warning lights will flash the power retractable hardtop is fully twice.
Page 75: Advanced Key Suspend Function
Knowing Your Mazda Advanced Keyless Entry and Start System qAuxiliary Key Function Advanced Key Suspend Use the auxiliary key stored in the Function advanced key in the event of a dead transmitter battery or malfunction. If one key is left in the vehicle or trunk...
Page 76: Warning And Beep Sounds
Authorized the ACC position and the door is open Mazda Dealer as soon as possible. due to the activation of the warning Refer to Ignition Switch (page 5-2). beep sound indicating that the start knob is not in the LOCK position.
Page 77 Knowing Your Mazda Advanced Keyless Entry and Start System qRequest Switch Inoperable The advanced key is not within operational range. Warning Beep The advanced key is placed in areas Under the following conditions, if the where it is difficult for the system to request switch for a front door is pressed detect the signal (page 3-7).
Page 78: Setting Change (Function Customization)
Knowing Your Mazda Advanced Keyless Entry and Start System Setting Change (Function Customization) The following function settings are possible. These settings can only be changed by an Authorized Mazda Dealer. At Initial After Setting Setting Function Setting Change Advanced key battery dead...
Page 79: When Warning Indicator/Beep Is Activated
The advanced key is malfunctioning. Park the vehicle in When the KEY warning light (red) remains illuminated a safe place, and use the auxiliary key to continue in the instrument cluster. driving the vehicle. Have the vehicle inspected at an Authorized Mazda Dealer as soon as possible. 3-21...
Page 80: Doors And Locks
(With theft-deterrent system) If your key is lost, consult your Refer to Theft-Deterrent System Authorized Mazda Dealer and have (page 3-77) for information your code number ready. regarding keys and the prevention of vehicle and vehicle contents theft.
Page 81: Keyless Entry System (With Retractable Type Key) Í
Knowing Your Mazda Doors and Locks Key extend/retract method (Retractable Keyless Entry System (with type key) í Retractable Type Key) To extend the key, press the release button. This system remotely locks and unlocks the doors, and opens the power windows.
Page 82 (page 3-26). this device may not cause harmful Additional transmitters can be interference, and (2) this device must obtained at an Authorized Mazda accept any interference received, Dealer. Up to 3 transmitters can be including interference that may cause used with the keyless entry system undesired operation.
Page 83 Knowing Your Mazda Doors and Locks The operation indicator light flashes when To unlock both doors, press the unlock the buttons are pressed. button again within 3 seconds. Lock button NOTE To lock the doors, press the lock button and the hazard warning lights will flash (Without theft-deterrent system) once.
Page 84 Knowing Your Mazda Doors and Locks Panic button CAUTION If you witness from a distance someone attempting to break into or damage your Install the battery with the positive vehicle, pressing the panic button will pole ( ) facing down. Battery activate the vehicle's alarm.
Page 85 Authorized Mazda Dealer. If your transmitter is lost or stolen, bring all remaining transmitters to an Authorized Mazda Dealer as soon as possible for a replacement and to make the lost or stolen transmitter inoperative. 4. Remove the battery.
Page 86: Door Locks
Knowing Your Mazda Doors and Locks qLocking, Unlocking with Key Door Locks Either door can be locked/unlocked with the key. WARNING Turn the key toward the front to unlock, toward the back to lock. Always take all children and pets with...
Page 87 Knowing Your Mazda Doors and Locks qLocking, Unlocking with Door- NOTE Lock Knob (With advanced key) To lock any door from the inside, push the The driver's door cannot be locked door-lock knob. using the door-lock knob from the To unlock, pull it out.
Page 88 Knowing Your Mazda Doors and Locks Locking, unlocking with key Locking, unlocking with door-lock switch Both doors lock automatically when the driver's door is locked with the key. Both Both doors lock automatically when doors unlock when the driver's door is LOCK is pushed.
Page 89: Trunk Lid
Knowing Your Mazda Doors and Locks qOpening and Closing the Trunk Lid Trunk Lid WARNING WARNING Close the trunk lid and do not allow Never allow a person to ride in the children to play inside the vehicle: trunk: Leaving the trunk lid open or leaving...
Page 90 Knowing Your Mazda Doors and Locks Opening the trunk lid with the key Opening the trunk lid with the remote release button Insert the key into the slot and turn it clockwise. Push the release button. Open NOTE CAUTION (With power retractable hardtop)
Page 91 Knowing Your Mazda Doors and Locks The switch is mounted inside the trunk. To open the trunk lid when the switch is in the OFF position, open the trunk with OFF position the key. ON position With advanced key With the switch in the ON position, the remote trunk lid release button can be operated.
Page 92: Inside Trunk Release Lever
Knowing Your Mazda Doors and Locks Inside Trunk Release Lever WARNING Your vehicle is equipped with an inside Close the trunk lid and do not allow trunk release lever that provides a means children to play inside the vehicle: of escape for children and adults in the...
Page 93: Power Windows
Knowing Your Mazda Doors and Locks qOpening the Trunk Lid from the Power Windows Inside The ignition switch must be in the ON Slide the inside trunk release lever in the position for the power windows to direction of the arrow. The lever is made operate.
Page 94 Knowing Your Mazda Doors and Locks qOperating the Power Windows qOperating the Driver's Side (Type A) Power Window (Type B) Manual opening/closing Manual opening/closing To open the window to the desired To open the window to the desired position, lightly hold down the switch.
Page 95 Knowing Your Mazda Doors and Locks qOperating the Passenger Power Auto-Opening Window (Type B) Because nobody likes getting into a very hot car, we have introduced a way to get a To open the window to the desired head start on cooling it, even before you position, hold down the switch.
Page 96: Fuel-Filler Lid And Cap
CAUTION Always use only a genuine Mazda fuel cap or an approved equivalent, available at an Authorized Mazda Dealer. The wrong cap can result in a serious malfunction of the fuel and emission control systems.
Page 97 If the light remains on (even after you have tightened the cap securely, driven, and restarted the engine several times), it may indicate a different problem. Contact an Authorized Mazda Dealer as soon as possible. 3-39...
Page 98: Hood
Knowing Your Mazda Doors and Locks 3. Grasp the support rod in the padded Hood area and secure it in the stay hole indicated by the arrow to hold the hood WARNING open. Always check that the hood is closed...
Page 99: Convertible Top (Soft Top)
Knowing Your Mazda Doors and Locks í Convertible Top (Soft Top) Windshield header Top latch assembly Top storage area Convertible Label (The label indicates the position where convertible top's handles top is to be held when lowering or raising it.)
Page 100 Knowing Your Mazda Doors and Locks qLowering the Convertible Top Before lowering or raising the convertible top, stop in a safe place off 1. Make sure the parking brake is applied. the right-of-way and park on a level surface. 2. Fully open the left and right windows.
Page 101 Knowing Your Mazda Doors and Locks 6. Standing outside of the vehicle, hold 7. Continue to move the convertible top the convertible top along the center rearward while pressing the rear glass edge and pull it toward the vehicle rear.
Page 102 Knowing Your Mazda Doors and Locks qRaising the Convertible Top NOTE 1. Make sure the parking brake is applied. To raise the convertible top from inside 2. Fully open the left and right windows. the vehicle, use the convertible top's handles.
Page 103 NOTE Make sure the convertible top is securely locked by pushing up on it. If it still sounds loose (rattles) after being locked by the top latch, have it inspected at an Authorized Mazda Dealer. 3-45...
Page 104: Detachable Hardtop
Knowing Your Mazda Doors and Locks í Detachable Hardtop Top latch assembly Side latch assembly Rear deck latch Rear window defroster coupler Rear deck stud í 3-46 Some models.
Page 105 Knowing Your Mazda Doors and Locks qDetachable Hardtop Precautions When removing the hardtop, make sure objects inside the vehicle are not blown away by wind. WARNING Secure all loose objects inside before driving with the hardtop removed. Sit in the seat with the seat belt...
Page 106 Knowing Your Mazda Doors and Locks 5. Remove the seat belts from the belt 10. Lift the side latches while pulling the guides. lever. Make sure the hooks are fully released. Belt guide Side latch Lever Hook 6. Slide the seats forward.
Page 107 Knowing Your Mazda Doors and Locks 12. Slide the hardtop rearward while CAUTION pressing down on the rear deck latches to unlock the latches. Be careful not to strike the body with any of the protruding hardtop Hardtop latches. Use extreme care when carrying the hardtop to prevent scratching or other damage to it.
Page 108 Knowing Your Mazda Doors and Locks 15. Disconnect the hardtop rear window NOTE defroster coupler (A) from the coupler (B), and remove the convertible top Be sure to place the convertible top rear window defroster coupler (C) latches in the locked position.
Page 109 Knowing Your Mazda Doors and Locks 7. Connect the rear window defroster 8. Make sure the top latch and the side coupler. latches on the hardtop are unlocked. Top latch assembly Side latch assembly 9. Align the rear deck latches with the...
Page 110 Knowing Your Mazda Doors and Locks 10. Slide the hardtop forward while 11. Make sure the striker for the top latch pressing down on the rear deck is securely engaged with the anchor latches to lock the latches, and then before pushing the top latch lever.
Page 111 Lift the side latches with the palm of your hand until the latches are locked. If the hardtop rattles even when all latches are secure, drive slowly and Side contact an Authorized Mazda Dealer for latch inspection. qDetachable Hardtop Appearance Care...
Page 112: Convertible Top (Power Retractable Hardtop)
Knowing Your Mazda Doors and Locks í Convertible Top (Power Retractable Hardtop) The power retractable hardtop opens/closes electrically by operating switches in the vehicle. When opening/closing the hardtop, the hardtop, deck and window glass operate together. The hardtop is stored in the storage area under the deck.
Page 113 Knowing Your Mazda Doors and Locks qPower Retractable Hardtop Precautions WARNING Always confirm that there are no people around the vehicle before operating the hardtop: If the hardtop were to operate unexpectedly, it could result in an accident and serious injury from someone getting caught in the mechanism.
Page 114 Knowing Your Mazda Doors and Locks CAUTION When opening/closing the hardtop, do not apply any load to the hardtop or the deck. The opening/closing mechanism of the hardtop may be damaged. Open/close the hardtop with the vehicle parked on level ground in a safe place where the vehicle does not obstruct traffic.
Page 115 6. Verify that the operation indicator light at an Authorized Mazda Dealer. is illuminated and the lock is detached. The hardtop can be closed manually as an emergency measure.
Page 116 Knowing Your Mazda Doors and Locks 9. The hardtop opens. NOTE When the open switch is pressed, a beep sound is heard. The hardtop keeps opening and the operation indicator light flashes while the open switch is pressed. If the switch is released while the hardtop is opening, the hardtop stops opening.
Page 117 Knowing Your Mazda Doors and Locks NOTE NOTE When the operation is finished, a beep When the close switch is pressed, a sound is heard and the operation beep sound is heard. indicator light turns off. The hardtop keeps closing and the...
Page 118 Knowing Your Mazda Doors and Locks 7. The hardtop comes out from under the NOTE deck. When the operation is finished, a beep sound is heard and the operation indicator light illuminates. The power windows cannot be closed automatically. 10. Move the top latch slowly to make...
Page 119 Locked position are all met, have it checked at an Authorized Mazda Dealer. If you are unable to have the hardtop checked at an Authorized Mazda Dealer, the hardtop can be closed manually as an emergency measure. Unlocked position The procedure for manually closing the...
Page 120 In addition, holding your Manual closing body extended over the car can result in muscle strains so Mazda Tool preparation recommends having the hardtop Locate the following tools in the glove checked at an Authorized Mazda box.
Page 121 Knowing Your Mazda Doors and Locks NOTE CAUTION The gear units are located underneath Do the procedure with the antenna the deck. removed. The antenna may be damaged if it is left installed. Bolt NOTE The gear units on both sides have to be unlocked to release the deck before it is raised manually.
Page 122 Bring the removed bolt to an Authorized Mazda Dealer. If you drop the bolt in the vehicle by mistake, inform at an Authorized Mazda Dealer.
Page 123 Knowing Your Mazda Doors and Locks 9. Press the eyebolt against the sector 12. Do the same procedure on the other gear. side. 13. Lift up the deck using two adults, one Eyebolt Sector gear on each side of the vehicle, and open the deck completely.
Page 124 Knowing Your Mazda Doors and Locks 2. Grasp the hardtop along the side and Closing the hardtop rear surfaces and lift it up enough to create a clearance behind the rear glass. CAUTION The procedure should be done by at least two adults.
Page 125 If it is not inside through the links. the vehicle, it will be difficult to service the hardtop at an Authorized Mazda Dealer. 3. Do the same procedure on the other side.
Page 126 Knowing Your Mazda Doors and Locks 4. Close the deck uniformly on both sides using two adults, one on each side of the vehicle. Rope 6. Lightly move the deck and verify that it is secured completely. 7. Open the trunk using the key, and tie...
Page 127 9. Close the trunk lid. After finishing the procedure After finishing the procedure, have the hardtop checked at an Authorized Mazda Dealer as soon as possible. WARNING Drive the vehicle at a speed of 40 km/h (25 mph) or lower before having the...
Page 128 A warning beep sound is heard when the open or close despite having met all the operation conditions, consult switch is pressed. an Authorized Mazda Dealer to have the system inspected. A warning beep sound is heard when the open or close The hardtop is not fully opened or closed.
Page 129: Security System
Knowing Your Mazda Security System Immobilizer System (with CAUTION Advanced Key) Do not allow the following when starting the engine with the auxiliary The immobilizer system allows the engine key due to an advanced key dead to start only with an advanced key the battery or other malfunction.
Page 130 Authorized Mazda Dealer. don't shut off the engine. Go to an Authorized Mazda Dealer and have it checked. If the engine is shut off while the indicator light is flashing, you won't be able to restart it.
Page 131 Always keep a spare advanced key in case one is lost. If an advanced key is lost, consult an Authorized Mazda Dealer as soon as possible. If you lose an advanced key (including auxiliary key), an Authorized Mazda Dealer will reset...
Page 132: Immobilizer System (Without Advanced Key)
Knowing Your Mazda Security System Immobilizer System CAUTION (without Advanced Key) When starting the engine do not allow the following, as the engine may not The immobilizer system allows the engine start due to the electronic signal from to start only with a key the system the ignition key not being transmitted recognizes.
Page 133 If the security indicator light flashes continuously while you are driving, don't shut off the engine. Go to an Authorized Mazda Dealer and have it checked. If you shut off the engine while the light is flashing you won't be able to restart it.
Page 134 They are only available through an Authorized Mazda Dealer. Always keep a spare key, in case one is lost. If a key is lost, contact an Authorized Mazda Dealer as soon as possible. If you lose a key, an Authorized Mazda Dealer will reset the electronic codes of your remaining keys and immobilizer system.
Page 135: Theft-Deterrent System Í
Knowing Your Mazda Security System Unlocking a door with the door lock í Theft-Deterrent System switch. The theft-deterrent system is designed to Opening a door by operating an inside prevent your vehicle or its contents from door-lock knob. being stolen when both doors, hood, and Opening the hood by operating the trunk lid are locked.
Page 136 Mazda recommends that you affix it to the qTo Stop an Alarm lower rear corner of a front door window. A triggered alarm can be turned off by any one of the following methods: Unlock a door with the key.
Page 137: Steering Wheel And Mirrors
Knowing Your Mazda Steering Wheel and Mirrors Steering Wheel Mirrors qOutside Mirrors WARNING Check the mirror angles before driving. Never adjust the steering wheel while Mirror type the vehicle is moving: Flat type (driver's side) Adjusting the steering wheel while the Flat surface mirror.
Page 138 Knowing Your Mazda Steering Wheel and Mirrors qRearview Mirror 2. Depress the mirror switch in the appropriate direction. Rearview mirror adjustment Selector switch Before driving, adjust the rearview mirror Outside mirror to center on the scene through the rear window.
Page 139 Knowing Your Mazda Steering Wheel and Mirrors WARNING Do not stack cargo or objects higher than the seatbacks: Cargo stacked higher than the seatbacks is dangerous. It can block your view in the rearview mirror, which might cause you to hit another car when changing lanes.
Page 140 3-82...
Page 141: Before Driving Your Mazda
Before Driving Your Mazda Important information about driving your Mazda. Fuel and Engine Exhaust Precautions ........4-2 Fuel Requirements ..............4-2 Emission Control System ............4-3 Engine Exhaust (Carbon Monoxide) ......... 4-4 Before Starting the Engine ............4-5 Before Getting In ..............4-5 After Getting In .................
Page 142: Fuel And Engine Exhaust Precautions
Never add fuel system additives. Never add cleaning agents other than those specified by Mazda. Other cleaning agents and additives may damage the system. Consult an Authorized Mazda Dealer. Gasoline blended with oxygenates such as alcohol or ether compounds are generally referred to as oxygenated fuels.
Page 143: Emission Control System
Either condition will damage the converter and cause poor performance. USE ONLY UNLEADED FUEL. Don't drive your Mazda with any sign of engine malfunction. Don't coast with the ignition switch turned off. Don't descend steep grades in gear with the ignition switch turned off.
Page 144: Engine Exhaust (Carbon Monoxide)
When inhaled, it can cause loss of consciousness and death. If you smell exhaust gas inside your vehicle, keep all windows fully open and contact an Authorized Mazda Dealer immediately. Do not run the engine when inside an enclosed area: Running the engine inside an enclosed area, such as a garage, is dangerous.
Page 145: Before Starting The Engine
Before Driving Your Mazda Before Starting the Engine Before Getting In After Getting In Be sure the windows, outside mirrors, Are all doors closed and locked? and outside lights are clean. Is the seat adjusted properly? Inspect inflation pressures and Are the inside and outside mirrors condition of tires.
Page 146: Driving Tips
Break-In Period Money-Saving Suggestions No special break-in is necessary, but a few How you operate your Mazda determines precautions in the first 1,000 km (600 how far it will travel on a tank of fuel. Use miles) may add to the performance, these suggestions to help save money on economy, and life of your Mazda.
Page 147: Hazardous Driving
Before Driving Your Mazda Driving Tips For more traction in starting on Hazardous Driving slippery surfaces such as ice or packed snow, use sand, rock salt, chains, WARNING carpeting, or other nonslip material under the rear wheels. Be extremely careful if it is necessary...
Page 148: Rocking The Vehicle
Do not spin the wheels at more than 56 km/h (35 mph), and do not allow Ask an Authorized Mazda Dealer to anyone to stand behind a wheel when perform the following precautions: pushing the vehicle:...
Page 149 Drive carefully and avoid bumps, vehicle is to be used on snow and ice holes, and sharp turns. covered roads, Mazda recommends that you replace the tires originally equipped Avoid locked-wheel braking. on your vehicle with snow tires during the Do not use chains on roads that are winter months.
Page 150: Driving In Flooded Area
Before Driving Your Mazda Driving Tips Driving In Flooded Area Overloading WARNING WARNING Dry wet brakes by driving very slowly Be careful not to overload your and applying the brakes lightly until vehicle: brake performance returns to normal: The gross axle weight rating (GAWR) Driving with wet brakes is dangerous.
Page 151: Towing
Before Driving Your Mazda Towing Trailer Towing The Mazda MX-5 is not designed for towing. Never tow a trailer with your Mazda MX-5. 4-11...
Page 152 4-12...
Page 153 Driving Your Mazda Explanation of instruments and controls. Starting and Driving ..............5-2 Ignition Switch ................5-2 Starting the Engine ..............5-4 Brake System ................5-5 Manual Transmission Operation ..........5-9 Automatic Transmission Controls ........... 5-12 Power Steering ................ 5-19 Cruise Control .................
Page 154: Starting And Driving
Driving Your Mazda Starting and Driving qIgnition Switch Positions Ignition Switch With advanced (With advanced key) NOTE When starting the engine using the advanced key, refer to Starting the Without advanced Engine (page 3-10). When starting the engine with the auxiliary key, perform the following procedure.
Page 155 Driving Your Mazda Starting and Driving Automatic Transmission Vehicle ACC (Accessory) The steering wheel unlocks and some electrical accessories will operate. This is the normal running position after the engine is started. The warning lights should be inspected before the engine is started (page 5-38).
Page 156: Starting The Engine
Driving Your Mazda Starting and Driving Starting the Engine CAUTION Don't try the starter for more than 10 NOTE seconds at a time. If the engine stalls or Engine-starting is controlled by the fails to start, wait 10 seconds before spark ignition system.
Page 157: Brake System
Driving Your Mazda Starting and Driving Brake System WARNING qFoot Brake Dry brakes that have become wet by Your Mazda has power-assisted brakes driving very slowly and applying the that adjust automatically through normal brakes lightly until brake performance use. is normal: Driving with wet brakes is dangerous.
Page 158 If the warning light remains on, or if the brakes do not operate properly, do not drive the vehicle. Have it towed to an Authorized Mazda Dealer. Even if the light goes out have your brake system inspected as soon as possible by an Authorized Mazda Dealer.
Page 159 Do not rely on ABS as a substitute for an indicator of leakage. Consult an safe driving: Authorized Mazda Dealer as soon as The ABS cannot compensate for possible even if the brake light is no unsafe and reckless driving, excessive longer illuminated.
Page 160 ABS. warning light and brake warning light Should this happen, consult an Authorized illuminated. Have the vehicle towed to Mazda Dealer as soon as possible. an Authorized Mazda Dealer to have the brakes inspected as soon as possible:...
Page 161: Manual Transmission Operation
Driving with worn disc pads is dangerous. The brakes could fail and 5-speed transmission cause a serious accident. As soon as you hear a screeching noise consult an Authorized Mazda Dealer. Neutral position 6-speed transmission Neutral position The vehicle is equipped with either a 5- speed or 6-speed manual transmission.
Page 162 Driving Your Mazda Starting and Driving (6-speed transmission) CAUTION Vehicles with 6-speed transmission are equipped with a device to prevent shifting Keep your foot off the clutch pedal to R (reverse) by mistake. Push the shift except when shifting gears. Also, lever downward and shift to R.
Page 163 Driving Your Mazda Starting and Driving Downshifting When you must slow down in heavy traffic or on a steep upgrade, downshift before the engine starts to overwork. This reduces the chance of stalling and gives better acceleration when you need more speed.
Page 164: Automatic Transmission Controls
Driving Your Mazda Starting and Driving Automatic Transmission Controls Various Lockouts: Indicates that you must depress the brake pedal to shift (The ignition switch must be in the ACC or ON position). Indicates the shift lever can be shifted freely into any position.
Page 165 Driving Your Mazda Starting and Driving qTransmission Ranges WARNING The shift lever must be in P or N to operate the starter. If the engine is running faster than idle, do not shift from N or P into a P (Park)
Page 166 Driving Your Mazda Starting and Driving qManual Shift Mode M (Manual) M is the manual shift mode position. This mode gives you the feel of driving a Gears can be shifted up or down by manual transmission vehicle by operating...
Page 167 Driving Your Mazda Starting and Driving Gear position indicator NOTE The numeral for the selected gear If the steering shift switches on both illuminates. sides (left and right) are operated simultaneously, the gear will shift once. The gear will not shift if:...
Page 168 Driving Your Mazda Starting and Driving To shift up to a higher gear with the NOTE steering shift switches, tap either of the UP switches toward you once with your When driving slowly, the gears may fingers. not shift up depending on vehicle speed.
Page 169 Driving Your Mazda Starting and Driving To shift down to a lower gear with the NOTE steering shift switches, press either of the DOWN switches away from you once When driving at high speeds, the with your thumb. gear may not shift down depending on vehicle speed.
Page 170 Driving Your Mazda Starting and Driving Shifting specification NOTE Shifting up The gear does not shift down to M1 If the vehicle speed is lower than the automatically while in the second gear speed specified for each gear, the gear fixed mode.
Page 171: Power Steering
Driving Your Mazda Starting and Driving Downshifting Power Steering When you must slow down in heavy Power steering is only operable when the traffic or on a steep upgrade, downshift engine is running. If the engine is off or if before the engine starts to overwork.
Page 172: Cruise Control
Driving Your Mazda Starting and Driving qActivation/Deactivation Cruise Control To activate the system, press the ON/OFF With cruise control, you can set and switch. automatically maintain any speed of more The cruise main indicator light than about 30 km/h (19 mph).
Page 173 Driving Your Mazda Starting and Driving qTo Increase Cruising Speed 3. Press down the cruise control switch and release it at the speed you want. Follow either of these procedures. Release the accelerator at the same time. Pull up the cruise control switch and hold it.
Page 174 Driving Your Mazda Starting and Driving qTo Resume Cruising Speed at NOTE More Than 30 km/h (19 mph) Accelerate if you want to speed up If some other method besides the ON/ temporarily when the cruise control is OFF switch was used to cancel cruising on.
Page 175: Traction Control System (Tcs)
Driving Your Mazda Starting and Driving Press the CANCEL button. Traction Control System í (TCS) The Traction Control System (TCS) enhances traction and safety by controlling engine torque. When the TCS detects driving wheel slippage, it lowers engine torque to prevent loss of traction.
Page 176: Dynamic Stability Control (Dsc)
Driving Your Mazda Starting and Driving qTCS/DSC Indicator Light Dynamic Stability Control í (DSC) The Dynamic Stability Control (DSC) automatically controls braking and engine torque in conjunction with systems such as ABS and TCS to help control side slip when driving on slippery surfaces, or...
Page 177 Authorized Mazda Dealer. unless the following are observed: qDSC OFF Indicator Light Use tires of the correct size specified for your Mazda on all four wheels. Use tires of the same manufacturer, brand and tread pattern on all four wheels.
Page 178 Depressing the ignition switch to the ON position, accelerator will not increase engine consult an Authorized Mazda Dealer. power and freeing the vehicle may be difficult. When this happens, turn off the TCS/ DSC.
Page 179: Tire Pressure Monitoring System
Driving Your Mazda Starting and Driving Tire Pressure Monitoring NOTE í System If the DSC OFF switch is pressed and held for a second or more, the The tire pressure monitoring system TCS/DSC system may become (TPMS) monitors the pressure for each inoperative due to the system tire.
Page 180 Driving Your Mazda Starting and Driving TPMS does not alleviate your need to CAUTION check the pressure and condition of all four tires before you drive each day. To avoid false readings, the system samples for a little while before CAUTION indicating a problem.
Page 181 When replacing/repairing the tires or immediately and avoid sudden wheels or both, have the work done by maneuvering and braking: an Authorized Mazda Dealer, or the tire If the tire pressure monitoring system pressure sensors may be damaged. warning light illuminates or flashes,...
Page 182 - take it to an Authorized When the TPMS warning light flashes, Mazda Dealer which has all the there may be a system malfunction. equipment to fix tires, TPMS Consult an Authorized Mazda Dealer.
Page 183 TPMS before it can computer. work. The easiest way to do it is to have A current converter device such as a an Authorized Mazda Dealer change DC-AC converter. your tire and complete ID signal code When excess snow or ice adheres to registration.
Page 184 When replacing/repairing the tires or body/sensor and wheel) for the tire wheels or both, have the work done pressure sensor. for the tire pressure by an Authorized Mazda Dealer, or sensor. the tire pressure sensors may be damaged. The wheels equipped on your Mazda are specially designed for installation of the tire pressure sensors.
Page 185: Instrument Cluster And Indicators
Driving Your Mazda Instrument Cluster and Indicators Meters and Gauges Speedometer ...................... page 5-34 Odometer, Trip Meter and Trip Meter Selector ..........page 5-34 Tachometer ......................page 5-35 Engine Coolant Temperature Gauge ..............page 5-35 Fuel Gauge ......................page 5-36 Dashboard Illumination ..................
Page 186 Driving Your Mazda Instrument Cluster and Indicators qSpeedometer The speedometer indicates the speed of the vehicle. qOdometer, Trip Meter and Trip Odometer Meter Selector The display mode can be changed between trip meter A and trip meter B by Trip meter A...
Page 187 Driving Your Mazda Instrument Cluster and Indicators qTachometer Trip meter The trip meter can record the total The tachometer shows engine speed in distance of two trips. One is recorded in thousands of revolutions per minute trip meter A, and the other is recorded in (rpm).
Page 188 Driving Your Mazda Instrument Cluster and Indicators qEngine Oil Pressure Gauge CAUTION Driving with an overheated engine can Normal range cause serious engine damage (page 7-19). qFuel Gauge The fuel gauge shows approximately how much fuel is in the tank. We recommend keeping the tank over 1/4 full.
Page 189 Driving Your Mazda Instrument Cluster and Indicators qDashboard Illumination When the exterior lights are on, rotate the knob to adjust the brightness of the dashboard lights. Bright 5-37...
Page 190: Warning/Indicator Lights And Beep Sounds
Driving Your Mazda Warning/Indicator Lights and Beep Sounds Warning/Indicator Lights Warning/Indicator lights will appear in any of the highlighted areas Signal Warning/Indicator Lights Page Brake System Warning Light 5-40 Charging System Warning Light 5-41 Check Engine Light 5-42 ABS Warning Light...
Page 191 Driving Your Mazda Warning/Indicator Lights and Beep Sounds Signal Warning/Indicator Lights Page Door-Ajar Warning Light 5-44 Automatic Transmission Warning Light 5-44 Tire Pressure Monitoring System Warning Light 5-45 Flat Tire Warning Light 5-47 KEY Warning Light (Red)/KEY Indicator Light (Green)
Page 192 System Warning Light NOTE Having to add brake fluid is sometimes an indicator of leakage. Consult an Authorized Mazda Dealer as soon as possible even if the brake light is no longer illuminated. This warning has the following functions:...
Page 193 ABS. warning light and brake warning light Should this happen, consult an Authorized illuminated. Have the vehicle towed to Mazda Dealer as soon as possible. an Authorized Mazda Dealer to have the brakes inspected as soon as possible:...
Page 194 ON position. If either of If this light comes on while driving, the these occur, consult an Authorized Mazda vehicle may have a problem. It is Dealer as soon as possible. The system important to note the driving conditions may not work in an accident.
Page 195 Belt minder NOTE Low fuel The belt minder can be deactivated. warning light Consult an Authorized Mazda Dealer to deactivate and restore the seat belt minder. This warning light signals that the fuel Driver seated/Passenger not seated tank will soon be empty.
Page 196 The an electrical problem. Continuing to sensor may not function properly drive your Mazda in this condition because the additional seat cushion could cause damage to your could cause sensor interference.
Page 197 Authorized Mazda Dealer or a tire repair station. Do not ignore the TPMS Warning Light:...
Page 198 25 km/h (16 mph) wheels or both, have the work done by for 10 minutes, and then verify that it an Authorized Mazda Dealer, or the tire goes out. pressure sensors may be damaged. Tires can loose a little air quite...
Page 199 Warning light illuminates/Warning auxiliary key to continue driving the beep sounds vehicle. Have the vehicle inspected at an Authorized Mazda Dealer as soon If the tire pressures decrease extremely as possible. after the TPMS warning light has illuminated, or if a tire is punctured, the...
Page 200 Consult turned to the ACC position (page 3-10). an Authorized Mazda Dealer. When flashing When the advanced key battery power is low, the KEY indicator light flashes for 30...
Page 201 TCS/DSC is switched off (page 5-26). If the light stays on when the TCS/DSC is Gear position indicator not switched off, take your vehicle to an Authorized Mazda Dealer. The dynamic stability control may have a malfunction. í 5-49 Some models.
Page 202 DSC OFF indicator light remain flash (page 5-57). illuminated even after turning the ignition switch to the ON position, consult an Authorized Mazda Dealer. NOTE If an indicator light remains illuminated qCruise Main Indicator Light (does not flash) or if it flashes...
Page 203: Beep Sounds
Driving Your Mazda Warning/Indicator Lights and Beep Sounds qTire Inflation Pressure Warning Beep Sounds í Beep qSeat Belt Warning Beep The warning beep sound will be heard for about 3 seconds if the tire pressures If the driver's seat belt is not fastened and decrease.
Page 204: Switches And Controls
Because the xenon fusion bulbs require high voltage, you could receive an electric shock if the bulbs are handled incorrectly. Consult an Authorized Mazda Dealer when the replacement is necessary. qHeadlights NOTE To turn on the lights, turn the headlight If the headlights flicker, or the switch on the end of the control lever.
Page 205 Driving Your Mazda Switches and Controls qHeadlight High-Low Beam qDaytime Running Lights (Canada) Push the lever forward for high beam. In Canada, vehicles must be driven with Pull back to original position for low the headlights on during daytime beam.
Page 206: Turn And Lane-Change Signals
Driving Your Mazda Switches and Controls í Fog Lights Turn and Lane-Change Signals Use this switch to turn on the fog lights. They help you to see as well as to be seen. qTurn Signal To turn the front fog lights on, rotate the...
Page 207: Windshield Wipers And Washer
Authorized Mazda Dealer as soon as in an accident. possible. Drive to the side of the road and park off the right-of-way. Wait until...
Page 208: Rear Window Defroster
Indicator light continuously until the lever is released. If the washer doesn't work, inspect the fluid level (page 8-26). If it's OK, consult an Authorized Mazda Dealer. CAUTION Don't use sharp instruments or window cleaners with abrasives to clean the inside of the rear window surface.
Page 209: Horn
Driving Your Mazda Switches and Controls Horn Hazard Warning Flasher To sound the horn, press the mark on The hazard warning lights should always the steering wheel. be used when you stop on or near a roadway in an emergency.
Page 210 5-58...
Page 211: Interior Comfort
Interior Comfort Use of various features for drive comfort, including air-conditioning and audio system. Climate Control System ............... 6-2 Operating Tips ................6-2 Vent Operation ................6-3 í Control Panel ................. 6-5 Audio System ................6-10 Antenna ................... 6-10 Operating Tips for Audio System ........... 6-10 Audio Set ................
Page 212 Lack of refrigerant qClearing the Air Inlet may make the air conditioner less efficient. Consult an Authorized Mazda Clear all obstructions like leaves, snow Dealer for refrigerant inspection. and ice from the hood and the air inlet in...
Page 213: Climate Control System
Interior Comfort Climate Control System Vent Operation Button qAdjusting the Vents Directing airflow You can direct air flow by rotating the vent. Opening/closing vents The two outside vents can be opened and closed with center button. NOTE When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a result of humid air being suddenly cooled.
Page 214 Interior Comfort Climate Control System qSelecting the Airflow Mode Dashboard Vents Dashboard Vents (OPEN MODE) Floor Vents Dashboard and Floor Vents (OPEN MODE) Defroster and Floor Vents Floor Vents (OPEN MODE) Defroster Vents You will feel more comfortable by using the OPEN MODE when opening the roof.
Page 215: Control Panel Í
Interior Comfort Climate Control System í Control Panel Fan control dial Mode selector dial Temperature control dial Air intake selector A/C switch qControl Switches Fan control dial Temperature control dial Slow Fast Cold Turn the dial to adjust to the desired fan speed.
Page 216 Interior Comfort Climate Control System Mode selector dial Air intake selector Turn the mode selector dial to select This switch controls the source of air airflow mode (page 6-4). entering the vehicle. Press the switch to alternate NOTE between the outside air and recirculated Turn the mode selector dial to an OPEN air modes.
Page 217 Interior Comfort Climate Control System NOTE WARNING If the windshield fogs up easily, set Do not use the recirculated air mode the mode selector dial to the in cold or rainy weather: position. Using the recirculated air mode in If cooler air is desired at face level, cold or rainy weather is dangerous as set the mode selector dial at the it will cause the windows to fog up.
Page 218 Interior Comfort Climate Control System qWindshield Defrosting and Defogging CAUTION 1. Set the mode selector dial to the When using the air conditioner while position. driving up long hills or in heavy traffic, 2. Set the temperature control dial to the closely monitor the temperature gauge desired position.
Page 219 Interior Comfort Climate Control System NOTE NOTE For maximum defrosting, set the One of the functions of the air temperature control dial to the conditioner is dehumidifying the air extreme hot position and turn the fan and, to use this function, the control dial fully clockwise.
Page 220: Audio System
Interior Comfort Audio System Antenna Operating Tips for Audio System qDetachable Type To remove the antenna, turn it WARNING counterclockwise. To install the antenna, turn it clockwise. Do not adjust the audio control Make sure the antenna is securely switches while driving the vehicle: installed.
Page 221 Interior Comfort Audio System qRadio Reception Signals from an FM transmitter are similar to beams of light because they do not AM characteristics bend around corners, but they do reflect. AM signals bend around such things as Unlike AM signals, FM signals cannot buildings or mountains and bounce off the travel beyond the horizon.
Page 222 Interior Comfort Audio System Flutter/Skip noise Strong signal noise Signals from an FM transmitter move in This occurs very close to a transmitter straight lines and become weak in valleys tower. The broadcast signals are between tall buildings, mountains, and extremely strong, so the result is noise and other obstacles.
Page 223 Interior Comfort Audio System qOperating Tips for CD Player/In- The CD revolves at high speed within the unit. Defective (cracked or badly Dash CD Changer bent) CDs should never be used. Condensation phenomenon Immediately after turning on the heater when the vehicle is cold, the CD or optical components (prism and lens) in the CD player/In-dash CD changer may become clouded with condensation.
Page 224 Interior Comfort Audio System A new CD may have rough edges on CD Player its inner and outer perimeters. If a disc with rough edges is used, proper setting will not be possible and the CD player/In-dash CD changer will not play the CD.
Page 225 Interior Comfort Audio System Do not use record sprays, antistatic Handling the In-dash CD changer agents, or household spray cleaners. This unit may not be able to play Volatile chemicals such as benzine and certain CD-R/CD-RWs made using a thinner can also damage the surface of computer or music CD recorder due to the CD and must not be used.
Page 226 Interior Comfort Audio System qOperating tips for MP3 This unit can play MP3 files that have been recorded in bit rates of 8 kbps to 320 kbps. Nonetheless, to insure NOTE enjoyment of music with consistent sound quality, it is recommended to use Supply of this product only conveys a discs that have been recorded at a bit license for private, non-commercial use...
Page 227 Interior Comfort Audio System MP3 files not conforming to the MP3 About folders and files format containing both header frames The order of hierarchy for MP3 files and data frames will be skipped and and folders during playback or other not played.
Page 228 Interior Comfort Audio System Multi-session CAUTION A session is the complete amount of data recorded from the beginning to the end of This unit can only play MP3 files that a single period of CD-ROM, CD-R/CD- have an MP3 file extension (.mp3) RW data recording.
Page 229 Interior Comfort Audio System Abbreviation for Variable Bit Rate. While CBR (Constant Bit Rate) is generally used, VBR varies the bit rate for audio compression according to compression conditions and this allows for compression with preference given to sound quality. 6-19...
Page 230 MEMO 6-20...
Page 231: Audio Set
Interior Comfort Audio System Audio Set CD Player In-Dash CD Changer Illustration is of a representative audio unit. Power/Volume/Sound Controls ................page 6-22 Clock ........................page 6-26 Operating the Radio ....................page 6-28 Operating the Compact Disc (CD) Player .............. page 6-32 Operating the In-Dash CD Changer ...............
Page 232 Interior Comfort Audio System qPower/Volume/Sound Controls Power/Volume dial Audio control dial Power ON/OFF Turn the power/volume dial to the right to increase volume, to the left to decrease it. Turn the ignition switch to the ACC or ON position. Audio sound adjustment 1.
Page 233 Interior Comfort Audio System ® Bose Sound System-equipped model Bose Sound Indication Turn Left Turn Right System- equipped model Decrease Increase bass bass Decrease Increase treble treble Shift the Shift the sound to the sound to the front rear Shift the Shift the sound to the sound to the...
Page 234 Interior Comfort Audio System ® The following seven modes are available. AudioPilot (Bose Sound System- Select the desired mode according to use. equipped model) AudioPilot automatically adjusts audio Volume Mode change volume and sound quality in accordance with the level of noise entering the vehicle ALC does No change not operate.
Page 235 MEMO 6-25...
Page 236 Interior Comfort Audio System qClock Display 12/24-hour clock time switch Clock/Display switch Hour/Minute set switch Setting the time 2. To advance the hours, pull up the hour/ minute set switch. To advance the The clock can be set at any time when the minutes, press down the hour/minute ignition switch is in the ACC or ON set switch while the time is flashing.
Page 237 Interior Comfort Audio System NOTE When the clock/display switch is released, the seconds are reset to 00 . If the power supply to the unit is interrupted (if the fuse blows or the vehicle's battery is disconnected), the clock will need to be reset. 6-27...
Page 238 Interior Comfort Audio System qOperating the Radio Band selector button Display Manual tuning dial Satellite button Electric serial number switch Scan/Auto memory switch Seek tuning/APC switch Channel preset switches Radio ON Tuning Press a band selector button ( ) to The radio has the following tuning turn the radio on.
Page 239 Interior Comfort Audio System Seek tuning NOTE Pulling up or pressing down the seek If the power supply is interrupted (fuse tuning/APC switch will cause the tuner to blows or the battery is disconnected), seek a higher or lower frequency the preset channels will be canceled.
Page 240 Interior Comfort Audio System SATELLITE RADIO (SAT) Vehicles equipped with the separately purchased SIRIUS digital satellite radio unit have the ability to receive up to 100 channels of digital quality programming coast to coast via satellite. For information on use, read the Satellite Radio Kit manual accompanying the SIRIUS digital satellite radio unit.
Page 241 MEMO 6-31...
Page 242 Interior Comfort Audio System í qOperating the Compact Disc (CD) Player Display Load button CD play button CD eject button CD slot Fast-forward/Reverse switch Random button Track up/down switch Repeat button Scan/Auto memory switch Inserting the CD Ejecting the CD Insert the CD into the slot, label-side up.
Page 243 Interior Comfort Audio System Music scan This feature helps to find a program by playing about the first 10 seconds of each track. Pull up the scan/auto memory switch during play to start scan play operation (the track number will flash). Pull up the scan/auto memory switch once again to cancel scan play.
Page 244 Interior Comfort Audio System í qOperating the In-Dash CD Changer Channel preset buttons Load button Display CD eject button CD play button Disc down button CD slot Fast-forward/Reverse switch Disc up button Random button Clock/Display switch Repeat button Scan/Auto memory switch Track up/down switch Type Playable data...
Page 245 Interior Comfort Audio System Inserting CDs into desired tray number Ejecting the CD 1. Press and hold the load button ( Normal ejection for about 2 seconds until a beep sound 1. Press the CD eject button ( ). The is heard.
Page 246 Interior Comfort Audio System During MP3 CD playback NOTE To change the disc, press the DISC button CDs will be ejected starting with the ) for 1.5 seconds or one with the lowest number. more during playback. All CDs in the tray will be ejected Folder search (during MP3 CD continuously.
Page 247 Interior Comfort Audio System During MP3 CD playback (CD random) 1. Press the random button ( ) during (Track repeat) playback, and then press the button 1. Press the repeat button ( ) during again within 3 seconds to play the playback to play the current track tracks in the CD randomly.
Page 248 CD, Artist name (ID3 Tag) and then properly reinsert. If the message appears again, take the unit to an Authorized Mazda Dealer for service. NOTE (MP3 CD) NO TITLE will be displayed when...
Page 249 Interior Comfort Audio System qError Indications If you see an error indication on the display, find the cause in the chart. If you cannot clear the error indication, take the vehicle to an Authorized Mazda Dealer. Indication Cause Solution Insert the CD properly. If the error indication...
Page 250: Audio Control Switch Operation (Steering Wheel) Í
Interior Comfort Audio System qAdjusting the Volume Audio Control Switch í To increase the volume, pull up the Operation (Steering Wheel) volume switch. When the audio unit is turned on, To decrease the volume, press down the operation of the audio unit from the volume switch.
Page 251 Interior Comfort Audio System qMute Switch NOTE Press the mute switch ( ) once to mute CD, CD changer, and SIRIUS digital audio, press it again to resume audio satellite radio modes cannot be selected output. in the following cases: SIRIUS digital satellite radio unit is NOTE not equipped on the audio system.
Page 252: Safety Certification
This CD player should not be adjusted or repaired by anyone except qualified service personnel. If servicing is required, contact an Authorized Mazda Dealer. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser exposure. Never operate the CD player with the top case of the unit removed.
Page 253: Interior Equipment
Interior Comfort Interior Equipment Sunvisors Interior Lights When you need a sunvisor, lower it for qOverhead Light use in front. Switch Overhead Light qVanity Mirrors Position Light off To use the vanity mirror, lower the Light on when any door is open sunvisor.
Page 254: Cup Holder
Interior Comfort Interior Equipment To open the cup holder lid, push the Cup Holder button and slide it open. WARNING Never use a cup holder to hold hot liquids while the vehicle is moving: Using a cup holder to hold hot liquids while the vehicle is moving is dangerous.
Page 255: Bottle Holder
Interior Comfort Interior Equipment Bottle Holder Storage Compartments Bottle holders are on the inside of the WARNING doors. Keep storage boxes closed when driving: Driving with the storage boxes open is dangerous. To reduce the possibility of injury in an accident or a sudden stop, keep the storage boxes closed when driving.
Page 256 Interior Comfort Interior Equipment qSeat Side Box 3. If your vehicle has a lid, pull the latch to open. To open, pull the release catch. When finished, return the seat to its Insert the key and turn it clockwise to original position and secure it.
Page 257: Accessory Socket
The ignition switch must be in the ACC do not use the socket for long periods or ON position. with the engine off or idling. Only use genuine Mazda accessories or the equivalent requiring no greater than 120 W (DC 12 V, 10 A). CAUTION...
Page 258: Windblocker
Interior Comfort Interior Equipment Windblocker This windblocker reduces rear wind blast into the cabin when driving with the convertible top down. To use the windblocker, lift it upright. 6-48...
Page 259: In Case Of An Emergency
In Case of an Emergency Helpful information on what to do in an emergency. Parking in an Emergency ............. 7-2 Parking in an Emergency ............7-2 Flat Tire ..................7-3 í Flat Tire .................. 7-3 Tool Storage ................7-5 Instant Mobility System (IMS) Emergency Flat Tire Repair í...
Page 260: Parking In An Emergency
In Case of an Emergency Parking in an Emergency Parking in an Emergency The hazard warning lights should always be used when you stop on or near a roadway in an emergency. The hazard warning lights warn other drivers that your vehicle is a traffic hazard and that they must take extreme caution when near it.
Page 261: Flat Tire
Authorized Mazda Dealer: driving, make sure which type of tire is When the flat tire warning light equipped on your Mazda. If you cannot illuminates or the tire pressure identify your tire type, consult an warning beep sound is heard, it is Authorized Mazda Dealer.
Page 262 The maximum driving distance may be shorter depending on the driving conditions. If a run-flat tire is punctured, carefully drive the vehicle to the nearest Mazda Dealer and have the tire changed. NOTE A spare tire or Instant Mobility System (IMS) emergency flat tire repair kit is not equipped on vehicles with run-flat tires as standard.
Page 263: Tool Storage
In Case of an Emergency Flat Tire Tool Storage Tools are stored in the locations illustrated in the diagram. Trunk room Instant Mobility System (IMS) Emergency Flat Tire Repair Kit Lug wrench Tool bag Jack Lever Jack Towing/Tiedown Glove box Power retractable hardtop emergency tool bag eyebolt...
Page 264: Instant Mobility System (Ims) Emergency Flat Tire Repair Kit Í
Tire Repair Kit 1. Turn the knob and remove the cover. The IMS emergency flat tire repair kit included with your Mazda is for a temporary repair of a slightly damaged flat tire resulting from running over nails or similar sharp objects on the road surface.
Page 265 In Case of an Emergency Flat Tire qAbout the IMS Emergency Flat WARNING Tire Repair Kit The IMS emergency flat tire repair kit Do not allow children to touch the tire includes the following items. sealant: Ingestion of tire sealant is dangerous. In the event tire sealant is accidentally swallowed, drink large amounts of water immediately and seek medical...
Page 266: Tire Repair Kit
Purchase new tire sealant at an Authorized Mazda Dealer. The emergency flat tire repair kit cannot be used in the following cases. Consult an Authorized Mazda Dealer. The period of effective use for the tire sealant has expired. (The period of effectiveness is indicated on the bottle label.)
Page 267 In Case of an Emergency Flat Tire NOTE CAUTION The tire sealant can be used at outside If there is air remaining in the tire when temperatures down to _ 30°C. the valve core is removed, the valve In extremely cold temperatures (0°C core could fly out.
Page 268 Return the empty tire sealant bottle to an Authorized Mazda Dealer when replacing the tire. The empty tire sealant bottle will need to be used to extract and dispose of the used sealant from the tire.
Page 269 In Case of an Emergency Flat Tire 14. Install the compressor hose to the tire 16. Turn the compressor switch on and valve. inflate the tire carefully to the correct inflation pressure. WARNING Valve Compressor hose Never operate the compressor above 300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi): Operating the compressor above 300 kPa (3.1 kgf/cm2, 3 bar, 43.5 psi) is...
Page 270 Drive the vehicle with care to an CAUTION Authorized Mazda Dealer to have the tire replaced. Drive carefully to an Authorized Mazda Dealer and keep the vehicle speed below 80 km/h (50 mph).
Page 271: Changing A Tire
(With Tire Pressure Monitoring System) The tire sealant has a period of effective The wheels equipped on your Mazda use. Check the period of effective use indicated on the bottle label and do not are specially designed for installation of the tire pressure sensors.
Page 272 In Case of an Emergency Flat Tire qRemoving a Tire 1. Park on a level surface off the right-of- way and firmly set the parking brake. 1. Loosen the lug nuts by turning them 2. Put a vehicle with an automatic counterclockwise one turn each, but transmission in Park (P), a manual don't remove any until the tire has been...
Page 273 Before removing the lug nuts, make sure your Use only the front and rear jacking Mazda is firmly in position and that it positions recommended in this cannot slip or move. manual:...
Page 274 If you lose this key, consult an Authorized Mazda qMounting the Tire Dealer or use the lock manufacturer's order form, which is with the registration 1.
Page 275 If you're unsure of how tight the nuts should be, have them inspected at an Do not apply oil or grease to lug nuts Authorized Mazda Dealer. and bolts and do not tighten the lug nuts beyond the recommended Nut tightening torque...
Page 276 Because the wheel studs and lug nuts on your Mazda have metric threads, using a non-metric nut is dangerous. On a metric stud, it would not secure the wheel and would damage the stud, which could cause the wheel to slip off and cause an accident.
Page 277: Overheating
Steam from an overheated engine is CAUTION dangerous. The escaping steam could If the cooling fan does not operate seriously burn you. while the engine is running, the engine temperature will increase. Stop the engine and call an Authorized Mazda Dealer. 7-19...
Page 278 Carefully add coolant as required (page 8-23). CAUTION If the engine continues to overheat or frequently overheats, have the cooling system inspected. The engine could be seriously damaged unless repairs are made. Consult an Authorized Mazda Dealer. 7-20...
Page 279: Emergency Starting
In Case of an Emergency Emergency Starting Starting a Flooded Engine If the engine fails to start, it may be flooded (excessive fuel in the engine). Follow this procedure: 1. Depress the accelerator all the way and hold it there. 2.
Page 280: Jump-Starting
In Case of an Emergency Emergency Starting Jump-Starting Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel unsure about jump-starting, we strongly recommend that you have a competent service technician do the work. WARNING Follow These Precautions Carefully: To ensure safe and correct handling of the battery, read the following precautions carefully before using the battery or inspecting it.
Page 281 In Case of an Emergency Emergency Starting WARNING Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries.
Page 282 In Case of an Emergency Emergency Starting Connect cables in numerical order and disconnect in reverse order. Jumper cables Discharged battery Booster battery 7-24...
Page 283 In Case of an Emergency Emergency Starting 1. Remove the rubber hose from the 5. Connect the jumper cables in the exact battery cover. sequence as in the illustration. Connect one end of a cable to the positive terminal on the discharged battery (1).
Page 284: Push-Starting
In Case of an Emergency Emergency Starting Push-Starting NOTE Before installing the battery cover, Do not push-start your Mazda. make sure both of the cables connecting the negative battery WARNING terminal (right side of battery) are connected with the cables routed...
Page 285: Emergency Towing
Towing Description CAUTION We recommend that towing be done only Don't tow the vehicle pointed forward by an Authorized Mazda Dealer or a with driving wheels on the ground. This commercial tow-truck service. may cause internal damage to the transmission.
Page 286: Tiedown Hooks
In Case of an Emergency Emergency Towing Tiedown Hooks Rear CAUTION Don't use the tiedown hooks under the front and rear for towing. They are designed ONLY for tying down the vehicle when it's being transported. Using them for towing will damage the bumper.
Page 287 In Case of an Emergency Emergency Towing CAUTION Lug wrench Rear If the tiedown eyelet is not securely tightened, it may loosen or disengage from the bumper when tying down the vehicle. Make sure that the tiedown eyelet is securely tightened to the bumper.
Page 288: Recreational Towing
In Case of an Emergency Emergency Towing Recreational Towing An example of recreational towing is towing your vehicle behind a motorhome. The transmission is not designed for towing this vehicle on all 4 wheels. When doing recreational towing refer to Towing Description (page 7-27) and Tiedown Hooks (page 7-28) and carefully follow the instructions.
Page 289: Maintenance And Care
Maintenance and Care How to keep your Mazda in top condition. Introduction .................. 8-2 Introduction ................8-2 Scheduled Maintenance ..............8-3 Scheduled Maintenance (North America) ......... 8-3 Scheduled Maintenance (Mexico) ..........8-8 Scheduled Maintenance (Except North America and Mexico) ................... 8-15 Owner Maintenance ..............
Page 290: Introduction
Claims against the warranty resulting from lack of maintenance, as opposed to defective materials or authorized Mazda workmanship, will not be honored. Any auto repair shop using parts equivalent to your Mazda's original equipment may perform maintenance. But we recommend that it always be done by an Authorized...
Page 291: Scheduled Maintenance
Maintenance and Care Scheduled Maintenance Scheduled Maintenance (North America) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2). Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes...
Page 292 Maintenance and Care Scheduled Maintenance qSchedule 1 Number of months or kilometers (miles), whichever comes first Months Maintenance Interval ×1000 km ×1000 miles 22.5 37.5 52.5 ENGINE Drive belts (tension) Audible inspect every 120,000 km (75,000 miles), if noisy, Engine valve clearance adjust Engine oil Engine oil filter...
Page 293 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 294 Maintenance and Care Scheduled Maintenance qSchedule 2 Number of months or kilometers (miles), whichever comes first Months Maintenance Interval ×1000 km ×1000 miles ENGINE Drive belts (tension) Audible inspect every 120,000 km (75,000 miles), if noisy, Engine valve clearance adjust Puerto Rico Replace every 5,000 km (3,000 miles) or 3 months Engine oil...
Page 295 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or mileage/kilometer period to ensure long-term reliability.
Page 296: Scheduled Maintenance (Mexico)
Maintenance and Care Scheduled Maintenance Scheduled Maintenance (Mexico) Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions apply. If any do apply, follow Schedule 2. Repeated short-distance driving Driving in dusty conditions Driving with extended use of brakes Driving in areas where salt or other corrosive materials are being used Driving on rough or muddy roads Extended periods of idling or low-speed operation...
Page 297 Maintenance and Care Scheduled Maintenance qSchedule 1 Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km 90 100 110 120 ENGINE Drive belts (tension) Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust Engine oil Engine oil filter COOLING SYSTEM Cooling system...
Page 298 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 299 Maintenance and Care Scheduled Maintenance qSchedule 2 Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km ENGINE Drive belts (tension) Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust Engine oil Engine oil filter COOLING SYSTEM Cooling system Replace at first 190,000 km or 10 years;...
Page 300 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 301 Maintenance and Care Scheduled Maintenance (Cont.) Number of months or kilometers, whichever comes first Maintenance Interval Months ×1000 km 95 100 105 110 115 120 ENGINE Drive belts (tension) Engine valve clearance Audible inspect every 120,000 km, if noisy, adjust Engine oil Engine oil filter COOLING SYSTEM...
Page 302 *2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at the recommended time or kilometer period to ensure long-term reliability.
Page 303: Scheduled Maintenance (Except North America And Mexico)
Emission control and related systems The ignition and fuel systems are highly important to the emission control system and to efficient engine operation. Don't tamper with them. All inspections and adjustments must be made by an Authorized Mazda Dealer. 8-15...
Page 304 Maintenance and Care Scheduled Maintenance qSchedule Number of months or kilometers (miles), whichever comes first Months 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 Maintenance Interval ×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 ×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100 Engine valve clearance Audible inspect every 120,000 km (75,000 miles), if noisy, adjust...
Page 305 Maintenance and Care Scheduled Maintenance Number of months or kilometers (miles), whichever comes first Months 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96 Maintenance Interval ×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 ×1000 miles 6.25 12.5 18.75 25 31.25 37.5 43.75 50 56.25 62.5 68.75 75 81.25 87.5 93.75 100 Tires (with inflation pressure adjustment)
Page 306: Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the indicated intervals to ensure safe and dependable operation. Bring any problem to the attention of an Authorized Mazda Dealer or qualified service technician as soon as possible.
Page 307: Owner Maintenance Precautions
Improper owner maintenance during the warranty period may affect warranty coverage. For details, read the separate Mazda Warranty statement provided with the vehicle. If you're unsure about any servicing or maintenance procedure, have it done by an Authorized Mazda Dealer.
Page 308: Engine Compartment Overview
Maintenance and Care Owner Maintenance Engine Compartment Overview Engine oil filler cap Engine oil dipstick Brake fluid reservoir / Clutch fluid reservoir (only for manual transmission model) Washer fluid reservoir Air filter Fuse block Battery Power steering fluid cap Cooling system cap Engine coolant reservoir 8-20...
Page 309: Engine Oil
Changing the engine oil should be done and fuel economy requirements of the by an Authorized Mazda Dealer. International Lubricant Standardization and Approval Committee (ILSAC), qRecommended Oil comprised of U.S. and Japanese automobile manufacturers.
Page 310 Maintenance and Care Owner Maintenance The quality designation SM, or ILSAC CAUTION must be on the label. Don't add engine oil over Full. This may cause engine damage. –30 –10 –20 6. Make sure the O-ring on the dipstick is positioned properly before reinserting –20 the dipstick.
Page 311: Engine Coolant
Engine Coolant NOTE Changing the coolant should be done qInspecting Coolant Level by an Authorized Mazda Dealer. WARNING Inspect the antifreeze protection and coolant level in the coolant reservoir at Do not use a match or live flame in the least once a year at the beginning of the engine compartment.
Page 312 This could damage If the coolant reservoir is empty or new the cooling system. coolant is required frequently, consult an Don't use a solution that contains Authorized Mazda Dealer. more than 60% antifreeze. This would reduce effectiveness. 8-24...
Page 313: Brake/Clutch Fluid
Brake fluid linings. If it is excessively low, have the spilled on a hot engine could cause a brake/clutch system inspected by an Authorized Mazda Dealer. fire. If the brake/clutch fluid level is low, have the brakes and clutch inspected: Low brake/clutch fluid levels are dangerous.
Page 314: Power Steering Fluid
The level must be kept between MIN and regions and climates in which the MAX. vehicle will be operated. Visually examine the lines and hoses for leaks and damage. If new fluid is required frequently, consult an Authorized Mazda Dealer. 8-26...
Page 315: Body Lubrication
Maintenance and Care Owner Maintenance Inspect fluid level in the washer fluid Body Lubrication reservoir; add fluid if necessary. All moving points of the body, such as door and hood hinges and locks, should be lubricated each time the engine oil is changed.
Page 316: Wiper Blades
Maintenance and Care Owner Maintenance 1. Raise the wiper arm and turn the blade Wiper Blades assembly to expose the plastic locking clip. CAUTION Compress the clip and slide the assembly downward; then lift it off the Hot waxes applied by automatic car arm.
Page 317 Maintenance and Care Owner Maintenance 3. Remove the metal stiffeners from each 4. Carefully insert the new blade rubber. blade rubber and install them in the Then install the blade assembly in the new blade. reverse order of removal. NOTE CAUTION Install the blade so that the tabs are Don't bend or discard the stiffeners.
Page 318: Battery
Maintenance and Care Owner Maintenance Battery WARNING Wash hands after handling the battery and related accessories: Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Read the following precautions carefully before using the battery or inspecting to ensure safe and correct handling: Always wear eye protection when working near the battery:...
Page 319 Maintenance and Care Owner Maintenance WARNING Keep all flames, including cigarettes, and sparks away from open battery cells: Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious burns and injuries.
Page 320 Maintenance and Care Owner Maintenance qBattery Maintenance NOTE Remove the rubber hose first, and then battery cover before performing battery maintenance. Battery cover Rubber hose To get the best service from a battery: Keep it securely mounted. Keep the top clean and dry. Before installing the battery cover, Keep terminals and connections clean, make sure both of the cables...
Page 321: Tires
Using Wrong-Sized Tires: Using any other tire size than what is specified for your Mazda (page 10-6) is dangerous. It could seriously affect ride, handling, ground clearance, tire clearance, and speedometer calibration.
Page 322 Because your vehicle is not equipped with a spare tire, you cannot do a tire rotation safely with the jack that comes with your vehicle. Have an Authorized Mazda Dealer perform tire rotation. 8-34...
Page 323 (With Tire Pressure Monitoring System) When replacing/repairing the tires or You should replace it before the band is wheels or both, have the work done by across the entire tread. an Authorized Mazda Dealer, or the tire pressure sensors may be damaged. 8-35...
Page 324 WARNING When replacing/repairing the tires or wheels or both, have the work Always use wheels of the correct size done by an Authorized Mazda on your vehicle: Dealer, or the tire pressure sensors Using a wrong-sized wheel is may be damaged.
Page 325 Maintenance and Care Owner Maintenance Proper tire balancing provides the best riding comfort and helps reduce tread wear. Out-of-balance tires can cause vibration and uneven wear, such as cupping and flat spots. 8-37...
Page 326: Light Bulbs
Maintenance and Care Owner Maintenance Light Bulbs High-mount brake light License plate lights Trunk light Reverse lights Rear turn signal lights Brake lights / Taillights Side-marker lights Overhead light Head lights (High beam) Parking light Front fog lights Headlights (Low beam) Front turn signal lights Some models.
Page 327 HIGH beam. shock if the bulbs are handled incorrectly. Consult an Authorized High-beam bulbs Mazda Dealer when the replacement is 1. Disconnect the electrical connector necessary. from the bulb by pressing the tab on...
Page 328 (Halogen bulbs) Removal NOTE Replacing low-beam halogen bulbs is difficult therefore contacting an Authorized Mazda Dealer is Installation recommended. 1. If you are changing the right headlight bulb, start the engine, turn the steering wheel all the way to the left, and turn off the engine.
Page 329 Maintenance and Care Owner Maintenance 5. Pull off the sealing cover. NOTE 6. Unhook the bulb retaining spring. If the halogen bulb is accidentally touched, it should be cleaned with rubbing alcohol before being used. Use the protective cover and carton for the replacement bulb to dispose of the old bulb promptly and out of the reach of children.
Page 330 Maintenance and Care Owner Maintenance 3. Turn the center section of the plastic NOTE retainers counterclockwise and remove them, then remove the mudguard. If the halogen bulb is accidentally touched, it should be cleaned with Removal rubbing alcohol before being used. Use the protective cover and carton of the replacement bulb to dispose of the old bulb promptly out of the...
Page 331 5. Disconnect the bulb from the socket. NOTE To replace the bulb, contact an Authorized Mazda Dealer. 1. Slide the unit as shown in the figure to remove it. 6. Install the new bulb in the reverse order of removal.
Page 332 High-mount brake light Due to the complexity and difficulty of the procedure, the LED bulbs should be replaced by an Authorized Mazda Dealer. License plate lights Due to the complexity and difficulty of the procedure, the bulbs should be replaced by an Authorized Mazda Dealer.
Page 333 Maintenance and Care Owner Maintenance qReplacing Interior Light Bulbs Trunk light 1. Wrap a flathead screwdriver with a soft Overhead light cloth to prevent damage to the trim and 1. Wrap a flathead screwdriver with a soft gently insert it in the luggage cloth to prevent damage to the trim and compartment light as shown in the gently insert it in the overhead light as...
Page 334: Fuses
Fuse puller element will be melted. If the same fuse blows again, avoid using that system and consult an Authorized Mazda Dealer as soon as possible. Fuse block cover qFuse Replacement 4. Inspect the fuse and replace it if it's Replacing the fuses on the vehicle's left blown.
Page 335 WARNING 2. Remove the fuse block cover. Do not replace the main fuse by yourself. Have an Authorized Mazda Dealer perform the replacement: Replacing the fuse by yourself is dangerous because the MAIN fuse is a high current fuse. Incorrect...
Page 336 Maintenance and Care Owner Maintenance qFuse Panel Description Fuse block (Engine compartment) FUSE DESCRIPTION PROTECTED COMPONENT RATING 30 A Cooling fan 7.5 A Cooling fan DEFOG 20 A Rear window defroster H/CLEAN Overhead lights, Luggage compartment light, For protection of ROOM 15 A various circuits...
Page 337 Maintenance and Care Owner Maintenance FUSE DESCRIPTION PROTECTED COMPONENT RATING 30 A For protection of various circuits MAIN 120 A For protection of all circuits EGI INJ 10 A Injector EGI COMP1 10 A Engine control system EGI COMP2 10 A Engine control system HEAD LOW L 15 A...
Page 338 Maintenance and Care Owner Maintenance Fuse block (Driver's side) FUSE DESCRIPTION PROTECTED COMPONENT RATING 7.5 A Audio system, Power control mirror AUX PWR 15 A Accessory Socket METER 15 A Instrument cluster í SEAT WARM 20 A Seat warmer ILLUMI 7.5 A Illumination í...
Page 339: Appearance Care
Prevention Industrial pollutants and vehicle emissions drift into the air and mix with rain or dew It is necessary to have your Mazda washed and waxed to preserve its finish to form acids. These acids can settle on a vehicle's finish. As the water evaporates,...
Page 340 Prevention Chipped paint can lead to rust It is necessary to wash and wax your forming on your Mazda. Before this vehicle to preserve its finish according to happens, repair the damage by using the instructions in this section. These...
Page 341: Exterior Care
NOTE dirt, mud, and other foreign material from the underside of the fenders, and make Mazda is not responsible for sure the drain holes in the lower edges of scratches caused by automatic car the doors and rocker panels are clean.
Page 342 CAUTION brake performance is normal: Driving with wet brakes is dangerous. If your Mazda is damaged and needs Increased stopping distance or the metal parts repaired or replaced, make vehicle pulling to one side when...
Page 343 Maintenance and Care Appearance Care CAUTION WARNING Don't use steel wool, abrasive cleaners, Dry wet brakes by driving very slowly or strong detergents containing highly and applying the brakes lightly until alkaline or caustic agents on chrome- brake performance is normal: plated or anodized aluminum parts.
Page 344 Maintenance and Care Appearance Care í qConvertible Top Maintenance Appearance(Polyvinyl only) Dress the convertible top once a month The convertible top is made of a special after washing and drying it well. For best high-grade material, but if it's not taken results, use a water-based leather good care of, hardening, staining, and loss treatment or vinyl top dressing.
Page 345: Interior Care
Maintenance and Care Appearance Care Interior Care CAUTION qDashboard Precautions Don't use an automatic car wash. Don't use strong soap, chemical Prevent caustic solutions such as perfume detergents, or hot water, and don't and cosmetic oils from contacting the wash the hardtop in direct sunlight or dashboard.
Page 346 WARNING CAUTION Have an Authorized Mazda Dealer Use only recommended cleaners and replace damaged seat belts procedures. Others may affect immediately: appearance and fire-resistance.
Page 347: Customer Information And Reporting Safety Defects
Reporting Safety Defects ....... 9-43 Reporting Safety Defects (U.S.A.) ..9-43 Warranty ..........9-12 Reporting Safety Defects (Canada) ... 9-44 Warranties for Your Mazda ....9-12 Outside the United States and Service Publications ......9-45 Canada ..........9-13 Service Publications ......9-45 Outside the United States ....
Page 348: Customer Assistance
Authorized Mazda Dealer. qSTEP 1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 349 3. Vehicle Identification Number (17 digits, noted on your registration or title or located on the upper driver's side corner of the dash) 4. Purchase date and current mileage 5. Your dealer's name and location 6. Your question(s) If you live outside the U.S.A., please contact your nearest Mazda Distributor.
Page 350: Customer Assistance (Canada)
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In our experience, any questions, problems, or complaints regarding the operation of your Mazda or any other general service transactions are most effectively resolved by your dealer.
Page 351 If a specific item of concern arises, where a solution cannot be reached between an owner, Mazda, and/or one of it's dealers (that all parties cannot agree upon), the owner may wish to use the services offered by the Canadian Motor Vehicle Arbitration Plan (CAMVAP).
Page 352 1 (800) 207-0685 Ontario 1 (800) 207-0685 Atlantic Canada 1 (800) 207-0685 Quebec 1 (800) 207-0685 qRegional Offices REGIONAL OFFICES AREAS COVERED MAZDA CANADA INC. WESTERN REGION ALBERTA, 8171 ACKROYD ROAD BRITISH COLUMBIA, SUITE 2000 MANITOBA, RICHMOND B.C. SASKATCHEWAN, V6X 3K1...
Page 353: Customer Assistance (Puerto Rico)
1 Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 354: Customer Assistance (Mexico)
1: Contact Your Mazda Dealer Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS, SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of the dealership or the OWNER.
Page 355 Customer Information and Reporting Safety Defects Customer Assistance By letter at: Attn: Customer Assistance Mazda North American Operations 7755 Irvine Center Drive Irvine, CA 92618-2922 P.O. Box 19734 Irvine, CA 92623-9734 In order to serve you efficiently and effectively, please help us by providing the following information: 1.
Page 356: Mazda Importer/Distributors
Irvine, CA 92623-9734 U.S.A. (905) 787-7000 (outside Canada) TEL: 1 (800) 222-5500 (in U.S.A.) qPUERTO RICO/U.S. Virgin Island (949) 727-1990 (outside U.S.A.) Plaza Motors Corp. (Mazda de Puerto Rico) P.O. Box 362722, San Juan, Puerto Rico 00936-2722 TEL: (787) 641-9300...
Page 357 Customer Information and Reporting Safety Defects Mazda Importer/Distributors Triple J Saipan, Inc. (d.b.a. Triple J Motors) P.O. Box 500487 Saipan, MP 96950-0487 TEL: (670) 234-7133/3051 qAMERICAN SAMOA Polynesia Motors, Inc. P.O. Box 1120, Pago Pago, American Samoa 96799 TEL: (684) 699-9347...
Page 358: Warranty
Federal Emission Control Warranty (U.S.A. only) Emission Defect Warranty Emission Performance Warranty California Emission Control Warranty (U.S.A. only) Emission Control Warranty (Canada only) Replacement Parts and Accessories Limited Warranty Tire Warranty NOTE Detailed warranty information is provided with your Mazda. 9-12...
Page 359: Outside The United States And Canada
Proper repair facilities, tools, testing equipment, and replacement parts may not be available. The Mazda warranty applies only to Mazda vehicles registered and normally operated in the United States, its territories, and Canada. 9-13...
Page 360: Outside The United States
We strongly recommend that you NOT take your Mazda outside the United States. However, in the event that you are moving to Canada permanently, Mazda vehicles built for use in the United States could be eligible for exportation to Canada with specific vehicle modifications to comply with the Canadian Motor Vehicle Safety requirements (CMVSS).
Page 361: Outside Canada
We strongly recommend that you NOT take your Mazda outside Canada. However, in the event that you are moving to the United States permanently, Mazda vehicles built for use in Canada could be eligible for exportation to the United States with specific vehicle modifications to comply with the United States Federal Motor Vehicle Safety Standards (FMVSS).
Page 362: Registering Your Vehicle In A Foreign Country (Except United States And Canada)
Parts, servicing techniques, and tools necessary to maintain and repair your vehicle may be unavailable. There might not be an Authorized Mazda Dealer in the country you plan to take your vehicle. The Mazda warranty is valid only in certain countries.
Page 363: Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores. These may fit your vehicle, but they are not approved by Mazda for use with Mazda vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's performance or safety systems;...
Page 364: Cell Phones
Customer Information and Reporting Safety Defects Cell Phones Cell Phones Warning WARNING Please comply with the legal regulations concerning the use of communication equipment in vehicles in your country: Use of any electrical devices such as cell phones, computers, portable radios, vehicle navigation or other devices by the driver while the vehicle is moving is dangerous.
Page 365: Type Approval Of Equipment
Customer Information and Reporting Safety Defects Type Approval of Equipment Type Approval of Equipment (Mexico) Immobilizer system 9-19...
Page 366 Customer Information and Reporting Safety Defects Type Approval of Equipment Keyless entry system 9-20...
Page 367: Uniform Tire Quality Grading System
Customer Information and Reporting Safety Defects Uniform Tire Quality Grading System (UTQGS) Uniform Tire Quality Grading System (UTQGS) This information relates to the tire grading system developed by the U.S. National Highway Traffic Safety Administration for grading tires by tread wear, traction, and temperature performance.
Page 368 These grades will be added to the sidewalls of passenger vehicle tires over the next several years according to a schedule established by the NHTSA and the tire manufacturers. The grade of tires available as standard or optional equipment on Mazda vehicles may vary with respect to grade.
Page 369: Tire Information (U.s.a.)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Labeling Federal law requires tire manufacturers to place standardized information on the sidewall of all tires. This information identifies and describes the fundamental characteristics of the tire and also provides a tire identification number for safety standard certification and in case of a recall.
Page 370 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) 11. Tread wear, traction and temperature grades 12. Max. permissible inflation pressure 13. SAFETY WARNING P215/65R15 95H is an example of a tire size and load index rating. Here is an explanation of the various components of that tire size and load index rating.
Page 371 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) H is the speed rating. The speed rating denotes the maximum speed for which the use of the tire is rated. Letter Rating Speed Rating 99 mph 106 mph 112 mph 118 mph 124 mph 130 mph...
Page 372 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tread Wear, Traction and Temperature Grades Tread wear: The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the government course as a tire graded 100.
Page 373 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) qInformation on Temporary Tires Please refer to the diagram below. 1. Temporary tires 2. Nominal width of tire in millimeters 3. Ratio of height to width (aspect ratio) 4. Diagonal 5. Rim diameter code 6.
Page 374 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) 70 is the aspect ratio. This two-digit number indicates the tire's ratio of height to width. D is the tire construction symbol. D indicates diagonal ply construction . 16 is the wheel rim diameter in inches. 90 is the Load Index.
Page 375: Location Of The Tire Label (Placard)
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Location of the Tire Label (Placard) You will find the tire label containing tire inflation pressure by tire size and other important information on the driver's side B-pillar or on the edge of the driver's door frame. SAMPLE qRecommended Tire Inflation Pressure On the tire label you will find the recommended tire inflation pressure in both kPa and psi...
Page 376 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Always check the tire inflation pressures on a regular basis according to the recommended tire inflation pressure on the tire label and in conjunction with the information in this owner's manual: Driving your vehicle with under-inflated tires is dangerous.
Page 377 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) NOTE Warm tires normally exceed recommended pressures. Don't release air from warm tires to adjust the pressure. Under-inflation can cause serious failures and accidents. Over-inflation can produce a harsh ride and the greater possibility of damage from road hazards.
Page 378: Tire Maintenance
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Tire Maintenance Improper or inadequate vehicle maintenance can cause tires to wear abnormally. Here are some important maintenance points: qTire Inflation Pressure Inspect all tire pressure monthly (including the spare) when the tires are cold. Maintain recommended pressures for the best ride, top handling, and minimum tire wear.
Page 379 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) CAUTION Rotate unidirectional tires and radial tires that have an asymmetrical tread pattern or studs only from front to rear, not from side to side. Tire performance will be weakened if rotated from side to side.
Page 380 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) NOTE Tires degrade over time, even when they are not being used on the road. It is recommended that tires generally be replaced when they are 6 years or older. Heat caused by hot climates or frequent high loading conditions can accelerate the aging process.
Page 381: Vehicle Loading
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Vehicle Loading WARNING Do not taw a trailer with this vehicle: Towing a trailer with this vehicle is dangerous because it has not been designed to tow a trailer and doing so will affect the drive system which could result in vehicle damage.
Page 382 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Base Curb Weight is the weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your dealer plus any aftermarket equipment.
Page 383 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE CARGO Cargo Weight includes all weight added to the Base Curb Weight, including cargo and optional equipment. When towing, trailer tongue load or king pin weight is also part of cargo weight.
Page 384 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Examples: Based on a single occupant weight of 68 kg, and a value of 385 kg for the combination weight of occupants and cargo should never exceed : The cargo weight limit with one occupant is 385 kg _ 68 kg = 317 kg The cargo weight limit with two occupants is 385 kg _ (68 ×...
Page 385 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) SAMPLE WARNING Exceeding Axle Weight Rating Limits: Exceeding the Safety Certification Label axle weight rating limits is dangerous and could result in death or serious injury as a result of substandard vehicle handling, performance, engine, transmission and/or structural damage, serious damage to the vehicle, or loss of control.
Page 386 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the weight of the fully loaded trailer. GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can handle without risking damage.
Page 387 Customer Information and Reporting Safety Defects Tire Information (U.S.A.) WARNING Exceeding GVWR or GAWR Specifications: Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding any vehicle rating limitation could result in a serious accident, injury, or damage to the vehicle.
Page 388: Steps For Determining The Correct Load Limit
Customer Information and Reporting Safety Defects Tire Information (U.S.A.) Steps for Determining the Correct Load Limit: Steps for Determining Correct Load Limit: (1) Locate the statement The combination weight of occupants and cargo should never exceed XXX kg or XXX lbs on your vehicle's placard. (2) Determine the combination weight of the driver and passengers that will be riding in your vehicle.
Page 389: Reporting Safety Defects
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain other information about motor vehicle safety from http:// www.safercar.gov. NOTE If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be forwarded to: Mazda North American Operations 7755 Irvine Center Drive Irvine, California 92618-2922 P.O.
Page 390: Reporting Safety Defects (Canada)
Customer Information and Reporting Safety Defects Reporting Safety Defects Reporting Safety Defects (Canada) Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330 Sparks Street, Ottawa ON K1A 0N5.
Page 391: Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do some of their own maintenance and repair. When requesting any of our publications through an Authorized Mazda Dealer, refer to the chart below. If they don't have what you need in stock, they can order it for you.
Page 392 9-46...
Page 393 Specifications Technical information about your Mazda. Identification Numbers ............... 10-2 Vehicle Information Labels ............. 10-2 Specifications ................10-4 Specifications ................10-4 10-1...
Page 394: Identification Numbers
Identification Numbers qChassis Number Vehicle Information Labels qVehicle Identification Number The vehicle identification number legally identifies your vehicle. The number is on a plate attached to the cowl panel located on the left corner of the dashboard. This plate can easily be seen through the windshield.
Page 395 Identification Numbers qTire Pressure Label qEngine Number Forward 10-3...
Page 396 GL-4 or GL-5 6-speed transmission 75W-90 Automatic transmission fluid JWS3309 Power steering fluid ATF M-III or equivalent (e.g. Dexron® II) Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3 API Service GL-5 Rear differential oil 80W-90 75W-90 *1 Not available from Mazda 10-4...
Page 397 Specifications qCapacities (Approximate Quantities) Item Capacity With oil filter 4.3 L (4.5 US qt, 3.8 Imp qt) replacement Engine oil Without oil filter 3.9 L (4.1 US qt, 3.4 Imp qt) replacement Coolant 7.5 L (7.9 US qt, 6.6 Imp qt) 5-speed transmission 2.0 L (2.1 US qt, 1.8 Imp qt) Manual transmission oil...
Page 398 NOTE The tires have been optimally matched with the chassis of your vehicle. When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer. Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation Pressure on page 8-33.
Page 399 Specifications qFuses Refer to the fuse rating on page 8-46. 10-7...
Page 400 10-8...
Page 401: Index
Index 11-1...
Page 402 Index Accessory Socket ......6-47 Battery Add-On Non-Genuine Parts and Emergency starting ....7-21 Accessories ........9-17 Maintenance ....... 8-30 Advanced Key ........3-2 Specifications ......10-4 Advanced key maintenance ..3-5 Beep Sounds Advanced key suspend Ignition key reminder ....5-51 function ........
Page 403 Index Convertible Top Engine Power Retractable Hardtop ..3-54 Coolant ........8-23 Soft Top ........3-41 Exhaust gas ........4-4 Cruise Control ........5-20 Hood release ......3-40 Cup Holder ........6-44 Oil ..........8-21 Customer Assistance ......9-2 Overheating ........ 7-19 Starting .........
Page 404 Index Fuses ..........8-46 Instrument Cluster ......5-33 Panel description ......8-48 Interior Care ........8-57 Replacement ....... 8-46 Interior Lights ........6-43 Glove Box ......... 6-45 Jump-Starting ........7-22 Hazard Warning Flasher ....5-57 Keyless Entry System ....... 3-23 Hazardous Driving ......
Page 405 Index Odometer and Trip Meter ....5-34 Seat Belt System Outside Mirrors ......... 3-79 3-point type ........2-8 Overhead Lights ........ 6-43 Automatic locking ......2-7 Overheating ........7-19 Belt minder ......... 2-13 Overloading ........4-10 Caution label ........ 2-9 Emergency locking ......
Page 406 Index Tiedown Vehicle Information Labels ....10-2 Hook .......... 7-28 Tire Information ........ 9-23 Tire Pressure Monitoring System ..5-27 Warning Light System error activation ....5-30 KEY Warning Light Tire pressure monitoring system (Red)/KEY Indicator Light warning light ......5-28 (Green) ........

Save PDF
