EP-4904SX/AX
4 Port 10/100M Internet
Broadband Router
with USB Printer server
Quick Installation Guide
#4814904AXZZ0
© 2003 by SURECOM Technology Corporation. All rights reserved.
3A-1 Version: 01.15.00.01-1.0

1. Hardware Installation

A. System Requirement

Before you getting started, make sure that you meet the
following requirements.
1. An Internet connection via cable or DSL modem
2. A computer with an Ethernet network card installed
3. Your Windows CD, if your computer is running
Windows 95, 98, or ME
4. UTP network cable with RJ-45 connector
5. Either Microsoft Internet Explorer 4.0 (or above
version) or Netscape Navigator 4.0 (or above version)

B. Setting Hardware Connection

Step 1.
Power all devices down. This should include
your PCs, Cable or DSL modem and the Router.
Step 2.
Connect the Router to your PCs. Connecting
Computers: Connect computers directly to the Router on
ports 1~4 on the rear panel. If you have more than 4
computers need to be connected, connect a hub or a
switch (using its uplink port) and connect additional
computers to that device.
Step 3.
Connecting a Cable Modem or DSL Modem:
Connect your Cable or DSL modem to the WAN port on
the rear panel.
Step 4.
Connecting a Printer: If you have a printer that
you want to share between computers, connect it to the
Printer port using a standard USB Cable.
Step. 5
Power: Plug the power cord into the power jack.
And power on computers.

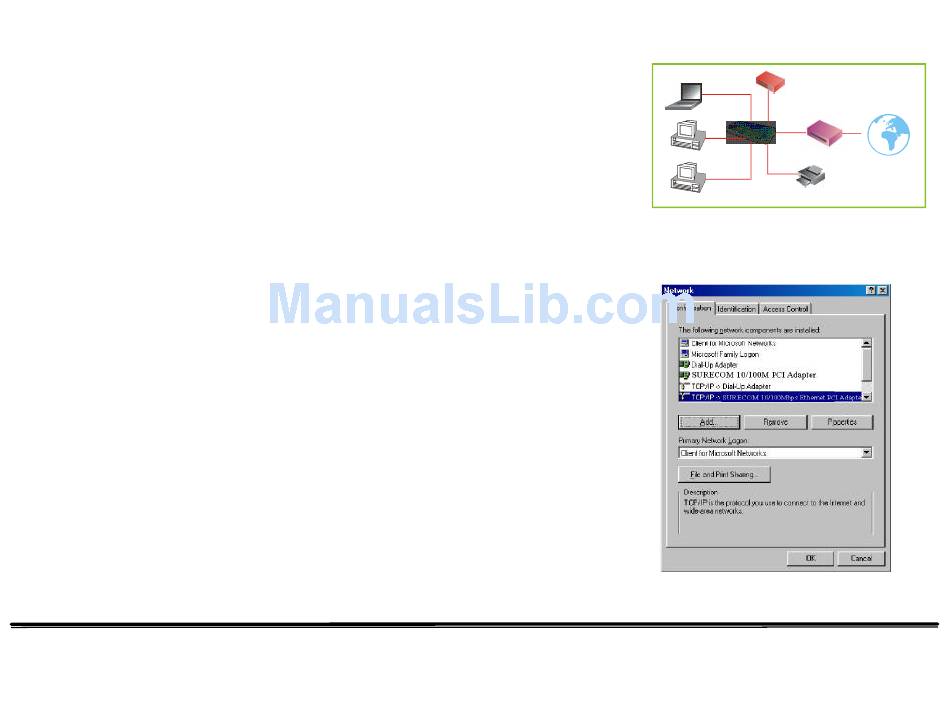

Switch/Hub
Cable/DSL
Notebook
Modem
4904SX/AX
PC
USB Printer
PC

2. Configure your computer

Windows 95/98/ME
Step 1. TCP/IP Configuration
From the Windows desktop, click the "Start" button and
choose "Settings", then click "Control Panel."
Internet
