CALOR DG3000WHB-7B Installation And Operation Instructions Manual

Water radiant heating touch screen thermostat
Hide thumbs

Advertisement

Quick Links

Download this manual

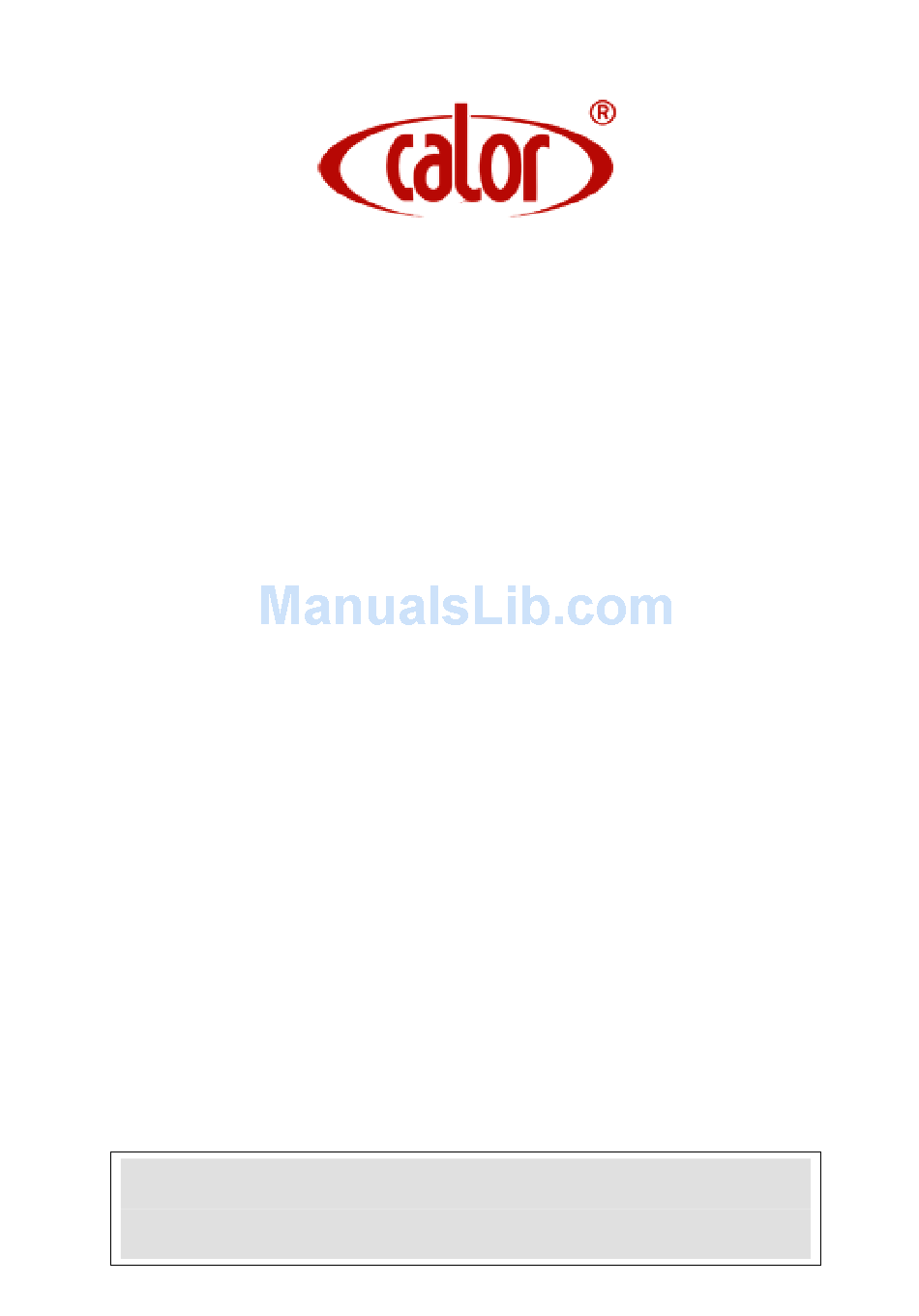

DG3000WHB-7B WATER RADIANT HEATING
TOUCH SCREEN THERMOSTAT
MANUAL
CALOR SRL
Str. Progresului nr. 30-40, sector 5, Bucuresti
tel: 021.411.44.44, fax: 021.411.36.14
www.calorserv.ro - www.calor.ro
DG3000WHB-7B Thermostat for Radiant heating
Installation and operation instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DG3000WHB-7B and is the answer not in the manual?

Questions and answers

Summary of Contents for CALOR DG3000WHB-7B

  • Page 1 DG3000WHB-7B WATER RADIANT HEATING TOUCH SCREEN THERMOSTAT MANUAL CALOR SRL Str. Progresului nr. 30-40, sector 5, Bucuresti tel: 021.411.44.44, fax: 021.411.36.14 www.calorserv.ro - www.calor.ro DG3000WHB-7B Thermostat for Radiant heating Installation and operation instructions...

  • Page 2: Specification

    DG3000WHB-7B is a 7 days programmable thermostat designed for water boiler and electric furnace application. This thermostat can be used for hot water radiant heating and electric cable heating system. SPECIFICATION: Power source …………………… 2 AA size 1.5V alkaline battery Maximum resistive load………………...
  • Page 3 DG3000WHB-7B Touch Screen Thermostat Figure 1 Room Temperature and Setting Temperature Figure 2 Temperature Up/Down Time and Day SYSTEM Selects Heat/Off Shows When There Is a Call For Heating Figure 1 SCREEN TIME/DAY Locks Out The Screen To Allow For Cleaning...
  • Page 4 positive (+) ends of batteries with positive (+) battery terminals in the battery compartment. Connect wires beneath terminal screws on power supply module using appropriate wiring schematic. See figure 4 4. Push power base into wall. Using two mounting screws mount the power base to the wall.

  • Page 5: Wiring Diagram

    WIRING DIAGRAM 230 V A C 230 V A C R elay P um p or valve 250V A C 8A 250V A C 8A Figure 4 CHECK THERMOSTAT OPERATION The unit will be controlled via air sensor in the thermostat and the thermostat will determine to activate/deactivate heating system by comparing set temperature with room temperature.
  • Page 6 5) Press DONE key to save the setting and exit configuration menu, Hold RESET key for 3 seconds display will flash 3 times and revert to factory default setting. The configuration menu chart summarizes the configuration options. An explanation of each option as follows: Item Current Setting...
  • Page 7 Select FA to start heating immediately when the set point is 1℃ above the room temperature. Select SL to start heating only when the set point is 3 ℃ above the room temperature. Select pump protection mode For hot water installations, it is recommended to activate the pump at least 15 second every 24 hours in order to avoid any seizing.
  • Page 8 resume schedule Press the CANCEL or SCHED key to cancel “Hold Until” and resume schedule Note: Once “Hold Until” time is reached, the thermostat shows “Run Schedule” on the screen to indicate that temporary hold has ended. Permanent Hold Permanent Hold changes the temperature setting until permanent Hold is cancelled 1) Press HOLD key.
  • Page 9 Press HOLD key again. Screen shows “Hold Until” one day Press Up and Down arrow key next to the day to change the number of days you desire thermostat to override the schedule Press Up and Down arrow key next to the temperature to set the desired temperature while away on holiday To cancel the Vacation Hold override early, press the CANCEL or SCHED key.
  • Page 10 cleaning. 2) Use damp cloth slightly moistened with water or house hold glass cleaner to clean the screen 3) Repeat the above steps, as necessary IMPORTANT Do not spray any type of liquid directly on the thermostat itself. If using household glass cleaner, spray cleaner on cloth.
  • Page 11 Planning Your Program The Heating schedule below allow you to pencil in your own program times and temperatures. The thermostat comes configured for 7 day programming and can also be configured for 5+1+1 programming Factory setting are listed on Monday, Saturday and Sunday. If you are re-programming a 5+1+1 day schedule, pencil in your own times and temperatures directly below the factory times and temperatures.
  • Page 12 The weekday (Mon-Fri) Program can be copied to Sat and Sun (both flashing) or use DAY to choose Sat or Sun and press the COPY button to paste the program CALOR SRL Str. Progresului nr. 30-40, sector 5, Bucuresti tel: 021.411.44.44, fax: 021.411.36.14 www.calorserv.ro - www.calor.ro...
