About AccessLinX VoIP Gateways
The AccessLinX units are analog gateways with two Voice-over-IP (VoIP)
ports. The unit enables the use of two independent analog telephone lines
or FAX machines to make VoIP phone calls over the Internet or Intranet. In
addition, it enables connecting up to four computers or segments to the net-
work. Local computers are connected via Ethernet 10/100Base-TX ports.
The Uplink connection is via either a 100Base-FX SFP fiber optic connector
or a 10/100Base-TX copper port. All Ethernet ports are connected by an
advanced switching engine that supports VLANs and QoS.
For complete installation and configuration information for your AccessLinX,
please refer to the User Guide, located on the User Documentation CD-R R OM,
delivered with the unit.
Installing AccessLinX Units

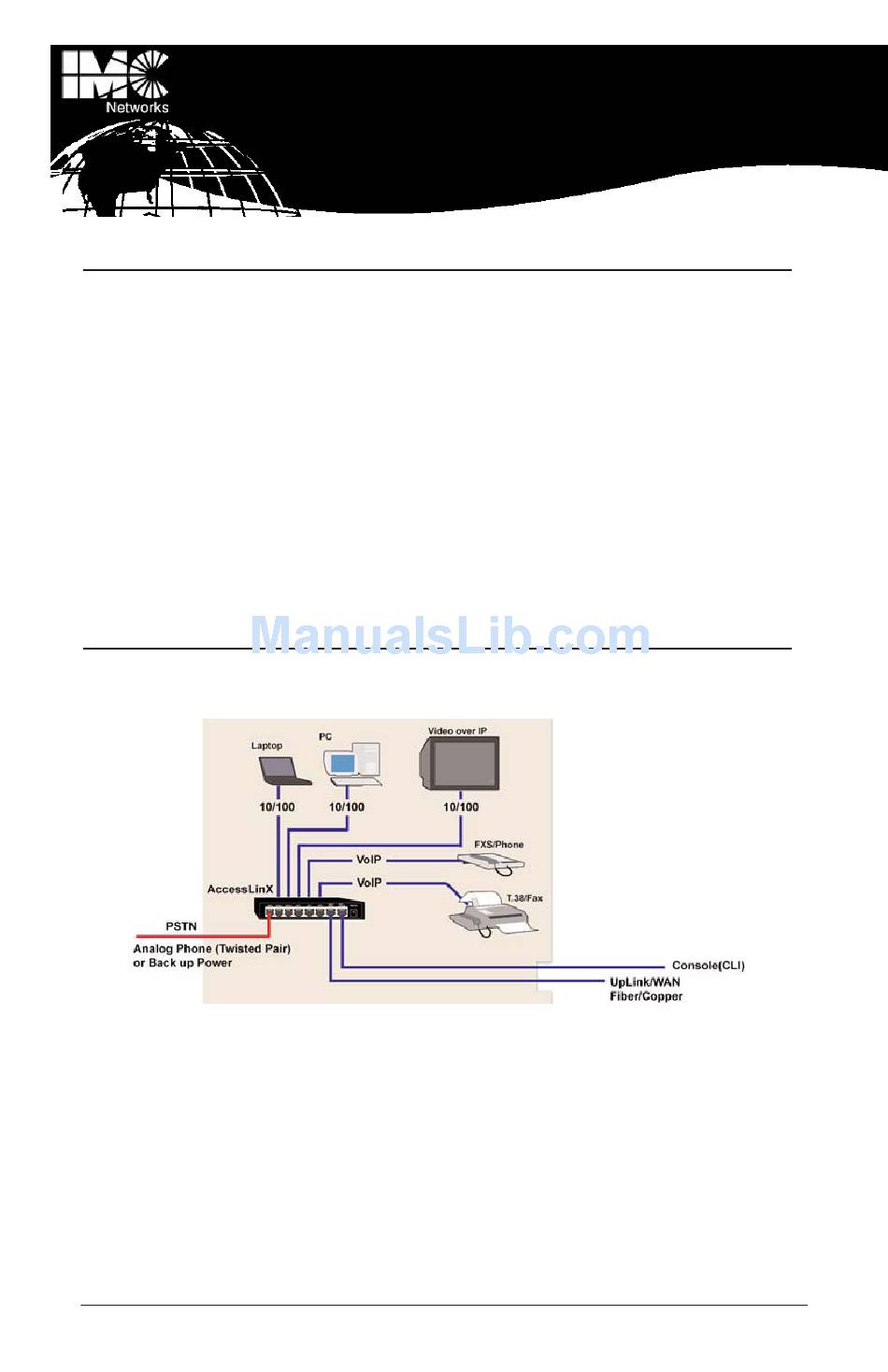

The figure below shows the connectors on the rear of the AccessLinX unit
as it is deployed in a typical application.
The RJ-11 telephone ports Phone 1 and Phone 2 connect to the
•
telephony devices.
The PSTN (lifeline) port can be connected as a standby to the public
•
telephone network. In case of power failure, the phone connected to
the Phone1 port will be automatically switched from VoIP to this line,
for regular telephone communication.
The RJ-45 LAN ports connect to the LAN, to other Access units and to
•
computers. The LAN4 Uplink port connects to the network.
The AUX/Console port, if available, is an option to be used by author-
•
ized technicians to configure the unit via a serial PC port.
Installation
Guide
1
AccessLinX
Advertisement
Table of Contents
Related Manuals for IMC accesslinx
Summary of Contents for IMC accesslinx
- Page 1 Installing AccessLinX Units The figure below shows the connectors on the rear of the AccessLinX unit as it is deployed in a typical application. The RJ-11 telephone ports Phone 1 and Phone 2 connect to the •...
-
Page 2: Led Operation
Choose a location that is near the devices to be connected and close to an electrical outlet. Place the AccessLinX unit on a desktop or other level sur- face. You may also mount the unit on the wall, using two screws 6.1" (15.5 cm) apart for horizontal positioning or 2.68"... -
Page 3: General Information
Compatibility (89/336/EEC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite,... - Page 4 (1) year after the original date of purchase. This warranty is subject to the limitations set forth below. At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such war- ranty period.
