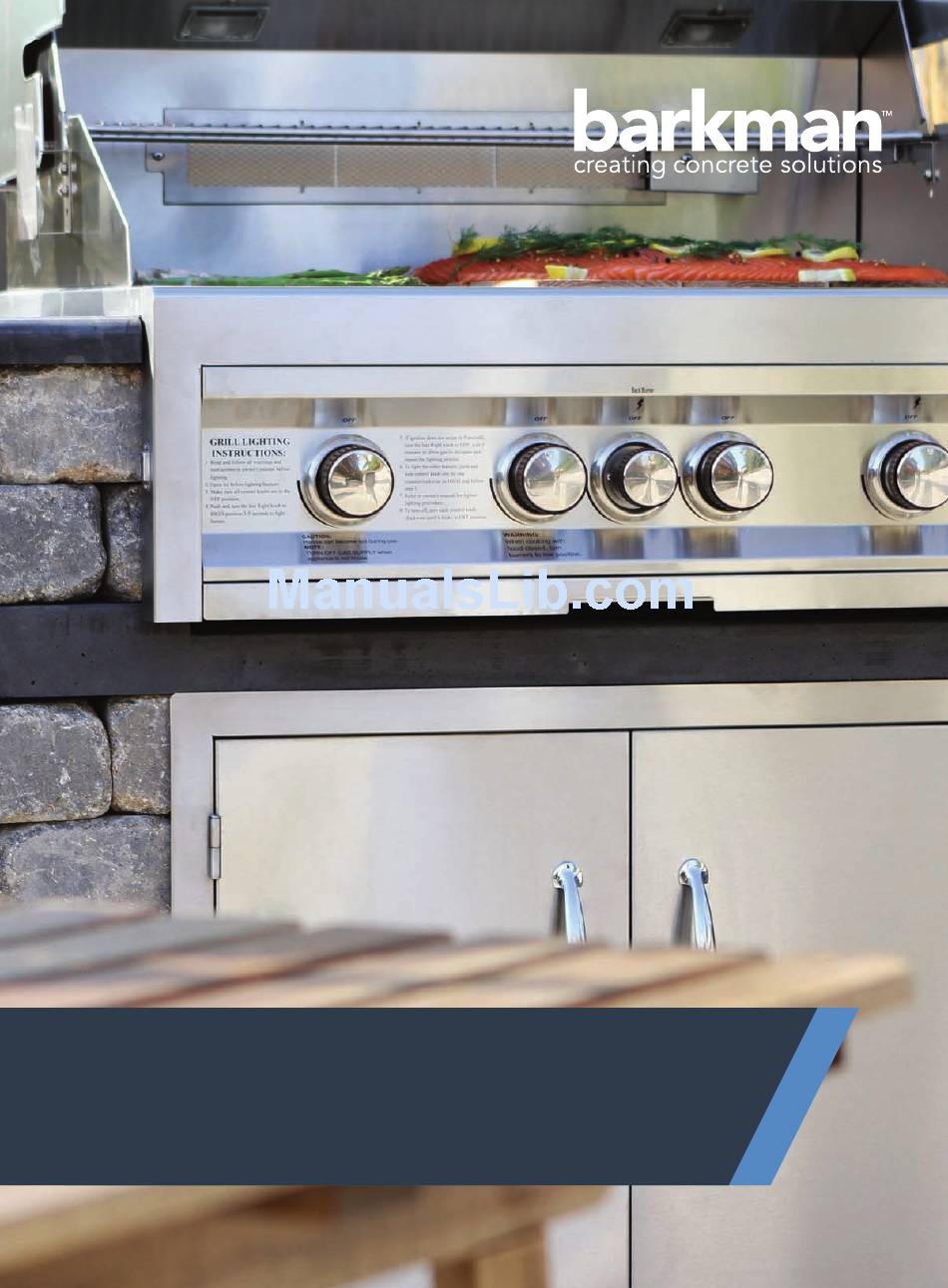

- Page 1 Outdoor Kitchen Kit Collection BBQ Grill Instruction Manual Harvest Grove Outdoor Kitchen BBQ Grill Instruction Manual...
- Page 2 Scan our QR code For any issues on Sunstone steel components to watch our online or warranty claims, please call Texas BBQ instruction videos or Wholesalers at 888-934-9449 or email them at go to youtube.com/ service@sunstonemetalproducts.com. barkmanconcrete...
- Page 3 Materials Included: Other Items Needed: 12” standard quarry stone - 57 pieces drill 8” standard quarry stone -3 pieces caulking gun 4” standard quarry stone - 9 pieces measuring tape/ruler 4” x 12” x 6” quarry stone - 6 pieces 4”...
- Page 4 12” standard quarry stone 4” standard quarry stone 8” standard quarry stone 4” x 12” x 6” quarry stone 4” x 8” x 6 ” quarry stone 4” x 8” x 2 ” quarry stone...
- Page 5 stainless steel vent box tank and drawer frame double door tank holder and dual drawers 4-piece ebony accent band 3-piece ebony countertop 4 burner grill 34 IR...
- Page 6 Note: Certain steps indicate the use of landscape glue. This is for added stability but it’s optional and at the discretion of the user. STEP 1 Lay down the stone pattern shown using 12”, 8”, 4” standard and 4”x8”x6 ” pieces along with the tank and drawer frame.
- Page 7 STEP 3 Repeat the pattern from Step 1. STEP 4 Lay down the stone pattern shown using 12” standard and 4”x8”x2 ” pieces.
- Page 8 STEP 5 remove this block if installing side burner beside bbq grill Repeat patterns from Steps 3 & 4. Make sure this layer is flush with the top of the frame. If installing with the side burner, do so on the right-hand side of the BBQ grill. STEP 6 Lay down the 4-piece accent band as shown.
- Page 9 STEP 7 Lay down the stone pattern shown using 12” standard, 4”x12”x6” and 4”x8”x2 ” pieces. STEP 8 Lay down the stone pattern shown using 12”, 4” standard, 4”x12”x6”, and 4”x8”x6 ” pieces. Make sure that all pieces on this layer are level to receive the countertop.
- Page 10 STEP 9 front edges flush with quarry stone ” overhang at back Lay down the 3-piece ebony countertop as shown. Make sure all 3 pieces are level. Glue this down to the quarry stone below. STEP 10 Remove the tank holder and drawers from the sliders by pressing on the black tabs.
- Page 11 STEP 11 Pre-drill holes into the tank and drawer frame through openings in the double door tank holder and dual drawers with the drill bit provided. Fasten in place with the provided concrete screws (do not overtighten). Reinsert the drawers and tank holders thereafter.
- Page 12 Harvest Grove Outdoor Kitchen Kits BARKMAN CONCRETE LIMITED Steinbach Office 152 Brandt Street, Steinbach, MB R5G 0R2 T 204 326 3445 or 1 800 461 2278 F 204 326 5915 steinbach@barkmanconcrete.com Winnipeg Office 909 Gateway Road, Winnipeg, MB R2K 3L1...
