- Page 1 HDMI 1x2 Splitter User Guide Model CM-SP1210-HD Doc ID 2013-12-355 • Rev 01...
- Page 2 US and international copyright law. Trademarks and The HDMI 1x2 Splitter User Guide, Model CM-SP1210-HD name is patents a trademark of Clare Controls, Inc. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Content Important information...ii Limitation of liability...ii Introduction...1 Features...1 Package contents...1 Product appearance...2 System connection...2 Usage precautions...3 Connection procedure...3 Application solution...3 Specifications...4 Panel drawing...5 Troubleshooting and maintenance...5 Safety operation guide...6 ... -
Page 4: Important Information
In any event the total liability of Clare Controls, Inc. shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum extent permitted by applicable law, regardless of whether Clare Controls, Inc. -
Page 5: Introduction
Introduction The CM-SP1210-HD 1x2 HDMI splitter is equipped with a high-quality one input, two output distribution chip. Its anti-static function gives it the advantage over others when distributing HDMI signals. It is equipped with HDMI 1.4a connectors. It is HDCP compliant, and HDTV compatible, with resolution up to 1920 x 1200 at 60 Hz, and 1080p. -
Page 6: Product Appearance

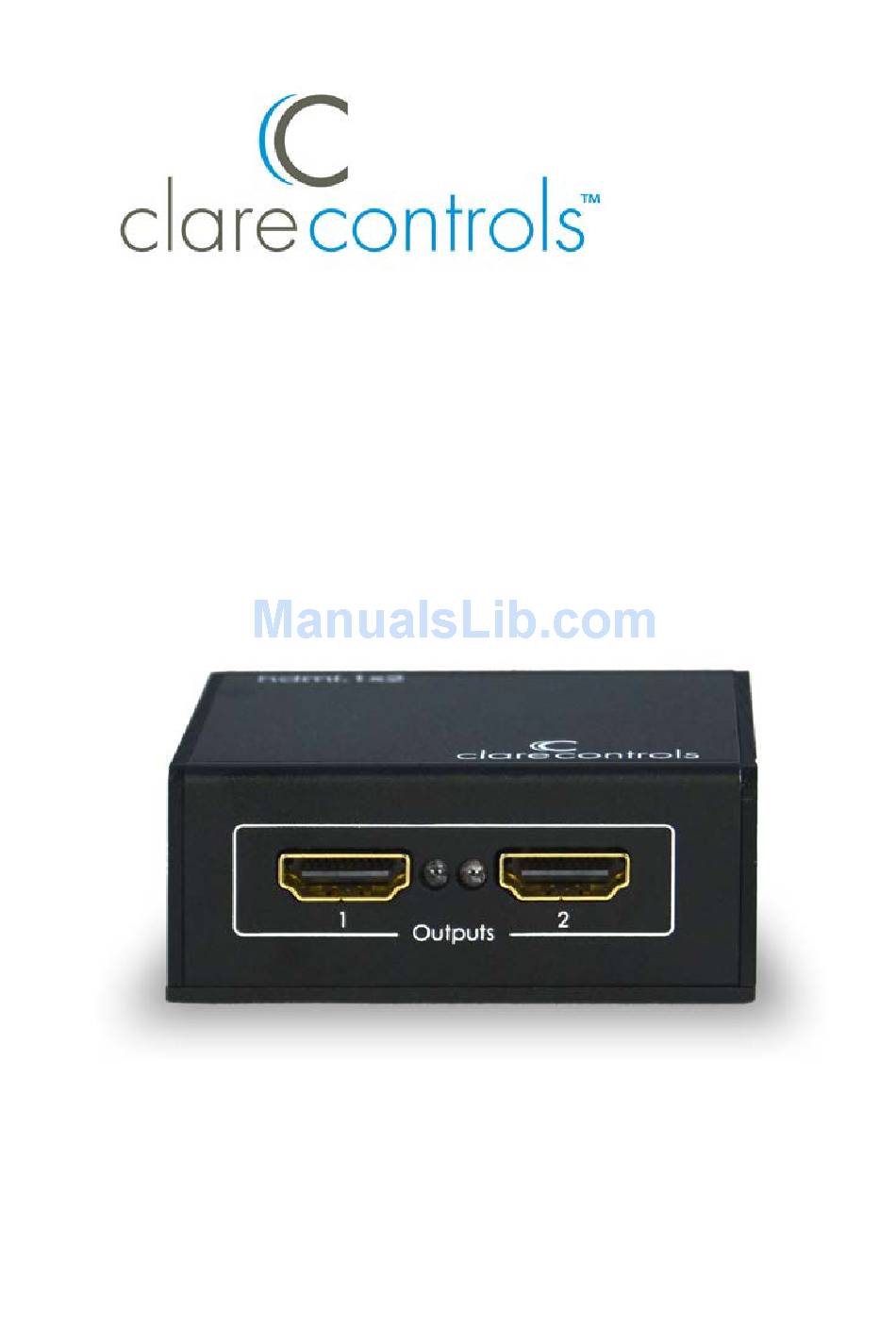

The CM-SP210-HD has one HDMI input port and two HDMI output ports, as shown below. Figure 1: CM-SP1210-HD 1x2 HDMI splitter (1) HDMI output ports connect with HDMI displays devices, such as HDTVs, or projectors. (2) Power indicator remains red when power is on. -
Page 7: Usage Precautions
Usage precautions • The system should be installed in a clean environment and have proper temperature and humidity controls. • All of the power switches, plugs, sockets, and power cords should be insulated for safety. • All devices should be connected before powering on. Connection procedure To connect the splitter: Connect HDMI from the source (such as Blue-ray DVD) to the HDMI input port on... -
Page 8: Specifications
Specifications Video Input Video Output Input type HDMI Output HDMI Input connector 1 HDMI female Output connector 2 HDMI female Input level T.M.D.S. 2.9 V / 3.3 V Output level T.M.D.S. 2.9 V / 3.3 V Input impedance 50Ω Output impedance 50Ω... -
Page 9: Panel Drawing
Panel drawing Figure 4: Panel drawing of the HDMI 1x2 splitter Troubleshooting and maintenance • If the POWER indicator does not work, ensure the power supply is connected properly. Check to be sure that a circuit breaker has not tripped and that power is available. -
Page 10: Safety Operation Guide
Safety operation guide To guarantee the reliable operation of the equipment and personal safety, please follow the procedures listed below. • The system must be grounded properly. Do not use two blades plugs. Ensure the supply voltage is in the correct range of 100~240 V and from 50~60 Hz. •... -
Page 11: After-Sales Service
After-sales service • If there appears to be problems when running the device, refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty. • You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information. - Page 12 HDMI 1x2 Splitter User Guide...
