Summary of Contents for Clevo W670RCQ

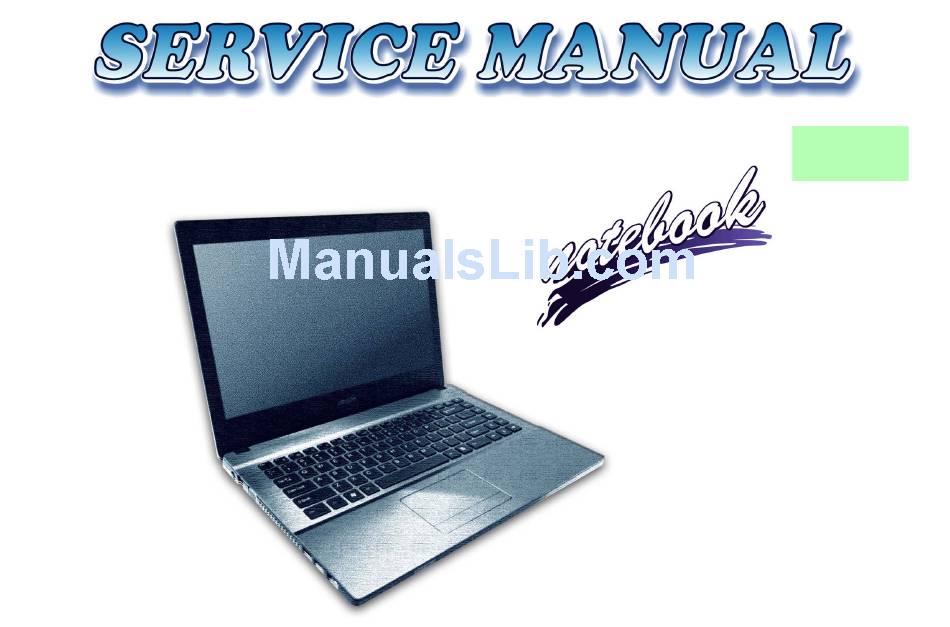

  • Page 1 W670RCQ...
  • Page 3 Preface Notebook Computer W670RCQ Service Manual...
  • Page 4 Preface Notice The company reserves the right to revise this publication or to change its contents without notice. Information contained herein is for reference only and does not constitute a commitment on the part of the manufacturer or any subsequent ven- dor.
  • Page 5 This manual is intended for service personnel who have completed sufficient training to undertake the maintenance and inspection of personal computers. It is organized to allow you to look up basic information for servicing and/or upgrading components of the W670RCQ series notebook PC.
  • Page 6 Preface IMPORTANT SAFETY INSTRUCTIONS Follow basic safety precautions, including those listed below, to reduce the risk of fire, electric shock and injury to per- sons when using any electrical equipment: 1. Do not use this product near water, for example near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

  • Page 7: Instructions For Care And Operation

    Preface Instructions for Care and Operation The notebook computer is quite rugged, but it can be damaged. To prevent this, follow these suggestions: Don’t drop it, or expose it to shock. If the computer falls, the case and the components could be damaged. Do not expose the computer Do not place it on an unstable Do not place anything heavy...

  • Page 8: Power Safety

    Preface Avoid interference. Keep the computer away from high capacity transformers, electric motors, and other strong mag- netic fields. These can hinder proper performance and damage your data. Take care when using peripheral devices. Use only approved brands of Unplug the power cord before peripherals.

  • Page 9: Battery Precautions

    Preface Battery Precautions • Only use batteries designed for this computer. The wrong battery type may explode, leak or damage the computer. • Do not continue to use a battery that has been dropped, or that appears damaged (e.g. bent or twisted) in any way. Even if the computer continues to work with a damaged battery in place, it may cause circuit damage, which may possibly result in fire.

  • Page 10: System Startup

    Preface Related Documents You may also need to consult the following manual for additional information: User’s Manual on CD/DVD This describes the notebook PC’s features and the procedures for operating the computer and its ROM-based setup pro- gram. It also describes the installation and operation of the utility programs provided with the notebook PC. System Startup 1.

  • Page 11: Table Of Contents

    Preface Contents Introduction ..........1-1 Bottom ................... A-4 DVD DUAL ................... A-5 Overview ..................1-1 HDD ....................A-6 Specifications ..................1-2 2nd HDD ..................A-7 External Locator - Top View with LCD Panel Open ......1-4 LCD ....................A-8 External Locator - Front & Right Side Views .........1-5 Schematic Diagrams.........
  • Page 12 Preface PCH 6/9 ..................B-26 Set the computer to boot from the external drive ......C-1 PCH 7/9 ..................B-27 Use the flash tools to update the BIOS ...........C-2 PCH 8/9 ..................B-28 Restart the computer (booting from the HDD) .......C-2 PCH 9/9 ..................

  • Page 13: Introduction

    Chapter 1: Introduction Overview This manual covers the information you need to service or upgrade the W670RCQ series notebook computer. Informa- tion about operating the computer (e.g. getting started, and the Setup utility) is in the User’s Manual. Information about dri-vers (e.g.

  • Page 14: Specifications

    Introduction Specifications Processor Options Video Adapter (Design II) Intel® Core™ i7 Processor Intel® Integrated GPU and NVIDIA® Discrete GPU i7-6700HQ (2.60GHz) Supports Microsoft Hybrid Graphics 8MB Smart Cache, 14nm, DDR3L-1600MHz, TDP 45W  Intel Integrated GPU Intel® Core™ i5 Processor Latest Specification Information Intel®...
  • Page 15 Introduction Interface Environmental Spec One USB 2.0 Port Temperature ° ° Three USB 3.0 Ports Operating: 5 C - 35 One HDMI-Out Port Non-Operating: -20°C - 60°C One External Monitor Port Relative Humidity One Headphone-Out Jack Operating: 20% - 80% One Microphone-In Jack Non-Operating: 10% - 90% One RJ-45 LAN Jack...

  • Page 16: External Locator - Top View With Lcd Panel Open

    Introduction External Locator - Top View with LCD Panel Open Figure 1 Top View 1. PC Camera 2. Built-In Microphone 3. *PC Camera LED *When the PC camera is in use, the LED will be illuminated in red. 4. LCD 5.

  • Page 17: External Locator - Front & Right Side Views

    Introduction External Locator - Front & Right Side Views Figure 2 Front View 1. LED Indicator 2. Multi-in-1 Card Reader FRONT VIEW Figure 3 Right Side View 1. Microphone-In RIGHT SIDE VIEW Jack 2. Headphone-Out Jack 3. USB Ports 4. Optical Device Drive Bay 5.

  • Page 18: External Locator - Left Side & Rear View

    Introduction External Locator - Left Side & Rear View Figure 4 Left Side View 1. DC-In Jack 2. Vent 3. External Monitor LEFT SIDE VIEW Port 4. RJ-45 LAN Jack 5. USB 3.0 Ports 6. HDMI-Out Port Figure 5 REAR VIEW Rear View 1.

  • Page 19: External Locator - Bottom View

    Introduction External Locator - Bottom View Figure 6 Bottom View 1. Battery 2. Component Bay Cover 3. Vent 4. Multi-in-1 Card Reader 5. Speakers  Overheating To prevent your com- puter from overhea- ting, make sure no- thing blocks any vent while the computer is in use.

  • Page 20: Mainboard Overview - Top (Key Parts)

    Introduction Mainboard Overview - Top (Key Parts) Figure 7 Mainboard Top Key Parts 1 - 8 Mainboard Overview - Top (Key Parts)

  • Page 21: Mainboard Overview - Bottom (Key Parts)

    Introduction Mainboard Overview - Bottom (Key Parts) Figure 8 Mainboard Bottom Key Parts 1. Memory Slots DDR3L SO-DIMM 2. CPU Socket (no CPU installed) 3. Platform Controller 4. VGA Chip 5. KBC-ITE IT8587 6. Mini-Card Connector (SSD Module) 7. Mini-Card Connector (WLAN Module) 8.

  • Page 22: Mainboard Overview - Top (Connectors)

    Introduction Mainboard Overview - Top (Connectors) Figure 9 Mainboard Top Connectors 1. External Monitor Port 2. RJ-45 LAN Jack 3. Combo eSATA/ USB Port 3.0 4. HDMI-Out Port 5. USB Port 3.0 Connector 6. Speaker Cable Connector 7. Keyboard Cable Connector 8.

  • Page 23: Mainboard Overview - Bottom (Connectors)

    Introduction Mainboard Overview - Bottom (Connectors) Figure 10 Mainboard Bottom Connectors 1. ODD Connector 2. HDD Connector 3. LCD Cable Connector 4. DC-In 5. CCD + MIC Connector Mainboard Overview - Bottom (Connectors) 1 - 11...
  • Page 24 Introduction 1 - 12...

  • Page 25: Disassembly

    Chapter 2: Disassembly Overview This chapter provides step-by-step instructions for disassembling the W670RCQ series notebook’s parts and subsystems. When it comes to reassembly, reverse the procedures (unless otherwise indicated). We suggest you completely review any procedure before you take the computer apart.

  • Page 26: Maintenance Tools

    Disassembly NOTE: All disassembly procedures assume that the system is turned OFF, and disconnected from any power supply (the battery is removed too). Maintenance Tools The following tools are recommended when working on the notebook PC: • M3 Philips-head screwdriver •...

  • Page 27: Maintenance Precautions

    Disassembly Maintenance Precautions  The following precautions are a reminder. To avoid personal injury or damage to the computer while performing a re- moval and/or replacement job, take the following precautions: Power Safety Warning 1. Don't drop it. Perform your repairs and/or upgrades on a stable surface. If the computer falls, the case and other Before you undertake components could be damaged.

  • Page 28: Disassembly Steps

    Disassembly Disassembly Steps The following table lists the disassembly steps, and on which page to find the related information. PLEASE PERFORM THE DISASSEMBLY STEPS IN THE ORDER INDICATED. To remove the Battery: To remove the CCD Module: 1. Remove the battery page 2 - 5 1.

  • Page 29: Removing The Battery

    Disassembly Removing the Battery Figure 1 Battery Removal 1. Turn the computer off, and turn it over. 2. Slide the latch in the direction of the arrow (Figure 1a a. Slide the latch and hold it 3. Slide the latch in the direction of the arrow, and hold it in place (Figure 1a in place.

  • Page 30: Removing The Keyboard

    Disassembly Removing the Keyboard Figure 2 Keyboard Removal 1. Turn off the computer, turn it over, remove the battery (page 2 - 2. Remove screw and carefully press at point , from the bottom of the computer to unsnap the center cover a.

  • Page 31: Removing The Hard Disk Drive

    Disassembly Removing the Hard Disk Drive Figure 3 HDD Assembly The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 9.5mm Removal or 7mm (h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in Chapter 4 of the User’s Manual) when setting up a new hard disk.
  • Page 32 Disassembly 4. Remove the component bay cover (Figure 4c Figure 4 5. Grip the tab to slide the hard disk assembly in the direction of arrow to lift the hard disk assembly (Fig- HDD Assembly ure 4d Removal (cont’d.) 6. Remove the screws and the adhesive cover from the hard disk (Figure 4e...
  • Page 33 Disassembly Hard Disk Size Note (Foam Rubber Insert) Note that the hard disks pictured on the following pages are all 9.5mm(H) hard disk drives. In some cases 7mm(H) hard disk drives will be installed. For more information contact your distributor/supplier, and bear in mind your warranty terms.

  • Page 34: Removing The Optical (Cd/Dvd) Device

    Disassembly Removing the Optical (CD/DVD) Device Figure 6 1. Turn off the computer, and remove the battery (page 2 - Optical Device 2. Locate the component bay cover and remove screws (Figure 6a Removal 3. Lift the component bay cover off the computer case by applying pressure at points &...
  • Page 35 Disassembly 6. Carefully pry the bezel off the optical device at point (Figure 7e 7. Separate the bezel and the optical device. Figure 7 8. Reverse the process to attach the front bezel with the new optical device at point (Figure 7g).

  • Page 36: Removing The System Memory (Ram)

    Disassembly Removing the System Memory (RAM) Figure 8 RAM Module The computer has two memory sockets for 204 pin Small Outline Dual In-line Memory Modules (SO-DIMM) supporting Removal DDR3L up to 1600 MHz. The main memory can be expanded up to 16GB. The total memory size is automatically de- tected by the POST routine once you turn on your computer.
  • Page 37 Disassembly 5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the Figure 9 arrows (Figure 9c). RAM Module 6. The RAM module will pop-up Figure 9d , and you can then remove it Removal (cont’d) 7.

  • Page 38: Removing The Wireless Lan Module

    Disassembly Removing the Wireless LAN Module Figure 10 Wireless LAN 1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and the component bay cover (page 2 - Module Removal 2. The Wireless LAN module will be visible at point on the mainboard (Figure 10a).

  • Page 39: Wireless Lan, Combo, 3G & Lte Module Cables

    Disassembly Wireless LAN, Combo, 3G & LTE Module Cables Note that the cables for connecting to the antennae on WLAN, WLAN & Bluetooth Combo, 3G and LTE modules are not labelled. The cables/covers (each cable will have either a black or transparent cable cover) are color coded for iden- tification as outlined in the table below.

  • Page 40: Removing The Ssd Module

    Disassembly Removing the SSD Module Figure 11 SSD Module Removal 1. Turn off the computer, remove the battery (page 2 - 5), and component bay cover (page 2 - 2. Locate the module, it is visible at point Figure 11a a.

  • Page 41: Removing The Ccd

    Disassembly Removing the CCD Figure 12 CCD Removal 1. Turn off the computer, turn it over, and remove the battery (page 2 - 2. Run your fingers around the inner frame of the LCD panel at the points as indicated by the arrows a.
  • Page 42 Disassembly 5. Disconnect the cable (Figure 13d). Figure 13 6. Remove the CCD module (Figure 13e). CCD Removal 7. Reverse the process to install a new CCD module. (cont’d) d. Disconnect the cable. e. Remove the CCD mod- ule.  7.

  • Page 43: Part Lists

    Appendix A:Part Lists This appendix breaks down the W670RCQ series notebook’s construction into a series of illustrations. The component part numbers are indicated in the tables opposite the drawings. Note: This section indicates the manufacturer’s part numbers. Your organization may use a different system, so be sure to cross-check any relevant documentation.

  • Page 44: Part List Illustration Location

    Part List Illustration Location The following table indicates where to find the appropriate part list illustration. Table A - 1 Part List Illustration Part Location page A - 3 Bottom page A - 4 page A - 5 DVD Dual Drive page A - 6 page A - 7 2nd HDD...

  • Page 45: Top

    Figure A - 1 Top A - 3...

  • Page 46: Bottom

    Bottom Figure A - 2 Bottom A - 4 Bottom...

  • Page 47: Dvd Dual

    DVD DUAL Figure A - 3 DVD DUAL DVD DUAL A - 5...

  • Page 48: Hdd

    Figure A - 4 A - 6 HDD...

  • Page 49: 2Nd Hdd

    2nd HDD Figure A - 5 2nd HDD 2nd HDD A - 7...

  • Page 50: Lcd

    Figure A - 6 A - 8 LCD...

  • Page 51: Schematic Diagrams

    Schematic Diagrams Appendix B: Schematic Diagrams This appendix has circuit diagrams of the W670RCQ notebook’s PCB’s. The following table indicates where to find the appropriate schematic diagram. Diagram - Page Diagram - Page Diagram - Page Table B - 1...

  • Page 52: System Block Diagram

    Schematic Diagrams System Block Diagram W650RC System Block Diagram (Skylake) W650RC VDD3,VDD5 4IN1 6-7P-W65R4-003 nVIDIA SHEET 39 MAIN BOARD (W650RC/RB) Nvidia PCIE*8 SKYLAKE-H 6-71-W65R0-D02 N16P-GT(950M) RAM SIZE 2GB (128x16x8)DDR3 SHEET 1~48 GPU NVDIDA N16x NVVDD N16S-GT(940M) RAM SIZE 2GB (256x16x4)DDR3 W650RC BOM: 6-77-W650RC00-D02 SKL-H 42 45W...

  • Page 53: Processor 1/7

    Schematic Diagrams Processor 1/7 CPU HOLD H4_7B4_2D4_2 H4_7B4_2D4_2 U29C SKYLAKE_HALO BGA1440 PEG_TX_0 C648 0.22u_10V_X5R_04 PEG_RX0 PEG_RXP[0] PEG_TXP[0] PEG_TX0 PEG_TX#_0 C649 0.22u_10V_X5R_04 PEG_RX#0 PEG_RXN[0] PEG_TXN[0] PEG_TX#0 PEG_TX_1 C647 0.22u_10V_X5R_04 PEG_RX1 PEG_RXP[1] PEG_TXP[1] PEG_TX1 PEG_TX#_1 C646 0.22u_10V_X5R_04 PEG_RX#1 PEG_RXN[1] PEG_TXN[1] PEG_TX#1 H4_7B4_2D4_2 H4_7B4_2D4_2 PEG_TX_2 C638...

  • Page 54: Processor 2/7

    Schematic Diagrams Processor 2/7 SKYLAKE_HALO U29D BGA1440 VGA_LANE0P DDI1_TXP[0] EDP_TXP[0] EDP_TXP_0 VGA_LANE0N EDP_TXN_0 DDI1_TXN[0] EDP_TXN[0] EDP TO LVDS IC VGA_LANE1P DDI1_TXP[1] EDP_TXP[1] EDP_TXP_1 VGA_LANE1N DDI1_TXN[1] EDP_TXN[1] EDP_TXN_1 DDI1_TXP[2] EDP_TXN[2] DDI1_TXN[2] EDP_TXP[2] DDI1_TXP[3] EDP_TXN[3] DDI1_TXN[3] EDP_TXP[3] VGA_AUX_CH_P DDI1_AUXP EDP_AUXP EDP_AUXP VGA_AUX_CH_N EDP_AUXN DDI1_AUXN EDP_AUXN...

  • Page 55: Processor 3/7

    Schematic Diagrams Processor 3/7 U29A SKYLAKE_HALO M_A_DQ[63:0] U29B SKYLAKE_HALO BGA1440 M_B_DQ[63:0] M_A_DQ0 BGA1440 DDR0_DQ[0] DDR0_CKP[0] M_A_CLK_DDR0 M_A_DQ1 M_B_DQ0 BT11 DDR0_DQ[1] DDR0_CKN[0] M_A_CLK_DDR#0 DDR1_DQ[0]/DDR0_DQ[16] DDR1_CKP[0] M_B_CLK_DDR0 M_A_DQ2 M_B_DQ1 BR11 DDR0_DQ[2] DDR0_CKN[1] M_A_CLK_DDR#1 DDR1_DQ[1]/DDR0_DQ[17] DDR1_CKN[0] M_B_CLK_DDR#0 M_A_DQ3 M_B_DQ2 DDR0_DQ[3] DDR0_CKP[1] M_A_CLK_DDR1 DDR1_DQ[2]/DDR0_DQ[18] DDR1_CKN[1] M_B_CLK_DDR#1 M_A_DQ4...

  • Page 56: Processor 4/7

    Schematic Diagrams Processor 4/7 NEAR CPU CFG[0]: Stall reset sequence after PCU PLL lock until de-asserted: 1.0V_VCCST — 1 = (Default) Normal Operation; VCCIO No stall. R436 — 0 = Stall. CFG9 *1K_04 CFG[1]: Reserved configuration lane. SKYLAKE_HALO U29E CFG[2]: PCI Express* Static x16 Lane BGA1440 Numbering Reversal.

  • Page 57: Processor 5/7

    Schematic Diagrams Processor 5/7 PLACE CAPS AT BOARD EDGE VCCEDRAM CPU_TOP_VCCCORE VCORE PLACE CAP BACKSIDE VCORE SKYLAKE_HALO VCORE U29G SKYLAKE_HALO CPU_BACK_VCCEOPIO U29J BGA1440 C255 C252 BGA1440 AA13 C694 C141 C106 C140 AA31 VCCEOPIO BJ17 VCCOPC AA32 BJ19 VCCOPC AA33 BJ20 VCCOPC AA34 BK17...

  • Page 58: Processor 6/7

    Schematic Diagrams Processor 6/7 PLACE CAP BACKSIDE VCCVDDQ_CLK 1.0V_VCCST 1.0V_VCCST VCCSA VDDQ C792 SKYLAKE_HALO U29I BGA1440 VCCSA VDDQ SKYLAKE_HALO AE12 U29K VCCSA VDDQ VCCSA VDDQ BGA1440 VCCSA VDDQ TP_SKL_D1 BM33 TP_SKL_BM33 VCCSA VDDQ RSVD_TP RSVD_TP TP_SKL_E1 TP_SKL_BL33 BL33 VCCSA VDDQ RSVD_TP RSVD_TP TP_SKL_E3...

  • Page 59: Processor 7/7

    Schematic Diagrams Processor 7/7 VCCGT VCCGT VCCGT SKYLAKE_HALO U29L VCCGTU SKYLAKE_HALO U29N BGA1440 SKYLAKE_HALO U29F U29M SKYLAKE_HALO AJ29 BGA1440 SKYLAKE_HALO VCCGT U29H AJ30 BGA1440 BGA1440 VCCGT AK30 BG34 AV29 AJ31 AF29 VCCGT BGA1440 VCCGT VCCGT VCCGTX BT32 AK29 BG35 AV30 AJ32 AF30 BT26...

  • Page 60: Ddr3 Cha So-Dimm_0

    Schematic Diagrams DDR3 CHA SO-DIMM_0 Channel A SO-DIMM 0[RAM1] REV TYPE H=5.2mm JDIMM2A M_A_A[15:0] M_A_DQ[63:0] M_A_A0 M_A_DQ0 JDIMM2B M_A_A1 M_A_DQ1 M_A_A2 M_A_DQ3 M_A_A3 M_A_DQ7 VDDQ M_A_A4 M_A_DQ5 M_A_A5 M_A_DQ4 VDD1 VSS16 M_A_A6 M_A_DQ2 VDD2 VSS17 M_A_A7 M_A_DQ6 VDD3 VSS18 M_A_A8 M_A_DQ12 VDD4 VSS19...

  • Page 61: Ddr3 Chb So-Dimm_0

    Schematic Diagrams DDR3 CHB SO-DIMM_0 RSV TYPE Channel B SO-DIMM 0[RAM2] H=9.2mm JDIMM1A M_B_B[15:0] M_B_DQ[63:0] M_B_B0 M_B_DQ0 JDIMM1B M_B_B1 M_B_DQ4 M_B_B2 M_B_DQ3 M_B_B3 M_B_DQ2 VDDQ M_B_B4 M_B_DQ5 M_B_B5 M_B_DQ1 VDD1 VSS16 M_B_B6 M_B_DQ6 VDD2 VSS17 M_B_B7 M_B_DQ7 VDD3 VSS18 M_B_B8 M_B_DQ10 VDD4 VSS19...

  • Page 62: Ps8625

    Schematic Diagrams PS8625 6-19-41001-019 *15mil_short_06 3.3VS 3.3VS VDDIO HCB1005KF-121T20 HCB1005KF-121T20 BCNR3010C-2R2M HCB1005KF-121T20 VDDIOX SW_OUT VDD12 VDDRX 8625_GNDA C624 C621 C623 C620 PANEL_VCC_EN 0.47u_10V_Y5V_04 1u_6.3V_X5R_04 22u_6.3V_X5R_08 0.47u_10V_Y5V_04 *4.7u_6.3V_X5R_06 1u_6.3V_X5R_04 0.1u_16V_Y5V_04 0.01u_16V_X7R_04 PANEL_VCC_EN 4.7u_6.3V_X5R_06 4.7u_6.3V_X5R_06 ENBLT ENBLT 8625_GNDA 8625_GNDA 8625_GNDA 8625_GNDA 8625_GNDA 8625_GNDA PANEL_PWM PANEL_PWM...

  • Page 63: Panel, Inverter

    Schematic Diagrams PANEL, INVERTER PANEL POWER PANEL CONNECTOR (30Pin_eDP & 40Pin_LVDS CO-lay) Default Short VIN_LCD OPEN_2A *MTS3572G6 D02A 3.3VS 4.7K_04 LED PANEL (LVDS Dual Channel). 3.3V 4.7K_04 *0.22u_50V_Y5V_06 *220_06 *150K_04 *10K_04 VIN_LCD *100K_04 J_LCD2 LVDD_EN#1 *MTDN7002ZHS6R P_DDC_DATA_R R411 0_04 P_DDC_DATA P_DDC_CLK_R R412 0_04...

  • Page 64: Vga Pci-E Interface

    Schematic Diagrams VGA PCI-E Interface 3V3_AON 6-03-00015-0S0 R496 24,47 DGPU_PWRGD IC VGA CHIP NVIDIA N15P-GT-A2 10K_04 (GM107-650-A2) 28um FCBGA 908BALLS PEX_CLKREQ# MTN7002ZHS3 PEG_CLKREQ# U37A BGA_0908_P080_P085_P100_290X290 R524 COMMON *10K_04 1.05V 1/17 PCI_EXPRESS PERSTB# GK107/GF108 GK208/GF117 PEX_VDD SNN_PEXWAKE AJ11 PEX_WAKE AG19 PEX_IOVDD AJ12 AG21 PEX_RST...

  • Page 65: Vga Frame Buffer Interface

    Schematic Diagrams VGA Frame Buffer Interface Frame Buffer Interface Term Description U37C U37B The total trace length measured BGA_0908_P080_P085_P100_290X290 Under GPU from GPU ball to capacitor is no more than 150 mil COMMON BGA_0908_P080_P085_P100_290X290 FBC_CMD[31:0] COMMON FBC_CMD[31:0] The total trace length measured 3/17 FBB Near GPU from GPU ball to capacitor is no...

  • Page 66: Vga Frame Buffer A

    Schematic Diagrams VGA Frame Buffer A FBVDDQ W650RB/RC Frame Buffer Partition A C796 C464 C842 C846 C853 C470 C487 C854 C799 C815 C828 C546 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 1u_6.3V_X5R_04 0.1uF X4 for FBVDDQ one chip VRAM 1.0uF X8 FBVDDQ FBVDDQ...

  • Page 67: Vga Frame Buffer C

    Schematic Diagrams VGA Frame Buffer C FBVDDQ W650RC Frame Buffer Partition B C777 C776 C778 C779 C437 C431 C775 C311 C773 C702 C771 C770 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 *1u_6.3V_X5R_04 W650RB FBVDDQ FBVDDQ FBC_CMD[31:0] FBC_CMD[31:0] C705 C307...

  • Page 68: Vga I/O

    Schematic Diagrams VGA I/O U37M U37K U37L BGA_0908_P080_P085_P100_290X290 COMMON BGA_0908_P080_P085_P100_290X290 BGA_0908_P080_P085_P100_290X290 COMMON COMMON Description Term 8/17 IFPEF 6/17 IFPC 7/17 IFPD The total trace length measured ALL PINS NC FOR GF117 from GPU ball to capacitor is Under GPU no more than 150 mil ALL PINS NC FOR GF117 ALL PINS NC FOR GF117 The total trace length measured...

  • Page 69: Vga Nvvdd Decoupling

    Schematic Diagrams VGA NVVDD Decoupling U37F U37G U37H BGA_0908_P080_P085_P100_290X290 U37I BGA_0908_P080_P085_P100_290X290 BGA_0908_P080_P085_P100_290X290 NVVDD COMMON COMMON COMMON BGA_0908_P080_P085_P100_290X290 NVVDD COMMON 15/17 GND_1/2 13/17 NVVDD 16/17 GND_2/2 AM25 9/17 XVDD AA17 AA12 AA18 AN10 AA14 CONFIGURABLE AA20 AN13 AA16 POWER AA22 AN16 AA19 CHANNELS C363...

  • Page 70: Crt

    Schematic Diagrams J_CRT1 5VS_CRT D5112-15F-111B 6-19-31001-003 RB751S-40H DAC_RED *0402_short FCM1005MF-600T01 FRED DAC_GREEN *0402_short FCM1005MF-600T01 FGRN 6-06-75140-068 R464 DAC_BLUE *0402_short FCM1005MF-600T01 FBLUE 2.2K_04 2.2K_04 C293 C281 C271 C295 C285 C274 C292 C280 C270 VGA_SDA 6-13-36R01-28C R116 R106 VGA_HSYNC VGA_HS_R R463 36_1%_04 VGA_VSYNC R455 36_1%_04...

  • Page 71: Pch 1/9

    Schematic Diagrams PCH 1/9 BOOT HALT JTAG ODT ENABLE:LOW DISABLE:LOW (INTERNAL WEAK PD) (INTERNAL WEAK PU) 3.3VS 3.3VA R201 R198 SPT-H_PCH U39A *20K_04 *20K_04 SPI_SI_R SPI_SO_R R552 *0_04 LAN_W UP# BD17 BB27 32,36 LAN_W AKEUP# GPP_A11/PME# GPP_B13/PLTRST# PLT_RST# 24,48 AG15 GPP_G_14_GSXDIN: RSVD R202...
  • Page 72 Schematic Diagrams PCH 2/9 DFX TEST MODE XTAL INPUT FREQUENCY[0] SPT-H_PCH XTAL INPUT IS SINGLE ENDED U39B IF SAMPLED LOW ELSE DIFFERENTIAL USB_OC1# USB_PN1 DMI_MT_IR_0_DN DMI_RXN0 USB2N_1 VISACH2_D3 1-USB3 Port 3 Charger USB_PP1 DMI_MT_IR_0_DP DMI_RXP0 USB2P_1 DMI_IT_MR_0_DN USB_PN2 DMI_TXN0 USB2N_2 R515 2-CCD DMI_IT_MR_0_DP...

  • Page 73: Pch 3/9

    Schematic Diagrams PCH 3/9 SATAGP2 R723 10K_04 3.3VS BIOS RECOVERY SATAGP0 R724 10K_04 ENABLE :LOW PCH_RSVD MFG_MODE SATAGP1 R725 10K_04 SATAGP3 R726 10K_04 3.3VS 3.3VS 3.3VS SCI#_R R739 10K_04 ODD_DA# R740 10K_04 SATA_LED# R741 10K_04 R155 R156 R513 SW I#_R R742 10K_04 3.3VA...
  • Page 74 Schematic Diagrams PCH 4/9 SLP_SUS#_R R701 1.5K_1%_04 R702 45.3K_1%_04 R722 *0_04 VDD3 SLP_SUS#_EC SPT-H_PCH U39D ISH_GP_6_R RTC3.2V BB17 HDA_BITCLK HDA_BCLK GPP_A12/BMBUSY#/ISH_GP6/SX_EXIT_HOLDOFF# AW22 PM_CLKRUN# 35,36 HDA_RST# HDA_RST# GPP_A8/CLKRUN# 6-06-00054-06F HDA_SDIN0 HDA_SDI0 AR15 LAN_DISABLE_N HDA_SDI1 GPD11/LANPHYPC VCC_RTC HDA_SDOUT PCH_SLP_W LAN# AV13 23,35 HDA_SDOUT HDA_SDO GPD9/SLP_WLAN#...

  • Page 75: Pch 5/9

    Schematic Diagrams PCH 5/9 3.3VS 3.3VS VGA_CLK R707 2.2K_04 VGA_DATA R708 2.2K_04 DDPD_CLK R709 *2.2K_04 R230 R234 DDPD_DATA R710 *2.2K_04 U39E 2015.6.25 HDMI_CTRLCLK 100K_04 100K_04 R232 2.2K_04 SPT-H_PCH HDMI_CTRLCLK HDMI_CTRLDATA R229 2.2K_04 HDMI_CTRLCLK GPP_I7/DDPC_CTRLCLK VGA_HPD HDMI_CTRLDATA VGA OUT(B) VGA_HPD HDMI_CTRLDATA GPP_I0/DDPB_HPD0 GPP_I8/DDPC_CTRLDATA VGA_CLK...
  • Page 76 Schematic Diagrams PCH 6/9 C781 18p_50V_NPO_04 6-07-18034-1A0 R581 2015.6.15 FSX3M_24MHZ *1M_04 SPEC: 20PPM R584 0_04 C788 18p_50V_NPO_04 SPT-H_PCH U39G GCLK_24M R587 *0_04 AR17 GPP_A16/CLKOUT_48 24 MHz PCH_XDP_CLK_DN CLKOUT_ITPXDP PCH_XDP_CLK_DP 2015.8.14 CPU_24MHZ_R_DP CLKOUT_CPUNSSC_P CLKOUT_ITPXDP_P GCLK_32K R574 0_04 100 MHz CPU_24MHZ_R_DN CLKOUT_CPUNSSC 100 MHz PCH_CPU_PCIBCLK_R_DN CLKOUT_CPUPCIBCLK...

  • Page 77: Pch 6/9

    Schematic Diagrams PCH 7/9 VDD1.0 VDD1.0 SPT-H_PCH U39H VDD3 eSPI:1.8V 2.899A AA23 R166 *10mil_short 3.3VA LPC:3.3V VCCPRIM_1P0 AA26 VCCPRIM_1P0 AA28 AL22 0.0908A R165 *15mil_short 3.3VA VCCPRIM_1P0 VCCPRIM_1P0 AC23 VCCPRIM_1P0 R167 *0_04 AC26 BA24 0.403A C318 R173 *10mil_short VCCPRIM_1P0 VCCDSW_3P3 3.3VA V3.3A_V1.8A_VCCPGPPA AC28 BA31...

  • Page 78: Pch 8/9

    Schematic Diagrams PCH 8/9 U39I SPT-H_PCH SPT-H_PCH AC18 U39L AB11 AN10 M-MARK M-MARK M-MARK M-MARK BE14 AB14 BE18 AE29 AB31 BE23 AB32 BE28 AE42 AB38 BE32 AF18 BE37 AF20 BE40 AF21 AF23 AC20 AF25 AC21 AF26 AC25 AF28 AC29 AF29 AC45 M-MARK M-MARK...

  • Page 79: Pch 9/9

    Schematic Diagrams PCH 9/9 NO REBOOT STARP ENABLE: HIGH (INTERNAL WEAK PD) SPT-H_PCH U39J 3.3VS DFX TEST MODE QUALIFIER FOR OTHER DFX STRAP WHEN SAMPLED LOW (WEAK INTERNAL PU) AR22 RSVD22 R211 *1K_04 RSVD R205 BD45 RSVD BD44 RSVD *4.7K_04 BE44 RSVD RSVD...
  • Page 80 Schematic Diagrams M.2 3G + M.2 SATA 3G_EN 3G CARD GPS_DISABLE# 2015.6.24 3G_POW EREN CURRENT2A ,DON'T DROP BELOW 3.135V 3G_3.3V 3G_3.3V 80 mils H6_0B5_0D3_7 J_3G1 C880 220u_6.3V_6.3*6.3*4.2 C878 0.1u_16V_Y5V_04 CONFIG_2 3.3V4 GND10 3.3V3 C873 0.1u_16V_Y5V_04 GND9 3.3V2 R655 *80.6_1%_04 CONFIG_1 SUSCLK(32Khz)(O) SUS_CLK 23,30...

  • Page 81: M.2 Wlan+Bt, Pcie4X Ssd

    Schematic Diagrams M.2 WLAN+BT, PCIE4X SSD J_W LAN1 WLAN+BT 40 mil W LAN_3.3V GND10 3.3V3 Reserved/REFCLKN1 3.3V2 C589 C597 Reserved/REFCLKP1 UIM_Power_In/Gpio1/PEWake1# GND9 UIM_Power_Out/CLKREQ1# 22u_6.3V_X5R_06 0.1u_16V_Y5V_04 Reserved/PERn1 UIM_SWP/PERST1# Reserved/PERp1 Reserved1 GND8 ALERT#(I) R391 10K_04 PJ24 *2mm 3.3V Reserved/PETn1 I2C CLK(O) W LAN_3.3V VDD3 W LAN_3.3V R383...

  • Page 82: Usb3.0, Led

    Schematic Diagrams USB3.0, LED HDD LED USB3.0 USB3.0 PORT(PORT1) NGFF B & M KEY 6-52-52001-027 EC PIN24 LED_HDD# BIOS RY-SP170YG34-5M USBVCC3.0_2 6-52-52001-027 100mils R403 220_04 3.3VS C897 *22u_6.3V_X5R_08 R404 220_04 AIRPLAN_LED# RY-SP170YG34-5M C521 C495 C896 0.1u_10V_X7R_04 C509 22u_6.3V_X5R_08 0.1u_10V_X7R_04 C895 22u_6.3V_X5R_08 Airplane mode 22u_6.3V_X5R_08...

  • Page 83: Card Reader (Rtl8411B)

    Schematic Diagrams Card Reader (RTL8411B) LAN (RTL8411B) Crystal HSX321S(3.2X2.5X0.65) 4 IN 1 SOCKET SD/MMC/MS/MS Pro meet realtek Freq tolerance 50ppm CO-LAY W650SR R296 0_04 RSET R289 2.49K_1%_04 J_CARD-REV1 Switching Regulator close to PIN48 GCLK_25M_A SD_CD# CD_SD SD_D2/MS_CLK_R XTAL1 R330 *1K_04 DAT2_SD SD_D3/MS_D3_R VDD10...

  • Page 84: Hdd, Tp, Audio, Usb

    SATA_RXN2 SMB_DATA 9,10,23 SMB_CLK_TP JHDD_SATA_RXP2 C859 0.22u_10V_X5R_04 SATA_RXP2 3.3VS 47p_50V_NPO_04 47p_50V_NPO_04 FP225H-006S10M 3.3VS 6-20-94K00-006 W670RCQ R93,R96 Stuff R718 Q47A W670RCQ R94,R95 Not Stuff 2.2K_04 MTDK3S6R *0_04 VDD3 SMB_CLK_TP J_TP2 SMB_CLK 9,10,23 CTPBUTTON_L 0_04 CTPBUTTON_R 0_04 LID_SW # *0_04 C790 C798...

  • Page 85: Hdmi

    Schematic Diagrams HDMI Differential pair mismatch < 5 mil IENJ!2/5c!5L3L!Mbzpvu!Hvjef/ R4.4 CPU to Level Shift total trace length < 5.5” ,via count 2 ,reference to ground. Level Shift to HDMI connector total trace length < 1” ,via count 2 ,reference to ground. Support HDMI 1.4b 4K2K, 4K2K level shifter, Trace Impedance follow Intel PDG.

  • Page 86: Audio Codec Alc269 Vc2

    Schematic Diagrams AUDIO CODEC ALC269 VC2 PCB Footprint ALC269 VC2-QFN48-6X6M AUDIO CODEC ALC269 VC2 EMI Require Layout note: PVDD1_2 HCB1005KF-121T20 GND and AUDG space is *HCB1005KF-121T20 60mils ~ 100mils AUDG DVDD_IO C898 For 3.3V HDA Link. *20mil short-p C839 C515 *20mil short-p R628 *20mil short-p...

  • Page 87: Kbc-Ite It8587

    Schematic Diagrams KBC-ITE IT8587 1030 VDD3 C822 10p_50V_NPO_04 KBC_AVDD SMC_CPU_THERM R612 43_1%_04 H_PECI HCB1005KF-121T20 VDD3 36,46 SMC_BAT VDD3 VDD3 C823 C458 C763 C780 BAV99 RECTIFIER W670RC C784 C783 0912 VDD3 NV CHK 10u_6.3V_X5R_06 0.1u_10V_X7R_04 0.1u_10V_X7R_04 0.1u_10V_X7R_04 *0.1u_10V_X7R_04 J_KB2 36,46 SMD_BAT DD_ON R589 0.1u_10V_X7R_04...

  • Page 88: 5Vs, 3.3V, 3.3Vs, 3.3Va

    Schematic Diagrams 5V, 5VS, 3.3V, 3.3VS, 3.3VA VIN1 VA_U135 DD_ON R301 10K_04 R333 100K_04 VIN1 VIN1 VIN_U135 DDON_LATCH R299 1_1%_06 R324 *100K_04 USB_CHARGE_EN 36,39 DD_ON_LATCH C492 C498 C499 C514 C480 C832 R302 10K_04 MBTN#_U135 PW RSW #_U135 R338 10K_04 C491 M_BTN# M_BTN# PWR_SW#...

  • Page 89: 1.0V, Vccio

    Schematic Diagrams 1.0V, VCCIO For CV test R690 100K_04 VDD1_EN TON_PU1 PR253 820K_1%_06 VDD1.0 VDD3 PJ53 *CV-40mil PC203 VDD1.0_EN PC202 PC204 PC205 VDD3_5_POK PJ52 PU12 2015.3.6 R689 *0_04 PR252 PC206 37,43 DD_ON_EN VREG5 0_06 0.1u_10V_X7R_04 R688 0_04 23,36,39,43 SLP_SUS# EN_PSV V1.0A VDD1.0 PR254...

  • Page 90: Vdd3, Vdd5

    Schematic Diagrams VDD3, VDD5 VREF PR243 *0_04 PR244 0_04 PC191 1u_10V_Y5V_06 VFB2_PU2 VFB1_PU2 PR118 PR241 EN_3V EN_5V PC197 140K_1%_04 140K_1%_04 PC183 1000p_50V_X7R_04 1000p_50V_X7R_04 D01A PU11 VREG3 2.5A PC195 PC192 PC179 PC181 PC178 PC200 PC184 PC190 PC201 VDD3 VDD3_5_POK 0.1u_50V_Y5V_06 1u_6.3V_X5R_04 R634 10K_04 LDO3...

  • Page 91: Ddr3L 1.35V / 0.75Vs

    Schematic Diagrams DDR3L 1.35V / 0.75VS DDR3L PQ16 MDU1516 PC48 PC57 PC53 1.35V/0.675VS ULTRASO-8 RB0540S2 UP6163 VDDQ_R VTT_MEM(0.675V) 1.35V PC18 PC15 0.1u_10V_X7R_04 VBST_PU3 VLDOIN VBST DEFAULT SHORT 10u_6.3V_X5R_06 EMR1 VTT_PU3 DRVH_PU3 VDDQ_R VTT_MEM DRVH DEFAULT SHORT 0_06 1.0UH_10*10*4.5 PJ32 LL_PU3 PC49 VDDQ VTTGND...

  • Page 92: Power Vcore

    Schematic Diagrams POWER VCORE VCORE & VCCSA OUTPUT STAGE DEFAULT SHORT VCCVIN PJ10 PC98 PC118 PC114 BSTPU59 1u_25V_X5R_06 PC40 PR163 PR74 2.2_06 2.2_04 0.22u_16V_X7R_06 NCP81151MNTBG INS37816420 INS37817420 0V~1.2V/68A BST_PU59 HG_PU59 MLP08 MLP08 PR162 2.2_06 COMMON COMMON CMME063T-R15MS0R907 PR160 10K_06 SW _PU59 PW M11 VCORE PCB Footprint = BCIHP0735A...

  • Page 93: Vcc_Core & Vccsa

    Schematic Diagrams VCC_Core & VCCSA ,QWHO 6.</$.( ,093 32:(5 &.7   3+$6( VCORE_PROG 3.3VS 3.3VS 1.0V_VCCST CONFIGURATION PR202 PR112 1K_1%_04 PR110 PR106 PR216 10K_1%_04 100K_04 2.2_06 PR257 PR259 PR258 PC210 13K_1%_04 VDD_PU7 VRMP_PU7 CV Test 1u_6.3V_X5R_04 PC154 PC161 0.01u_50V_X7R_04 PC153 PC160 100_04...

  • Page 94: [43]1.0Dx_Vccstg/Vccsfr_Oc

    Schematic Diagrams 1.0DX_VCCSTG / VCCSFR_OC NOTE: DEFAULT SHORT DEFAULT SHORT 1.0DX_VCCSTG Ton need <65us VCCSFR_OC 1.0DX_VCCSTG M5938 TURON-ON TIME=60us 1.0DX_VCCSTG VCCSFR_OC VDD1.0 PJ31 VDDQ PJ33 VOUT1_U140 VOUT2_U141 VOUT VOUT C661 C668 C667 C664 C663 C669 VOUT VOUT VDD3 R432 VOUT VOUT R429 *100_04...

  • Page 95: Vccgt

    Schematic Diagrams VCCGT ,QWHO 6.</$.( ,093 32:(5 &.7   3+$6( 3.3VS 3.3VS 1.0V_VCCST PR226 PR228 1K_1%_04 PR232 PR115 10K_1%_04 2.2_06 100K_04 VDD_PU8 VRMP_PU8 PR234 PR236 PR235 PC174 1u_6.3V_X5R_04 PC170 CV Test PC168 PJ18 PC169 4.7u_6.3V_X5R_06 *100_04 *45_04 *45_04 PUT CLOSE 0.01u_50V_X7R_04 PC171 *0.1u_16V_X7R_04...

  • Page 96: Vccgt Output Stage

    Schematic Diagrams VCCGT Output Stage VGTVIN DEFAULT SHORT 2015.6.29 2.5A PJ12 1.05mohm PC117 PC121 PC115 PC112 SW PU12 1u_25V_X5R_06 2015.6.29 PR86 PC43 PR186 2.2_04 0.22u_16V_X7R_06 2.2_06 NCP81151MNTBG PR185 2.2_06 2015.6.30 INS37820303 INS37820362 HG_PU12 MLP08 MLP08 BSTPU12 PL10 COMMON COMMON PR92 CMME063T-R15MS0R907 10K_1%_04 VCCGT_D1...

  • Page 97: Ac_In, Charger

    Schematic Diagrams AC_In, Charger PC29 SMART CHARGER PC31 V_BAT PC32 EMB20P03V PR26 VJACK 20K_04 50310-00441 PQ11 EML1 EMB20P03V T165 T166 J_DC_JACK1 HCB2012KF-800T80 JDC_AC 2015.8.14 PD12 *EMB20P03V PRS2 BCIHP0730-4R7M 0.01_1%_32 PC61 PC62 PC60 PC50 PC51 PC24 PC54 PC55 FMS3004-AS-H PRS1 PR123 PC56 PC14 PC22...

  • Page 98: N16P/S, Nvvdd, Pex, Fbvddq

    Schematic Diagrams N16P/S, NVVDD, PEX, FBVDDQ VGA for 1 Phase PR529, PR68, PR53, PC114, RT3, PR56, PR136, 12,23,37,38,39,40,41,42,44,45,46 PR530, PR135, PC113,& Phase 2 (MOS chock...) 12,19,22,33,34,35,36,37,40,48 3V3_RUN 3V3_RUN :PR526 0ohm, PR531.PR153 1K,PR532 3.9K 2,12,17,29,30,32,37,38,40 3.3V W/O VGA_NVVDD MODS 13,17,24 3V3_RUN MODS 13,17,25 3V3_AON...

  • Page 99: Usb Charge, Ccd, Tpm, Power Conn

    *0_06 R423 *1K_04 LED_NUM# R415 0_06 3.3VS LED_CAP# M_BTN# 48 mil M_BTN# VDD_MIC VOUT 88486-1001 C650 W670RCQ LID R407,C619,U25 Not Stuff C632 6-20-94K30-110 1u_6.3V_X5R_04 VDD3 2.2u_6.3V_X5R_04 Closs to J_CCD1 uP7553 R407 100K_04 6-20-41100-108 CCD_EN J_CCD1 LID_SW# From KBC default HI C628 *0.1u_16V_Y5V_04...

  • Page 100: Audio Board

    Schematic Diagrams Audio Board USB PORT(PORT9) *0_04 *0_04 6-71-W65R8-D01A USB2.0 CON *0_04 *0_04 AC12 *22u_6.3V_X5R_08 AGND A_5V *0_04 *0_04 60 mil A_USBVCC2 0.1u_10V_X7R_04 A_USBVCC2 AGND 60 mil 60 mil VOUT AC10 22u_6.3V_X5R_08 AGND AC18 AC20 CLOSE TO CONNECTOR AUDIO BOARD 10u_6.3V_X5R_06 AJ_USB2 AD37...

  • Page 101: [50]Power Switch Board

    Schematic Diagrams Power Switch Board *0_04 *0_04 6-71-W65RS-D01 *0_04 *0_04 *0_04 *0_04 POWER & LED BOARD BH_5VS BJ_SW1 Sheet 50 of 51 Power Switch BDGND BLED_SCROLL# BLED_NUM# BLED_CAP# Board BH_5VS BH_5VS BH_5VS BH_5VS POWER 88486-1001 BUTTON POWER BOTTOM 820_06 6-53-3050B-B41 820_06 820_06 820_06...

  • Page 102: Odd To Hdd Board

    Schematic Diagrams ODD to HDD Board *0_04 *0_04 6-71-W650N-D04 *0_04 *0_04 *0_04 *0_04 M:6-21-14030-013 ODD TO HDD BOARD S:6-21-14020-013 Sheet 51 of 51 DJ_ODD1 DJ_HDD1 ODD to HDD Board DSATA_TXP0 DSATA_TXP0 DSATA_TXN0 DSATA_TXN0 DSATA_RXN0 DSATA_RXN0 DSATA_RXP0 DSATA_RXP0 D_5VS D_5VS 242003-1 DGND D_5VS D_5VS...

  • Page 103: Updating The Flash Rom Bios

    Download the BIOS computer model. 1. Go to www.clevo.com.tw and point to E-Services and click E-Channel. Note that BIOS versions 2. Use your user ID and password to access the appropriate download area (BIOS), and download the latest BIOS files...
  • Page 104 BIOS Update Use the flash tools to update the BIOS 1. Make sure you are not loading any memory management programs such as HIMEM by holding the F8 key as you see the message “Starting MS-DOS”. You will then be prompted to give “Y” or “N” responses to the programs being loaded by DOS.
