Included Installation Instructions
Network Camera
WV-SP509/WV-SP508
Model No.
Lens: Option

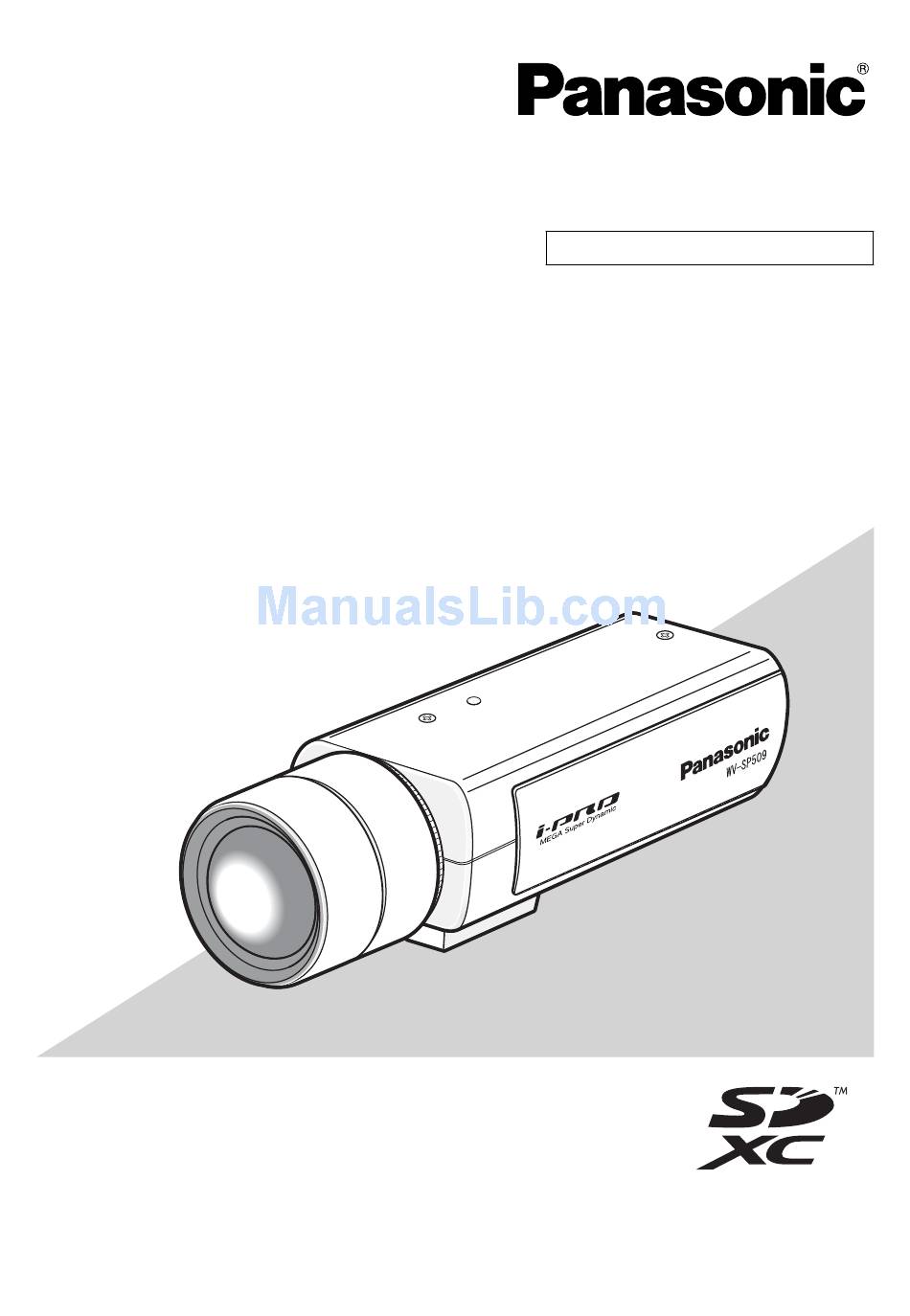

(This illustration represents WV-SP509.)
Before attempting to connect or operate this product, please read these instruc-
tions carefully and save this manual for future use.
The model number is abbreviated in some descriptions in this manual.
This document is the Installation Guide for use in other countries except Japan.
Advertisement
Table of Contents
Related Manuals for Panasonic WV-SP509
Summary of Contents for Panasonic WV-SP509
-
Page 1: Network Camera
WV-SP509/WV-SP508 Model No. Lens: Option (This illustration represents WV-SP509.) Before attempting to connect or operate this product, please read these instruc- tions carefully and save this manual for future use. The model number is abbreviated in some descriptions in this manual. - Page 2 For Canada WARNING: CAN ICES-3(A)/NMB-3(A) • To prevent injury, this apparatus must be securely attached to the floor/wall/ceiling in accordance with the installation instructions. For U.S.A • To prevent fire or electric shock hazard, do not NOTE: This equipment has been tested and expose this apparatus to rain or moisture.
- Page 3 For Europe We declare under our sole responsibility that the product to which this declaration relates is in conformity with the standard or other normative document following the provisions of Directive 2004/108/EC. Wir erklären in alleiniger Verantwortung, daß das Produkt, auf das sich diese Erklärung bezieht, mit der folgenden Norm oder normativen Dokument übereinstimmt.
-
Page 4: Table Of Contents
Precautions ..........................11 Precautions for Installation ......................14 Major operating controls ......................16 Lens mounting ..........................18 Insert/remove a SD memory card (WV-SP509 only)* ..............20 Installation ........................... 21 Connection ..........................25 Configure the network settings ....................29 Troubleshooting ........................... 31 Specifications .......................... -
Page 5: Important Safety Instructions
Important safety instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instruc- tions. -
Page 6: Limitation Of Liability
IMPROVEMENTS OF THIS PUBLICATION AND/OR THE CORRESPONDING PRODUCT (S). Disclaimer of warranty IN NO EVENT SHALL Panasonic System Networks Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 7: About Notations
The following notations are used when describing the functions limited for specified models. The functions without the notations are supported by all models. SP509 The functions with this notation are available when using the model WV-SP509. SP508 The functions with this notation are available when using the model WV-SP508. -
Page 8: About The User Manuals
About the user manuals There are 2 sets of operating instructions for the WV-SP509, WV-SP508 as follows. • Installation Guide: Explains how to install and connect devices. • Operating Instructions (included in the CD-ROM): Explains how to perform the settings and how to operate this camera. -
Page 9: Trademarks And Registered Trademarks
* A phenomenon in which portions of the screen are displayed out of alignment • For information on the operation verification of the supported operating systems and web browsers, refer to our website at http://security.panasonic.com/pss/security/support/index.html. Trademarks and registered trademarks • Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. -
Page 10: Network Security
Network security As you will use this unit connected to a network, your attention is called to the following security risks. q Leakage or theft of information through this unit w Use of this unit for illegal operations by persons with malicious intent e Interference with or stoppage of this unit by persons with malicious intent It is your responsibility to take precautions such as those described below to protect yourself against the above network security risks. -
Page 11: Precautions
Precautions Refer installation work to the dealer. Avoid installing this bracket in the loca- Installation work requires technique and experi- tions where salt damage occurs or corro- ences. Failure to observe this may cause fire, sive gas is produced. electric shock, injury, or damage to the prod- Otherwise, the mounting portions will deterio- uct. - Page 12 Do not rub the edges of metal parts with Handle this camera with care. your hand. Do not drop this camera, nor apply shock or Failure to observe this may cause injury. vibration to this camera. Failure to observe this may cause trouble.
-
Page 13: Code Label
data on the SD memory card will be delet- AVC Patent Portfolio License ed when formatted. THIS PRODUCT IS LICENSED UNDER THE If an unformatted SD memory card or an AVC PATENT PORTFOLIO LICENSE FOR THE SD memory card formatted with other PERSONAL USE OF A CONSUMER OR devices is used, this product may not work OTHER USES IN WHICH IT DOES NOT... -
Page 14: Precautions For Installation
Precautions for Installation Panasonic assumes no responsibility for injuries or property damage resulting from fail- ures arising out of improper installation or operation inconsistent with this documenta- tion. This camera is designed to be used • Locations where the temperature is not indoors. - Page 15 Screw tightening Router • The screws and bolts must be tightened When connecting this product to the Internet, with an appropriate tightening torque use a broadband router with the port forward- according to the material and strength of ing function (NAT, IP masquerade). the installation area.
-
Page 16: Major Operating Controls
Major operating controls <Side view> ALC lens connector Lens (option) <WV-SP509> SD memory card slot SDCARD LOCK Tripod mount base Slide cover Clamp for SD memory card Auto back focus button (ABF) <WV-SP508> Tripod mount base... -
Page 17: Rear View
<Rear view> <WV-SP509> Network connector Audio output connector 10BASE T/100BASE-TX Access indicator Microphone/line input connector (blinks when accessing) AUDIO OUT MIC/LINE IN INITIAL INITIAL SET button LINK Link indicator POWER SD CARD/ABF MONITOR OUT Power indicator EXT I/O 12V = IN... -
Page 18: Lens Mounting
Lens mounting Slowly rotate the lens clockwise to mount the lens and connect the lens cable to the ALC lens con- nector of the camera. ALC lens connector Protruded portion from mount face: ø20 mm {25/32 Zoom lock knob inches} or less CS-mount lens (option) 4.5 mm {5/32 inches} or less... - Page 19 Note: • The most common use of a varifocal lens and a zoom lens Note that the adjustment method is different depending on the type. For further information, refer to the operating instructions for the lens to be used. When using 8x or 10x lens, adjust the back focus after positioning the zoom ring at the "W" end and positioning the focus ring at a step short of the "F"...
-
Page 20: Insert/Remove A Sd Memory Card (Wv-Sp509 Only)
Insert/remove a SD memory card (WV-SP509 only) IMPORTANT: • When inserting a SD memory card, make sure the direction. • Before removing the SD memory card, make sure to select “Not use” for “SD memory card” on the [SD memory card] tab of the “Basic” page on the setup menu first. (☞ Operating... -
Page 21: Installation
Installation Connect the safety wire The following is an example of safety wire connection. IMPORTANT: • Be sure to install the safety wire. Ask your dealer for installation. Mounting screws For mounting on ceiling Tripod mount base Remove the tripod mount base on the top Safety wire plate of the camera. -
Page 22: Safety Wire Lug For Wall
For mounting on wall Put the tripod mount base on the bottom of the camera. Secure the safety wire lug for wall (accessory) to the camera mount screw hole with the wire lug fixing screw (accessory). Wire engaging IMPORTANT: screw (accessory) hole •... -
Page 23: Camera Mounting
Camera mounting The camera is mounted on the camera mount bracket (locally procured) and the safety wire is secured. IMPORTANT: • The installation area shall be strong enough to hold the camera and camera mount bracket. • The camera mount bracket (locally procured) shall be mounted on the foundation part of the construction or a part with adequate strength. -
Page 24: Washer
IMPORTANT: • The safety wire shall be adjusted to remove slack. • Be sure to install the safety wire to prevent a fall of the camera resulting in injury or accidents in case the camera comes off. • To prevent the mounting strength from becoming lower, do not use wooden screws to secure the safety wire. -
Page 25: Connection
ALARM IN 1/DAY/NIGHT IN ALARM IN 3/AUX OUT ALARM IN 2/ALARM OUT (This illustration represents WV-SP509.) IMPORTANT: • The monitor output connector is provided only for checking the adjustment the angle field of view on the video monitor when installing the camera or when servicing. It is not provided for recording/ monitoring use. - Page 26 Input specification: No-voltage make contact input (4 V - 5 V DC, internally pulled up) OFF: Open or 4 V - 5 V DC ON: Make contact with GND (required drive current: 1 mA or more) * DAY/NIGHT IN is only for WV-SP509. Connect a LAN cable (category 5 or better, LAN cable...
- Page 27 Specification of cable (wire): 16 AWG - 24 AWG (This illustration represents Single core, twisted WV-SP509.) • Check whether the stripped part of the wire is not exposed and is securely connected. e Tighten the screw of the power cord plug.
- Page 28 When using PoE (IEEE802.3af compliant) Connect a LAN cable (category 5 or better, straight, STP*) between a PoE device (such as a hub) and the network connector of the camera. * For Europe. IMPORTANT: • Use all 4 pairs (8 pins) of the LAN cable. •...
-
Page 29: Configure The Network Settings
• Refer to “Using the CD-ROM” in the Operating Instructions on the provided CD-ROM for further information about CDLauncher. Click the [Run] button next to [IP Setting Software]. [Panasonic IP Setting] screen will be displayed. Click the [Network Settings] button after select- ing the MAC address/IP address of the camera to be configured. - Page 30 Select the camera you want to configure, and click [Access Camera]. Note: • When cameras are displayed in [Panasonic IP Setting] screen, click the camera with same MAC address as the MAC address printed on the camera that you want to configure.
-
Page 31: Troubleshooting
Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Reference Symptom Cause/solution pages When using DC power supply... -
Page 32: Specifications
Specifications ● Basic Power source: 12 V DC, PoE (IEEE802.3af compliant) SP509 Power consumption: 12 V DC: 570 mA, PoE 48 V: 125 mA (Class 2 devices) SP508 12 V DC: 550 mA, PoE 48 V: 120 mA (Class 2 devices) * ONLY CONNECT 12 V DC CLASS 2 POWER SUPPLY (UL 1310/CSA 223) or LIMITED POWER SOURCE (IEC/EN/UL/ CSA 60950-1). - Page 33 0.3 lx {0.03 footcandle} (F1.4, Auto slow shutter: Off (1/30 s), Gain: On(High)) 0.02 lx {0.002 footcandle} (F1.4, Auto slow shutter: max. 16/30 s, Gain: On(High))* * Converted value Super Dynamic: On/Off Dynamic range: 52 dB typ. (only at Super-Dynamic On) Gain (AGC): On(Low)/ On(Mid)/ On(High)/ Off Adaptive black stretch:...
- Page 34 FTP transmission is failed, backup on an optional SD memory SP509 card is available. Multi-screen: Up to 16 camera images can be displayed simultaneously on a multi-screen (including the camera itself). Compatible SDXC/SDHC/ Manufactured by Panasonic (SD speed class 4 or higher)
-
Page 35: Standard Accessories
*3 When using IPv6 for communication, use Microsoft Windows 7 or Microsoft Windows Vista. *4 For further information about compatible devices, refer to our website (http://security.panasonic.com/pss/security/support/info.html). Standard accessories Installation Guide (this document) .................. 1 set Warranty card ......................... 1 set CD-ROM* ........................ - Page 36 Authorised Representative in EU: Panasonic Canada Inc. Panasonic Testing Centre 5770 Ambler Drive, Mississauga, Panasonic Marketing Europe GmbH Ontario, L4W 2T3 Canada Winsbergring 15, 22525 Hamburg, Germany (905)624-5010 www.panasonic.ca © Panasonic System Networks Co., Ltd. 2013 avs1113-0 PGQX1437ZA Printed in China...
