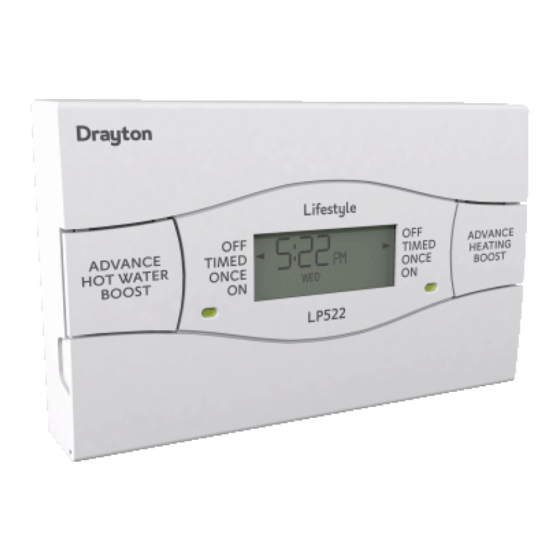

Drayton Lifestyle Installation And User Instructions Manual

Drayton Lifestyle Installation And User Instructions Manual

Single channel timeswitch
Hide thumbs Also See for Lifestyle:

Advertisement

Lifestyle
Single Channel
Timeswitch
for heating
OR
hot water
Installation and User Instructions
SINGLE CHANNEL
06490197001 ISSA

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lifestyle and is the answer not in the manual?

Questions and answers

Jean
July 14, 2025

How do.I change the day

Subscribe to Our Youtube Channel

Summary of Contents for Drayton Lifestyle

  • Page 1 Lifestyle Single Channel Timeswitch for heating hot water Installation and User Instructions SINGLE CHANNEL 06490197001 ISSA...
  • Page 2: Installation Instructions

    PLEASE NOTE: INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED ELECTRICIAN OR HEATING ENGINEER. MAKE SURE MAINS INPUT HAS A 3 AMP FUSE. Lifestyle Timeswitch conforms to the essential requirements of these Directives: 2004/108/EC – Electromagnetic compatibility 2006/95/EC – Low voltage...
  • Page 3: Internal Wiring

    WIRING THE TIMESWITCH WALL PLATE For surface wiring, snap out the cable entry strip on the bottom edge of the wall-plate. Lifestyle units are double-insulated and need no earth connection, but an earthing continuity (loop) terminal is provided for convenience.
  • Page 4 Just keep this guide in a safe place for future reference. INTRODUCTION The Lifestyle Timeswitch will automatically control your system by switching it on and off at times that suit you. The light on the front of the Timeswitch shows when it’s on.
  • Page 5 They’re based on the 5/2-day program, with different settings for the weekend. SWITCHING WEEKDAYS WEEKENDS ON 1 – start of first timed period 6.30am 7.00am OFF 1 – end of first timed period 8.30am 9.00am ON 2 – start of second timed period* 12.00pm 12.00pm OFF 2 –...
  • Page 6 DAY-TO-DAY VARIATIONS Sometimes you might need to change the way you use your system temporarily – perhaps due to an exceptionally cold day. Here’s how to do it – without affecting your program. Switching on and off On the front of the timeswitch there is an Advance/Boost button. It allows you to switch your system either on or off, irrespective of the program.
  • Page 7 THE 24-HOUR PROGRAM This is the simplest program – every day’s the same. Just follow the sequence. Want to leave a timing as it is? Just press SET? and move on to the next one. Need to delete your timings and start again? Press ‘SET’ and ‘+’...
  • Page 8 Press SET?, and you’ll see OFF1, the end of your first heating period. Adjust this in the same way, press SET?, then repeat the procedure for ON2, OFF2, ON3 and OFF3. When you press SET? after setting OFF3, the timeswitch will return to normal operation.
  • Page 9 Press the YES button, and the display will ask ‘SET MON to FRI PROG?’ MON TUE WED THU FRI PROG? Press YES to confirm and you’ll see ON1, the start of your first heating period. Adjust it in 1-minute steps using the – and + buttons.
  • Page 10 THE 7-DAY PROGRAM This is where you can have different timings for every day of the week, if necessary. Just follow the sequence, setting weekdays first. Want to leave a timing as it is? Just press SET? and move on to the next one.
  • Page 11 Press YES, and you’ll see ON1, the start of your first heating period. Adjust it in 1-minute steps using the – and + buttons. If the – and + buttons are held down, the time changes in 10- minute steps. Press SET?, and you’ll see OFF1, the end of your first heating period.
  • Page 12: Setting The Clock

    Set weekends SAT SUN Press YES, and alter the weekend ON and OFF times in the same way. Set each weekday If, after you’ve set OFF3 for the weekend, you want to fine-tune Saturdays or Sundays, press SET? until you find the first day you want to adjust –...
  • Page 13 Press the SET? button twice and you’ll see SET CLOCK?. CLOCK? Set the hour Press YES once, and then the hour will start to flash. Use the – and + buttons to set the hour, checking for AM and PM. Set the minute Press SET?, and the minutes will start to flash.
  • Page 14 Set the year Press YES and the year will start to flash. Use the – and + buttons to adjust. Set the month Press SET? and the month will start to flash. Use the – and + buttons to adjust. Set the day Press SET? and the day will start to flash.
