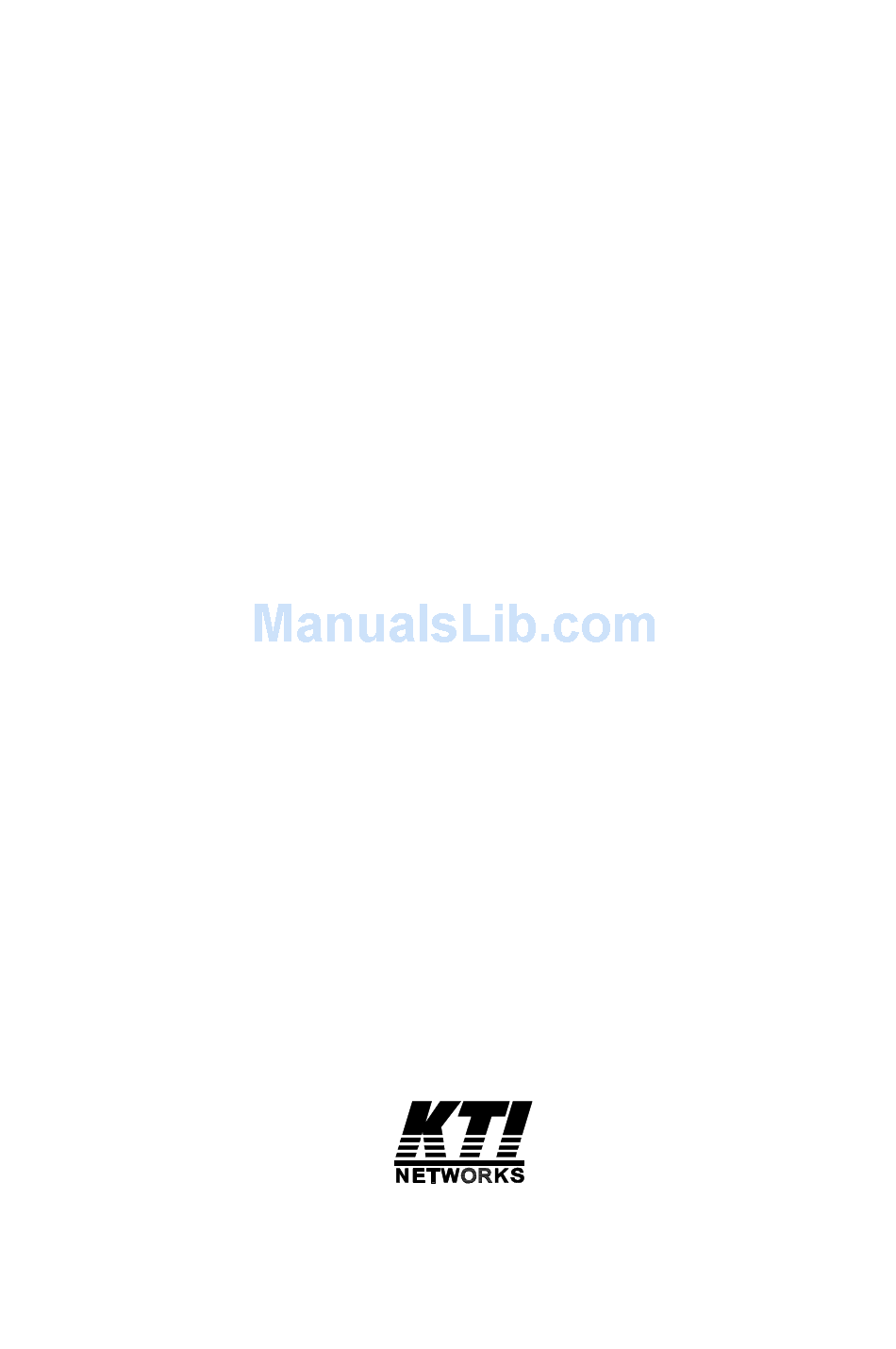

Page 1: Installation Guide
100BASE-TX TO 100BASE-FX Single Fiber Media Converters KC-201-W3-S3 KC-201-W5-S3 Installation Guide P/N 750-0156-001 DOC.010801-KC201-NK... -
Page 2: Table Of Contents
Table of Contents 1. Introduction ............3 1.1 Specifications ................4 2. Installation ............5 2.1 Unpacking ..................5 2.2 Media Converters ................5 2.3 LED Indicators ................6 2.4 Applying Power ................6 2.5 Making Connection ................ 7 The information contained in this document is subject to change without prior notice. -
Page 3: Introduction
Providing both MDI jack and MDI-X jack on the twisted-pair interface for flexible UTP cable selection The converter series support the following configuration needs: 100BASE-TX to 100BASE-FX single mode SC (30Km) KC-201-W3-S3 Tx 1310nm, Rx 1550nm KC-201-W5-S3 Tx 1550nm, Tx 1310nm... -
Page 4: Specifications
1.1 Specifications Twisted-Pair Interface Connectors Two Shielded RJ-45 jacks Pin Assignments MDI and MDI-X Compliance IEEE 802.3u 100BASE-TX Data Speed 100Mbps Duplex Mode Half-duplex or Full-duplex Cable Type 100Mbps - Category 5 UTP Supported Link Length 100 meters Fiber Optic Interface Compliance IEEE 802.3u 100BASE-FX Connector... -
Page 5: Installation
Full data rate of 100Mbps for remote fiber connection • Full-duplex operation • Single mode Single fiber SC interface (up to 30Km) Model Tx Wave Rx Wave Output power Input Sensitivity KC-201-W3-S3 1310nm 1550nm -7 dBm -23dBm min. KC-201-W5-S3 1550nm 1310nm -7 dBm -23dBm min. -
Page 6: Led Indicators
DC Input Jack DC Input +12VDC DC Power min. 0.8A DC Input Jack 2.3 LED Indicators Name Status State Interpretation POWER Power status Power on Power off UTP link & Rx status Link up Link down Fiber link & Rx status Link up Link down Note: UTP &... -
Page 7: Making Connection
2.5 Making Connection The converters must be used in pair of 201-W3-S3 and 201-W5-S3. Both use different wavelengths to transmit and receive data. See the following example: The figure below shows the configuration used when connecting to auto-negotiation device and non-auto-negotiation device. For proper communication, the UTP connections on both ends must be in same configuration, either 100M full-duplex or 100M half-duplex.
