MTX Blueprint 520C Owner's Manual page 4

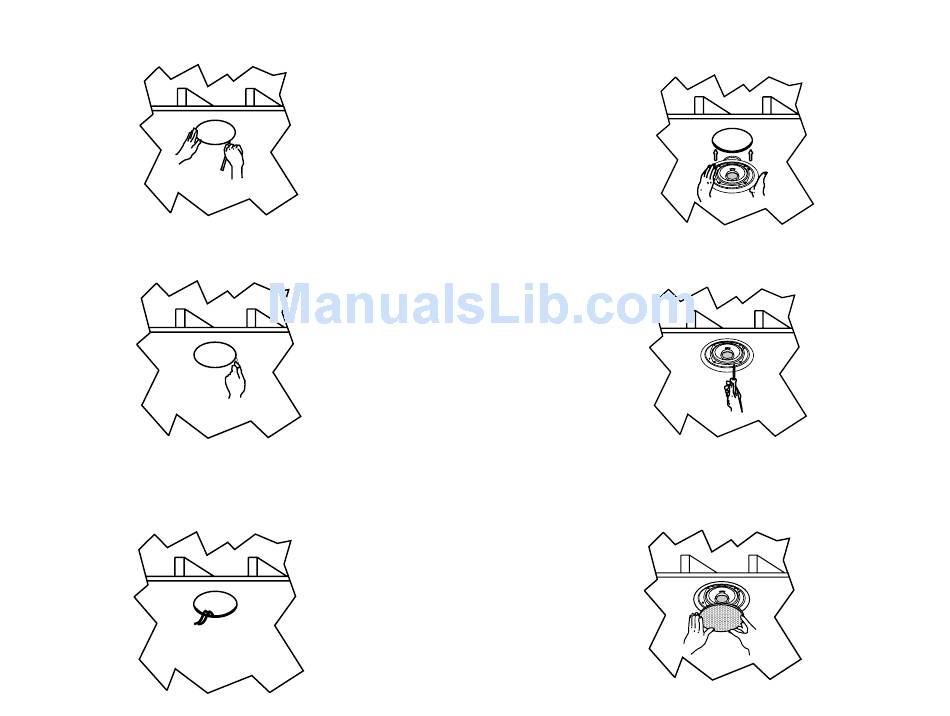

STEP 1
Using a stud finder (available at low cost at most hardware stores) or other accu-
rate method, locate center point between two joists and mark. Using template
provided, trace hole pattern on surface of ceiling
STEP 2
Using a sabre saw, keyhole saw or very sharp utility knife, cut hole in wall, fol-
lowing traced pattern.
STEP 3
Run loudspeaker wires to sound source location. There are several methods you
can use to accomplish wiring, depending on the construction characteristics of the
room or house. You can add a professional touch to your installation by using a
speaker terminal plate at the source location. Leave sufficient amount of wire at
speaker location (8 to 10 inches) to complete connection.
STEP 4
Attach loudspeaker wires to speaker terminals, observing correct polarity, and
position speaker frame up into cutout. Be careful not to pinch wires in the pro-
cess.
STEP 5
Carefully tighten the four mounting screws. This will cause the mounting wings to
rotate out behind the mounting surface and secure the speaker in place.
STEP 6
After the speaker panel is secured tightly, test for sound. When you are satisfied
the speaker is operational, affix grill. As grill is designed for a snug fit, you'll need
to position one edge into slot first, and press or squeeze around perimeter of grill,
while pushing leading edges into grill slot.
