Summary of Contents for Deutscher 650

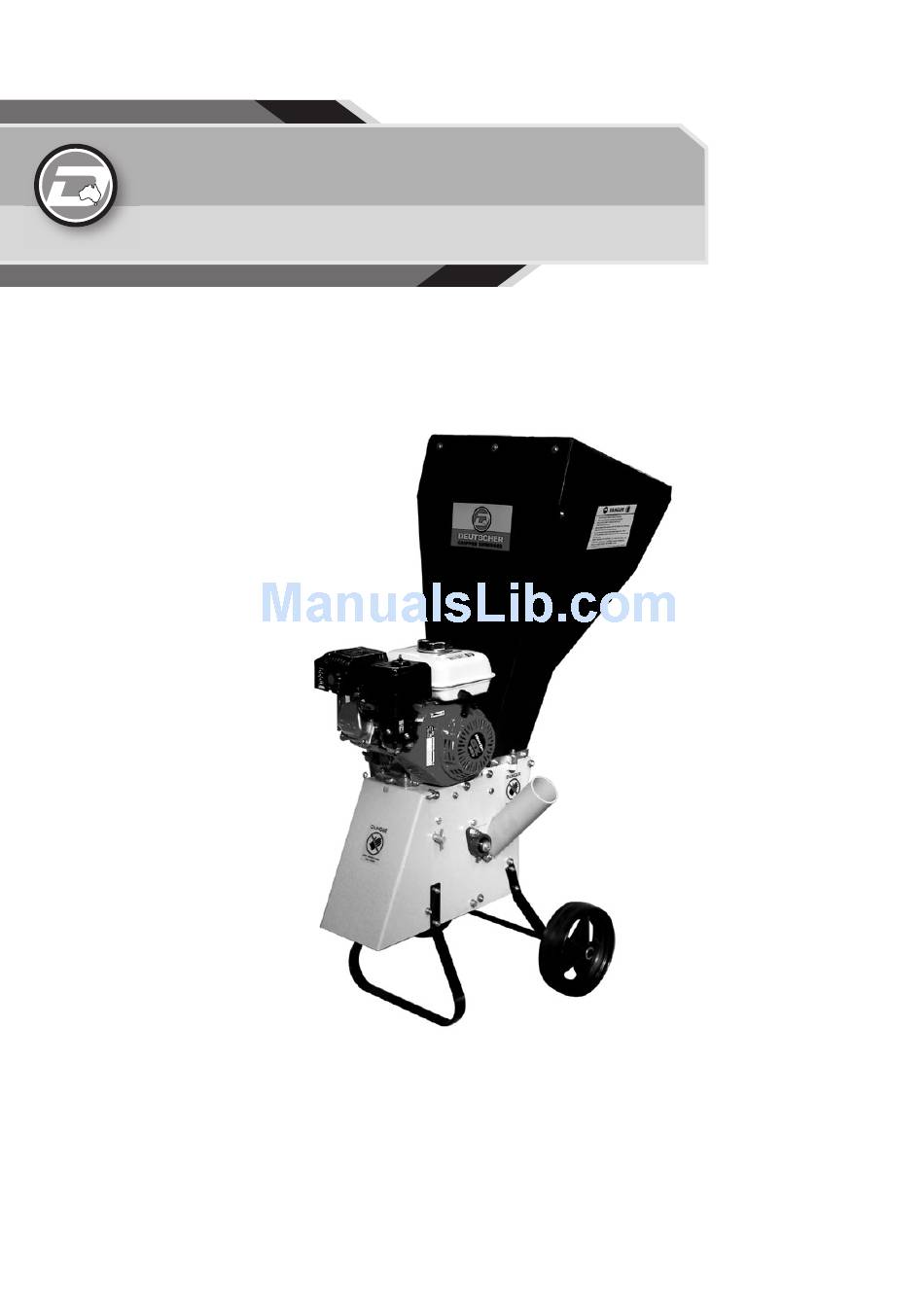

- Page 1 DEUTSCHER CHIPPER SHREDDER 650 Operation and Maintenance Manual www.deutschermowers.com.au...
-
Page 2: Table Of Contents
INDEX General Description Initial Assembly Safety Procedures Decals Storage & Transporting Pre-Start Checks and Starting Chipping Shredding Maintenance Spare Parts and Warranty... -
Page 3: General Description

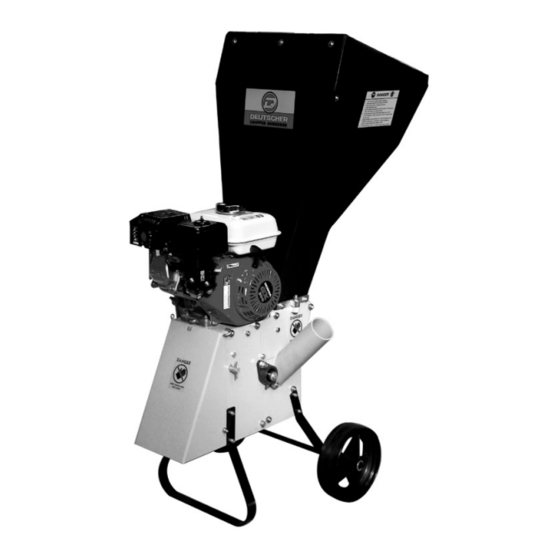

Shredding chamber Lower grate pin The Deutscher Chipper Shredder is designed to chip branches up to 65mm diameter (via Chipper Tube) and shred a range of garden waste including branches up to 12mm diameter (via Hopper). A Swedish Viking steel chipper blade attached to a rotating disc behind the chipper tube does the chipping, and nine hardened steel flails inside the shredding chamber rotate at high speed to shred lighter material. -
Page 4: Initial Assembly
INITIAL ASSEMBLY The following insTrucTions apply when The uniT has noT been assembled. 1. Do not put oil into the engine until the unit is assembled. 2. Remove the discharge deflector, then lower the shredding chamber onto its front as shown below. -
Page 5: Safety Procedures
SAFETY PROCEDURES preparaTion 1. Do not allow children to operate this equipment. 2. Do not operate this equipment in the vicinity of bystanders. 3. Do not run the unit in an enclosed area since the exhaust from the engine contains some carbon monoxide, which is a colourless, odourless, tasteless and poisonous gas. - Page 6 SAFETY PROCEDURES operaTion: 1. Before starting the machine, look into both the chipper tube and the hopper to ensure they are empty. 2. Keep your face and body away from the feed intake opening. 3. Do not allow hands or any other part of the body or clothing inside the hopper, chipper tube, discharge area, or near any moving part.
-
Page 7: Decals
The decals shown below are attached to each new machine. It is the operators responsibility to ensure these decals are in place and legible. They can be purchased from Deutscher Mowers Pty Ltd as a set. See “Spare Parts”, in this manual. -
Page 8: Storage & Transporting
STORAGE & TRANSPORTING sTorage always allow the machine to cool before storing. Store the machine in a dry area away from children and where petrol vapours cannot be ignited by a spark, such as a welder, or a flame from say the pilot light in a gas appliance. When storing the unit for longer than three months, it is a wise practice to run the fuel tank dry beforehand. -
Page 9: Pre-Start Checks And Starting
PRE-START CHECKS & STARTING pre-sTarT checKs • Ensure you are wearing safety glasses and hearing protection. • Avoid wearing loose fitting clothing. • Place the machine on a level “dirt or grass” surface. • Check that all fasteners on the machine are secure and all guards are in place. •... -
Page 10: Chipping
1. The Deutscher chipper shredder can chip branches up to 65mm diameter. Should a branch contain sharp bends, the bends can be cut 2/3 through with a bow saw. Then the branch can be forced straight and will easily feed into the tube. -
Page 11: Shredding
SHREDDING & SAFE STOPPING PROCEDURE shredding warning! in general, materials will “self fed” into the hopper. do not force material into the hopper with your hands. push material with a green branch (no larger than 20mm diameter) or a piece of softwood. if materials become jammed, a safer practice is to turn off the machine, remove the offending material, restart and feed it in again. -
Page 12: Maintenance
MAINTENANCE basic mainTenance Tools required : 5mm Allen Key (chipper blade replacement) 13mm ring / open ended spanner. 17mm ring / open ended spanner general When the machine is stopped for servicing, inspection, or to change an accessory, shut off the engine, disconnect the spark plug wire from the spark plug and make sure that all moving parts have come to a complete stop. - Page 13 MAINTENANCE air filter cleaning Check the condition of the air cleaner regularly, in dusty conditions every 4 hours. See engine book for cleaning details. drive belt adjustment / replacement The drive belt may become loose after an initial settling in period, after very heavy loads have been applied or after an extended period of use.
- Page 14 MAINTENANCE deTailed mainTenance Tools required: 1/8” Allen Key 8mm ring spanner and small socket spanner. 18mm open ended spanners. A bearing puller may also be needed. Shifting spanner, 200mm approx. Philips screwdriver at least 210mm long, or a 6mm diameter pin at least 250mm long. general The rotor assembly should be inspected after every 20 hours of use or after a solid impact, by removing the hopper.
- Page 15 MAINTENANCE rotor spacers - refer diagram page 14 Spacer No. Part Number Length mms. Quantity 3180 3179 3181 51 (with hole) 3182 51 (no hole) engine replacement • Switch off the engine and remove the spark plug lead from the spark plug. •...
- Page 16 COMMONLY USED SPARE PARTS deuTscher chipper shredder roTor assembly Exploded View & Parts Flail bolt (5) Blade & and nut (10 & 11) bolt set Flail Rod (7) (5b) (5a) Blade Blade nut bolt (9) Rotor Welded Assembly Flail 6 roTor componenTs Item No.
- Page 17 COMMONLY USED SPARE PARTS deuTscher chipper shredder Exploded View...
- Page 18 COMMONLY USED SPARE PARTS deuTscher chipper shredder Exploded View Parts item no. part no. part description Qty per 3210 Hopper Assembly 3129 Rubber flap 3186 Engine Intek 6.5 3204 GX200 Honda T1 QXU 3162 "Key 3/16"" sq x 37mm" 3161...
- Page 19 COMMONLY USED SPARE PARTS deuTscher chipper shredder Exploded View Parts item no. part no. part description Qty per 3177 ROTOR ASSEMBLY incl blade. 3172 Stepped pivot, clutch mechanism 3203 Stud 8mm x98 (guard attach) 3148 Front leg (powder coated) 3153...
- Page 20 • DEUTSCHER MOWERS PTY. LTD. will repair or replace, free of charge, any chipper shredder or part of the unit that is defective in materials or workmanship (or both) for a period of 24 months from the date of purchase. If parts or units are replaced, the replacement period will be no longer than 3 months.
