Earthworks FlexWand FW730 User Manual

Hide thumbs Also See for FlexWand FW730:

Advertisement

Quick Links

Download this manual
Version 1, November 25th, 2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the FlexWand FW730 and is the answer not in the manual?

Questions and answers

Related Manuals for Earthworks FlexWand FW730

Summary of Contents for Earthworks FlexWand FW730

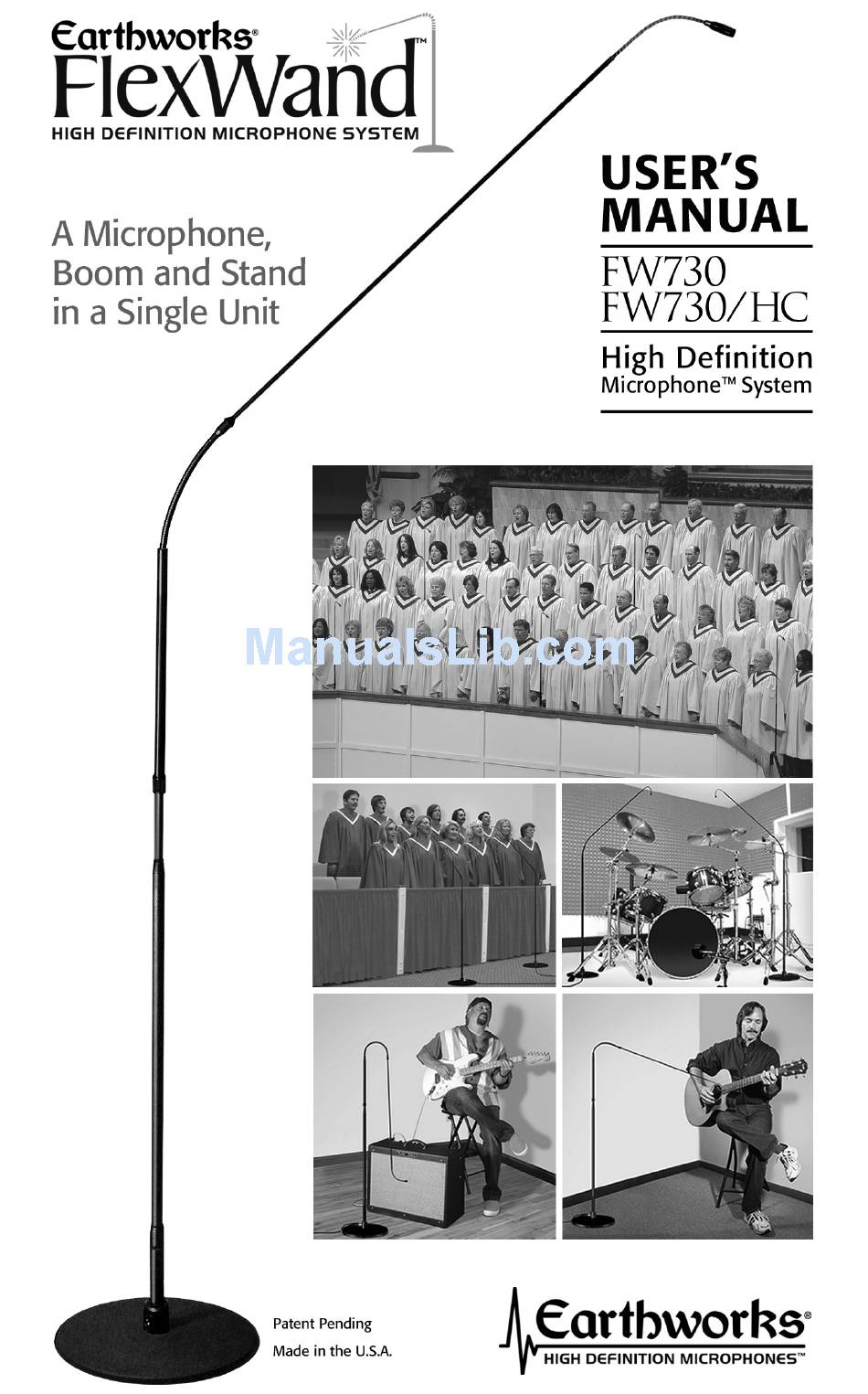

  • Page 1 Version 1, November 25th, 2008...
  • Page 3 THE FLEXWAND™ SYSTEM You have just purchased an Earthworks High Definition Microphone™ that is incorporated in the FlexWand™System. The FlexWand™ System is a to- tally new concept in microphones. It is a combination of a High Definition Microphone™...
  • Page 4 IDENTIFICATION OF THE FLEXWAND™ ELEMENTS In this manual we will refer to the various elements of the FlexWand™ System. In Figure 1 all of the elements of the FlexWand™ System are identified. Please review this information so you are familiar with the various elements and terminology associated with the FlexWand™.
  • Page 5 Mini-Flex 30kHz Microphone head Figure 1. The FlexWand™ Elements Wand 0.25” in Diameter Sleeve Mating Coupler Large Flex Sleeve Clutch Stand 0.75” in Diameter Microphone Electronics Section Connector Base 12 lb. Patent Pending...
  • Page 6 USING THE FLEXWAND™ AS A BOOM In the “boom mode” the FlexWand™ can mike anything just like a conven- tional microphone on a boom stand. This can be used when you want the Flex- Wand microphone lower for such applications as small vocal groups, vocal solos or musical instruments (see Figures 5, 6, 9, 10 &...
  • Page 7 The quality construc- tion of the FlexWand™ will provide you with years of exceptional service. If you have any questions, please con- tact Earthworks Customer Service De- partment at 603-654-6427, ext. 20. Figure 9. Figure 8. Figure 7.
  • Page 9 44.1kHz recording systems as well as analog or digital sound systems that are limited to a 15kHz or 20kHz bandwidth. You will hear a remarkable improve- ment in sound quality on nearly all audio systems when using Earthworks High Definition Microphones™.
  • Page 10 F L E X WA N D ™ S P E C I F I C A T I O N S FW730 & FW730/HC (Cardioid & Hypercardioid) Frequency Response: 30Hz to 30kHz ±2dB @ 6 inches Polar Pattern: Cardioid or Hypercardioid Sensitivity: 10mV/Pa (-40dBV/Pa) Power requirements: 48V Phantom, 10mA Max Acoustic Input: 145dB SPL...

  • Page 11: Warranty

    WARRANTY All Earthworks products carry a two-year limited warranty (parts and labor). ® If you have any problems with your Earthworks products, please contact our warranty/repair department by email at: returns@earthworksaudio.com or by telephone at (603) 654-6427, ext 20.
  • Page 12 Patent Pending • Made in U.S.A. Earthworks, Inc. 37 Wilton Rd. Milford, NH 03055 603-654-6427, ext. 14 www.earthworksaudio.com Printed in U.S.A.

This manual is also suitable for:

Flexwand fw730/hc
