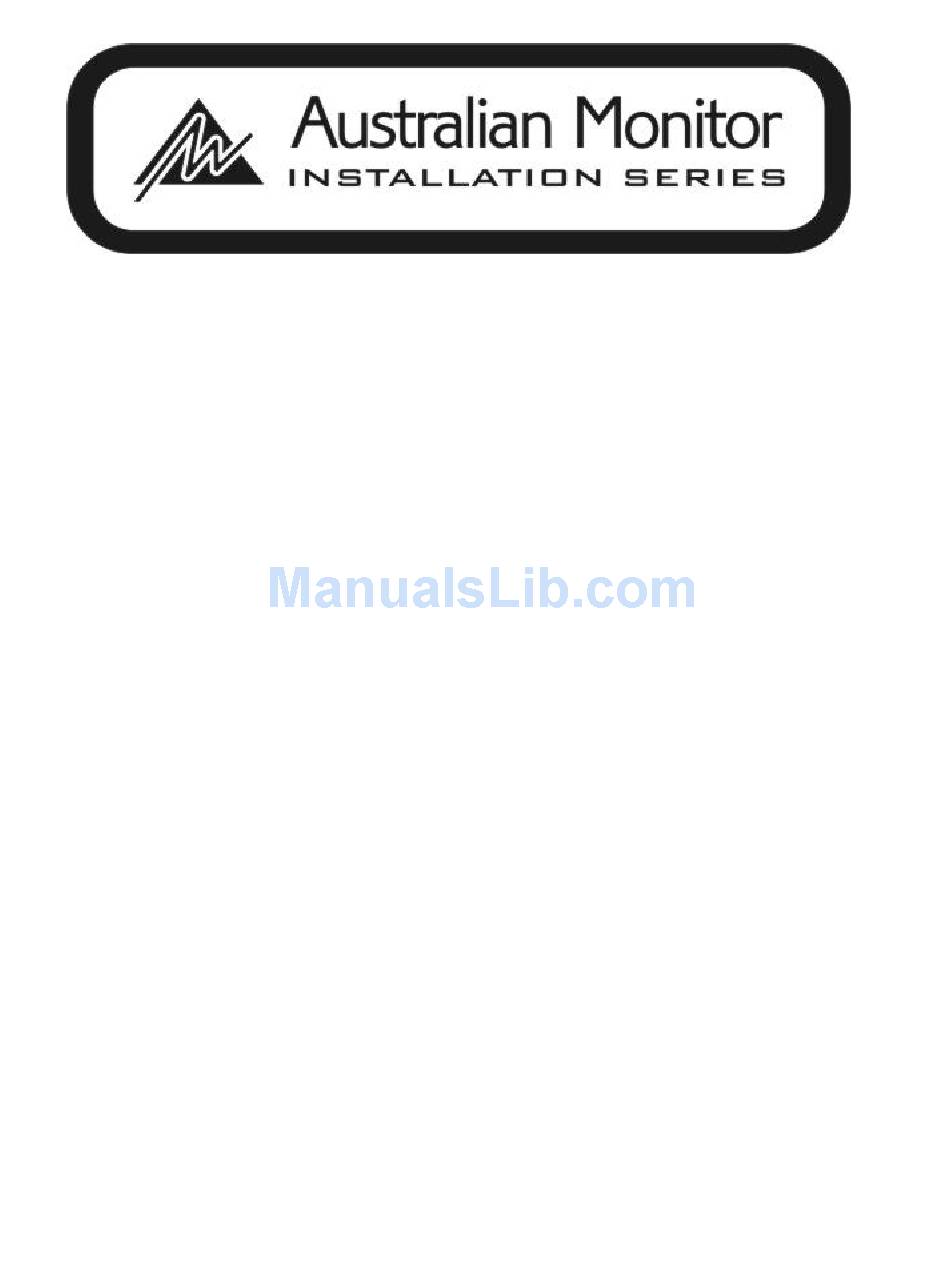

  • Page 1 Clever Features, Contractor Friendly AMIS23X Stereo 2-way/Mono 3-way crossover Installation Operation Manual...
  • Page 2 Introduction The Australian Monitor Installation Series AMIS23X is a one rack unit, fourth order Linkwitz-Riley electronic crossover. The AMIS23X can be configured as either a stereo two way or a mono three way crossover. Featuring clip LED indication per band per channel, frequency range selector switch, CD horn boost switch &...

  • Page 3: Front Panel

    Front Panel 1. Power Switch This switches the mains power “on” to the unit. 2. Channel 1 Crossover Section This section refers to the controls for channel one. This section is duplicated for channel 2.
  • Page 4 3. Clip LED’s These LED’s indicate that the high range or low range signals are clipping & entering distortion. Occasional flickering of these LED’s is acceptable but if the LED remains on continuously, the level should be turned down to avoid distortion.
  • Page 5 Back Panel 1. Channel 2 High output XLR Channel 2 XLR high frequency output/ Mono 3 way high frequency output. 2. Channel 2 High output Jack Channel 2 Jack high frequency output/ Mono 3 way high frequency output. 3. Hi Phase. This switch reverses the polarity of the high frequency output.
  • Page 6 8. Channel 2 Input XLR This input accepts a balanced line level signal in 2 way stereo mode. This input is not used in 3 way mono mode. 9. Channel 2 Input Jack This input accepts a balanced line level signal in 2 way stereo mode. This input is not used in 3 way mono mode.

  • Page 7: Modes Of Operation

    Modes of Operation 2 Way Stereo When using the AMIS23X in 2 way stereo mode, firstly ensure the Stereo/Mono Mode switch (7) is set to the correct position (switch “out”), then simply patch the left line level output signal into input 1 (16 or 17) & the right line level output signal into input 2 (8 or 9).
