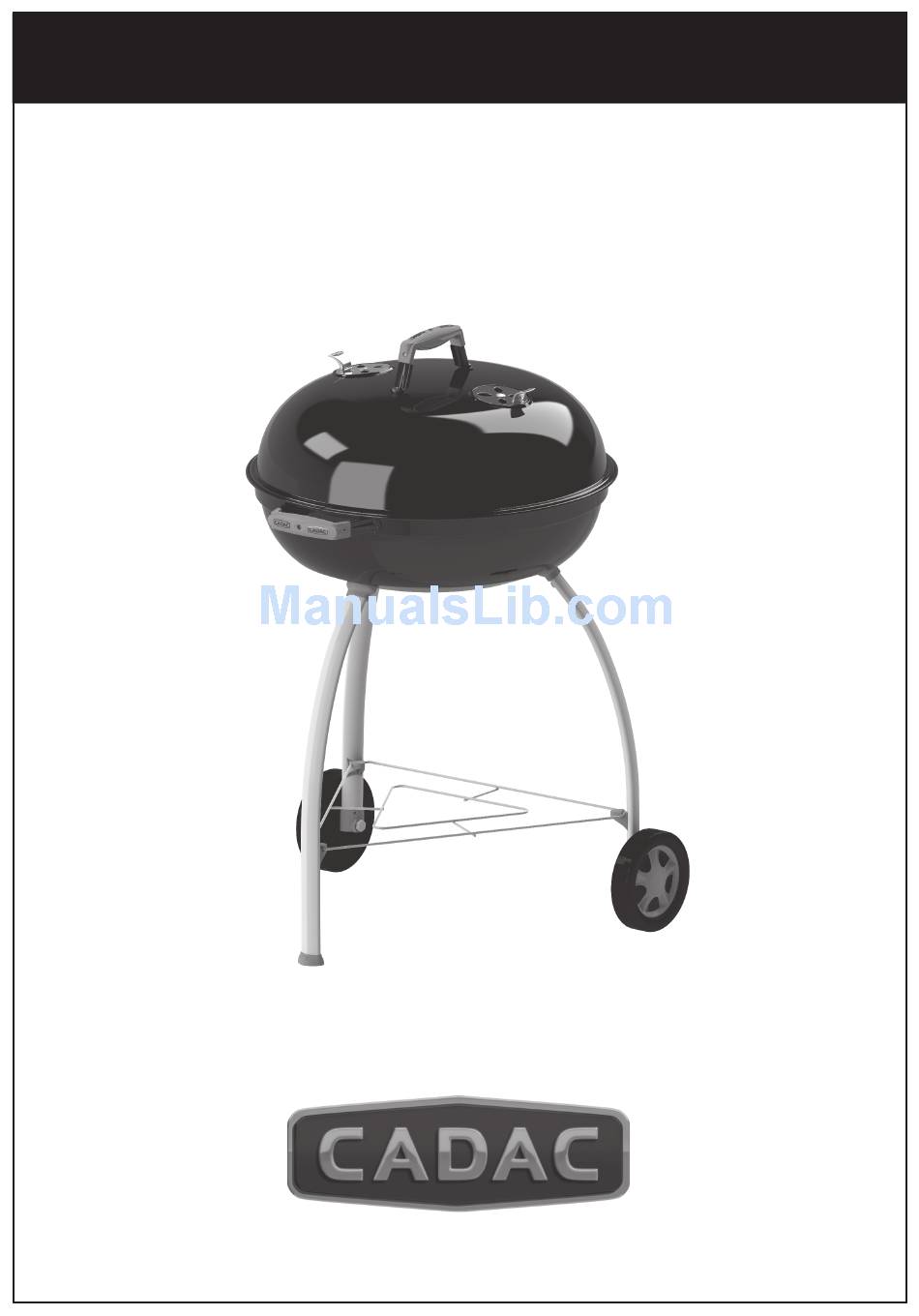

- Page 1 USER INSTRUCTIONS USER INSTRUCTIONS 57cm CHARCOAL MATE MODEL No. MODEL No. 5455 & 97000 LIVE THE BRAAI LIFE 503-0283 LEV5...
- Page 2 Tel: +64 7 847 0204 Fax: +64 7 847 0205 Email: e. sales@riverleagroup.co.nz Website: http://www.riverleagroup.co.nz CADAC SA P.O. Box 43196, Industria, 2042, South Africa Tel: +27 11 470 6600 . Fax: +27 11 472 9401 . Email: info@cadac.co.za Website: www.cadac.co.za...
-
Page 3: Safety Information
When not in use, store the appliance in a dry place and make sure the lid is in position. Ÿ Extend the life and maintain the condition of your BBQ by covering it with a CADAC BBQ cover. Available through your Ÿ... - Page 4 6. Accessories • Always use genuine CADAC spares as they have been designed to give optimum performance. Description Part No. Stainless Steel Drip Pan (Durable stainless steel drip pan keeps BBQ clean 98155 during indirect cooking) BBQ Cover. 98190 Fish Griller (For grilling whole or stuffed fish directly or indirectly on our BBQ)
-
Page 5: List Of Items
7. List Of Items Outer leg Bracket Qty:3 M10 Washer Qty:2 Qty:2 Qty:2 M6x10 screw M10 Bolt Qty:2 Qty:2 M6 Nut M10 Nut Qty:3 Wheel M6x16 Screw Qty:2 Qty:2 Dome Handle Qty:1 Wheel Cover M6 Washer Qty:5 Airvent Cooking Grid Charcoal Grid Bowl Handle Fire Bowl... - Page 6 8. Assembly 8.1 Getting Started • Begin by unpacking and laying out all of the components of the barbecue and ensuring that all of the items listed in Section 7 are there. • Read the assembly instructions in full before starting assembly. PLEASE NOTE! Images may vary depending on the model you purchased Ÿ...
- Page 7 8.3.2 Steps to Assembling the Wire Tray Wire Tray Wire Tray Plastic Clip Plastic Clip NB!: Tighten the M6 screws attaching the legs to the fire bowl. Step 4 Step 5 8.3.3 Steps to Assembling the Grids Next, insert the charcoal grid into the fire bowl where it will rest on the location rim inside the fire bowl. Ÿ...
- Page 8 8.3.4 Steps to assemble the dome Fit the handle to the lid by aligning the holes in the handle bracket with the holes on top of the lid. Secure in position Ÿ using the M6 screws, nuts and washers supplied. Handle M6 x 10 Screw M6 Washer...
- Page 9 CADAC does not authorize any person or company to assume for it any obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment; and no such representations are binding on CADAC.
