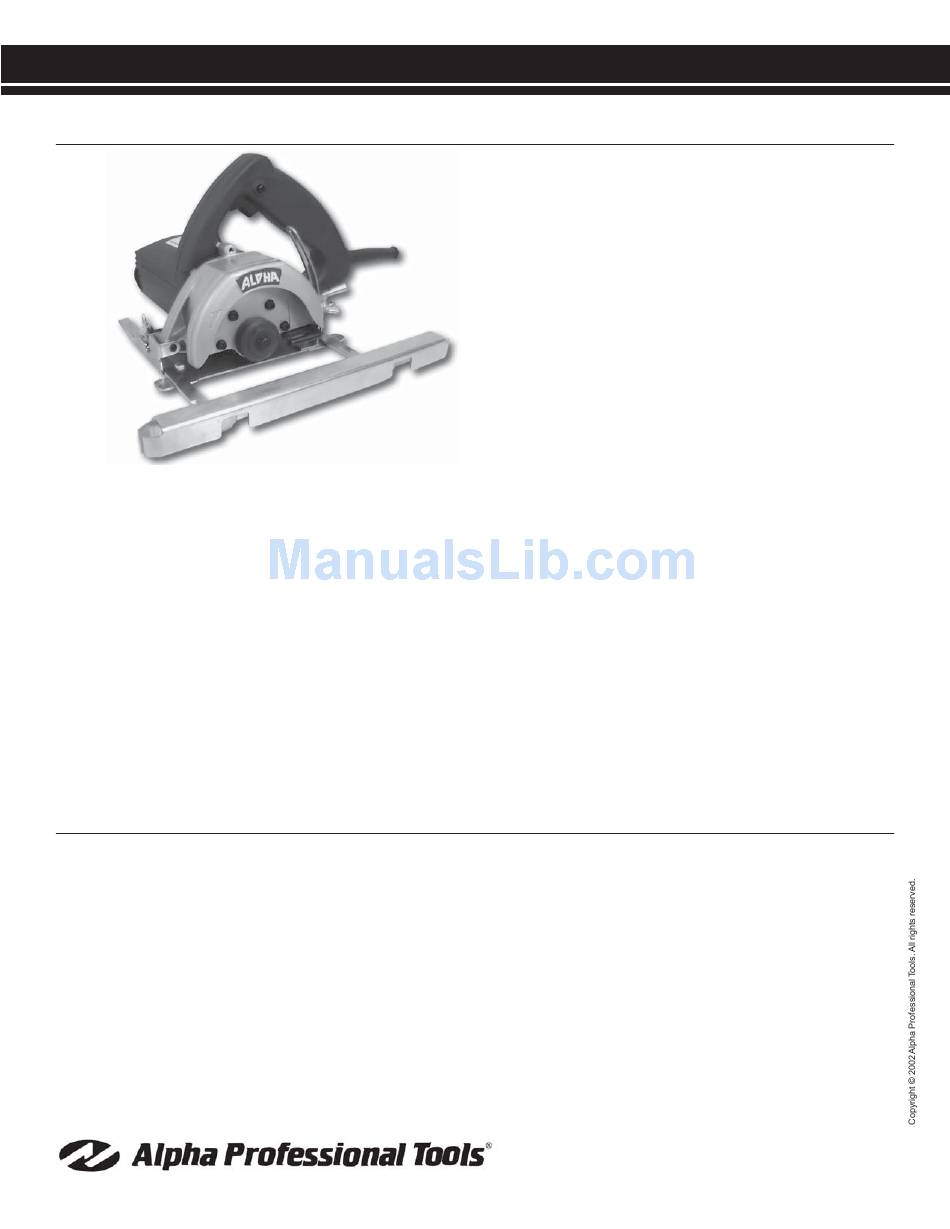

AWS-110/220 Electric Wet Circular Saw
Specifications:
Voltage..................................110V/60 Hz (AWS-110)
................................................220V/50 Hz(AWS-220)
Power.....................................1200W or 10.9 A
RPM......................................13,000 (NO LOAD)
Blade Size.............................up to 4-1/2" / 115mm
Arbor size...............................20mm
Weight...................................6.8 Lbs. (3.1 kg)
Water Flow.............................± 1 Gallon (± 3.785 Litres)
................................................/min. @ max flow
How to Use:
1.
Select the desired blade for your cutting application.
2.
Make sure that the power cord is unplugged.
3.
Use the spanner wrench to secure the flange and use the box spanner to loosen the hexagon bolt.
4.
Remove the bolt and the flange.
5.
Install the blade paying attention to the blade direction.
6.
Reinstall the flange and the bolt and secure with the wrenches as supplied above.
7.
Select guide method
a. Guide Ruler or TT Ruler Guide
b. Guide Rail System
c. Free Hand
ALPHA TECH NOTES
Recommended Accessories:
CB-CASM w/ CB-AGKIT
Alpha Sonic Blades
Alpha Numero Uno Blades
Alpha Porcellana Blades
Alpha Vetro Blades
The AWS-110/220 is an ideal high performance cutting
tool designed for continuous production applications in
the shop as well as in the field. Equipped with a water
feed and a choice of guide systems, the AWS-110/220
allows you to easily make straight cuts on all types of
natural stone, terrazzo, engineered stone, glass,
concrete, and masonry. For safety purposes, the
AWS-110/220 is double insulated and equipped with
an in line GFCI. For most of your cutting needs, use the
AWS-110/220.
Standard Equipment:
Spanner Wrench
Box Spanner
In Line GFCI
Water Hose
Guide Ruler or TT Ruler Guide; Reversible
Insulated Electrical Parts
Pg. 1 - How to use
Pg. 2 - Common Questions
Pg. 3 – Helpful Hints
AWS-110/220 - Doc #145
Last revision: August 2003
1 of 5
Advertisement
Table of Contents
Related Manuals for Alpha AWS-110
Summary of Contents for Alpha AWS-110
- Page 1 Equipped with a water feed and a choice of guide systems, the AWS-110/220 allows you to easily make straight cuts on all types of natural stone, terrazzo, engineered stone, glass, concrete, and masonry.
- Page 2 No. 133244). Do not tighten these screws yet. Make sure that there is plenty of play in the pressing plates. Place the AWS-110/220 on the Carriage Base so that the flat edge of the base nearest the blade is under these pressing plates.
- Page 3 12. Start the AWS-110/220 and allow it to come up to full speed before starting your cut. If dry cutting, use the step cut method and back out periodically to allow cool air to flow around the blade.
- Page 4 The device is called the Guide Ruler or TT Ruler Guide. It is designed to enhance the cutting performance of the AWS-110/220 by providing a guide that will work against the straight edge of the stone or a rail of some type clamped to the stone suface.
-
Page 5: Helpful Hints
The guard of the AWS-110/220 is not wide enough to safely accept a contour blade. The AWS-110/220 can be used with a straight blade to plunge cut the sink hole, but the Alpha CCB blade on a right angle grinder is much better suited for this application.
