Model #690043
690044

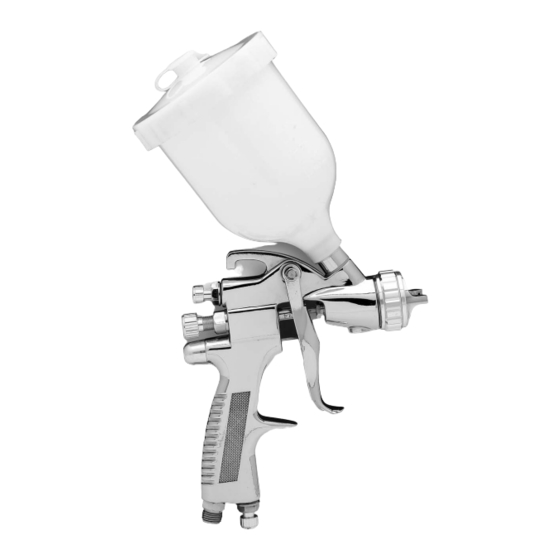

HVLP GRAVITY FEED SPRAY GUN & CUP
CAREFULLY READ THROUGH THE ENTIRE OWNER'S MANUAL
BEFORE OPERATING YOUR SPRAY GUN SET.
KEEP MANUAL WITH IMPORTANT RECORDS FOR
SAFETY INSTRUCTIONS, OPERATING PROCEDURES AND WARRANTY.
Please retain these instructions for future reference.
If you encounter any problems or difficulties,
please contact our toll free Customer Service Department at:
1-800-423-3598
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mastergrip 690043
Summary of Contents for Mastergrip 690043
- Page 1 ® Model #690043 690044 HVLP GRAVITY FEED SPRAY GUN & CUP CAREFULLY READ THROUGH THE ENTIRE OWNER’S MANUAL BEFORE OPERATING YOUR SPRAY GUN SET. KEEP MANUAL WITH IMPORTANT RECORDS FOR SAFETY INSTRUCTIONS, OPERATING PROCEDURES AND WARRANTY. Please retain these instructions for future reference.
- Page 2 • FAILURE TO HEED ALL WARNINGS COULD RESULT IN SEVERE PERSONAL OR BYSTANDER INJURY, EVEN DEATH. • ONLY USE TOOLS FOR PURPOSE THEY ARE INTENDED FOR. • YOU MUST WEAR PROTECTIVE EYEWEAR AND SUITABLE RESPIRATORY PROTECTION (OSHA APPROVED) WHILE SPRAYING OR CLEANING THIS GUN OR ITS ATTACHMENTS. •...
- Page 3 SPECIFICATIONS: GRAVITY FEED SPRAY GUN (690043) Fluid Tip Size: 0.8 mm Diameter Air Inlet: 1/4" (6,35mm) NPS Air Consumption: 4.5 CFM (40 PSI) Capacity of Cup: 5.3 fl. oz. (156.7 cc) Maximum Pressure: 70 PSI SPECIFICATIONS: DELUXE HIGH PRESSURE SPRAY GUN (690044) Fluid Tip Size: 1.4 mm Diameter...
-
Page 4: Air Supply
AIR SUPPLY AIR FLOW LENGTH OF PIPE 50 ft. [15,24m] 100 ft. [30,48m] 150 ft. [45,72m] 200 ft. [60,96m] 10 [17 m 1/2" [12,7mm] 3/4" [19mm] 3/4" [19mm] — 20 [34 m 3/4" [19mm] 3/4" [19mm] 3/4" [19mm] 3/4" [19mm] 30 [51 m 3/4"... - Page 5 SPRAY GUN HANDLING This spray gun is rugged in construction and is built to yield exceptional value. The life of this product and the efficiency of its operation depend upon knowledge of its construction use and maintenance. Plastic Cup GRAVITY FEED CUP HOOKUP Air pressure for atomization is regulated at extractor.
-
Page 6: Operation
In normal use, the nozzle wings are horizontal as shown here. This provides a vertical fan-shaped pattern which gives maximum, even, material coverage as the gun is moved back and forth parallel to the surface being finished. Spray pattern may be infinitely adjusted from round to flat. -
Page 7: Cleaning And Maintenance
CLEANING AND MAINTENANCE • RESPONSIBILITY. IT SHALL BE THE TOOL OWNER'S RESPONSIBILITY TO ASSURE THAT TOOLS ARE MAINTAINED IN A SAFE OPERATING CONDITION. IF TOOLS ARE DAMAGED, REMOVE FROM SERVICE IMMEDIATELY. • AUTHORIZED PERSONNEL. TOOL MAINTENANCE AND REPAIR SHALL BE PERFORMED BY AUTHORIZED, TRAINED, COMPETENT PERSONNEL. -
Page 8: Troubleshooting
TROUBLESHOOTING SPRAY PATTERN PROBLEM SOLUTION CONDITION One side of nozzle wing is clogged. Soak nozzle in solvent to loosen clogs, then blow air through until clean. To clean orifices use a toothpick. Never try and detach dried material with sharp tool. a) Loose air nozzle. - Page 9 SPRAY PATTERN PROBLEM SOLUTION CONDITION Fluid leakage from a) Packing nut loose. a) Tighten, but not so tight as to packing nut grip needle. b) Packing worn or dry. b) Replace packing or lubricate. Dripping from fluid tip a) Dry packing. a) Lubricate.
- Page 10 PARTS LIST 690044 ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. Air Nozzle Piston Fluid Nozzle Spring Packing Nut 0-Ring Packing Material Air Valve Nut Gun Body C-Clip Hook Gasket Spray Pattern Contral Knob Trigger Gasket Trigger Pivot 0-Ring Air Control Knob Housing Air Connection Needle Valve...
- Page 11 PARTS LIST 690043 ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. Air Nozzle Gasket Fluid Nozzle Screw Packing Nut Valve Stem Packing Material Spring Gun Body Air Valve Nut Hook C-Clip Spray Pattern Knob Gasket Gasket Trigger 0-Ring Trigger Pivot...
- Page 12 ® 1431 VIA PLATA LONG BEACH, CA 90810-1462 WARNING FOR CUSTOMER SERVICE © Copyright 2004, Alltrade Tools LLC Rev.1 WEAR SAFETY www.handtoolonline.com 1-800-423-3598 GLASSES...
