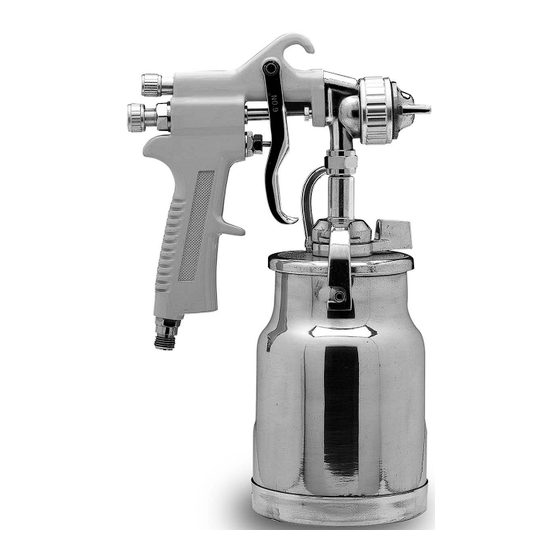

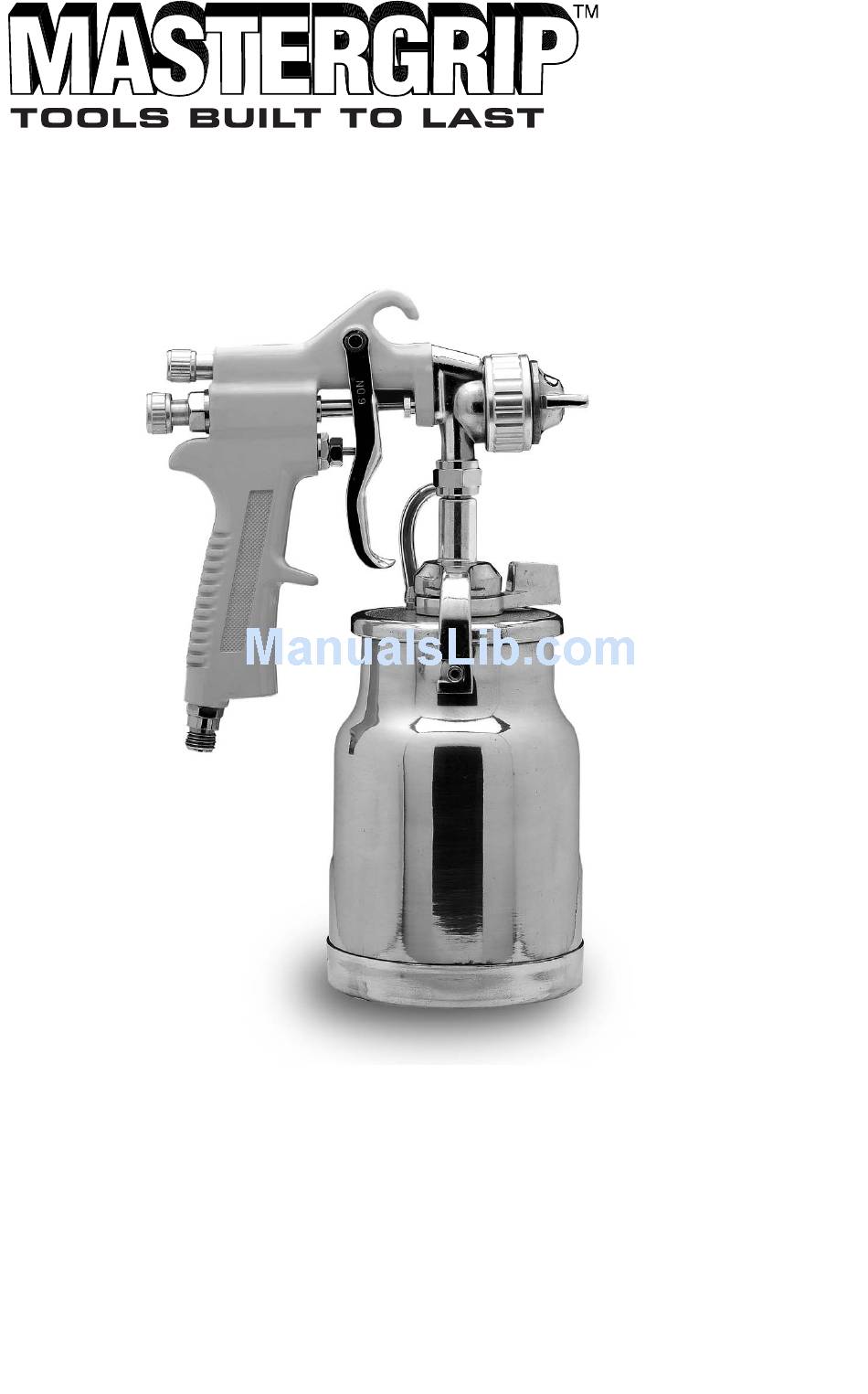

Model #690042
HIGH PRESSURE SPRAY GUN
CAREFULLY READ THROUGH THE ENTIRE OWNER'S MANUAL
BEFORE OPERATING YOUR SPRAY GUN SET.
KEEP MANUAL WITH IMPORTANT RECORDS FOR
SAFETY INSTRUCTIONS, OPERATING PROCEDURES AND WARRANTY.
Please retain these instructions for future reference.
If you encounter any problems or difficulties,
please contact our toll free Customer Service Department at:
1-800-423-3598

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 690042 and is the answer not in the manual?

Questions and answers

Related Manuals for Mastergrip 690042

Summary of Contents for Mastergrip 690042

  • Page 1 Model #690042 HIGH PRESSURE SPRAY GUN CAREFULLY READ THROUGH THE ENTIRE OWNER’S MANUAL BEFORE OPERATING YOUR SPRAY GUN SET. KEEP MANUAL WITH IMPORTANT RECORDS FOR SAFETY INSTRUCTIONS, OPERATING PROCEDURES AND WARRANTY. Please retain these instructions for future reference. If you encounter any problems or difficulties,...
  • Page 2 • FAILURE TO HEED ALL WARNINGS COULD RESULT IN SEVERE PERSONAL OR BYSTANDER INJURY, EVEN DEATH. • ONLY USE TOOLS FOR PURPOSE THEY ARE INTENDED FOR. • YOU MUST WEAR PROTECTIVE EYEWEAR AND SUITABLE RESPIRATORY PROTECTION (OSHA APPROVED) WHILE SPRAYING OR CLEANING THIS GUN OR ITS ATTACHMENTS. •...

  • Page 3: Specifications

    HALOGENATED HYDROCARBON SOLVENTS. For example: Methylene is not chemically compatible with the aluminum that might be used in many system components. The chemical reaction caused by these solvents reacting with aluminum can become violent and lead to an equipment explosion. Guns with stainless steel fluid passages can be used with these solvents.

  • Page 4: Air Supply

    AIR SUPPLY AIR FLOW LENGTH OF PIPE 50 ft. [15,24m] 100 ft. [30,48m] 150 ft. [45,72m] 200 ft. [60,96m] 10 [17 m 1/2" [12,7mm] 3/4" [19mm] 3/4" [19mm] — 20 [34 m 3/4" [19mm] 3/4" [19mm] 3/4" [19mm] 3/4" [19mm] 30 [51 m 3/4"...
  • Page 5 SPRAY GUN HANDLING Your new spray gun is exceptionally rugged in construction and is built to stand up under hard continuous use. However, like any other fine precision instrument, its most efficient operation depends on knowledge of its construction, operation, and maintenance. Properly handled and cared for, it will produce beautiful, uniform finishing results long after other spray guns have worn out.

  • Page 6: Operation

    OPERATION Proper handling of the gun is essential for obtaining a good finish. The gun should be held at right angle to the surface being covered, moving parallel with the surface. For precise control of the gun and material, the trigger should be released before the end of the stroke. Hold the gun from 6 to 12 inches (15,24cm to 30,48cm) away from the surface depending on material and atomizing pressure.

  • Page 7: Types Of Installation

    TYPES OF INSTALLATION PRESSURE FEED TANK HOOKUP SIPHON FEED CUP HOOKUP For medium production spraying Air pressure for atomization is regulated at (Single regulator) Air pressure for atomization is extractor. Amount of fluid is adjusted by fluid regulated at extractor. Fluid pressure is regulated control screw on gun, paint viscosity and air at tank regulator.

  • Page 8: Cleaning And Maintenance

    CLEANING AND MAINTENANCE • RESPONSIBILITY. IT SHALL BE THE TOOL OWNER'S RESPONSIBILITY TO ASSURE THAT TOOLS ARE MAINTAINED IN A SAFE OPERATING CONDITION. IF TOOLS ARE DAMAGED, REMOVE FROM SERVICE IMMEDIATELY. • AUTHORIZED PERSONNEL. TOOL MAINTENANCE AND REPAIR SHALL BE PERFORMED BY AUTHORIZED, TRAINED, COMPETENT PERSONNEL.
  • Page 9 AIR PRESSURE Oil and water extractor is important. Achieving a fine spray finish without the use of a good oil and water extractor is virtually impossible. The extractor eliminates blistering and spotting by keeping air free of oil and water and gives precise air pressure control at the gun.

  • Page 10: Troubleshooting

    TROUBLESHOOTING SPRAY PATTERN PROBLEM SOLUTION CONDITION One side of nozzle wing is clogged. Soak nozzle in solvent to loosen clogs, then blow air through until clean. To clean orifices use a toothpick. Never try and detach dried material with sharp tool. a) Loose air nozzle.
  • Page 11 SPRAY PATTERN PROBLEM SOLUTION CONDITION Fluid leakage from a) Packing nut loose. a) Tighten, but not so tight as to packing nut grip needle. b) Packing worn or dry. b) Replace packing or lubricate. Dripping from fluid tip a) Dry packing. a) Lubricate.
  • Page 12 PARTS LIST 690042 ITEM NO. DESCRIPTION QTY. ITEM NO. DESCRIPTION QTY. Seat Housing Air Cap with Ring Gasket Spray Pattern Adjustment Assembly Fluid Control Assembly Spring Fluid Nozzle Air Inlet Container Inlet Assembly Screw Needle Seat Spring Felt Washer Valve...
  • Page 13 blank...
  • Page 14 blank...
  • Page 15 blank...
  • Page 16 1431 VIA PLATA LONG BEACH, CA 90810-1462 WARNING FOR CUSTOMER SERVICE © Copyright 2004, Alltrade Tools LLC Rev.1 WEAR SAFETY www.handtoolonline.com 1-800-423-3598 GLASSES...
