Voxx HR8D Owner's Manual

Rear seat video headrest system 8” monitor with built-in dvd player
Hide thumbs Also See for HR8D:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
HR8D
REAR SEAT VIDEO HEADREST SYSTEM
8" MONITOR WITH BUILT-IN DVD PLAYER
TM
TM
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR8D and is the answer not in the manual?

Questions and answers

Related Manuals for Voxx HR8D

Summary of Contents for Voxx HR8D

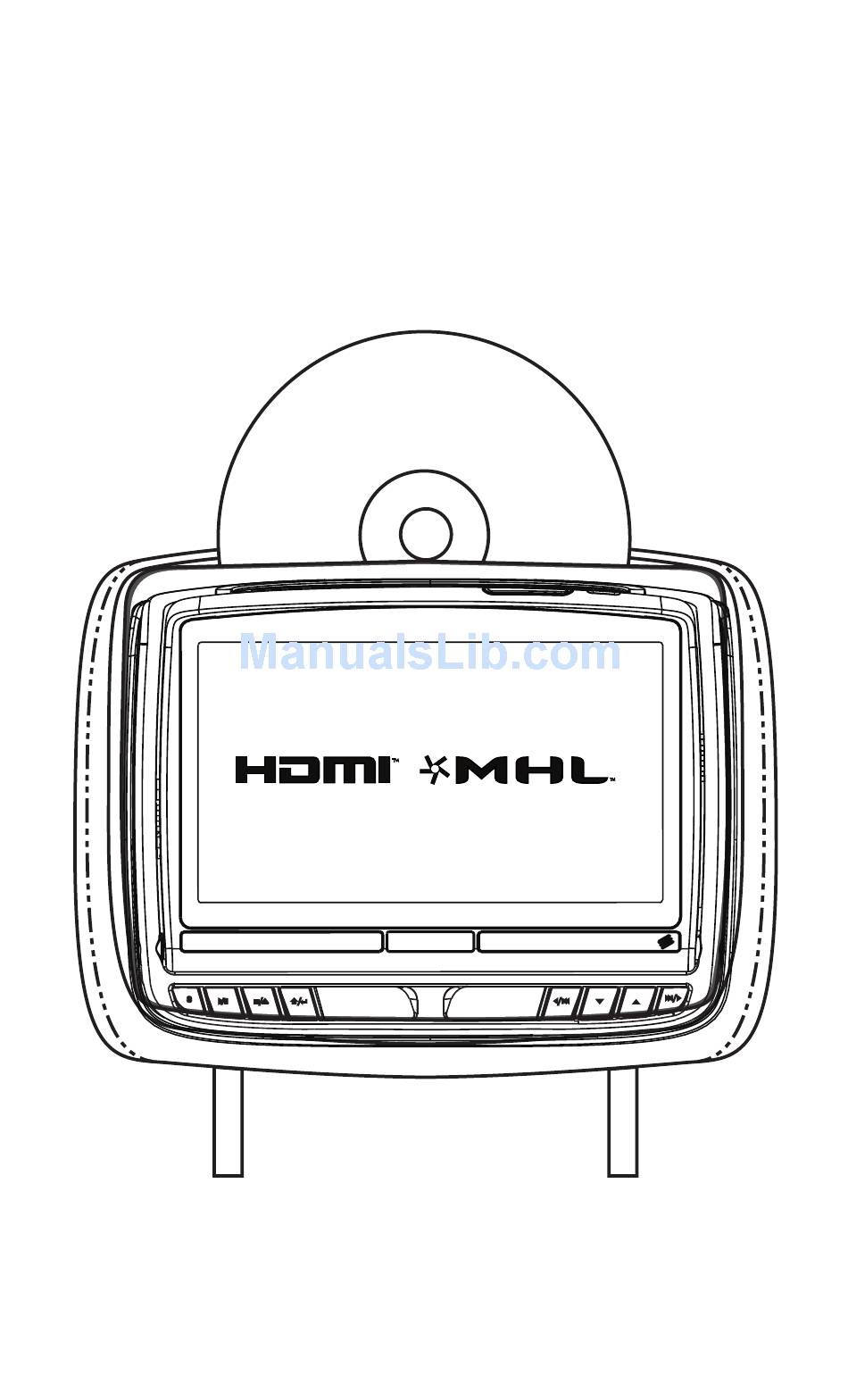

  • Page 1 HR8D REAR SEAT VIDEO HEADREST SYSTEM 8” MONITOR WITH BUILT-IN DVD PLAYER Owner’s Manual...

  • Page 3: Table Of Contents

    GAME CONTROLLER OPERATION �����������������������������������������������������������������������������������������������������������������25 TROUBLESHOOTING ������������������������������������������������������������������������������������������������������������������������������������������27 SPECIFICATIONS ��������������������������������������������������������������������������������������������������������������������������������������������������29 COMPLIANCE INFORMATION �������������������������������������������������������������������������������������������������������������������������30 NOTES ����������������������������������������������������������������������������������������������������������������������������������������������������������������������31 © 2014 VOXX Electronics Corp� All rights reserved� This manual, or any portion thereof, may not be reproduced without the express written permission of VOXX Electronics Corp�...

  • Page 4: Congratulations

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual CONGRATULATIONS Thank you for purchasing the HR8D Rear Seat Video Headrest System� Before operating this system read this manual thoroughly and retain it for future reference� The HR8D Rear Seat Video Headrest System...

  • Page 5: Product Features

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual PRODUCT FEATURES The HR8D Rear Seat Video Headrest System consists of: 1� Two matching Headrests with 8-inch 10� Controls & Indicators on the Front and Color TFT-LCD Display Screens Top Panels� (800x4800)16:9 aspect ratio�...

  • Page 6: Quick Start Guide

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual QUICK START GUIDE 5� When the DVD menu appears, select 1� Press the Power button on the top of the the menu item using the UP/DOWN front panel or on the remote control�...

  • Page 7: General Operating Instructions

    If the codes do not match, the DVD will not play� The HR8D region code is set to Region 1� Playback of a disc from any other region will not work in the HR8D�...

  • Page 8: Remote Control Battery Installation

    Remove the Pull Tab before attempting to use the remote control� (Figure 2) NOTE: The remote control will only operate with the HR8D Rear Seat Video Headrest System. It is not a universal remote control and will not control other equipment.

  • Page 9: Headphone Battery Installation

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual HEADPHONE BATTERY INSTALLATION Installation of the Headphone Batteries Each wireless IR headphone requires two AAA batteries� 1� Locate the battery compartment cover on the left earphone� 2� While holding the left earphone in one hand, press down on the battery compartment cover and slide it UP and OFF in the direction shown�...

  • Page 10: Front Panel Controls

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual FRONT PANEL CONTROLS Figure 6 1. DVD disc insertion slot 6. HOME / MENU SELECT ( ) Button This button is used to access the system 2. IR TRANSMITTER and IR SENSOR menu�...
  • Page 11 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual FRONT PANEL CONTROLS (continued) 9. JACK COVERS Used to protect and cover the HDMI jack and USB port when not in use� 10. DOWN (q) Button This button is used to navigate through menu selections in downward direction�...

  • Page 12: Remote Control Operation

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual REMOTE CONTROL OPERATION Figure 7...
  • Page 13 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual REMOTE CONTROL OPERATION (continued) 12. DISPLAY 1. POWER ( Press the TV button (4) and the Press this button to turn the system ON DISPLAY button show monitor and OFF� (Figure 7) status, modulator status, IR Transmitter 2.
  • Page 14 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual REMOTE CONTROL OPERATION (continued) 19 20 Figure 8...
  • Page 15 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual REMOTE CONTROL OPERATION (continued) 26. MUTE ( 17. SUB-T (DVD MODE ONLY) If the DVD playing has different Press this button to mute the sound subtitle options, press this button to transmitted to the headphones and the FM Modulator�...

  • Page 16: System Menu

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual Source The SOURCE button on the remote control or on the front panel allows the user to SOURCE change the AV source between DVD, USB, BUTTON HDMI/MHL, AV-IN, M1/M2, GAME� When the...
  • Page 17 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual SYSTEM SETUP MENUS PICTURE CONTROL 4� Using the LEFT and RIGHT direction buttons, adjust level the picture setting chosen� NOTE: Levels are set from “0” to “32” for Brightness, Contrast and Color. The levels for Tint is set from “-16”...
  • Page 18 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual SYSTEM SETUP MENUS (continued) LANGUAGE Selecting the FM Channel from the Remote Control: 1� Select “M1” on the Remote Control� 2� Press the SYSTEM MENU button then use the UP and DOWN direction...
  • Page 19 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual SYSTEM SETUP MENUS (continued) IR TRANSMITTER ON/OFF DEFAULT DVD ON/OFF IR Transmitter Sub-Menu Default DVD Sub-Menu Figure 17 Figure 16 IR Transmitter ON/OFF from the Front With the “Default DVD ON” feature selected,...

  • Page 20: Dvd Playback Settings And Adjustments

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual DVD PLAYBACK SETTINGS AND ADJUSTMENTS The Setup Menu contains features and options that lets you customize your DVD player� For example, you can set screen display or a language for the on-screen display or prevent DVD playback of certain DVD discs (for example PG-13 or R Rated) for children�...

  • Page 21: Language Setup

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual DVD SETTINGS AND ADJUSTMENTS (continued) PASSWORD NOTE:The rating level can only be changed when the correct password is entered on the The Default Password is 3308� This password password setting. is always accepted even after a new password has been entered�...
  • Page 22 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual DVD SETTINGS AND ADJUSTMENTS (continued) SUBTITLE LANGUAGE Playing USB Memory Devices The SUBTITLE setup option page allows the 1� The system will detect the insertion user to select the language for the OSD� The...
  • Page 23 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual DVD SETTINGS AND ADJUSTMENTS (continued) DISC BASICS To get the optimum use out of the DVD player, make sure you read this section completely� Types of discs your DVD Player will play: •...

  • Page 24: Dvd Region Codes

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual DVD REGION CODES The DVD player is preset to a region code at the factory depending on where the DVD player is sold (Figure 28)� DVDs from a different region cannot be played in this unit and the unit will display “WRONG REGION”�...

  • Page 25: Av Inputs, Outputs And Hdmi/Mhl And Usb Port Information

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual AV INPUTS, OUTPUTS, HDMI/MHL AND USB PORT INFORMATION AV INPUTS, AV OUTPUTS Samsung Multimedia adapter: • http://www.samsung.com/us/mobile/ Audio/Video Inputs cell-phones-accessories/multimedia- adapters * An external video source, video game system, or other audio/video devices can NOTE: Some Samsung smartphones be connected to the AV input�...
  • Page 26 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual AV INPUTS, OUTPUTS, HDMI/MHL AND USB PORT INFORMATION (continued) USB PORT INFORMATION USB Port The USB port provides two functions: 1� Media port for USB thumb drives: • The Media port allows for the playing...

  • Page 27: Game Controller Operation

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual GAME CONTROLLER OPERATION - OPTIONAL Battery Installation Functional Description Back of the Game Controller Front of the Game Controller BACK BATTERY COVER TAB COVER SCREW DIRECTION BUTTONS SELECT START DOWN SELECT START...
  • Page 28 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual GAME CONTROLLER OPERATION - OPTIONAL (continued) There are 54 single player games in the games list to choose from and six games are for two players� One-Player The games can be selected from either the M1 monitor or the M2 monitor�...

  • Page 29: Troubleshooting

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual TROUBLESHOOTING Symptom Remedy System does not power “ON” • Is the ignition turned “ON”? • Is the battery installed in remote control? IR Remote inoperative • Verify that the battery in the remote control is good�...
  • Page 30 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual TROUBLESHOOTING (continued) Symptom Remedy Picture is distorted� • Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge� • The disc might be damaged, try another disc�...

  • Page 31: Specifications

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual SPECIFICATIONS Monitor Specifications Type TFT Active Matrix LCD Resolution 2400 (W) x 480 (H) Pixels 1,152,000 Back Light Power Source +12 VDC Power Consumption Operating Temperature 32°F ~ 125°F (0°C ~ +55°C) Storage Temperature -22°F ~ 150°F (-20°C ~ +70°C)

  • Page 32: Compliance Information

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual COMPLIANCE INFORMATION FCC NOTICE NOTICE This device has been tested and found to Disposal of Old Electrical & Electronic comply with the limits for a Class B digital Equipment (Applicable in the European...

  • Page 33: Notes

    HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual NOTES...
  • Page 34 HR8D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual NOTES...
  • Page 36 If you have any questions regarding this product or require technical assistance, please call 1-800-225-6074 © 2014 VOXX Eletronics Corp,150 Marcus Blvd. Hauppauge, NY 11788 128-9275...
