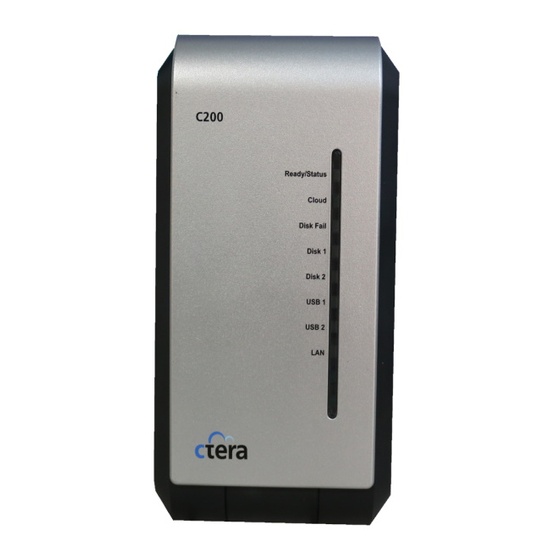

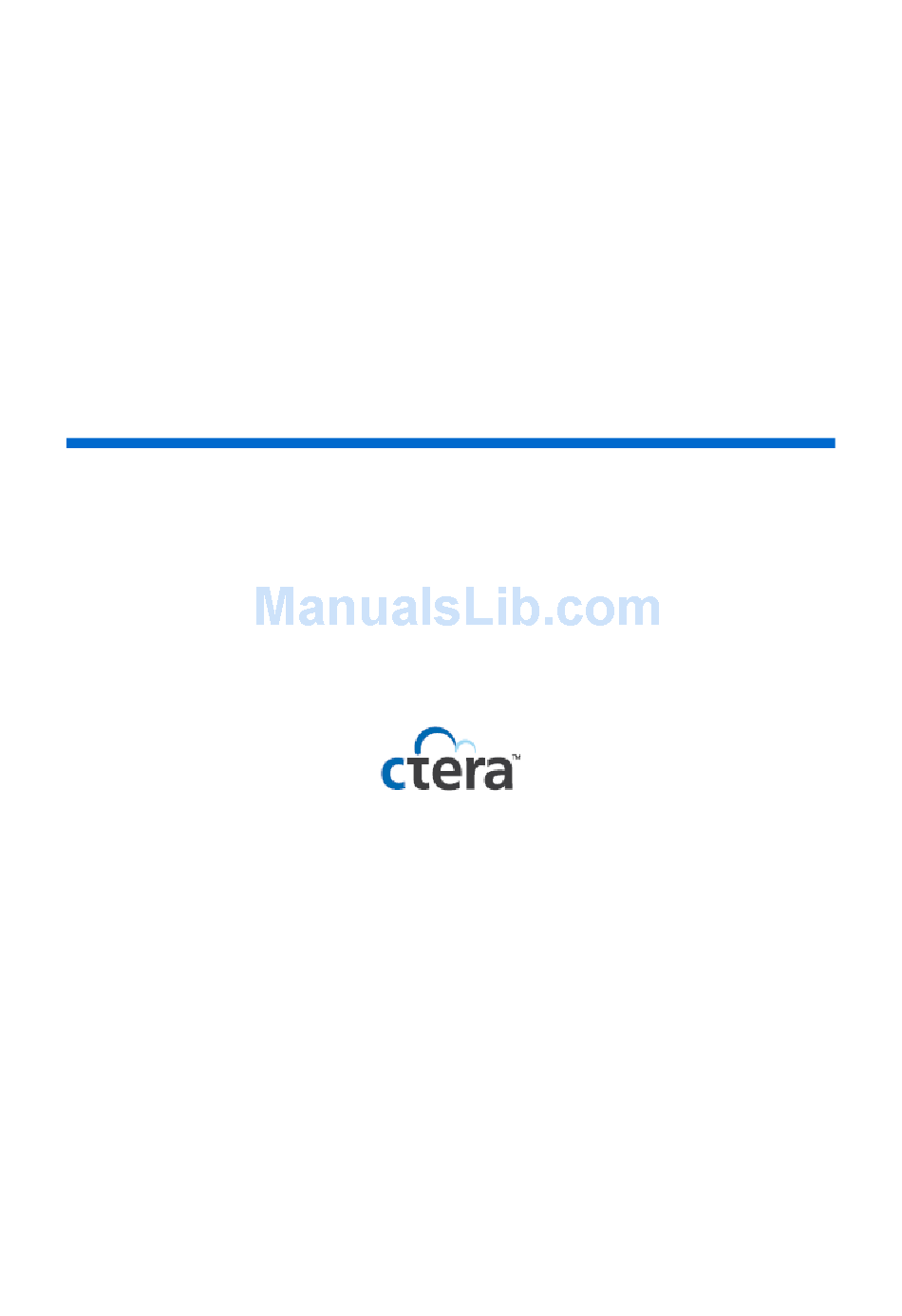

- Page 1 Quick Walkthrough CTERA C200 August 2013 Firmware Version 4.0 © 2013, CTERA Networks. All rights reserved.
- Page 2 This product contains no user-serviceable parts. Repair, maintenance and servicing of this appliance are to be carried out only by qualified CTERA personnel. This product may only be used for the applications described in the user guide, and only in connection with accessories which have been approved by CTERA.
- Page 3 For more detailed information, refer to the CTERA C Series User Guide, available at http://www.ctera.com/support CTERA C200 Quick Walkthrough...
- Page 4 Verify that the package contains the following items: C200 Ethernet Cable Power Supply Cable Check Required Items Verify that you have the following required items (not included): One or two hard drives (SATA, 3.5") Ethernet Switch or Router with DHCP Enabled CTERA C200 Quick Walkthrough...
- Page 5 Install the C200 Connect the C200 Open the C200's back cover, by pressing the two plastic tabs and then pulling backwards. Two slots are revealed. Insert a SATA hard drive into the left-hand slot, pressing it firmly until it is all the way in.
- Page 6 Install the C200 The drive's metal cover should be facing right. Close the C200's back cover, by inserting first the bottom of the cover, pressing the tabs, and then pushing forwards. The cover should click into place. Connect one end of the Ethernet cable to the LAN port, and connect the other end to your Ethernet LAN switch or router.
- Page 7 Press the Power button at the back of the C200. The C200 will start up, and the Ready/Status LED will flash rapidly in orange and then green. When the LED turns steady green, the C200 is ready.
- Page 8 Connect to the C200 Web Interface Windows Vista/7/8 On a computer connected to the same switch as the C200, view the network neighborhood, by doing one of the following: In Microsoft Windows 7 or Microsoft Windows 8 , click Start > Computer, then click ®...
- Page 9 Connect to the C200 Web Interface After connecting, you can add a bookmark in your Web browser, for easy access to the C200 Web interface. CTERA C200 Quick Walkthrough...
- Page 10 Set Up the C200 After connecting to the C200 Web interface, your Web browser displays the Welcome to CTERA page. Choose a user name and password for the administrator. Click Save. The Setup Wizard opens, displaying the Easy Storage Setup dialog box.
- Page 11 Select the Yes, I have a CTERA Portal account check box. In the Portal Address field, type the DNS name of the CTERA Portal. In the User Name field, type the user name for your CTERA Portal account. In the Password field, type the password for your CTERA Portal account.
- Page 12 Warning Your passphrase is completely confidential, and CTERA does not retain it online or offline. It is therefore important to keep this passphrase in a safe place, as there is no way of retrieving it if you lose it. Without this passphrase, you cannot access your files.
- Page 13 Set Up the C200 The Wizard Completed screen appears. Click Finish. CTERA C200 Quick Walkthrough...
- Page 14 The Sign In window opens. In the Server field, type the C200's IP address, or type the C200's host name as it appears in the Web interface's System > Device Details page.
- Page 15 In the Username and Password fields, type you user name and password for accessing the C200 Web interface, and click Sign in. The CTERA Agent connects to the C200. A success message appears, and the CTERA Agent icon changes to Right-click on a folder, and click CTERA backup >...
- Page 16 Back Up Files to the Cloud In this step, you will back up the contents of the disk to the CTERA Portal. In the Configuration tab's navigation pane, click Cloud Backup > Control Panel. The Cloud Backup > Control Panel page appears.
- Page 17 A progress bar appears, and the files are backed up to cloud storage. The initial backup may take a long time, depending on the amount of data and Internet connection speeds. Subsequent backups are differential and are significantly faster. CTERA C200 Quick Walkthrough...
- Page 18 Restore Files from Cloud Backup You can restore files and folders to the C200, from the Cloud Backup Control Panel. This can be done by administrators only. For additional restore methods and options, refer to the CTERA C-Series User Guide.
- Page 19 Click Next. The Restore Files dialog box appears. Specify how the C200 should handle files that exist both on your drive and in the selected backup, by doing one of the following: To specify that the files on your drive should be overwritten by the files in the backup, choose Overwrite the destination file.
- Page 20 Restore Files from Cloud Backup The Wizard Completed screen appears. Click Finish. A progress bar appears, and the files are restored from the selected backup. CTERA C200 Quick Walkthrough...
-
Page 21: Legal Information
This End User License Agreement (the "Agreement") by and between the individual installing and/or using the Software (as such term is defined below) and any legal entity on whose behalf such individual is acting (collectively, "You" or "you") and CTERA Networks Ltd. - Page 22 You agree not to display or use them in any manner. 2.2 If You have comments on the Software or ideas on how to improve it, please contact us. By doing so, You also grant CTERA a perpetual, royalty-free, irrevocable, transferable license, with right of sublicense, to use and incorporate Your ideas or comments into the Software (or third party software, content, or services), and to otherwise exploit Your ideas and comments, in each case without payment of any compensation.
- Page 23 6. Term and Termination CTERA shall have the right to terminate this Agreement at any time due to Your breach of this Agreement by providing You with a written notice. Upon CTERA's termination of this Agreement, You shall not be entitled to any compensation, reimbursement or damages of any kind.
- Page 24 10.2 Remedy by CTERA. In the event that any Software or portion thereof is held, or in CTERA’s reasonable opinion may be held, to constitute an infringement, CTERA, at its option and expense, may either (i) obtain for You the right to continue to use...
-
Page 25: Ctera Limited Hardware Warranty
Legal Information 11.4 The failure of CTERA to exercise or enforce any right or provision of this Agreement does not constitute a waiver of such right or provision. If for any reason a court of competent jurisdiction finds any provision or portion of this Agreement to be unenforceable, the remainder of this Agreement will continue in full force and effect.
