Network Video Recorder









Quick Operation Guide


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-7732 and is the answer not in the manual?

Questions and answers

Related Manuals for EyESonic ES-7732

Summary of Contents for EyESonic ES-7732

  • Page 1 Network Video Recorder                    Quick Operation Guide   ...

  • Page 2: Table Of Contents

    Quick Operation Guide of Network Video Recorder TABLE OF CONTENTS    NVR Pre-Installation ............................2   NVR Installation .............................. 2   Hard Disk Installation ............................. 2   Front Panel ............................... 5   Rear Panel ..............................10   Peripheral Connections ..........................12 Wiring of Alarm Input ..........................12  ...

  • Page 3: Nvr Pre-Installation

    Quick Operation Guide of Network Video Recorder Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the models listed in the following table. Series Model Type HNRT00...

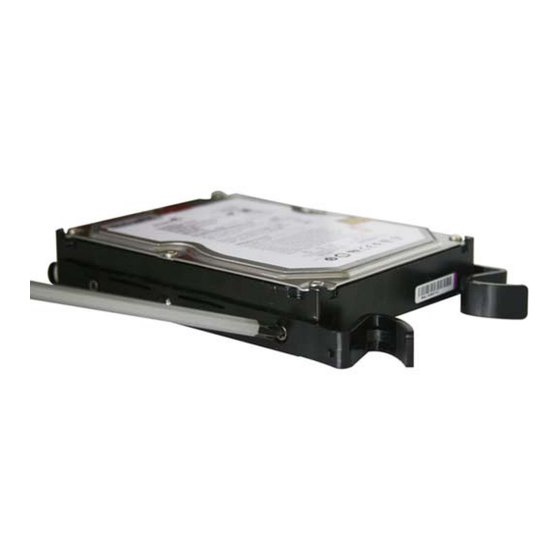

  • Page 4 Quick Operation Guide of Network Video Recorder 2. Insert the key and turn in clockwise direction to open the panel lock. 3. Press the buttons on the panel of two sides and open the front panel. 4. Insert the hard disk along the slot until it is placed into position. 5.
  • Page 5 Quick Operation Guide of Network Video Recorder Connect one end of the data cable to the motherboard of NVR and the other end to the HDD. 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

  • Page 6: Front Panel

    Quick Operation Guide of Network Video Recorder Front Panel HNRT00 Series Name Function Description Turns red when a sensor alarm is detected. ALARM Ready LED is normally blue, indicating that the device is READY functioning properly. Turns blue when device is controlled by an IR remote. STATUS Turns red when controlled by a keyboard and purple when IR remote and keyboard is used at the same time.
  • Page 7 Quick Operation Guide of Network Video Recorder Name Function Description Enter the Manual Record setting menu. In PTZ control settings, press the button and then you can call a REC/SHOT PTZ preset by pressing Numeric button. It is also used to turn audio on/off in the Playback mode. The button is used to enter the Playback mode.
  • Page 8 Quick Operation Guide of Network Video Recorder Name Function Description In Live View mode, these buttons can be used to cycle through channels. In PTZ control mode, it can control the movement of the PTZ camera. The ENTER button is used to confirm selection in any of the menu modes.
  • Page 9 Quick Operation Guide of Network Video Recorder Name Function Description Slot for DVD-R/W. DVD-R/W In menu mode, the direction buttons are used to navigate between different fields and items and select setting parameters. In playback mode, the Up and Down buttons are used to speed up and slow down record playing, and the Left and Right buttons are DIRECTION used to move the recording 30s forwards or backwards.
  • Page 10 Quick Operation Guide of Network Video Recorder Name Function Description Enter numeral “8”; Enter letters “TUV”; 8/TUV/PTZ Access PTZ control interface. Enter numeral “9”; 9/WXYZ/PRE Enter letters “WXYZ”; Multi-channel display in live view. Enter numeral “0”; Shift the input methods in the editing text field. (Upper and lowercase, alphabet, symbols or numeric input).

  • Page 11: Rear Panel

    Quick Operation Guide of Network Video Recorder Rear Panel HNRT00 Series HNR50P6-32 Item Description BNC connector for video output. VIDEO OUT BNC connector for audio output. This connector is synchronized with CVBS AUDIO OUT CVBS video output. BNC connector for audio output. This connector is synchronized with VGA AUDIO OUT VGA video output.
  • Page 12 Quick Operation Guide of Network Video Recorder Item Description AC 100V ~ 240V power supply. AC 100V ~ 240V Switch for turning on/off the device. POWER Universal Serial Bus (USB) ports for additional devices such as USB USB interface mouse and USB Hard Disk Drive (HDD). Network Interfaces with Network interfaces for the cameras and to provide power over Ethernet.

  • Page 13: Peripheral Connections

    Quick Operation Guide of Network Video Recorder Peripheral Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device.

  • Page 14: Controller Connection

    Quick Operation Guide of Network Video Recorder 3. Connect pluggable block back into terminal block. Controller Connection To connect a controller to the NVR: Disconnect pluggable block from the KB terminal block. Unfasten stop screws from the KB D+, D- pluggable block, insert signal cables into slots and fasten stop screws.

  • Page 15: Specifications

    Quick Operation Guide of Network Video Recorder Specifications Specifications of HNRT00 Series HNRT00-3 Model HNRT00-64 8-ch 16-ch 32-ch 64-ch IP video input Video/Audio input 1-ch, BNC (2.0 Vp-p, 1kΩ) Two-way audio 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF Recording /QCIF resolution...

  • Page 16: Specification Of Hnr50P6 Series

    Quick Operation Guide of Network Video Recorder Specification of HNR50P6 Series Model HNR50P6-16 HNR50P6-32 8-ch 16-ch 32-ch IP video input Video/Audio input 1-ch, BNC (2.0 Vp-p, 1kΩ) Two-way audio 5MP /3MP /1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF Recording /QCIF resolution Main stream: 25 fps (P) / 30 fps (N)
  • Page 17 Quick Operation Guide of Network Video Recorder...

  • Page 18: Hdd Storage Calculation Chart

    Quick Operation Guide of Network Video Recorder HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K...

  • Page 19: Accessing By Web Browser

    Quick Operation Guide of Network Video Recorder Accessing by Web Browser Logging In You can get access to the device via web browser. Open web browser, input the IP address of the device and then press Enter. The login interface appears. Input the user name and password, and click the Login button.

  • Page 20: Recording

    Quick Operation Guide of Network Video Recorder Name Description Live View Displays the image of channel, and multi-window division is supported. Window Play Control Bar Play control operations are supported. Pan, tilt, zoom operations are supported, as well as preset editing and calling. PTZ Control PTZ function can only be realized if the connected camera supports PTZ control.
  • Page 21 Quick Operation Guide of Network Video Recorder Choose the day in a week to configure scheduled recording. Click Edit to edit record schedule. Configure All Day or Customize Record: If you want to configure the all-day recording, please check the All Day checkbox. If you want to record in different time sections, check the Customize checkbox.

  • Page 22: Playback

    Quick Operation Guide of Network Video Recorder Playback Interface Introduction Name Description Channel List Displays the list of channels and the playing status of each channel. Playback Window Displays the image of channel. Play Control Bar Play control operations are supported. Time Line Displays the time bar and the records marked with different colors.

  • Page 23: Log

    Quick Operation Guide of Network Video Recorder The color of the video on the progress bar stands for the different video types. You can view and export the log files at any time, including operation, alarm, exception and information of device. Before you start: The Log function can be realized only when the device is connected with HDD or network disk.

  • Page 24: Menu Operation

    Quick Operation Guide of Network Video Recorder Menu Operation Menu Structure The menu structure of the HNR50P6 Series NVR: The menu structure of the HNRT00 Series NVR: Startup and Shutdown Proper startup and shutdown procedures are crucial to expanding the life of the NVR. To start your NVR: 1.

  • Page 25: Live View

    Quick Operation Guide of Network Video Recorder Uninterruptible Power Supply (UPS) be used in conjunction with the device. The Power button (for the HNRT00 series on the front panel should be red, indicating the device gets the power supply. 2. Press the POWER button on the front panel. The Power LED should turn blue (for the HNRT00 series NVR) or green (for the HNR50P6 series NVR).
  • Page 26 Quick Operation Guide of Network Video Recorder Select Add IP Camera in the pop-up menu to enter the IP Camera Management interface. The online cameras with same network segment will be displayed in the camera list. Click the button to add the camera.

  • Page 27: One-Touch Raid Configuration

    Quick Operation Guide of Network Video Recorder You can edit the IP address, protocol, management port, and other information of the IP camera to be added. Click Add to add the camera. (For the encoders with multiple channels only) check the of Channel No.

  • Page 28: Recording

    Quick Operation Guide of Network Video Recorder Click One-touch Configuration button to enter the One-touch Array Configuration interface. Edit the array name in the Array Name text filed and click OK button to start configuring array. If you install 4 HDDs or above for one-touch configuration, a hot spare disk will be set by default. It is recommended to set hot spare disk for automatically rebuilding the array when the array is abnormal.

  • Page 29: All-Day Recording

    Quick Operation Guide of Network Video Recorder Click the icon to enable the record, and the icon turns to . And click icon to disable the record, then the icon turns to All-day Recording Steps: 1. On the live view window, right lick the window and move the cursor to the Start Recording option, and select Continuous Record or Motion Detection Record on your demand.

  • Page 30: Backup

    Quick Operation Guide of Network Video Recorder Front Panel: press PLAY button to play back record files of the channel under single-screen live view. Under multi-screen live view, record files of the selected channel will be played back. Pressing numerical buttons will switch playback to related channels during playback process. Playback management.
  • Page 31 Quick Operation Guide of Network Video Recorder Enter Export interface, choose backup device and click Export button to start exporting. Check backup result. Choose the record file in Export interface and click button to check it. 0300001030909...
