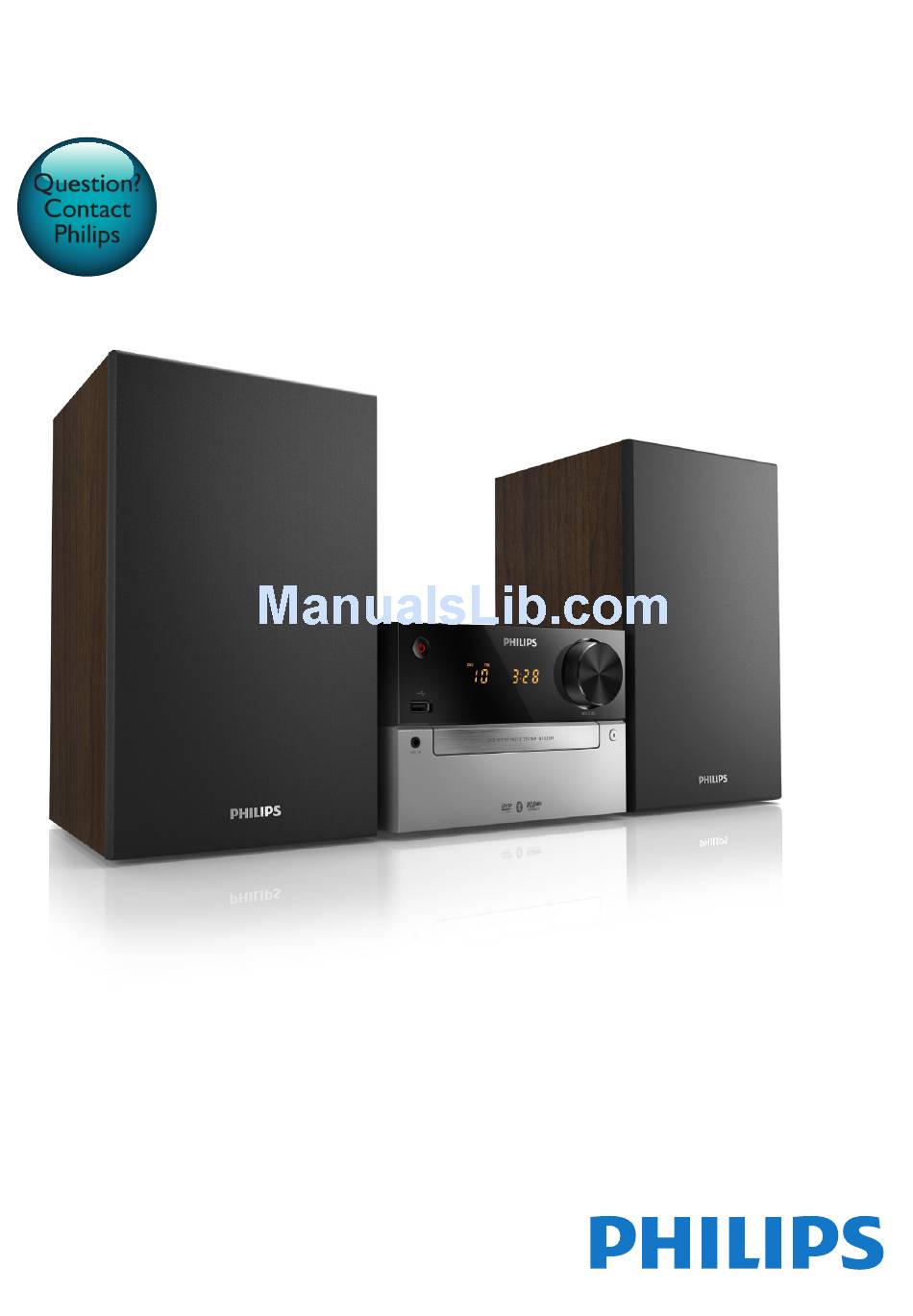

- Page 1 Always there to help you Register your product and get support at www.philips.com/support BTD2339 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 7 Listen to the radio Safety Tune to a radio station Program radio stations automatically Program radio stations manually 2 Notice Select a preset radio station 3 Your micro system 8 Other features Introduction Set the alarm timer Overview of the main unit Set the sleep timer Overview of the remote control... -
Page 4: Important
1 Important fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped. • Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the Safety unit: • Install all batteries correctly, + and - as... -
Page 5: Notice
This equipment should not be used for such purposes. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. This symbol on a product means that the and are used by WOOX Innovations Limited product is covered by European Directive under license from Koninklijke Philips N.V. - Page 6 ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies.
-
Page 7: Your Micro System
3 Your micro The unit supports these media formats: system Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this unit, you can: • watch video from DVD/VCD/SVCD, or Region code USB storage devices. -
Page 8: Overview Of The Main Unit
Overview of the main unit MIC IN • Turn on the product. • Skip to previous/next track. • Switch to standby mode or Eco power • Search within a track/disc/USB. standby mode. • Tune to a radio station. b Display panel • Adjust time. -
Page 9: Overview Of The Remote Control
• SUBTITLE ( ): Select a preset radio Overview of the remote station. control • AUDIO ( ): Set the subtitle language. • Set time. • Return to the previous display menu. g +/- • Adjust volume. • Skip to the previous or next title, chapter, track, or file. -
Page 10: Connect
4 Connect s OK • Confirm a selection. t SOURCE • Select a source: BT (Bluetooth), DISC, USB, FM, AUX. u EJECT Place the unit • Press to open or close the disc compartment. Place the unit near the TV. Place the left and right speakers at equal distance from the TV and at an angle of approximately 45 degrees from the listening position. -
Page 11: Connect Video Cables
Hold down the socket flap. Insert the stripped part of the wire completely. • Insert the right speaker wires to "R", left speaker wires to "L". • Insert the red wires to "+", black wires to "-". Option 2: Connect through component video cables Release the socket flap. -
Page 12: Connect An External Audio Device
• the audio output sockets on the external audio device. If the external audio device has a 3.5mm audio output socket: COMPONENT VIDEO INPUT Connect an external audio • Connect a red/white-to-3.5mm audio device cable (not supplied) to: • the AUDIO-IN (L and R) sockets on You can route audio from an external audio the back of the unit. -
Page 13: Get Started
Always follow the instructions in this chapter in CLOCK SET. sequence. » The hour digits are displayed and begin If you contact Philips, you will be asked for the to blink. model and serial number of this apparatus. The (or +/-) to set hour, and then... -
Page 14: Find The Correct Viewing Channel
To switch to ECO standby mode: Select the correct TV system • Press and hold for more than two seconds. Change this setting if the video is not displayed » The display panel is dimmed. correctly. By default, this setting matches the most common setting for TVs in your country. -
Page 15: Turn On Progressive Scan
6 Play Turn on Progressive Scan Progressive scan displays twice the number of frames per seconds than interlaced scanning (ordinary TV system). With nearly double the number of lines, progressive scan offers higher Play from disc picture resolution and quality. Before you turn on this feature, make sure that: Caution •... -
Page 16: Play From Usb Or Recored Discs
Note • To play a locked DVD, enter the 6-digit parental control • For some DVDs, the language can only be changed password. from the disc menu. Press MENU to access the disc menu. Use the disc menu Play from USB or recored When you load a DVD/(S)VCD disc, a menu may be displayed on the TV screen. -
Page 17: Play A Slideshow With Background Music
Press / to select a file from the folder. • In stop mode and when the disc has not been removed, press Press OK to start play. To stop play completely: • In stop mode, press . Note • You can only play DivX (Home Theater 3.1) videos rented or purchased through the DivX registration Control play code of this unit. -
Page 18: Play Options
• [Mix-Mono] (mix-mono) Play options • [Stereo] (stereo) In DISC/USB play mode, press OPTION (option) to select different play options. Enjoy karaoke • [PBC] (PBC): turn PlayBack Control on/off. [Aspect Ratio](Aspect ratio): select a • You can connect a microphone (not supplied) picture display format to fit the TV screen. to sing along with a music source. [Angle] (Angle): switch between camera • angles. Note Note •... -
Page 19: Play From Bluetooth-Enabled Devices
Compatibility with all Bluetooth devices is not guaranteed. devices that can be paired (refer to the user manual of the device). Select 'Philips BTD2339' on your Bluetooth enabled device and if necessary input '0000' as the pairing password. » After successful pairing and connection, the power/Bluetooth indicator turns solid blue, and the unit beeps twice. -
Page 20: Listen To The Radio
7 Listen to the radio • The unit can memorize up to 8 previously connected Bluetooth devices. To disconnect the Bluetooth-enabled device: Tune to a radio station • Deactivate Bluetooth on your device; or • Move the device beyond the communication range. -
Page 21: Program Radio Stations Manually
8 Other features Program radio stations manually Tune to a radio station. Press PROG, and then press Set the alarm timer select a number from 1–20. Press PROG to confirm. This unit can be used as an alarm clock. You can » [SAVE] (save) is displayed. select DISC, FM, or USB as alarm source. -
Page 22: Set The Sleep Timer
9 Adjust settings Set the sleep timer • To set the sleep timer, in power-on mode, press SLEEP repeatedly to select a set Press . period of time (in minutes). » When the sleep timer is activated, Select the [Setup] (Setup) page. is displayed. Select a setting and press OK. To deactivate sleep timer: • To return to the previous menu, press Press SLEEP repeatedly until [SLP OFF]... -
Page 23: Audio Setup
• [PAL] (PAL) - For TV with PAL color Audio setup system. • [Multi] (Multi) - For TV that is On the [Audio] (Audio) page, you can set the compatible with both PAL and NTSC. following options: • [NTSC] (NTSC) - For TV with NTSC color system. [Surround Mode] (Surround Mode) • [Stereo] (Stereo) • [LT/RT] (left/right) [TV Display] (TV Display) [Sound Mode] (Sound Mode) The TV format determines the aspect ratio of Turn off or select your preferred sound mode. - Page 24 [Parental Control] (Parental Control) Note Restrict access to discs that are unsuitable for • If you forget the password, enter '000000' before you children. These types of discs must be recorded set a new password. with ratings. 1) Press OK. [DivX Subtitle] (DivX Subtitle) 2) Select a rating level, and then press OK. Select a character set that supports the DivX 3) Press the numeric keys to enter the subtitle.
-
Page 25: Product Information
10 Product Tuner (FM) information Tuning Range 87.5-108 Tuning grid 50 KHz Sensitivity Note - Mono, 26dB S/N Ratio <22 dBf • Product information is subject to change without prior - Stereo, 46dB S/N Ratio <45 dBf notice. Search Selectivity <30 dBf Total Harmonic Distortion <3%... -
Page 26: Supported Disc Formats
General information USB playability information AC power 100-240 V, 50/60 Hz Compatible USB devices: • USB flash memory (USB2.0 or Operation Power 20 W Consumption USB1.1) Eco Standby Power <0.5 W • USB flash players (USB2.0 or USB1.1) Consumption • memory cards (requires an additional Dimensions 180 x 121 x card reader to work with this unit) 239 mm - Main Unit (W x H x D) -
Page 27: Troubleshooting
• Check the disc type, color system and requesting service. If the problem remains regional code. Check for any scratches or unsolved, go to the Philips Web page (www. smudges on the disc. philips.com/support). When you contact Philips, • Press to exit the system setup menu. - Page 28 DivX video files cannot be played. • The device does not support the profiles required for this unit. • Ensure that the DivX video file is complete. • The Bluetooth function of the device is not enabled. Refer to the user manual of • Ensure that the file extension is correct. the device to find out how to enable the • Due to Digital Rights issue, the DRM- function.
- Page 30 Specifications are subject to change without notice 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.
