Related Manuals for Philips BTB1370
Summary of Contents for Philips BTB1370

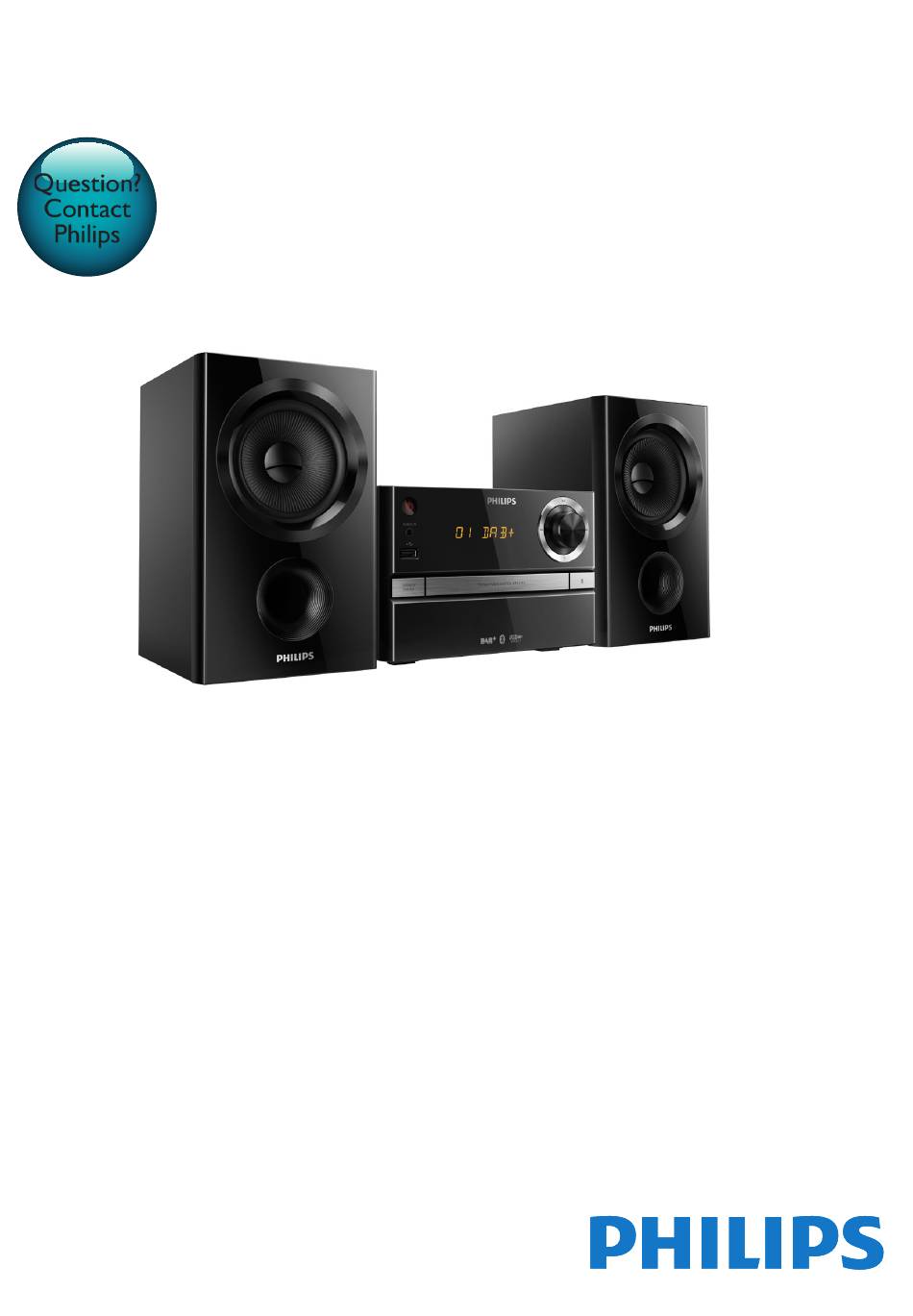

- Page 1 Always there to help you Register your product and get support at www.philips.com/support BTB1370 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 7 Product information Safety Specifications USB playability information Supported MP3 disc formats 2 Your micro system RDS program types Introduction What's in the box 8 Troubleshooting Overview of the main unit Overview of the remote control 9 Notice 3 Get started Compliance Connect speakers... -
Page 4: Important
1 Important Safety • Make sure that there is enough free space around the product for ventilation. • Only use attachments or accessories specified by the manufacturer. • Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the product: •... -
Page 5: Your Micro System
2 Your micro system Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this unit, you can: • enjoy audio from discs, Bluetooth-enabled devices, USB storage devices, or other external devices; •... -
Page 6: Overview Of The Main Unit
Overview of the main unit j SOURCE/PAIRING • Press to select a source: DISC, • Turn the unit on or off. BLUETOOTH, USB, DAB, TUNER, • Switch to standby mode or Eco AUDIO IN. standby mode. • In Bluetooth mode with two devices connected, press and hold for 3 b AUDIO IN seconds to disconnect the first... -
Page 7: Overview Of The Remote Control
Overview of the remote • Skip to the previous/next track. control • Search within a track/disc/USB. • Tune to a radio station. • Adjust time. e DIM • Adjust display brightness. /MENU • Stop play or erase a program. • Access the DAB+ or FM menu. - Page 8 q DAB/FM • Press repeatedly to select the DAB or FM source. r CD • Select the DISC source.
-
Page 9: Get Started
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of this apparatus. The model number and serial number are on the Connect FM antenna back of the apparatus. -
Page 10: Connect Power
Connect power Demonstrate the features In standby mode, press to demonstrate Caution features of this device. • Risk of product damage! Ensure that the power supply » The features are displayed one by one voltage corresponds to the voltage printed on the back across the display panel. -
Page 11: Turn On
Turn on • Press . » The unit switches to the last selected source. Switch to standby mode • Press again to switch the unit to standby mode. » The clock (if set) is displayed on the panel. Switch to ECO standby mode: •... -
Page 12: Play
4 Play Play from disc Press CD to select the DISC source. Press on the front panel to open the disc compartment. Insert a disc with the printed side facing upward. Press again to close the disc compartment. » Play starts automatically. If not, press Charge your device You can charge your mobile device through the USB socket on the unit with a USB cable (not... -
Page 13: Control Play
Program tracks You can program a maximum of 20 tracks. Stop play, and then press PROG/SCAN to activate programming mode. For MP3 tracks, press ALBUM/PRESET Philips BTB1370 0000 to select an album. Press to select a track, and then press PROG/SCAN to confirm. - Page 14 Play music on the connected device. » Music streams from your Bluetooth enabled device to this unit. • If you fail to search for 'Philips BTB1370' or cannot pair with this unit, press and hold /PAIRING for 3 seconds until the Bluetooth indicator flashes quickly to enter pairing mode.
-
Page 15: Listen To The Radio
5 Listen to the Note radio • If no DAB+ radio station is found, [NO DAB] (no DAB) is displayed, and then [FULL SCAN] (full scan) is displayed again. To tune to a station from the available station list: • Position the antenna as far as possible from TV or other •... -
Page 16: Listen To Fm Radio
Press PROG/SCAN to confirm. To select an option, press OK. » The name of the preset station is If a sub-option is available, repeat steps displayed. 2- 3. [SYSTEM] (system) Repeat the above steps to store more [RESET] (reset): reset all settings to •... - Page 17 Press OK, and then press to scroll Show RDS information through the menu options: • [STRONG] (strong stations): scan Radio Data System (RDS) is a service stations with strong signals only. that allows FM stations to show additional [ALL] (all stations): scan all available FM •...
-
Page 18: Other Features
6 Other features • If DISC/USB source is selected, but no disc is placed or no USB connected, the unit switches to the tuner source automatically. Set the alarm timer Set the sleep timer This unit can be used as an alarm clock. You can select DISC, USB,DAB,or FM as the alarm •... -
Page 19: Charge Your Devices
Note • Gibson Innovations does not guarantee the compatibility of this product with all devices. Charge your devices With this micro music system, you can charge your external devices, such as your cell phone, MP3 player or other mobile devices. Use a USB cable to connect the USB socket of product with the USB socket of your devices. -
Page 20: Product Information
7 Product Bluetooth information Bluetooth version V2.1+EDR Bluetooth frequency 2.4GHz ~ 2.48GHz band ISM Band Range 10 m (free space) Note • Product information is subject to change without prior notice. USB Direct Version 2.0 full speed USB Charging 5V, 500mA Specifications Tuner (FM) Tuning Range... -
Page 21: Usb Playability Information
Unsupported USB formats: General information • Empty albums: an empty album is an AC power 100V-240V, 50/60 HZ album that does not contain MP3/ Operation Power ≤20W WMA files, and will not be shown in Consumption the display. • Unsupported file formats are skipped. Eco Standby Power ≤0.5W For example, word documents (.doc) Consumption or MP3 files with extension .dlf are Dimensions... -
Page 22: Rds Program Types
RDS program types NO TYPE No RDS programme type NEWS News services AFFAIRS Politics and current affairs INFO Special information programs SPORT Sports EDUCATE Education and advanced training DRAMA Radio plays and literature CULTURE Culture, religion and society SCIENCE Science VARIED Entertainment programs POP M... -
Page 23: Troubleshooting
If the problem remains • The formats of these files are not unsolved, go to the Philips Web page (www. supported. philips.com/support). When you contact Philips, USB device not supported make sure that the device is nearby and the •... - Page 24 The paired mobile device connects and disconnects constantly. • The Bluetooth reception is poor. Move the device closer to this unit or remove any obstacle between them. • Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of this unit.
-
Page 25: Notice
Removing the disposable batteries of Directive 1999/5/EC. You can find the To remove the disposable batteries, see battery Declaration of Conformity on www.philips.com/ installation section. support. Environmental information This apparatus includes this label: All unnecessary packaging has been omitted. -
Page 26: Care For Your Product
Care for your product • Do not insert any objects other than discs into the disc compartment. • Do not insert warped or cracked discs into the disc compartment. • Remove the discs from the disc compartment if you are not using the product for an extended period of time. - Page 28 Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. BTB1370_12_UM_V1.0...
