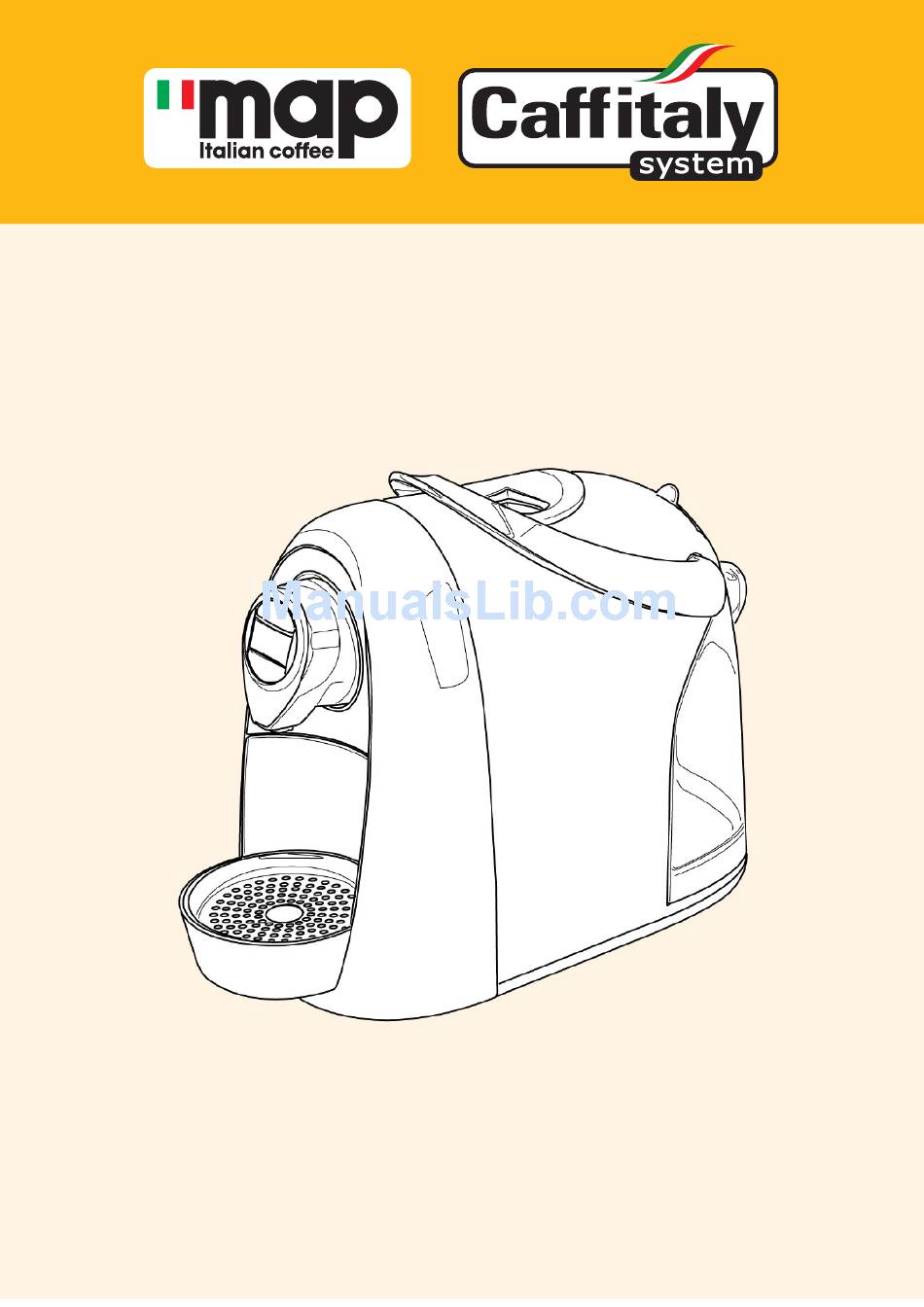

  • Page 1 Instruction book Model Bella /...

  • Page 2: Table Of Contents

    Table of Contents Adjusting the cup/mug height Brewing coff ee Preparing other beverages Programming the quantity of coff ee in a cup Daily maintenance Descaling the machine...
  • Page 3 Main topics Safety warnings _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _4 Instructions for use and disposal _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _6 Your Ca ffi taly System contact _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _6 Intended use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _7...

  • Page 4: Safety Warnings

    Safety warnings Please keep these instructions safe. It is necessary to pay attention to these warnings in order to avoid the risk of personal injury and damage to the appliance. Do not use the appliance if it is damaged in any way. At the fi rst sign of defects or unusual noises or smells, turn off the appliance and unplug it.
  • Page 5 Safety warnings Never place your hands inside the capsule compartment. Danger of injury! Never remove parts of the appliance. Do not insert objects into the openings. This could cause electric shocks! Any operation that is not described in this instruction manual should only be performed by an Authorized Service Center! Clean the appliance carefully and regularly.

  • Page 6: Instructions For Use And Disposal

    Improper disposal of the product by the user shall be subject to specifi c administrative sanctions as provided for under current regulations. The packaging is made from recyclable materials. Contact the competent authorities for information regarding local legislation. Your Map Coffee contact Australia New Zealand info@mapcoff ee.com.au info@jalmacsales.com...

  • Page 7: Intended Use

    The appliance is made to brew coff ee and dispense hot water. It is intended for domestic use and must be used in accordance with these instructions. Use only Map Coff ee capsules. Any other use is to be considered improper.

  • Page 8: Description

    Description Capsule compartment Water tank door Lever for opening capsule compartment Water tank Dispensing spout Used capsule drawer Metal grate Electric cord Power on/off switch Espresso button Coff ee button Descaling indicator light Alarm indicator light Filter beverage button (chocolate, tea flavoured beverages)

  • Page 9: Priming Your Machine

    Priming your machine Fill the water tank with fresh, still water. Plug in the appliance and turn it on. The buttons and alarm indicator light will blink Place an ample container under the dispensing spout. simultaneously. Press one of the coff ee buttons. Wait for the At the end of this operation, empty out the water from the used capsule drawer.

  • Page 10: Turning On The Appliance

    Turning on the appliance Fill the water tank with fresh, still water. The buttons will blink simultaneously to indicate that the Turn the appliance on. machine is warming up. When the buttons remain steadily lit, the appliance is ready for operation. General operating indications DESCALING SIGNAL DESCALING SIGNAL - DISABLING...
  • Page 11 WARMING UP WHEN THE WATER RUNS OUT DURING OPERATION The buttons fl ash simultaneously. The indicator light will blink RED and the appliance will emit 3 beeps: the water tank is empty or water flow has been interrupted. Fill the tank with fresh, still water. Raise lever to eject capsule, lower lever.
  • Page 12 IF THE LEVER IS RAISED If the lever is raised while a beverage is being dispensed. The indicator light will blink RED and an intermittent beep will be emitted. The appliance will immediately stop dispensing. Close the lever. Press a button to reset the alarm. Espresso Long coff ee Filter beverage...

  • Page 13: Adjusting The Cup/Mug Height

    Adjusting the cup/mug height The appliance can be adjusted for the use of mugs or The appliance is initially set for the use of large cups or mugs. espresso cups. In order to use espresso cups, you must lift and turn the grill The grill must be positioned over the drip tray turned.

  • Page 14: Brewing Coff Ee

    Brewing coff ee Warning! Before you start brewing, make sure the capsule container is not full Raise the lever to open the capsule compartment. Insert the capsule, pressing it gently into place. Close the lever fi rmly. Place a cup or mug under the coff ee dispensing spout (see chapter 4).

  • Page 15: Preparing Other Beverages

    Raise the lever to eject the used capsule into the drawer. Close the lever. NOTE: The quantity of coff ee dispensed can be reprogrammed according to personal taste and the size of the cups/mugs used. Please refer to chapter 7 for reprogramming instructions. Preparing other beverages Capsules may be available for preparing beverages such as tea, chamomile tea, fi lter beverages, etc.

  • Page 16: Programming The Quantity Of Coff Ee In A Cup

    Programming the quantity of coff ee in a cup Warning! Before you start brewing, make sure the capsule container is not full Raise the lever to open the capsule compartment. Insert the capsule, pressing it gently into place. You may also program the length of pour without a capsule inside.

  • Page 17: Saving Energy

    Saving energy The machine features a function (normally activated) which automatically reduces energy consumption by around 98% after one hour has elapsed since it was last used. To deactivate (or reactivate) this function, proceed as follows: Make sure the lever is lowered. Keep the buttons pressed down and at the same time turn The indicator light will fl ash three times and 3 beeps will on the machine by pressing the power on/off switch.

  • Page 18: Daily Maintenance

    Daily maintenance Remove the drip tray and used capsule drawer. Lift the capsule drawer; empty and rinse it out. Remove the grill. Empty the drip tray and rinse it out Remove the water tank. Empty and rinse out the tank. The with fresh water.

  • Page 19: Descaling The Machine

    Do not use vinegar: it could damage your appliance! During descaling, do not turn the machine off . We suggest only using Map Coffee branded descaling liquid. Turn the machine off . Empty and rinse out the used capsule drawer and drip tray.
  • Page 20 Place a container (at least 250 ml) under the coff ee Make sure the lever is lowered and there is no capsule dispensing spout. inside the machine. Keep the buttons pressed down and simultaneously turn The coffee button and the LEDs blink alternately. Press on the machine by pressing the power on/off switch.
  • Page 21 The auto descale process takes 45 to 60 minutes to Carefully rinse out the water tank and fi ll it with fresh complete. When the cycle is over, the coffee drinking water. button and the LEDs blink alternately. Empty and rinse out the used capsule drawer and drip tray. The coffee button and the LEDs blink alternately.
  • Page 22 When the rinse cycle is over, the coffee button and Carefully rinse out the water tank and fi ll it with fresh the LEDs blink alternately. The machine will emit a drinking water. beep. Empty and rinse out the used capsule drawer and drip tray. Press the coffee button to quit the cycle.

  • Page 23: Draining The Appliance

    Draining the appliance CAUTION - When the appliance is not used for a long time, it is necessary to drain the water lines. In cold climates liquids may freeze and damage the appliance. Turn the machine off . Make sure the lever is lowered. Remove and empty out the water tank.

  • Page 24: Troubleshooting

    Troubleshooting Problem Cause Solution No coff ee is brewed. The water tank is empty, the alarm Fill the tank with fresh water. indicator light is on and red. Press the desired coff ee button. The appliance will resume brewing. The coff ee is not hot enough. Cold cups / mugs Preheat the cup.
  • Page 28 Australia New Zealand Imported for Map Coffee Imported by Jalmac Sales & Marketing By Earth Rules Pty. Ltd. Phone: 0800 726 713 Phone: 1800 239 438 www.mapcoffee.com www.mapcoffee.com.au...
