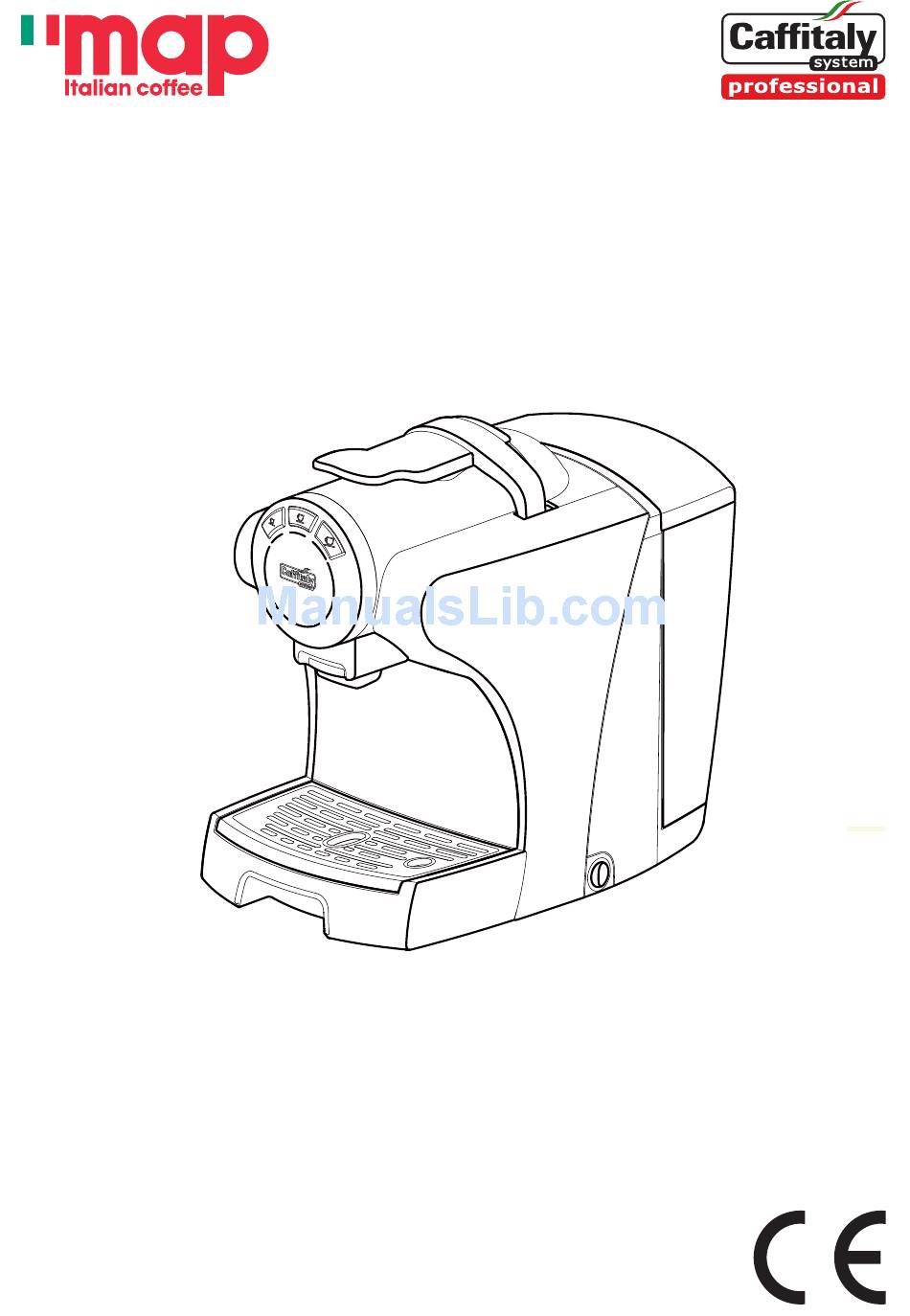

  • Page 1 Instruction Manual Model S05 / CAPO...

  • Page 2: Table Of Contents

    Table of contents Introduction Intended use ..................25 Follow the instructions - Symbols ............. 25 Your Map Coffee contact ..............25 Safety warnings ..................26 Instructions for use and disposal ............27 Description of machine components ..........28 Installation / Setup First use or after a long period of nonuse ........

  • Page 3: Introduction

    - by guests staying at hotels, motels and other residential facilities; - facilities like bed and breakfasts. Use only Map Coffee capsules. Use of the appliance in any manner other than as directed herein could cause harm to persons and void your warranty.

  • Page 4: Safety Warnings

    Introduction Safety warnings Carefully read the following instructions! In this way you will avoid the risk of personal injury and damage to the appliance. After removing the packaging, check that the appliance is not damaged. If damage is found, or upon the first sign of a defect (unusual noise or odours), or if any problem is detected inside the appliance, do not use it and contact an Authorised Service Centre instead.

  • Page 5: Instructions For Use And Disposal

    Introduction Descale the appliance regularly, following the instructions provided. Failure to do so will result in appliance working inefficiently. Clean the appliance carefully and regularly. If it is not cleaned, the build-up that forms may be hazardous to your health. Unplug the appliance and allow it to cool before cleaning. If you do not expect to use the appliance for a long period of time (leaving on vacation, etc.), unplug it.

  • Page 6: Description Of Machine Components

    Introduction Description of machine components Water tank cover Lever for opening capsule compartment Capsule compartment Water tank Dispensing spout (adjustable) Power cord Power on/off switch Used capsule drawer Drip tray "Espresso" button "Long coffee" button "Filter coffee" button "No Water" indicator light "Capsule drawer full"...

  • Page 7: First Use Or After A Long Period Of Disuse

    First use or after a long period of disuse Fill the tank with fresh, still water. Plug in the appliance and turn it on. Make sure the lever is closed. Together with the indicator light for the dispensing buttons (espresso, long coffee, filter coffee) the no water indicator light also blinks alternately.

  • Page 8: Turning On The Appliance

    Turning on the appliance The buttons (espresso, long coffee, filter When the buttons turn on and remain steadily coffee) blink at the same time; the machine is lit, rinse by pressing the filter coffee button. warming up. Press the button again to rinse a second time. Wait for the machine to complete the rinse cycle.

  • Page 9: General Operating Indicators

    General operating indications DESCALING SIGNAL HEATING The buttons blink at the same time. When the descaling blinks YELLOW the machine emits 3 beeps, it is advisable to perform the descaling cycle. (See Ch. 10) WHEN THE WATER RUNS OUT DURING OPERATION The water tank is empty when the no water Fill the tank with fresh, still water.
  • Page 10 General operating indications 1ST GROUNDS DRAWER SIGNAL 2ND GROUNDS DRAWER SIGNAL - DISABLING When the capsule drawer full blinks RED, it is When the capsule drawer full turns advisable to empty the used capsule drawer. remains steady, the machine stops running and you MUST empty the used capsule drawer.

  • Page 11: Adjusting The Cup/Mug Height

    Adjusting the cup/mug height The appliance can be adjusted for the use of The appliance is initially set for the use of large mugs or espresso cups. cups. To use espresso cups, lower the end part of the In this way you can obtain the best results dispensing spout.

  • Page 12: Dispensing Coffee

    Dispensing coffee Insert the capsule, pressing it gently into place. Raise the lever to open the capsule compartment. Place a cup or mug under the coffee dispensing Close the lever fully. spout. The selected coffee button will blink. The Press and release the button corresponding appliance will stop dispensing on reaching the to the type of coffee you want.

  • Page 13: Correct Use Of The Buttons

    Correct use of the buttons Close the lever. Raise the lever to eject the used capsule into the drawer. NOTE: The quantities of coffee dispensed can be programmed according to personal taste and the size of the cups or mugs used. Please refer to chapter 7 for programming instructions.

  • Page 14: Programming The Quantity Of Coffee In A Cup

    Programming the quantity of coffee in a cup aise the lever to open the capsule Insert the capsule, pressing it gently into place. compartment Place a cup or mug under the coffee dispensing Close the lever fully. spout depending on the type of coffee you wish to program.

  • Page 15: Saving Energy

    Saving energy To restore normal operating conditions, press The machine will automatically reduce any button or raise the lever. The appliance will consumption one hour after the last use. The buttons (espresso, long coffee, filter coffee) start warming up. The buttons will be steadily WHITE when the appliance is ready for use.

  • Page 16: Daily Maintenance

    Daily maintenance The capsule drawer full indicator light may turn on during normal operation. The operation must be performed when the appliance is on. The count of the capsules deposited in the drawer is not reset if the capsule drawer is emptied when the appliance is off.

  • Page 17: Descaling

    Descaling DESCALING SIGNAL The machine features an advanced program that monitors how much water is used to dispense beverages. This measurement provides the user with indications as to when the machine needs to be descaled. Specific indications are given in chapter 3.
  • Page 18 Descaling Remove and empty the water tank. Mix the contents of one bottle of Caffitaly with approximately 750 cc water (a total volume of 1 litre) and pour into the tank. Place a container (at least 1 litre) under the Make sure the lever is lowered and there are no coffee dispensing spout.
  • Page 19 Descaling The appliance dispenses the descaling solution When the first step is complete, the long at intervals (5 doses with a 4 minute pause coffee button lights up and a beep is emitted between each one, for a total duration and repeated.
  • Page 20 Descaling Carefully rinse out the water tank and fill it When the rinse cycle is complete, the machine emits a beep and the buttons (espresso, long with fresh drinking water. coffee, filter coffee) blink at the same time; lthe machine is warming up. When the buttons turn on and remain steadily lit, the appliance is ready for use.

  • Page 21: Troubleshooting

    Troubleshooting PROBLEM CAUSE SOLUTION No coffee is brewed. The The water tank is empty. Fill the tank with fresh water. no water indicator light Press a button to reload the circuit. blinks RED. When the buttons remain steadily lit, the appliance is ready for use.

  • Page 22: Technical Data

    Technical data see the data plate on the bottom of the machine max. 15 bar < 70 dB A approx. 6 kg 2 litres ambient temperature: 10°C - 40°C 220 mm 290 mm 332 mm...
