  • Page 1 LIGHT SPORT AVIATION EV-97 teamEUROSTAR UK...

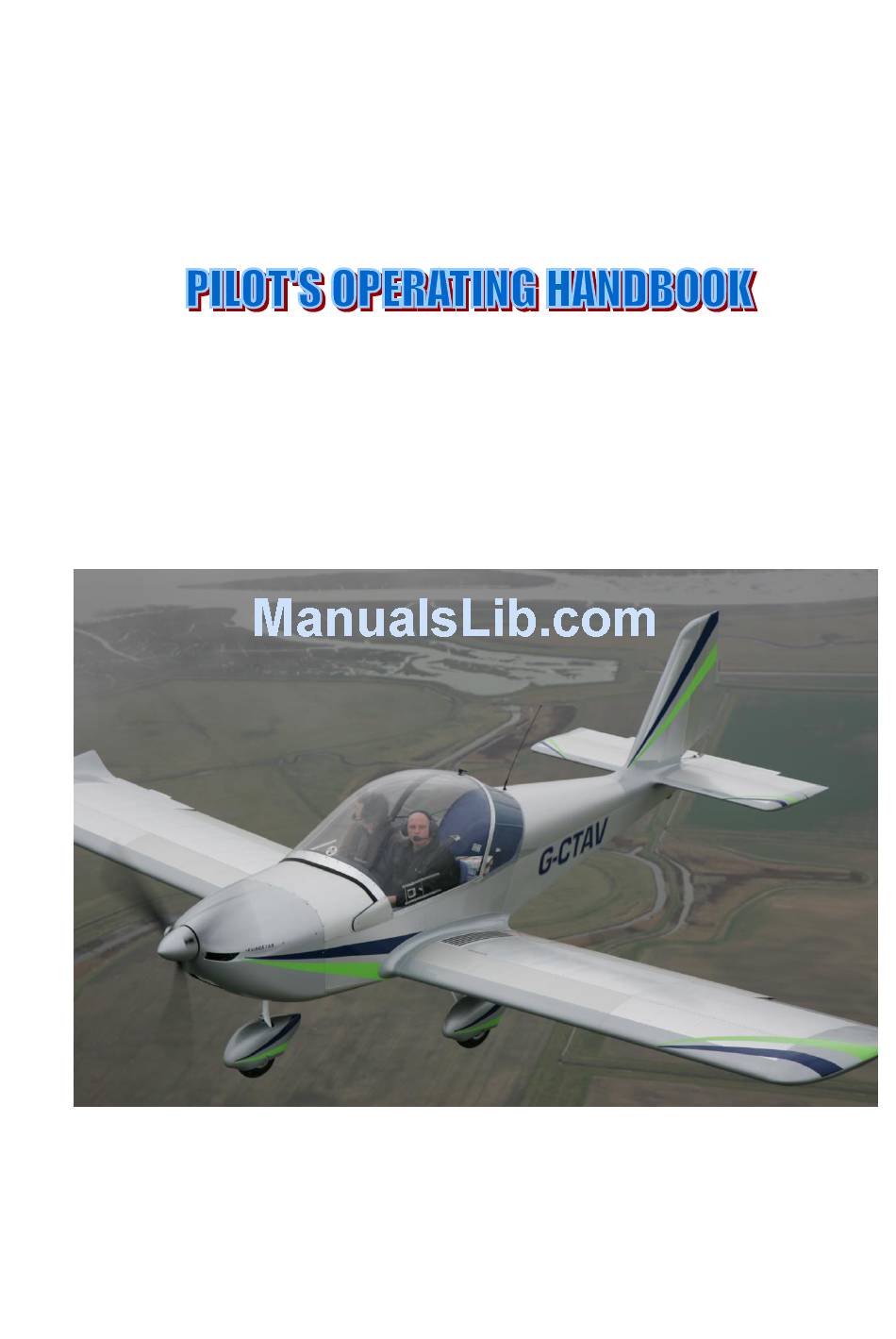

  • Page 2 PILOT’S OPERATING HANDBOOK FOR MICROLIGHT AEROPLANE EV-97 teamEurostar UK Model: ..........Registration: ..........Serial No..........Approved by: ............This aeroplane must be operated in compliance with the information and limitations contained herein. This POH must be available on board the aeroplane.
  • Page 3 Amendment Record Issue Details of Change Date Authorised Initial issue 14/07/03 Addition of optional hourmeter and warning 16/8/04 lamp – P37 CHT Changes – Pages 10, 11, 14 06/06/11 POH/EUR/01 Issue 3 Page 3 of 41...

  • Page 4: Table Of Contents

    Table of Contents SECTION 1 – GENERAL INFORMATION AND TECHNICAL DATA ......6 1.1 Introduction ..........................6 1.2 Certification basis ........................6 1.3 Warnings, cautions and notes ....................6 1.4 Descriptive Data .......................... 6 SECTION 2 - LIMITATIONS ....................9 2.1 Introduction ..........................
  • Page 5 4.4 Normal procedures ........................23 SECTION 5 - PERFORMANCE ..................28 5.1 Introduction ..........................28 5.2 Airspeed Indicator System Calibration.................. 28 5.3 Stall Speeds ..........................29 5.4 Take-off performance ......................29 5.5 Landing distances ........................29 5.6 Climb performance ........................30 5.7 Cruise ............................

  • Page 6: Section 1 - General Information And Technical Data

    UK microlight aeroplane. It also contains supplemental data which may be found useful. Certification basis The EV-97 teamEUROSTAR UK has been approved by UK Civil Aviation Authority against the requirements of BCAR section S. Warnings, cautions and notes The following definitions apply to warnings, cautions and notes in the flight manual:...
  • Page 7 1.4.2 Technical Data Wing Span 26.57 ft Area 9.84 105.92 ft Mean Aerodynamic Centre (MAC) 1.25 4.10 Wing Loading 45.7 kg/m 9.37 lb/ft Aileron area 0.21 m 2.26 Flap area 0.52 5.60 Fuselage Length 5.98 19.62 ft Width 1.04 3.41 Height 2.34 7.67...
  • Page 8 1.4.3 Three-view drawing 2 6 .5 7 f t 8 .1 m 8 .2 f t 2 .5 m 3 .1 f t 7 .3 8 f t 2 .2 5 m 0 .9 4 m POH/EUR/01 Issue 3 Page 8 of 41...

  • Page 9: Section 2 - Limitations

    SECTION 2 - LIMITATIONS Introduction Section 2 includes operating limitations, instrument markings and basic placards necessary for the safe operation of the aircraft, its engine, standard systems and standard equipment. Airspeed Airspeed limitations and their operational significances are shown below: Remarks Speed Never exceed...

  • Page 10: Powerplant

    Powerplant Engine Model: ROTAX 912 UL Engine Manufacturer: Bombardier-Rotax GMBH Max Take-off: 59.6 kW / 80 hp at 5800 rpm, max.5 minutes Max. 56 kW / 75 hp at 5200 rpm Continuous: 53 kW / 71 hp at 4800 rpm Cruising: Max.

  • Page 11: Powerplant Instrument Markings

    Powerplant Instrument Markings Analogue powerplant instruments are installed in the EV-97 teamEurostar UK aeroplane, with the following markings: Minimum Normal Caution Range Maximum Range Limit Operating Engine speed (RPM) 1400 1400-5200 5200-5800 5800 60-100 °C 100-150 °C, 212-302 °F 150 °C, 302 °F Cylinder Head Temperature 60 °C, 140 °F...

  • Page 12: Approved Manoeuvres

    Approved manoeuvres Aeroplane Category: Normal; the EV-97 teamEurostar UK aeroplane is approved for normal and below listed manoeuvres:  Steep turns not exceeding 60° bank  Lazy eights  Chandelles  Stalls (except whip stalls) WARNING Aerobatics and intentional spins are prohibited ! 2.10 Manoeuvring Load Factor...

  • Page 13: Crew

    2.11 Crew Minimum Crew Minimum Crew Weight 55 kg, 121 lb Maximum Crew Weight see 6.2 WARNING Always comply with the maximum take-off weight of 450 kg (992 lbs) 2.12 Kind of Operations Daytime VFR flights only. WARNING IFR flights and flights under icing conditions are prohibited. Minimum instruments required for VFR flights: (i) Airspeed indicator, marked in accordance with 2.3 (ii) Altimeter...

  • Page 14: Limitations Placards

    2.16 Limitations Placards The owner of this aeroplane is responsible for the readability of placards during the aircraft service life. The following placards are located on the aeroplane: In view of the pilot: Flight limited to daytime VFR non-icing conditions. Aerobatics and intentional spinning are prohibited.
  • Page 15 NOTE The values stated on the above placard, FUEL and LOAD LIMITS, are valid for the maximum permitted empty weight of the aircraft. If the empty weight is less than the maximum of 268 kg, a customised placard may be used for revised load limits. CG Limits 250 –...

  • Page 16: Section 3 - Emergencies

    SECTION 3 - EMERGENCIES Introduction Section 3 provides checklists and detailed procedures for coping with various emergencies that may occur. Emergencies caused by aircraft or engine malfunction are extremely rare if proper pre-flight inspections and maintenance are practiced. However, should an emergency arise, the basic guidelines described in this section should be considered and applied as necessary to correct the problem.

  • Page 17: In-Flight Start

    In-Flight start Speed - glide at 68 mph Altitude - check Landing area - choose according to altitude Master switch - switch on Fuel cock - open Choke - as necessary (for cold engine) Throttle - set 1/3 open Ignition - switch on Starter - push button to start the engine...

  • Page 18: Glide

    3.4.4 Fire in flight: Fuel cock - shut off Throttle - fully open to use excess fuel. Master switch - switch off Ignition - switch off after using up fuel in carburettors and engine stops. Choose an emergency landing area. Make emergency landing in accordance with 3.5 below.

  • Page 19: Landing With A Flat Tyre

    2. Land as soon as possible; perform a precautionary landing if necessary. 3.11.2 Carburettor icing The EV-97 teamEurostar UK is fitted with a coolant carburettor heater system which should prevent carburettor icing; however icing may be possible under extreme conditions.
  • Page 20 To recover the engine power, the following procedure is recommended: Speed - 68 mph Throttle- set for 1/3 power If possible, leave the icing area Increase the engine power gradually to cruise conditions after 1-2 minutes. If engine power cannot be recovered, make a precautionary landing, depending on the circumstances.

  • Page 21: Section 4 - Normal Operations

    SECTION 4 – NORMAL OPERATIONS Introduction Section 4 provides checklists and detailed procedures for normal operations. Procedures for optional systems can be found in section 9. Assembly and disassembly For assembly and disassembly procedures refer to the Technical Description, Operating and Maintenance Manual for the Ultra-light Aeroplane EV-97 teamEUROSTAR UK.
  • Page 22 Rear part of fuselage  Surface condition, top and bottom. Vertical tail unit  Surface condition.  Play in rudder hinge.  Free rudder movement. Horizontal tail unit  Surface condition, top and bottom.  Attachment.  Play in elevator hinge. ...

  • Page 23: Normal Procedures

    Cockpit  Ignition - switched off  Master switch - switched off  Instruments - check condition  Fuel gauge - check fuel quantity (switch Master ON, then OFF again).  Controls - visual check - check correct function - check play - check flaps’...
  • Page 24 CAUTION The starter should be activated for a maximum of 10 sec., followed by a 2 min. pause for starter motor cooling. After starting the engine, adjust the throttle for smooth running between 2500- 2750 rpm. Check the oil pressure, which should increase within 10 sec. Increase the engine speed after the oil pressure has reached 2 bars (29 psi) and is steady.
  • Page 25 If the cylinder head temperature or oil temperature exceeds its limit, reduce the climb angle to increase airspeed. 4.4.9 Cruise EV-97 teamEurostar UK flight characteristics are very forgiving within permitted limits of airspeeds, configurations and CG range. The aircraft is very easy to both control and manoeuvre.
  • Page 26 4.4.11 Check before landing 1. Fuel - fuel quantity check 2. Safety harness - tightened 3. Brakes - check function 4. Trim - adjust 5. Landing area check - correct runway or into wind - base leg area clear - runway area clear 4.4.12 On base leg 1.
  • Page 27 CAUTION Rapid engine cooling should be avoided. such cooling is most likely to occur during aircraft descent, taxiing, low engine rpm or at engine shutdown immediately after landing. Under normal conditions the engine temperatures stabilise during descent and taxiing at values suitable for stopping the engine by switching the ignition off. If necessary, cool the engine at 2500 –...

  • Page 28: Section 5 - Performance

    SECTION 5 - PERFORMANCE Introduction Section 5 provides approved data for airspeed calibration, stall speeds, take-off performance and additional information useful for operation of the aeroplane. The data in the charts has been computed from actual flight tests with the aircraft and engine in good condition and using average piloting techniques.

  • Page 29: Stall Speeds

    Stall Speeds Power Stall Speed Stall Flap Setting Setting Warning type (rpm) (mph) (mph) Retracted Idle No distinctive warning 5200 Take-off Idle Wings 5200 level Aeroplane mushes, Landing, 1 Idle stall without pitching down. notch 5200 Landing, 2 Idle notch 5200 Retracted Idle...

  • Page 30: Climb Performance

    Climb performance EV-97 teamEUROSTAR Rate of climb with ROTAX 912 (80 HP) engine and V230C (18°40') propeller 0 ft 2000 ft Rate of climb [ft/min] 4000 ft 6000 ft 8000 ft Airspeed IAS [mph] Cruise EV-97 EUROSTAR Horizontal speeds with ROTAX 912 (80 hp) engine and V 230C (18°40') prop 0 ft ISA Horizontal speed CAS [mph] 2000 ft ISA...

  • Page 31: Horizontal Speeds

    Horizontal Speeds The following tables give indicated airspeeds (IAS) and corresponding True Air Speeds (TAS) versus altitude, for various engine speeds. 4000 rpm 4200 rpm 4500 rpm 4800 rpm 5000 rpm 5200 rpm 5500 rpm 5750 rpm 68 mph IAS 73 mph IAS 80 mph IAS 87 mph IAS...

  • Page 32: Baulked Landing Climb

    5.10 Baulked landing climb EV-97 "EUROSTAR" Baulked landing climb Rotax 912 Engine, V 230C ( 18° 40´ ) propeller Flaps "TAKE- OFF" Rate of Climb [ft/min] Flaps "LANDING" Airspeed IAS [mph] 5.11 Environmental Effects on Flight Performance and Characteristics Flight performance and handling are not substantially affected by rain or the accumulation of insects or moderate dirt on the aeroplane’s surface.

  • Page 33: Section 6 - Weight And Balance

    Procedures for weighing the aircraft and the calculation method for establishing the permitted payload range are contained in the Maintenance Manual for the EV-97 teamEUROSTAR UK. Maximum Permitted Crew Weight for given Baggage and Fuel Loads, kg. FUEL LOAD...

  • Page 34: Section 7 - Aeroplane And Systems Description

    SECTION 7 - AEROPLANE AND SYSTEMS DESCRIPTION Introduction This section describes the aircraft, its systems and their operation. Airframe EV-97 teamEurostar UK airframe is a semi-monocoque construction, formed with metal reinforcements, bulkheads and Duralumin skins. 7.2.1 Fuselage The fuselage cross-section is rectangular in the lower section and semi- elliptical in the upper section.

  • Page 35: Cockpit Controls

    Cockpit Controls Standard instruments and controls are shown below: Throttle Instrument panel Control stick Choke Fuel cock Rudder pedals Fuel filler with toe brakes Safety belt Safety belt Baggage compartment Trim control Flap control lever Landing gear The aeroplane has a fixed landing gear with a steerable nose wheel. The main landing gear legs are compliant glass fibre providing good shock absorption.

  • Page 36: Canopy

    External lever and lock. Powerplant The standard powerplant of the EV-97 teamEurostar UK is the ROTAX 912 UL (80 hp) engine. The Rotax 912 is 4-stroke, 4 cylinder horizontally opposed, spark ignition engine with one central camshaft-push-rod-OHV and the following features: ...

  • Page 37: Electrical System

    Fuel quantity is indicated by an electric float fuel gauge. The electric fuel gauge indicates the relative quantity of fuel in the tank (the corresponding quantity in litres is shown in table 6.2). 7.10 Electrical system The aeroplane is equipped with a 12v DC electrical system; most services use frame return (-ve).

  • Page 38: Pitot And Static Pressure Systems

    7.11 Pitot and Static Pressure Systems The pitot-static head, sensing dynamic and static air pressures, is located under the left half of the wing. Pressure is transmitted to individual instruments via flexible plastic hoses. The system must be kept clear to ensure that it functions properly.

  • Page 39: Section 8 - Aeroplane Ground Handling And Maintenance

    Every other annual inspection should be performed by the manufacturer. Refer to the Rotax 912 Operator´s Manual for engine maintenance. Maintain the prop according to its manual. Refer to the Maintenance Manual for the EV-97 teamEurostar UK for more details about maintenance. Aircraft alterations or repairs...
  • Page 40 CAUTION Avoid excessive pressure at the aeroplane airframe - especially at the wing tips, elevator, rudder, trim etc. CAUTION Handle the propeller by holding the blade root - never blade tip! If starting the engine manually - always handle the propeller on a blade surface i.e. do not hold only an edge.

  • Page 41: Cleaning And Care

    8.4.4 Levelling Refer to the Maintenance Manual for the EV-97 teamEurostar UK for more details about levelling. 8.4.5 Road transport The aircraft may be transported by loading on to a suitable car trailer. It is necessary to dismantle the wings before road transport. The aircraft and dismantled wings should be fastened down securely to protect these parts against possible damage.
