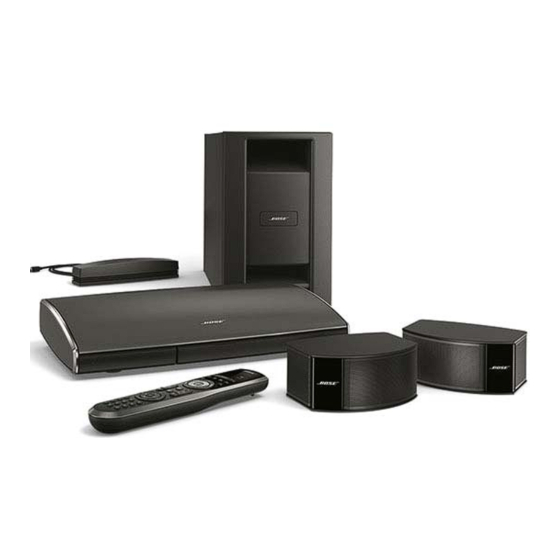

- Page 1 ® Lifestyle 235 SoundTouch home entertainment system System Level Packaging Service Manual © 2015 Bose Corporation Reference Number 7744706-SM REV 00...
-
Page 2: Table Of Contents
Contents Product Overview ..........................2 Safety Information ..........................3 Electrostatic Discharge Sensitive (ESDS) Device Handling ............3 Part List Notes ..........................4 Main Packaging List ......................... 5 Figure 1. Main Packaging View ......................5 Essentials Kit Packaging List ......................6 Figure 2. -
Page 3: Safety Information
SERVICING TO WARRANTY SERVICE STATIONS OR FACTORY SERVICE. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF BOSE CORPORATION WHICH IS BEING FURNISHED ONLY FOR THE PURPOSE OF SERVICING THE IDENTIFIED BOSE PRODUCT BY AN AUTHORIZED SERVICE CENTER, AND SHALL NOT BE RE-... -
Page 4: Part List Notes
Part List Notes 1.The individual parts located on the PCBs are listed in the Electrical Part List. 2. This part is referenced for informational purposes only. It is not stocked as a repair part. Refer to the next higher assembly for a replacement part. This part is critical for safety purposes. -
Page 5: Main Packaging List
Main Packaging List Item Description Material Number Note Number COMMITMENT LETTER 251001 LINE CORD KIT - LINE CORD, 220V, EUR, DET, BLK, 1500 280135-1310 EU/APAC - LINE CORD, 230V, UKS, DET, BLK, 1500 280138-1310 EU/APAC - LINE CORD, 240V, AUS, DET, BLK, 1500 284243-1310 APAC - LINE CORD, 230V, KOREA, BLK, 1500mm... -
Page 6: Essentials Kit Packaging List
Essentials Kit Packaging List Item Description Material Number Number KIT, ADAPTIQ HEADSET 307702-001 CABLE ASSY, IR DONGLE, 3 EMITTER 324714-1010 LIT KIT, LS 235 III, EU 720990-2020 -BUMPER, RECESSED, FOOT 142839 -FOOT, CLEAR, .312x.085, 8 IN PACKAGE 178321-08 -DRIVE, FLASH, USB, 4GB, W/O SILICONE 318542-0003 CASE 720422-0010... -
Page 7: Satellite Packaging List
Satellite Packaging List Description Material Number Note CARTON, DC, 200B, 9.88 X 16.00 X 4.25 328131-0010 ARRAY ASSY, RIGHT, BLACK 330391-0010 ARRAY ASSY, RIGHT, WHITE 330391-0020 ARRAY ASSY, LEFT, BLACK 330391-0110 ARRAY ASSY, LEFT, WHITE 330391-0120 CABLE, ARRAY, 9 PIN, BLACK 331294-0010 CABLE, ARRAY, 9 PIN, WHITE 331294-0020... -
Page 8: Revision History
Revision History DATE Description 09/2015 Initial Release... - Page 9 Specifications and Features Subject to Change Without Notice Bose Corporation The Mountain Framingham Massachusetts USA 01701 P/N 744706-SM REV. 00 09/2015 (H) http://serviceops.bose.com...
