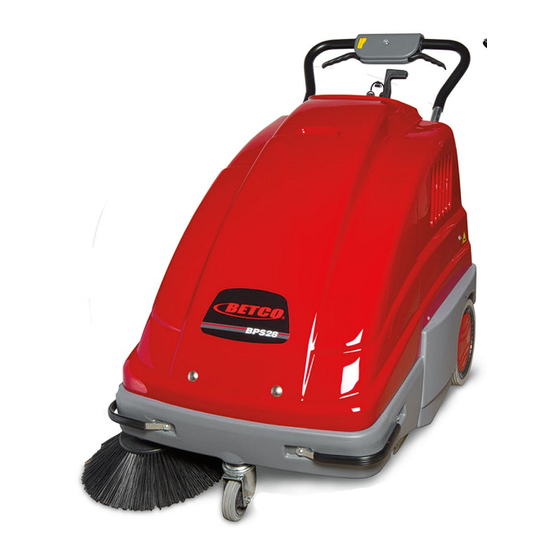

BETCO BPS28 Operator And Parts Manual

28” battery powered sweeper
Hide thumbs Also See for BPS28:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
E89001P
BPS28
28" Battery Powered
Sweeper
Operator and Parts
Manual
1001 Brown Avenue • Toledo, Ohio 43607-0127
Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPS28 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BETCO BPS28

Summary of Contents for BETCO BPS28

  • Page 1 E89001P BPS28 28” Battery Powered Sweeper Operator and Parts Manual 1001 Brown Avenue • Toledo, Ohio 43607-0127 Customer Service: 888-GO-BETCO • Fax: 800-445-5056 • Technical Service: 877-856-5954 • www.betco.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS General information and key ........3 1.1 Safety WarninG ............3 1.2 machine reGiStration Sheet .........4 1.3 Serial number and ce markinG......4 1.4 technical featureS and SpecificationS .....4 1.5 foreWord ..............5 1.6 machine application ..........5 1.7 unpackinG the machine ..........5 2.1 preparinG the machine for operation ....5 2.2 preparinG the battery for operation ....6 3.1 controlS ..............6...

  • Page 3: General Information And Key

    GENERAL INFORMATION – KEY Indications such as RIGHT or LEFT, CLOCKWISE or COUNTER-CLOCKWISE used in this booklet relate to the forward movements of the machine. This symbol draws your attention top operations that could cause damage to the machine if NOTE improperly executed.

  • Page 4: Machine Registration Sheet

    Do not use a jet of water to wash the machine. The machine must not be used for the recovery of toxic or hazardous substances. The machine can only work in presence of light. NEVER LEAVE the machine with the key in the dashboard unattended. In case the machine is being used in a place where there is a danger for falling little objects, a helmet must be worn by the operator.

  • Page 5: Foreword

    1.5 FOREWORD The purpose of this manual is to inform the operator of the basic rules, safety rules and criteria which must be observed when using, adjusting and maintaining the machine. The machine has been developed and has been developed and manufactured to ensure excellent performance and the utmost comfort and ease of operation in a variety of working conditions.

  • Page 6: Preparing The Battery For Operation

    2.2 PREPARING THE BATTERY The battery must be prepared before it is mounted on the machine. This simple precaution will prevent the machine from being damaged by the electrolytic liquid of the battery. Always prepare the battery in a sufficiently ventilated environment. Do not smoke or use flames during this operation (see the section on battery maintenance).

  • Page 7: Correct Operation

    4.2 CORRECT OPERATION After you have become familiar with the operations required to start the machine, you can actually start using the sweeper. To obtain the best results, it is always wise to take a few precautions. These will help you to get the best from your machine and reduce damage to a minimum.

  • Page 8: Routine Maintenance

    NOTE 5.1 ROUTINE MAINTENANCE ALL ROUTINE MAINTENANCE AND SPECIAL MAINTENANCE MUST BE CARRIED OUT BY COMPETENT PERSONNEL OR BY AN AUTHORIZED SERVICE CENTER .ALWAYS USE ORIGINAL SPARE PARTS. ATTENTION: ALL MAINTENANCE OPERATIONS MUST BE CARRIED OUT WITH THE MACHINE OFF. CHECK Check the battery liquid The belts for slackening...

  • Page 9: Filter Maintenance

    5.3 FILTER MAINTENANCE CLEANING THE FILTER The filter is one of the machine main components. It is essential for the best results from your machine. If you notice that dust forms when the machine is at work, check the filter. The filter is cleaned as follows: A.

  • Page 10: Replacing And Adjusting The Side Brush

    5.4 REPLACING AND ADJUSTING THE SIDE BRUSH REPLACING After lifting the front part of the machine, replace the side brush by loosening the brush fixing screw and removing the brush. Replace the brush and secure the new one in place with the screw and its washer. ADJUSTING The side brush is adjusted by loosening screws and using the slots to position the brush at the required height.

  • Page 11: Replacing And Adjusting The Belts

    5.6 REPLACING AND ADJUSTING THE BELTS To prepare the machine for belt replacement, carry out the following operations: -Remove the top bonnet and the front bin. -After removing the right wheel, loosen the screws that secure the bumper and right side guard in place and remove the latter.

  • Page 12: Replacing And Adjusting The Flaps

    5.7 REPLACING THE FLAPS 5.7.1 OUTER SIDE FLAPS To replace the side flaps (#1, Fig. 7), remove the rear wheels and the relevant side guards. Loosen the screws that secure the flaps to frame (#2, Fig. 7) and replace the old flaps with new ones. 5.7.2 INNER SIDE FLAPS To replace the inner side flaps (#5, Fig.

  • Page 13: Replacing And Positioning The Cables

    5.8 REPLACING THE TRACTION CABLE 5.8.1 REMOVE THE TRACTION CABLE AS FOLLOWS: - Open the upper hood of the machine. - Lift the security dowel located on the cable fixing pin. - Open the traction handle casing. - Pull the cable out of the fixing pin and remove the adjusting screw mounted on the handle. - Press the handle and pull the cable out of its sheath.

  • Page 14: Wiring Diagram

    6.1 WIRING DIAGRAM...

  • Page 15: Troubleshooting

    6.2 TROUBLESHOOTING The main brush is not spinning.....The belt is broken............Replace The motoriduct has burnt out ........Replace A wire is detached............Check The side brush is not spinning....The belt is broken............Replace The battery does not stay charged ..The liquid is insufficient ..........Top-off The terminal is loose ...........Tighten Dust comes out of the fan......The filter is broken............Replace The filter is in the wrong position ........Position correctly...

  • Page 16: Diagrams And Parts Listings

    DIAGRAM...
  • Page 17 1370003 foot 20x9 m6x18 e86583 bushing bpS e86701 nut, m6 Zinc hex 2300411 right hinge e89477 front cover bpS28 e89355 bpS complete rear hopper 2300412 left hinge e86361 dashboard for bpS28 e86584 bushing bpS e89513 back drawer Gasket for bpS28...
  • Page 18 DIAGRAM...
  • Page 19 Zinc e89075 ring for side brush bpS 28 e89315 Screw 8 x 25 e88498 balls, Zinc 11/32" 2110025 belt tightening lever e89084 Side brush toothed ring bpS28 e89009 Spring e89401 key 3x3.7 e89876 Screw 2110012n bushing e89877...
  • Page 20 DIAGRAM...
  • Page 21 Item# Part # Description Qty. Item# Part # Description Qty. e89332 Wheel cover, red e89005 bearing 6000-2rS e89333 Screw m6 x 10 e87929 bearing Support bpS28 2230005 belt Support pin e89334 Washer e89428 clip 2260026 motor Support e89077 bearing bpS28 e89358 e86549...
  • Page 22 DIAGRAM...
  • Page 23 Standard dust e89352 filter, Washable e89348 hex nut, m4x7 SS e89371 filter Gasket kit e87773 adhesive kit, front drawer for bpS28 e88077 cable, battery bpS 28 2310106 complete filter Shake jointed rod 1105221 nut, m18 e89369 bpS Grey frame flap kit...

  • Page 24: Warranty

    Service distributor. if the original part is returned within the warranty policy period from date of delivery for inspection by betco and is found to be defective the owner will be credited for the cost of replacement parts plus shipping and handling.
