Summary of Contents for Classen HTS-20HD

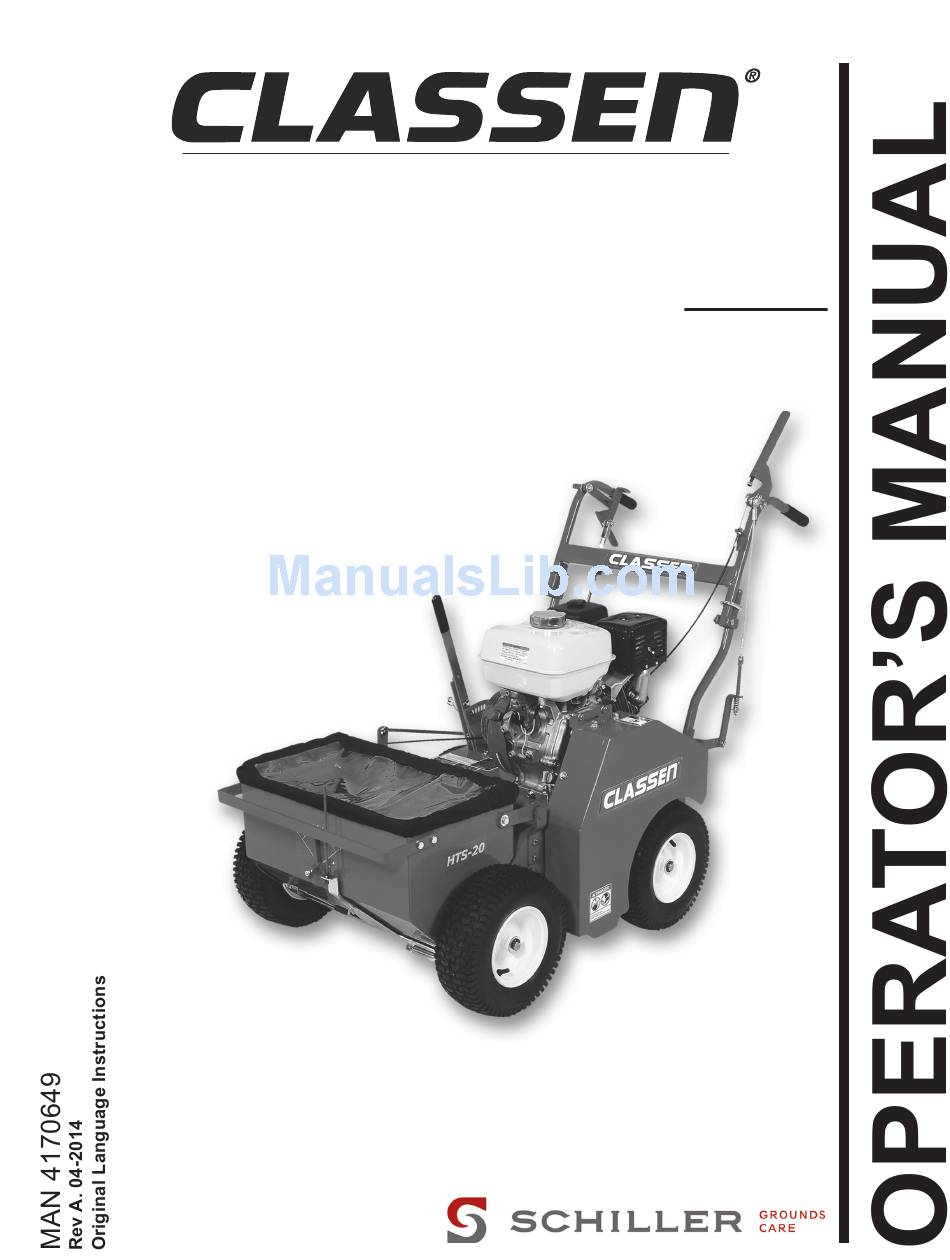

- Page 1 HYDRO OVERSEEDER MODELS: HTS-20HD Hydro Overseeder Honda GX270 OPERATOR'S MANUAL 4170646...
- Page 2 CALIFORNIA WARNING Proposition 65 Warning Diesel engine exhaust and some The engine exhaust from this product of its constituents are known to the contains chemicals known to the State State of California to cause cancer, of California to cause cancer, birth birth defects and other reproductive defects or other reproductive harm.
-
Page 3: Table Of Contents
Your safe use of this Classen product is one of our prime design objectives. Many safety features are built in, but we also rely on your good sense and care to achieve accident-free operation. -
Page 4: Safety
HTS-20HD SAFETY This symbol means: NOTICE !!! ATTENTION! Unauthorized modifications may present extreme BECOME ALERT! safety hazards to operators and bystanders and could also result in product damage. Your safety and the safety of others is involved. Schiller Grounds Care, Inc. strongly warns against,... - Page 5 HTS-20HD SAFETY OPERATOR PREPARATION & TRAINING SITE PREPARATION & CIRCUMSTANCES • Evaluate the terrain to determine how to safely READ THE OPERATION & SAFETY MANUAL perform the job. Only use accessories and attachments approved by the manufacturer. • If an operator or mechanic •...
- Page 6 HTS-20HD SAFETY OPERATING SAFELY repairs made as needed before restarting; IN GENERAL - except for repairs or adjustments as specifically • Use extra care when loading or unloading the noted, such as for carburetor adjustment, where machine into a trailer or truck.
- Page 7 HTS-20HD SAFETY MAINTENANCE SAFETY FUEL SAFETY WARNING • Gasoline is flammable; gasoline IN GENERAL vapors are explosive. Use extra care • Maintain machine according to manufacturer's when handling. schedule and instructions for maximum safety and • Store only in containers specifically best results.
-
Page 8: Specifications
Maximum gate Width............32" (813 mm) Net Weight: Weight...............300 lbs. (136 Kg) Removable weights................N/A Speed: Seed................Forward...3 m.p.h ................Reverse..1.5 m.p.h Engine: Model HTS-20HD Model..................GX270 Honda, 9.0 h.p., 4 cycle Starter..............Recoil, on/off switch Governor..............3600 RPM, no load Fuel Tank................1.4 gal. (5.3 L) Drive: Machine............Hydro Gear Transmission Primary..............Sheaves and Belts... -
Page 9: Labels
HTS-20HD LABELS WARNING LABELS Warning labels are an important part of the safety system incorporated in this machine. Replace labels if damaged or illegible CAUTION “IMPORTANT EMMISIONS INFORMATION” MUFFLER AND THIS EQUIPMENT CONFORMS TO 2009 CALIFORNIA SHIELDS MAY EVP REGULATIONS FOR SMALL OFF ROAD ENGINES... -
Page 10: Controls
HTS-20HD CONTROLS CONTROLS THROTTLE (A) Controls engine speed and vacuum suction level. CHOKE (B) Move to the “CHOKE” position to apply the choke. Move to the “RUN” position to remove the choke. FUEL SHUT OFF (C) Move to the “OFF” position to shut off the fuel whenever transporting the machine by trailer or truck or during storage. -
Page 11: Operation
HTS-20HD OPERATION BEFORE STARTING THE ENGINE OPERATING THE SEEDER 1. Read the Operator Manual and Engine Manual. Be- 1. Release both right and left engagement arms to come familiar with the controls, how each functions, neutral position. and what it operates. -
Page 12: Operation
HTS-20HD OPERATION SEEDING AND SLICING OPERATION 1. The seeding blades are used for cutting grooves for over-seeding and can also be used for verticutting grasses. To set the height properly, place unit on the lawn surface and adjust the wheel height up. -
Page 13: Maintenance/ Storage
(for When replacement parts are required, use genuine example, a furnace or water heater pilot). Classen parts or parts with equivalent characteristics, including type, strength and material. Failure to do so Before the equipment is put into storage for any... -
Page 14: Troubleshooting
HTS-20HD TROUBLESHOOTING TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Engine will not start. Out of gasoline. Fill gasoline tank. Spark plug lead wire loose or Reconnect spark plug lead wire. disconnected. Defective spark plug. Replace spark plug. Throttle control lever not in proper Move throttle control lever to start position. -
Page 15: Blade Assembly
HTS-20HD BLADE ASSEMBLY SHAFT ASSEMBLY REPLACEMENT To replace the shaft assembly: 1. On right side of unit (from operator position) first remove the 2 bolts holding on the right shaft cover (C400455) and then remove cover. 2. Next remove bolts from both sides of bearing collar and loosen set screw. -
Page 16: Notes
HTS-20HD NOTES ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________ ______________________________________... -
Page 17: Warranty
Effective April 1, 2007 For the period of two years from the date of purchase, CLASSEN will repair or replace for the original purchaser free of charge, any part or parts found upon the examination of our factory authorized service station, or by the factory in Southampton, PA to be defective in material or workmanship. - Page 18 HYDRO OVERSEEDER HTS-20 Classen reserves the right to make changes or add improvements to its products at any time without incurring any obligation to make such changes to products manufactured previously. Classen, or its dis- tributors and dealers, accept no responsibility for variations which may be evident in the actual specifi- cations of its products and the statements and descriptions contained in this publication.
