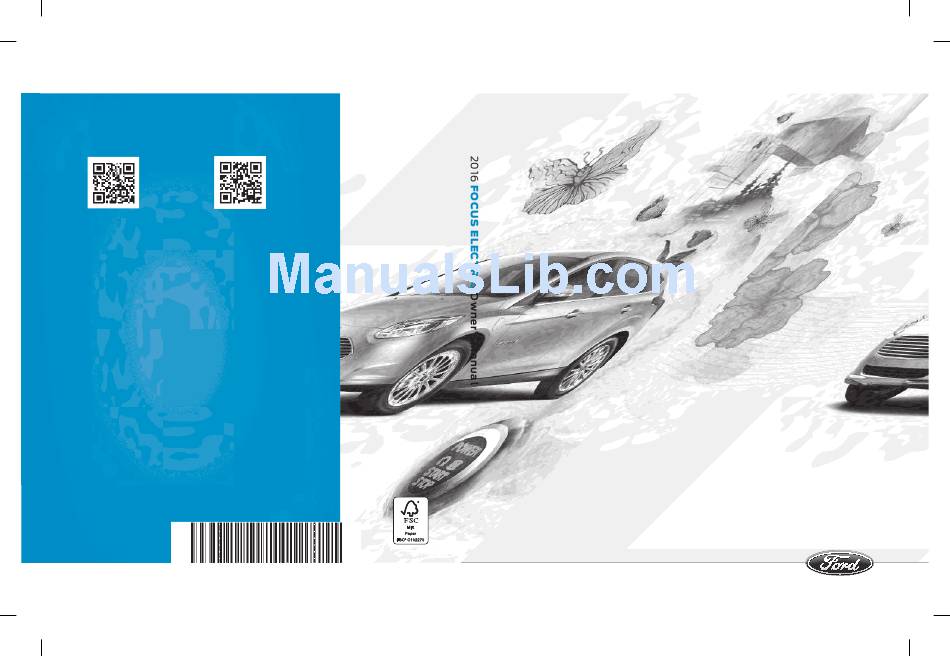

Page 1 2016 FOCUS ELECTRIC Owner’s Manual owner.ford.com ford.ca August 2015 First Printing Owner’s Manual Focus Electric Litho in U.S.A. GM5J 19A321 DA...
Page 2 No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted. © Ford Motor Company 2015 All rights reserved. Part Number: 20150710041847...
Page 4: Table Of Contents
Personal Safety System ......37 Symbols Glossary..........5 Supplementary Restraints Data Recording..........7 System California Proposition 65.......9 Principle of Operation........38 Perchlorate............9 Driver and Passenger Airbags....39 Ford Credit............9 Front Passenger Sensing System....40 Replacement Parts Recommendation........9 Side Airbags.............42 Special Notices..........10 Driver Knee Airbag.........43 Mobile Communications Safety Canopy ..........44...
Page 5 Table of Contents Steering Wheel Climate Control Adjusting the Steering Wheel....68 Automatic Climate Control.......101 Audio Control..........68 Hints on Controlling the Interior Climate............102 Voice Control...........69 Heated Windows and Mirrors....103 Cruise Control..........69 Cabin Air Filter..........104 Information Display Control.......70 Remote Start..........104 Wipers and Washers Seats Windshield Wipers..........71 Sitting in the Correct Position....105...
Page 6 Table of Contents Hints on Driving With Anti-Lock Roadside Emergencies Brakes............126 Roadside Assistance........149 Parking Brake..........126 Hazard Warning Flashers......150 Hill Start Assist..........126 Jump Starting the Vehicle......150 Collision, Damage or Fire Event....152 Traction Control Post-Crash Alert System......153 Principle of Operation.........128 Using Traction Control........128 Customer Assistance Getting the Services You Need....154 Stability Control...
Page 7 Table of Contents Vehicle Care Extended Service Plan (ESP) General Information........186 Extended Service Plan (ESP)....231 Cleaning Products........186 Cleaning the Exterior........186 Scheduled Maintenance Waxing..............187 General Maintenance Information..233 Cleaning the Engine........188 Normal Scheduled Maintenance..236 Cleaning the Windows and Wiper Blades............188 Scheduled Maintenance Record....237 Cleaning the Interior........189 Appendices Cleaning the Instrument Panel and...
Page 8: Introduction
Introduction ABOUT THIS MANUAL Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about your vehicle, the greater the safety and pleasure you will get from driving it.
Page 9 Introduction Brake system Front airbag Cabin air filter Front fog lamps Check fuel cap Fuel pump reset Child safety door lock or unlock Fuse compartment Hazard warning flashers Child seat lower anchor Heated rear window Child seat tether anchor Heated windshield Cruise control E71340 Interior luggage compartment...
Page 10: Data Recording
Parking brake Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair Power steering fluid facilities may access or share among them data for vehicle improvement purposes.
Page 11 If you do not want other government authorities or other Ford or its vendors to receive this third parties acting with lawful information, do not activate the authority. Other parties may seek to service.
Page 12: California Proposition 65
Genuine Ford replacement collision parts meet our (U.S. Only) stringent requirements for fit, finish, Ford Credit offers a full range of financing structural integrity, corrosion protection and lease plans to help you acquire your and dent resistance. During vehicle vehicle.
Page 13: Special Notices
We do not recommend or endorse the use covered by the Ford Warranty. For...
Page 14 Introduction WARNING Driving while distracted can result in loss of vehicle control, crash and injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle.
Page 15: Environment
Environment PROTECTING THE ENVIRONMENT You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 16: At A Glance
At a Glance FRONT EXTERIOR OVERVIEW E188833 See Locking and Unlocking (page 58). See Changing the Wiper Blades (page 179). See Maintenance (page 172). See Changing a Bulb (page 182). Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 17: Rear Exterior Overview
At a Glance REAR EXTERIOR OVERVIEW E188837 See Changing a Bulb (page 182). See Changing the Wiper Blades (page 179). See Tire Sealant and Inflator Kit (page 193). See Changing a Bulb (page 182). See Changing a Road Wheel (page 218). See Wheels and Tires (page 193).
Page 18: Vehicle Interior Overview
At a Glance VEHICLE INTERIOR OVERVIEW E188836 See Transmission (page 123). See Locking and Unlocking (page 58). See Power Windows (page 78). See Head Restraints (page 105). See Fastening the Seatbelts (page 31). See Rear Seats (page 108). See Manual Seats (page 107). See Power Seats (page 107). See Parking Brake (page 126).
Page 19: Instrument Panel Overview
At a Glance INSTRUMENT PANEL OVERVIEW E188835 Air vents. Direction indicators. See Direction Indicators (page 76). Information display control. See Information Display Control (page 70). Instrument cluster. See Instrument Cluster (page 82). Information display control. Wiper lever. See Wipers and Washers (page 71). Information and entertainment display.
Page 20 At a Glance Media hub. See Media Hub (page 228). Keyless start button. See Starting the Electric Motor (page 113). Audio control. See Audio Control (page 68). Voice control. See Voice Control (page 69). Steering wheel adjustment. See Adjusting the Steering Wheel (page 68). Cruise control switches.
Page 21: Child Safety
Ford recommends Exposure of people or animals to these checking with a NHTSA Certified Child high temperatures for even a short time...
Page 22: Installing Child Restraints
Child Safety Recommendations for Safety Restraints for Children Child Child size, height, weight, or age Recommended restraint type Infants or Children weighing 40 lb (18 kg) or less Use a child safety seat toddlers (generally age four or younger). (sometimes called an infant carrier, convertible seat, or toddler seat).
Page 23 Child Safety Use a child safety seat (sometimes called • Place the vehicle seat upon which the an infant carrier, convertible seat, or child seat will be installed in the upright toddler seat) for infants, toddlers, or position. children weighing 40 pounds (18 •...
Page 24 Child Safety 2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together. E142875 5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward E142530 until all of the belt is pulled out.
Page 25 1 inch (2.5 centimeters) of movement anchor, if a top tether strap has been for proper installation. provided with your child seat. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St.
Page 26 Child Safety Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use) WARNING The standardized spacing for LATCH lower anchors is 11 inches (28 centimeters) center to center. Do not use LATCH lower anchors for the center seating position unless the child seat manufacturer's instructions permit and specify using anchors spaced at least as...
Page 27 Child Safety Combining Safety Belt and LATCH Attach the tether strap only to the Lower Anchors for Attaching Child appropriate tether anchor as shown. The Safety Seats tether strap may not work properly if attached somewhere other than the When used in combination, either the correct tether anchor.
Page 28: Booster Seats
If your child restraint system is equipped with a tether strap, and the child restraint E142595 manufacturer recommends its use, Ford also recommends its use. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 29 Child Safety • Can the child sit all the way back against their vehicle seat back with knees bent comfortably at the edge of the seat cushion? • Can the child sit without slouching? • Does the lap belt rest low across the hips? •...
Page 30: Child Restraint Positioning
Child Safety E142596 E142597 WARNINGS If the booster seat slides on the vehicle the way back. When possible, all children seat upon which it is being used, placing a age 12 and under should be properly rubberized mesh sold as shelf or carpet restrained in a rear seating position.
Page 31: Child Safety Locks
Child Safety WARNINGS WARNINGS manufacturer. A safety seat that is Always restrain an unoccupied child improperly installed or utilized, is seat or booster seat. These objects inappropriate for your child's height, age, may become projectiles in a crash or or weight or does not properly fit the child sudden stop, which may increase the risk may increase the risk of serious injury or of serious injury.
Page 32 Child Safety E112197 The childproof locks are located on the rear edge of each rear door and must be set separately for each door. Left-Hand Side Turn counterclockwise to lock and clockwise to unlock. Right-Hand Side Turn clockwise to lock and counterclockwise to unlock.
Page 33: Seatbelts
Seatbelts PRINCIPLE OF OPERATION WARNINGS When possible, all children 12 years old and under should be properly WARNINGS restrained in a rear seating position. Always drive and ride with your Failure to follow this could seriously seatback upright and the lap belt increase the risk of injury or death.
Page 34: Fastening The Seatbelts
Seatbelts The seatbelt pretensioners at the front seating positions are designed to tighten the seatbelts when activated. In frontal and near-frontal crashes, the seatbelt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags. The pretensioners will activate when the Safety Canopy is deployed.
Page 35 Seatbelts Pregnant women should always wear their Vehicle Sensitive Mode safety belt. The lap belt portion of a This is the normal retractor mode, which combination lap and shoulder belt should allows free shoulder belt length be positioned low across the hips below adjustment to your movements and the belly and worn as tight as comfort will locking in response to vehicle movement.
Page 36: Seatbelt Height Adjustment
Seatbelts How to Use the Automatic Locking Use only extensions manufactured by the Mode same supplier as the safety belt. Manufacturer identification is on a label located either at the end of the webbing or on the retractor behind the trim. Also, use the safety belt extension only if the safety belt is too short for you when fully extended.
Page 37: Seatbelt Warning Lamp And Indicator Chime
Seatbelts 2. Release the button and pull down on SEATBELT WARNING LAMP the height adjuster to make sure it is AND INDICATOR CHIME locked in place. This lamp illuminates and an audible warning will sound if the driver's safety belt has not been fastened when the vehicle's ignition is turned on.
Page 38 Seatbelts If... Then... You and the front seat passenger buckle The Belt-Minder feature will not activate. your safety belts before you switch the ignition on or less than 1-2 minutes elapse after you switch the ignition on... You or the front seat passenger do not The Belt-Minder feature activates, the buckle your safety belts before your vehicle safety belt warning light illuminates and a...
Page 39: Child Restraint And Seatbelt Maintenance
Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized...
Page 40: Personal Safety System
Personal Safety System How Does the Personal Safety The Personal Safety System provides an System Work? improved overall level of frontal crash protection to front seat occupants and is The Personal Safety System can adapt the designed to help further reduce the risk of deployment strategy of the safety devices airbag-related injuries.
Page 41: Supplementary Restraints System
Supplementary Restraints System The airbags are a supplemental restraint PRINCIPLE OF OPERATION system and are designed to work with the safety belts to help protect the driver and WARNINGS right front passenger from certain upper Airbags do not inflate slowly or body injuries.
Page 42: Driver And Passenger Airbags
Supplementary Restraints System Proper Driver and Front Passenger DRIVER AND PASSENGER Seating Adjustment AIRBAGS WARNING WARNINGS National Highway Traffic Safety Never place your arm or any objects Administration (NHTSA) over an airbag module. Placing your recommends a minimum distance arm over a deploying airbag can of at least 10 inches (25 centimeters) result in serious arm fractures or other between an occupant’s chest and the...
Page 43: Front Passenger Sensing System
Supplementary Restraints System WARNINGS seat or between the seat and the center console (if equipped). Check the passenger airbag off indicator lamp for proper airbag status. Failure to follow these instructions may interfere with the passenger seat sensing system. Any alteration or modification to the front passenger seat may affect the performance of the front passenger sensing system which could seriously...
Page 44 Supplementary Restraints System The front passenger sensing system is The front passenger sensing system is designed to disable (will not inflate) the designed to enable (may inflate) the front front passenger frontal airbag when the passenger's frontal airbag anytime the front passenger seat is unoccupied, or a system senses that a person of adult size rear facing infant seat, a forward-facing...
Page 45: Side Airbags
• Rear passenger feet and knees resting person with disabilities, contact the Ford or pushing on the seat. Customer Relationship Center. See The conditions listed above may cause the Getting the Services You Need (page weight of a properly seated occupant to 154).
Page 46: Driver Knee Airbag
Supplementary Restraints System The system consists of the following: WARNINGS • A label or embossed side panel Do not use accessory seat covers. indicating that side airbags are fitted The use of accessory seat covers to your vehicle. may prevent the deployment of the side airbags and increase the risk of injury •...
Page 47: Safety Canopy
Supplementary Restraints System The Safety Canopy will deploy during SAFETY CANOPY significant side crashes or when a certain likelihood of a rollover event is detected WARNINGS by the rollover sensor. The Safety Canopy Do not place objects or mount is mounted to the roof side-rail sheet equipment on or near the headliner metal, behind the headliner, above each at the siderail that may come into...
Page 48: Crash Sensors And Airbag Indicator
Supplementary Restraints System Children 12 years old and under should The restraints control module also always be properly restrained in the rear monitors the readiness of the above safety seats. The Safety Canopy will not interfere devices plus the crash and occupant with children restrained using a properly sensors.
Page 49: Airbag Disposal
Supplementary Restraints System The fact that the safety belt pretensioners or airbags did not activate for both front seat occupants in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (for example, crash severity, belt usage) were not appropriate to activate these safety devices.
Page 50: Keys And Remote Controls
Keys and Remote Controls Note: The remote control contains sensitive GENERAL INFORMATION ON electrical components. Exposure to moisture RADIO FREQUENCIES or impact may cause permanent damage. This device complies with Part 15 of the REMOTE CONTROL FCC Rules and with Industry Canada license-exempt RSS standard(s).
Page 51 Keys and Remote Controls 2. Twist a thin coin under the tab hidden behind the key blade head to remove the battery cover. E138618 Note: Your vehicle keys came with a security label that provides important key cut information. Keep the label in a safe place for future reference.
Page 52 Keys and Remote Controls Sounding the Panic Alarm (If Equipped) Press the button to activate the alarm. Press the button again or switch your vehicle on to E138624 deactivate it. Note: The panic alarm only operates when your vehicle is switched off. E138626 Remote Start The label on your transmitter details the...
Page 53: Replacing A Lost Key Or Remote Control
Keys and Remote Controls continues to run now for a total of 20 minutes. If the duration is set to 10 minutes, the duration extends by another 10 minutes. You can extend the remote start running time duration to a maximum of 30 minutes.
Page 54: Mykey
MyKey • Driver assist features, if equipped on PRINCIPLE OF OPERATION your vehicle, are forced on: parking aid. MyKey allows you to program keys with • Satellite radio adult content restricted driving modes to promote good restrictions, if equipped on your vehicle. driving habits.
Page 55: Creating A Mykey
MyKey • Various vehicle speed minders can be CREATING A MYKEY set. Once you select a speed, it will be shown in the display, followed by an Use the information display to create a audible tone when the preselected MyKey: vehicle speed is exceeded.
Page 56: Clearing All Mykeys
MyKey Note: You can clear or change your MyKey CLEARING ALL MYKEYS settings at any time during the same key cycle as you created the MyKey. Once you You can clear or change your MyKey have switched the vehicle off, however, you settings using the information display will need an admin key to change or clear control on the steering wheel.
Page 57: Checking Mykey System Status
MyKey You can find information on programmed CHECKING MYKEY SYSTEM MyKey(s) using the information display STATUS control on the steering wheel. See Information Displays (page 87). To find information on programmed MyKey(s), press the left arrow button to access the main menu and scroll to: Message Description Settings...
Page 58: Using Mykey With Remote Start Systems
Systems start systems. If you choose to install a remote start system, see an authorized When using a Ford-approved aftermarket dealer for a Ford-approved remote start remote start system, the vehicle recognizes system. the remote start system transmitter as an The following information may help if you additional admin key.
Page 59: Mykey Troubleshooting
MyKey 2. Start your vehicle using your After clearing your MyKeys, you can create non-Ford-approved remote start a new MyKey. See Creating a MyKey system transmitter. (page 52). 3. See Clearing All MyKeys (page 53). Note: With push-button start, you cannot Follow Steps 1-3.
Page 60 MyKey Condition Potential Causes I lost a key. Program a spare transmitter. See Passive Anti-Theft System (page 65). I accidentally programmed all keys as The vehicle has a remote start system trans- MyKeys. mitter that is recognized as an admin key. Clear all MyKeys by using the remote start trans- mitter.
Page 61: Locks
Locks Remote Control LOCKING AND UNLOCKING You can use the remote control at any You can use the power door lock control time. or the remote control to lock and unlock The liftgate release button will only work your vehicle. when the vehicle speed is less than 4 mph Power Door Locks (7 km/h).
Page 62 Locks Opening the Liftgate Press twice within three seconds to unlatch the liftgate. E138630 Make sure to close and latch the liftgate before driving your vehicle. An unlatched liftgate may cause objects to fall out or block your view. Closing the Liftgate The liftgate will not fully close if an intelligent access key is located inside the luggage compartment with the doors...
Page 63 Locks Touch the locking area on the front of the You can override the smart unlock feature door handle to lock your vehicle. There will and intentionally lock the intelligent access be a brief delay before you can unlock your key inside your vehicle.
Page 64 Locks Autounlock Feature To enable or disable autounlock, do the following: The autounlock feature will unlock all the Switch your vehicle on. doors when: 2. Press the power door unlock control • Your vehicle is switched on, all the three times. doors are closed and your vehicle has been in motion at a speed greater than 3.
Page 65: Manual Liftgate
Locks Battery Saver MANUAL LIFTGATE If you leave the courtesy lamps, dome WARNING lamps or headlamps on, the battery saver will turn them off 10 minutes after you It is extremely dangerous to ride in a switch your vehicle off. cargo area, inside or outside of a vehicle.
Page 66: Keyless Entry
Locks Closing the Liftgate E155976 A handle is located inside the liftgate to help with closing. E138637 You can use the keypad to do the KEYLESS ENTRY following: • Lock or unlock the doors. SECURICODE KEYLESS ENTRY KEYPAD • Program and erase user codes. •...
Page 67 Locks To program additional personal entry Locking and Unlocking the Doors codes, repeat Steps 1-3, then for Step 4: Locking All Doors • Press 3·4 to save personal code 2. Press and hold 7·8 and 9·0 on the keypad • Press 5·6 to save personal code 3.
Page 68: Security
Note: The system is not compatible with well as a remote control. non-Ford aftermarket remote start systems. If your intelligent access keys are lost or Use of these systems may result in vehicle...
Page 69: Anti-Theft Alarm
Security Within 10 seconds, place a second programmed intelligent access key flat on the symbol. 8. Press the START STOP button. 9. Wait five seconds and then press the START STOP button again. Remove the intelligent access key. Within 10 seconds, place the unprogrammed intelligent access key flat on the symbol.
Page 70: Disarming The Alarm
Security Disarming the Alarm Disarm the alarm by any of the following actions: • Unlock the doors or luggage compartment with the remote control or keyless entry keypad. • Switch your vehicle on or start your vehicle. • Use a key in the driver door to unlock your vehicle, then switch your vehicle on within 12 seconds.
Page 71: Steering Wheel
Steering Wheel ADJUSTING THE STEERING WHEEL WARNING Do not adjust the steering wheel when your vehicle is moving. Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 105). E95179 3. Lock the steering column. AUDIO CONTROL Select the required source on the audio unit.
Page 72: Voice Control
Steering Wheel VOICE CONTROL E129463 Volume up. E129464 Seek up or next. Pull the control to select or deselect voice control. Volume down. Seek down or previous. CRUISE CONTROL Seek, Next or Previous Press the seek button to: • Tune the radio to the next or previous stored preset.
Page 73: Information Display Control
Steering Wheel INFORMATION DISPLAY CONTROL E130248 See Information Displays (page 87). Multimedia Controls E145434 Use the arrows on the right side of the steering wheel to navigate through the information display menus. Press OK to make a selection. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 74: Wipers And Washers
Wipers and Washers Intermittent Wipe WINDSHIELD WIPERS Note: Fully defrost the windshield before you switch the windshield wipers on. Note: Make sure you switch the windshield wipers and vehicle power off before using an automatic car wash. Note: If streaks or smears appear on the windshield, clean the windshield and the wiper blades.
Page 75: Rear Window Wiper And Washers
Wipers and Washers Rear Window Washer To operate the washers and spray the windshield, pull the lever toward you. When you release the lever, the wipers will operate for a short time. REAR WINDOW WIPER AND WASHERS (If Equipped) Rear Window Wiper Note: Make sure you switch the rear window wiper and ignition off before using an automatic car wash.
Page 76: Lighting
Lighting GENERAL INFORMATION LIGHTING CONTROL Condensation in Lamp Assemblies Exterior lamps have vents to accommodate normal changes in air pressure. Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold.
Page 77: Autolamps
Lighting Headlamp Flasher If equipped, the following also activate when the lighting control is in the autolamps position and you switch them on in the information display: • Configurable daytime running lamps. • Automatic high beam control. • Adaptive headlamp control. The headlamps remain on for a period of time after you power off your vehicle.
Page 78: Instrument Lighting Dimmer
Lighting INSTRUMENT LIGHTING DAYTIME RUNNING LAMPS DIMMER WARNING Note: You disable the manual dimmer The daytime running lamps system when you adjust the setting to Auto does not activate the rear lamps and Dimming in the information display. See may not provide adequate lighting Information Displays (page 87).
Page 79: Direction Indicators
Lighting Front Interior Lamps (If Equipped) 4. The lighting control is in the autolamps position. Note: Press the door function switch to 5. The headlamps are off. switch off interior lights when you open any door. The indicator lamp illuminates amber The other lighting control switch positions when the door function is off.
Page 80: Ambient Lighting
Lighting Side Mounted Lamp E142456 Color palette. Control knob. Search mode. E139419 Rotate B past the first detent to switch on and adjust to the desired brightness. Map lamp. Press A to cycle through the color choices. Door function switch. Press C to switch on all interior lamps and All lamps on switch.
Page 81: Windows And Mirrors
Windows and Mirrors Window Lock POWER WINDOWS WARNINGS Do not leave children unattended in your vehicle and do not let them play with the power windows. They may seriously injure themselves. When closing the power windows, you should verify they are free of obstructions and make sure that children and pets are not in the proximity of the window openings.
Page 82: Exterior Mirrors
Windows and Mirrors Accessory Delay 2. Close the window a third time to the point of resistance. You disabled the You can use the window controls for bounce-back feature and you can now several minutes after switching off the close the window manually. The ignition or until opening either front door.
Page 83: Interior Mirror
Windows and Mirrors Fold-Away Exterior Mirrors Push the mirror toward the door window glass. Make sure that you fully engage the mirror in its support when returning it to its original position. Heated Exterior Mirrors See Heated Windows and Mirrors (page 103).
Page 84: Sun Visors
Windows and Mirrors Note: Do not clean the housing or glass of Lift the cover to switch the lamp on. any mirror with harsh abrasives, fuel or other petroleum or ammonia-based cleaning products. You can adjust the interior mirror to your preference.
Page 85: Instrument Cluster
Instrument Cluster GAUGES Left Information Display. Speedometer. Right Information Display. Common Displays Note: You can switch some features on and off through the information display. Battery Gauge The high voltage battery gauge appears on the right side of the left information display screen.
Page 86 Instrument Cluster • State of Charge - The state of charge Trip Summary and Lifetime Summary for the high voltage battery is shown These summaries display after switching as a colored fill. The fill color is off your vehicle. The Trip Summary normally blue.
Page 87: Warning Lamps And Indicators
Instrument Cluster Brake System Warning Lamp Charging Status Screen When you enter or switch off the vehicle, It will illuminate when you on your right information display you have engage the parking brake with the opportunity to view charging status, E144522 the vehicle on.
Page 88 Instrument Cluster Motor Coolant Temperature Low Battery Lights when the motor coolant Lights when the battery level is temperature is high. Stop your low. You may also see a E144691 vehicle as soon as possible, message suggesting you reduce power it down and let it cool. your usage of the climate system.
Page 89: Audible Warnings And Indicators
Instrument Cluster Stability Control Warning Lamp Headlamps On Warning Chime Lights when the system is active. Sounds when you remove the key from the If it remains on or does not light ignition and open the driver's door and you when you power your vehicle on, have left the headlamps or parking lamps E138639...
Page 90: Information Displays
Information Displays • Press the up and down arrow buttons GENERAL INFORMATION to scroll through and highlight the options within a menu. WARNING • Press the right arrow button to enter a Driving while distracted can result in sub-menu. loss of vehicle control, crash and •...
Page 91 Information Displays Display Mode Budget Text Options Budget Text or Help View Budget View Gauge Scale, Budget Text or Help Range View Surplus Graphic, Budget Text or Help MyView Gauge Scale - check enabled or uncheck disabled Budget Text - check enabled or uncheck disabled Change Budget Text Budget View...
Page 92 Information Displays MyView Your current energy use is the white line that moves up and down in the Budget You can choose what to display in this Gauge. A higher line means you are using view. Selecting Change MyView in the more energy (lower is better).
Page 93 Information Displays Trip 1 & 2 Trip distance Standard Enhanced Budget Text Help XXX Wh/mi — — (km) – Energy used per unit of distance XX.X kWh — — –Energy used Elapsed trip time Budget Text — — Total Odometer Note: Press and hold OK to reset the •...
Page 94 Information Displays • Energy History - This view from left to • Energy Coach - This view provides a right starts with the Budget View gauge comparison of your recent and adds historical Energy Use and Acceleration, Braking and Cruising Budget data.
Page 95 Information Displays Information Driver Alert Displays the associated driver alert graphic. XX Warnings Displays the number of warnings that need immediate attention in red. You can only view the warnings from the System Check menu. View them immediately by pressing OK and then OK again to enter system check.
Page 96 Information Displays Settings Tire Mobility Select number of years MyKey Create MyKey Hold OK to Create MyKey Traction Always On or User Selectable Control Max Speed Choose desired speed or off Speed Minder Choose desired speed or off Volume On or Off Limiter Clear MyKeys Hold OK to Clear All MyKeys...
Page 97: Information Messages
Information Displays Phone INFORMATION MESSAGES Note: Depending on the vehicle options Navigation or Compass equipped with your vehicle, not all of the messages will display or be available. E220613 Certain messages may be abbreviated or Surplus shortened depending upon which cluster type you have.
Page 98: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Information Displays Alarm Message Action Vehicle Alarm To Stop Alarm triggered due to unauthorized entry. See Passive Anti- Alarm, Start Vehicle. Theft System (page 65). Battery and Charging System (High Voltage) Message Action Vehicle Plugged In ? Yes Your vehicle needs confirmation it is unplugged before allowing to power on.
Page 99: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Information Displays Message Action Severely Limited Your vehicle performance is severely affected by hot battery Performance Due to hot temperatures. Drive with caution. Keep your vehicle plugged battery in when not in use to maintain proper battery temperature. Approaching Range You have not specified a charge point through your vehicle Limit to Return Home Mytouch system and your vehicle range will soon be less than...
Page 100: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Information Displays Hill Start Assist Message Action Hill Start Assist Not Displays when hill start assist is not available. Contact an Available authorized dealer. See Hill Start Assist (page 126). Keys and Intelligent Access Message Action Starting System Fault This message is displayed when there is a problem with your vehicle’s starting system.
Page 101 Information Displays Maintenance Message Action Brake fluid level low Indicates the brake fluid level is low and the brake system Service now should be inspected immediately. See Maintenance (page 172). Brake system fault Stop Displays when the brake system needs servicing. Stop your safely vehicle in a safe place.
Page 102: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Information Displays Park Aid Message Action Check Park Aid The system has detected a condition that requires service. Contact an authorized dealer. Rear Park Aid On Off Displays the park aid status. Park Brake Message Action Park Brake Engaged Displays when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).
Page 103: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Information Displays Tire Pressure Monitoring System Message Action Low Tire Pressure One or more tires on your vehicle has low tire pressure. See Tire Pressure Monitoring System (page 214). Tire Pressure Monitor The tire pressure monitoring system is malfunctioning. If the Fault warning stays on or continues to come on, contact an authorized dealer.
Page 104: Climate Control
Climate Control AUTOMATIC CLIMATE CONTROL E190322 AUTO: Press the button to switch on automatic operation. Adjust to select the desired temperature. Fan speed, air distribution, air conditioning operation, and outside or recirculated air are automatically adjusted to heat or cool the vehicle to maintain the desired temperature.
Page 105: Hints On Controlling The Interior Climate
Climate Control MAX A/C: Press the button for maximum cooling. Recirculated air flows through the instrument panel vents, air conditioning automatically turns on and the fan automatically adjusts to the highest speed. MAX Defrost: Press the button to switch on defrost. Outside air flows through the windshield vents, air conditioning automatically turns on, and fan automatically adjusts to the highest speed.
Page 106: Heated Windows And Mirrors
Climate Control Note: Remove any snow, ice, or leaves from Hot and cold temperatures make your the air intake area at the base of the vehicle use more energy to achieve and windshield. maintain a comfortable interior temperature. Park the vehicle in the shade Note: To improve air conditioning when or in a parking structure when hot, and in starting your vehicle, drive with the windows...
Page 107: Cabin Air Filter
Climate Control Press the button to clear the Replace the filter at regular intervals. See heated rear window of thin ice Scheduled Maintenance (page 233). E72507 and fog. The heated rear For additional cabin air filter information, window will automatically turn off after a or to replace the filter, see an authorized short period of time.
Page 108: Seats
Seats We recommend that you follow these SITTING IN THE CORRECT guidelines: POSITION • Sit in an upright position with the base of your spine as far back as possible. WARNINGS • Do not recline the seat backrest more Do not recline the seat backrest too than 30 degrees.
Page 109 Seats Rear center head restraint WARNINGS The adjustable head restraint is a safety device. Whenever possible, it should be installed and properly adjusted when the seat is occupied. Failure to adjust the head restraint properly could reduce its effectiveness during certain impacts.
Page 110: Manual Seats
Seats Installing the Head Restraint WARNINGS Rock the seat backward and forward Align the steel stems into the guide sleeves after releasing the lever to make sure and push the head restraint down until it that it is fully engaged. locks.
Page 111: Rear Seats
Seats E194195 Power Lumbar (If Equipped) E187688 E156656 REAR SEATS Press the unlock buttons down. Folding the Seatback 2. Push the seatback forward. Note: Before lowering the seatback(s), remove the outboard head restraints. See Head Restraints (page 105). Note: Your vehicle may have split seatbacks that must be folded individually.
Page 112 Seats When raising the seatback(s), make sure you hear the seat latch into place and that no red portion is visible on the release button on both sides. Flip Up Seat Cushions (If Equipped) WARNING Before returning the seatback to its original position, make sure that cargo or any objects are not trapped behind the seatback.
Page 113: Heated Seats
Seats HEATED SEATS WARNING People who are unable to feel pain to their skin because of advanced age, chronic illness, diabetes, spinal cord injury, medication, alcohol use, exhaustion or other physical conditions, must exercise care when using the heated seat. The heated seat may cause burns even at low temperatures, especially if used for long periods of time.
Page 114: Auxiliary Power Points
Auxiliary Power Points 12 Volt DC Power Point Location You may find power points in the following WARNING locations: Do not plug optional electrical • On the center console accessories into the cigar lighter socket. Incorrect use of the lighter •...
Page 115: Storage Compartments
Storage Compartments CENTER CONSOLE OVERHEAD CONSOLE Stow items in the cupholder carefully as items may become loose during hard braking, acceleration or crashes, including hot drinks which may spill. Available console features include: E131605 Press near the rear edge of the door to open it.
Page 116: Starting And Stopping The Electric Motor
Starting and Stopping the Electric Motor The keyless starting system has three STARTING THE ELECTRIC modes: MOTOR • Off: Turns the power off. Without applying the brake pedal, press and Keyless Starting release the power button once when your vehicle is in the on mode, or when Note: The system may not function if the your vehicle is on but not moving.
Page 117: Switching Off The Electric Motor
Starting and Stopping the Electric Motor Fast Restart The fast restart feature allows you to restart your vehicle within 10 seconds of switching it off, even if it does not detect a valid passive key. Within 10 seconds of switching your vehicle off, press the brake pedal and press the power button.
Page 118 Starting and Stopping the Electric Motor When your vehicle is moving, press the power button three times within two seconds or press and hold for at least one second. Move the transmission selector lever to position N and use the brakes to bring your vehicle to a safe stop.
Page 119: High Voltage Battery
High Voltage Battery GENERAL INFORMATION WARNINGS This equipment has arcing or sparking parts, do not expose to WARNINGS flammable vapors. Position this This battery pack shall only be equipment at least 18 inches (80 serviced by an authorized electric millimeters) above the floor. vehicle technician.
Page 120 High Voltage Battery Make sure that the 120 volt convenience 120 Volt Convenience Cord cord is completely unwound before charging. Always plug the cord into the AC outlet before connecting the charging coupler into the charge port on your vehicle. E197446 Power.
Page 121 High Voltage Battery Convenience Cord LED Indicators Status Check Fault Vehicle Outlet The convenience cord is not connected to your vehicle. The convenience cord is connected, but your vehicle is not charging. Blink Your vehicle is charging. Blink Ground Fault Circuit Interrupter (GFCI) Fault Detected.
Page 122 High Voltage Battery Charge Port The cord acknowledgment feature activates when you initiate a charge cycle. The charge port is located between the The four light quadrants each individually front left-hand side door and the front flash in a clockwise motion, starting with left-hand side wheel well.
Page 123 High Voltage Battery Waiting to Charge The light ring located around the charge port indicates the charge status of the high Note: See charge settings in the MyFord voltage battery in your vehicle: Touch section. • When the top right-hand side quadrant When you select Value Charge, charging is pulsing, the charge is between 0-25 may not begin upon plugging in.
Page 124: High Voltage Battery Cut-Off Switch
High Voltage Battery You can modify the light ring lighting Value Charge conditions. See Charge Port Light Ring The vehicle schedules charging at the Settings in the MyFord Touch section. lowest available utility rates. Contact your utility company to see what rates are Disconnecting the Charging available.
Page 125 High Voltage Battery Press the START/STOP button to power off your vehicle. 2. Wait for your vehicle to fully shut down and the instrument cluster to turn off. Note: Your vehicle may take between 30 to 90 seconds to shut down. 3.
Page 126: Transmission
Transmission Park (P) AUTOMATIC TRANSMISSION In this position, power is not transmitted Understanding the Positions of to the drive wheels and the transmission Your Automatic Transmission is locked. You can start the electric motor with the gearshift lever in this position. WARNING Reverse (R) Always set the parking brake fully...
Page 127 Transmission Note: The lever is white. WARNINGS If the parking brake is fully released, 4. Apply the brake pedal. Using a suitable but the brake warning lamp remains tool rotate the lever forward while illuminated, the brakes may not be pulling the gearshift lever out of the working properly.
Page 128: Brakes
Brakes Anti-lock Brake System GENERAL INFORMATION This system helps you maintain steering Note: Occasional brake noise is normal. If control during emergency stops by keeping a metal-to-metal, continuous grinding or the brakes from locking. continuous squeal sound is present, the This lamp momentarily brake linings may be worn-out.
Page 129: Hints On Driving With Anti-Lock Brakes
Brakes standard friction braking. When the battery Press the foot brake pedal firmly. is almost fully charged, the amount of 2. Pull the parking brake lever up to its regenerative braking is limited to avoid fullest extent. overcharging, and the requested Note: If you park your vehicle on a hill and deceleration is produced by standard facing uphill, shift the gearshift lever to park...
Page 130 Brakes Switching the System On and Off When the system is active, your vehicle will remain stationary on the slope for two to Vehicles with Manual Transmission three seconds after you release the brake pedal. This allows you time to move your You can switch this feature on or off in the foot from the brake to the accelerator information display.
Page 131: Traction Control
Traction Control Using the Information Display PRINCIPLE OF OPERATION Controls The traction control system helps avoid You can switch this feature off or on in the drive wheel spin and loss of traction. information display. See General If your vehicle begins to slide, the system Information (page 87).
Page 132: Stability Control
Stability Control If a driving condition activates either the PRINCIPLE OF OPERATION stability control or the traction control system you may experience the following WARNINGS conditions: Vehicle modifications involving • The stability and traction control light braking system, aftermarket roof flashes.
Page 133: Using Stability Control
Stability Control Traction Control The system enhances your vehicle’s ability to maintain traction of the wheels by detecting and controlling wheel spin. See Using Traction Control (page 128). E72903 Vehicle without stability control skidding off its intended route. Vehicle with stability control maintaining control on a slippery surface.
Page 134: Parking Aids
If your vehicles has a non-Ford To help avoid personal injury you must take approved trailer tow module the care when using the parking aid system.
Page 135: Rear View Camera
Parking Aids stationary or receding object farther than REAR VIEW CAMERA 10 in (25 cm) from the corners of the bumper, the tone sounds for only three WARNINGS seconds. Once the system detects an The rear view camera system is a object approaching, the warning sounds reverse aid supplement device that again.
Page 136 Parking Aids Note: When towing, the camera only sees what is towed behind your vehicle. This might not provide adequate coverage as it usually provides in normal operation and some objects might not be seen. In some vehicles, the guidelines may disappear once the trailer tow connector is engaged.
Page 137 Parking Aids The fixed and active guidelines fade in and out depending on the steering wheel position. The active guidelines do not display when the steering wheel position is straight. Always use caution while reversing. Objects in the red zone are closest to your vehicle and objects in the green zone are farther away.
Page 138 Parking Aids Camera System Settings To access any of the rear view camera system settings, make the following selections in the multifunctional display when the transmission is not in reverse (R): • With Touch Screen: Settings > Vehicle > Camera Settings •...
Page 139: Cruise Control
Cruise Control Setting the Cruise Speed PRINCIPLE OF OPERATION Drive to desired speed. Cruise control lets you maintain a set 2. Press and release SET+. speed without keeping your foot on the accelerator pedal. You can use cruise 3. Take your foot off the accelerator control when your vehicle speed is greater pedal.
Page 140: Driving Aids
Driving Aids Steering Tips STEERING If the steering wanders or pulls, check for: Electric Power Steering • Correct tire pressures. WARNINGS • Uneven tire wear. The electric power steering system • Loose or worn suspension has diagnostic checks that components. continuously monitor the system.
Page 141: Load Carrying
Load Carrying vehicle will provide maximum REAR UNDER FLOOR return of vehicle design STORAGE performance. Before loading your vehicle, familiarize yourself with Cargo Management System the following terms for determining your vehicle’s weight ratings, with or without a trailer, from the vehicle’s Tire Label or Safety Compliance Certification Label: Base Curb Weight - is the weight...
Page 142 Load Carrying Payload - is the combined weight Example only: of cargo and passengers that the vehicle is carrying. The maximum payload for your vehicle can be found on the Tire Label on the B-Pillar or the edge of the driver door (vehicles exported outside the US and Canada may not have a Tire Label).
Page 143 Load Carrying CARGO E143817 Certification Label. The label shall Cargo Weight - includes all be affixed to either the door hinge weight added to the Base Curb pillar, door-latch post, or the door Weight, including cargo and edge that meets the door-latch optional equipment.
Page 144 Load Carrying GVW (Gross Vehicle Weight) - Safety Compliance Certification is the Vehicle Curb Weight, plus Label. The label shall be affixed cargo, plus passengers. to either the door hinge pillar, door-latch post, or the door edge GVWR (Gross Vehicle Weight that meets the door-latch post, Rating) - is the maximum next to the driver's seating...
Page 145 Load Carrying E143819 each), no cargo weight (internal GCW (Gross Combined Weight) or external) and a tongue load of - is the Gross Vehicle Weight plus 10–15% (conventional trailer) or the weight of the fully loaded king pin weight of 15–25% (fifth trailer.
Page 146 Load Carrying 4. The resulting figure equals the WARNINGS available amount of cargo and Do not use replacement tires luggage load capacity. For with lower load carrying example, if the “XXX” amount capacities than the original tires equals 1,400 lb. and there will because they may lower the be five 150 lb.
Page 147 Load Carrying - 150 = 150 pounds. Yes, you have the load capacity to transport the enough load capacity in your cement and your friend home. In vehicle to transport four friends metric units, the calculation would and your golf bags. In metric units, be: 635 kilograms - (2 x 99 the calculation would be: 635 kilograms) - (9 x 45 kilograms) =...
Page 148: Towing
Do not tow with a WARNING slingbelt. Ford Motor Company has not approved a slingbelt towing procedure. If Your vehicle is not approved the vehicle is towed incorrectly, or by any for trailer towing.
Page 149: Recreational Towing
Towing • Maximum speed is 35 mph (56 km/h). • Maximum distance is 50 miles (80 kilometers). Recreational Towing Follow these guidelines if you have a need for recreational (RV) towing. An example of recreational towing would be towing your vehicle behind a motorhome. We designed these guidelines to prevent damage to your transmission.
Page 150: Driving Hints
Driving Hints BREAKING-IN You need to break in new tires for approximately 300 mi (480 km). During this time, your vehicle may exhibit some unusual driving characteristics. Avoid hard accelerations and driving too fast during the first 1,000 mi (1,600 km). COLD WEATHER PRECAUTIONS E176360...
Page 151: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Driving Hints WARNINGS Always make sure that the floor mats are properly attached to the retention posts in the carpet that are supplied with your vehicle. Floor mats must be properly secured to both retention posts to make sure mats do not shift out of position.
Page 152: Roadside Emergencies
Towing — independent service contractors, if not prohibited by state, To fully assist you should you have a local or municipal law, shall tow Ford vehicle concern, Ford Motor Company of eligible vehicles to an authorized dealer Canada, Limited offers a complimentary within 35 mi (56 km) of the roadside assistance program.
Page 153: Hazard Warning Flashers
You may cause transmission us in Canada at 1-800-665-2006, or visit damage. our website at www.ford.ca. Note: Do not disconnect the 12 volt battery from your vehicle electrical system. HAZARD WARNING FLASHERS Note: If used when the vehicle is not running, the battery will lose charge.
Page 154 Roadside Emergencies To Connect the Booster Cables Position the vehicles so that they do not touch one another. 2. Switch off the electric motor and any electrical equipment. 3. Connect the positive (+) terminal of vehicle B with the positive (+) terminal of vehicle A (cable C).
Page 155: Collision, Damage Or Fire Event
COLLISION, DAMAGE OR FIRE EVENT A crash or impact significant enough to require an emergency response for Guidance for Ford Motor Company conventional vehicles would also require Electric and Hybrid-Electric the same response for an electric or Vehicles Equipped With High hybrid-electric vehicle.
Page 156: Post-Crash Alert System
• For vehicles in Canada, notify Ford Motor Company 1-800-565-3673 (then follow the prompts on the voice response menu), an authorized Ford dealer or service center as soon as...
Page 157: Customer Assistance
Mailing address perform a repair after taking your vehicle to the authorized dealer. Repairs will be Customer Relationship Centre made using Ford or Motorcraft® parts, or Ford Motor Company of Canada, Limited remanufactured or other parts that are P.O. Box 2000 authorized by Ford.
Page 158: In California (U.s. Only)
In some states within the United States, conform the vehicle to its applicable you must directly notify Ford in writing express warranties if, within the first 18 before pursuing remedies under your months of ownership of a new vehicle or...
Page 159: The Better Business Bureau (Bbb) Auto Line Program (U.s. Only)
BBB AUTO LINE During mediation, a representative of the 3033 Wilson Boulevard, Suite 600 BBB will contact both you and Ford Motor Arlington, Virginia 22201 Company to explore options for settlement of the claim. If an agreement is not reached...
Page 160: Utilizing The Mediation/Arbitration Program (Canada Only)
Before exporting your vehicle to a foreign Canadian dealers. In those cases where country, contact the appropriate foreign you continue to feel that the efforts by Ford embassy or consulate. These officials can of Canada and the authorized dealer to...
Page 161: Ordering Additional Owner's Literature
U.S. Virgin Islands, please feel free to call identification number (VIN) and new our Toll-Free Number: (800) 841-FORD address with Ford Motor Company Export (3673). Operations & Global Growth Initiatives by emailing expcac@ford.com. If your vehicle must be serviced while you...
Page 162: Reporting Safety Defects (U.s. Only)
However, NHTSA cannot become involved in individual problems between you, your dealer, or Ford Motor Company. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 163 Customer Assistance Transport Canada Contact Information Website www.tc.gc.ca/eng/motorvehiclesafety/safevehicles-defectinvestigations- index-76.htm (English) Website www.tc.gc.ca/fra/securiteautomobile/VehiculesSecuritaires-Enquetes- index-76.htm (French) Phone 1–800–333–0510 Ford of Canada Contact Information Website www.ford.ca Phone 1–800–565-3673 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 164: Fuses
Fuses front of the 12 volt battery box. It is FUSE SPECIFICATION CHART connected to the 12 volt battery positive terminal. This fuse box contains several Pre-Fuse Box high current fuses. If replacement of these Your vehicle has a pre-fuse box located in high current fuses is required, contact an the electric motor compartment on the authorized dealer.
Page 165 Fuses E129925 Lift the release lever at the rear of the cover to remove it. Fuse Fuse rating Circuits protected Anti-lock brake system. Stability control (KL30V). Anti-lock brake system. Stability control (KL30P). Not used. Blower motor module. Brake vacuum pump. Electric motor control relay.
Page 166 Fuses Fuse Fuse rating Circuits protected Body control module (KL30C supply). Coolant heater two. Not used. Windshield wiper. Anti-lock brake system. Stability control (KL15). Horn. Stop lamp switch. Battery monitoring system. Relay coils. Lighting control switch module. Not used. Powertrain control module. Charge port light ring.
Page 167 Fuses Fuse Fuse rating Circuits protected Coolant pump. Vehicle audible signal for pedestrians. Powertrain control module (KL15 supply). Heated driver's seat. Electronic power assist steering. Body control module (KL15 supply). Rear wiper motor. Daytime running light. Not used. Heated passenger seat. Not used.
Page 168 Fuses Relay Relay Type Circuit switched Power relay Coolant heater element one and two. Not used. Mini relay Brake vacuum pump. Not used. Power relay Electronic fan control module. Mini relay Blower motor. Mini relay Electric motor control. Power relay Brake vacuum pump mechanical relay.
Page 169: Passenger Compartment Fuse Box
Fuses Passenger Compartment Fuse Box E129926 Fuse Fuse rating Circuits protected Not used. Not used. Not used. Not used. Interior lamp. Driver door switch pack. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 170 Fuses Fuse Fuse rating Circuits protected Glove compartment lamp. Ambient lighting lamp. Front cigar lighter socket. Rear auxiliary power points. Not used. Not used. Not used. Luggage compartment lid release. Not used. Global positioning sensor. 7.5A SYNC. Not used. Instrument panel cluster. Not used.
Page 171 Fuses Fuse Fuse rating Circuits protected Ground fuse (central lock supply). Ground fuse (central unlock supply). Ground fuse (driver door unlock relay supply). Ground fuse (central/double lock relay supply). Ground fuse ( release relay supply). 7.5A Heated seats switch. Restraint system. Passenger airbag deactivation switch.
Page 172 Fuses Fuse Fuse rating Circuits protected Heated exterior mirror (left). Front power window (right). Central locking (front right). Heated exterior mirror (right). Rear left door module (KL30 supply). Rear right door module (KL30 supply). Ignition relay. Driver power seat. Heated rear window. High voltage battery (12V B+).
Page 173 Fuses Fuse Fuse rating Circuits protected Not used. Rear view camera. Parking aid module. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used. Not used.
Page 174: Changing A Fuse
Fuses Relay Relay Type Circuit switched Not used. Not used. Not used. CHANGING A FUSE Fuses WARNING E142430 If electrical components in the vehicle are Always replace a fuse with one that not working, a fuse may have blown. Blown has the specified amperage rating.
Page 175: Maintenance
Have your vehicle serviced regularly to help WARNINGS maintain its roadworthiness and resale Switch your vehicle off before value. There is a large network of Ford carrying out any under hood check authorized repairers that are there to help or adjustment. Failure to follow this...
Page 176: Opening And Closing The Hood
Maintenance OPENING AND CLOSING THE HOOD Inside the vehicle, pull the hood release handle located under the left-hand side of the instrument panel. E142457 2. Go to the front of your vehicle and locate the secondary release lever E189028 under the front of the hood, left of 3.
Page 177: Under Hood Overview
Maintenance UNDER HOOD OVERVIEW E198695 Coolant reservoir. See Coolant Check (page 174). Brake fluid reservoir. See Brake Fluid Check (page 176). 12 volt battery. See Changing the 12V Battery (page 177). Electric motor compartment fuse box. See Fuses (page 161). Windshield washer fluid reservoir.
Page 178 Maintenance Note: It is very important to use prediluted WARNINGS coolant meeting the Ford specification in To reduce the risk of personal injury, order to avoid plugging the small coolant make sure the electric motor is cool passageways. Use of concentrated coolant...
Page 179: Brake Fluid Check
• Methanol. If you drive in extremely cold climates: • Brine. • It may be necessary to have a Ford • Any coolant mixed with alcohol or authorized dealer increase the coolant methanol antifreeze or coolant. concentration above 50%. Alcohol and other liquids can cause vehicle •...
Page 180: Washer Fluid Check
Wash hands after handling. Only use fluid that meets Ford specifications. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 181: Checking The Wiper Blades
Maintenance Your vehicle is fitted with a Motorcraft 3. Switch off all accessories. maintenance-free battery which normally 4. Press the brake pedal and start your does not require additional water. vehicle. Note: After cleaning or replacing the 5. Reset the clock. battery, make sure you reinstall the battery 6.
Page 182: Changing The Wiper Blades
Maintenance CHANGING THE WIPER BLADES Note: If streaks or smears appear on the windshield, clean the windshield and the wiper blades. See Cleaning the Windows and Wiper Blades (page 188). If that does not resolve the issue, install new wiper blades.
Page 183: Adjusting The Headlamps
Maintenance 2. Press the locking buttons together. ADJUSTING THE HEADLAMPS 3. Rotate and remove the wiper blade. Vertical Aim Adjustment 4. Install in the reverse order. If your vehicle has been involved in a crash, Note: Make sure that the wiper blade locks have the aim of the headlamp beam into place.
Page 184: Removing A Headlamp
Maintenance E199411 Note: There may be an identifying mark on the lens to help you locate the center of the bulb. Note: To see a clearer light pattern while adjusting one headlamp, you may want to E164485 block the light from the other headlamp. 5.
Page 185: Changing A Bulb
Maintenance CHANGING A BULB Headlamp E133102 Side marker bulb. Headlamp low beam. Headlamp high beam. Front direction indicator. E133215 2. Remove the screws. Your vehicle has high intensity discharge lamps. These lamps operate at a high 3. Pull the headlamp as far as possible towards the front of the vehicle to voltage.
Page 186 Maintenance Rear Lamp 2. Carefully remove the cover. 3. Turn the bulb holder counterclockwise and remove it. 4. Press the bulb in and turn the bulb counterclockwise to remove it. Side Marker Bulb Remove the headlamp. See Removing a Headlamp (page 181). E184156 2.
Page 187: Bulb Specification Chart
Maintenance Brake Lamp, Direction Indicator and Reverse Lamp E184158 4. Disconnect the electrical connector. E133111 5. Turn the bulb holder counterclockwise Carefully remove the cover. and remove it. 6. Remove the bulb by pulling it straight out. Licence Plate and High Mounted Brake Lamp These lamps have LED bulbs.
Page 188 Maintenance Function Trade number * Headlamp high/low beam (HID) * Sidemarker - front * Park lamp - front Direction indicator - front PY21W Direction indicator - rear 3757 NAK Brake lamp 3157K * Rear lamp Backup lamp * License plate lamp * High-mount brake lamp * Interior lamps * To replace these lamps, contact an authorized dealer.
Page 189: Vehicle Care
Vehicle Care GENERAL INFORMATION CLEANING PRODUCTS Your Ford or Lincoln authorized dealer has For best results, use the following products many quality products available to clean or products of equivalent quality: your vehicle and protect its finishes. Materials Name Specification...
Page 190: Waxing
Vehicle Care • Immediately remove fuel spillages, bird • Do not use water pressure higher than droppings, insect deposits and road tar. 2,000 psi (14,000 kPa). These may cause damage to your • Do not use water hotter than 179°F vehicle’s paintwork or trim over time.
Page 191: Cleaning The Engine
Vehicle Care • Do not allow wax to come in contact • Never wash or rinse any ignition coil, with any non-body (low-gloss black) spark plug wire or spark plug well, or colored trim. The wax will discolor or the area in and around these locations. stain the parts over time.
Page 192: Cleaning The Interior
Vehicle Care CLEANING THE INTERIOR CLEANING THE INSTRUMENT PANEL AND INSTRUMENT WARNINGS CLUSTER LENS Do not use cleaning solvents, bleach or dye on the vehicle’s safety belts, WARNING as these actions may weaken the Do not use chemical solvents or belt webbing.
Page 193: Cleaning Leather Seats
Vehicle Care Wipe up spilled liquid using a clean, You should: soft cloth as quickly as possible. • Remove dust and loose dirt with a vacuum cleaner. 2. Use Motorcraft Premium Leather and Vinyl Cleaner or a commercially • Clean and treat spills and stains as available leather cleaning product for soon as possible.
Page 194: Vehicle Storage
Vehicle Care General Note: Industrial-strength or heavy-duty cleaners in combination with brush agitation • Store all vehicles in a dry, ventilated to remove brake dust and dirt, could wear place. away the clear coat finish over a period time. • Protect from sunlight, if possible.
Page 195 Vehicle Care Cooling System Miscellaneous • Protect against freezing temperatures. • Make sure you cover all linkages, cables, levers and pins under your • When removing your vehicle from vehicle with grease to prevent rust. storage, check coolant fluid level. Confirm that there are no cooling •...
Page 196: Wheels And Tires
TIRE SEALANT AND INFLATOR Note: The temporary mobility kit contains enough sealant compound in the canister for one tire repair only. See an authorized Ford dealer for replacement sealant canisters. The kit is located in the luggage compartment. The kit consists of an air compressor to...
Page 197 Note: Do not drive further than 120 mi temperature is between -22°F (-30°C) (200 km). Drive only to the closest and 158°F (70°C). authorized Ford dealer or tire repair shop to • Only use the sealing compound before have your tire inspected.
Page 198 Wheels and Tires * When inflation only is required Sealant compound contains latex. Use for a tire or other objects, the appropriate precautions to avoid any selector must be in the Air allergic reactions. E175978 position. Do not remove any foreign object that has pierced the tire.
Page 199 Wheels and Tires 5. Remove the warning sticker found on gauge reading will indicate the tire the canister and place it on the top of inflation pressure after about 30 the instrument panel or the center of seconds of operation. You should the dash.
Page 200 20 psi (1.4 bar), continue Obtain and replace the sealing compound to the next step. and spare parts at an authorized Ford The power plug may get hot after use Motor Company dealership or tire dealer. and should be handled carefully You can dispose empty sealant bottles at while unplugging.
Page 201 Wheels and Tires Removal of the Sealant Canister from the Kit E175987 4. Rotate the sealant canister up 90 degrees and pull away from E175984 casing/housing to remove. Unwrap the dual purpose hose (black tube) from the compressor housing. Installation of the Sealant Canister to the Kit With the canister held perpendicular to the housing, insert the canister...
Page 202: Tire Care
Note: If you experience any difficulties Tire Quality Grades apply to new when you remove or install the sealant pneumatic passenger car tires. canister, contact your authorized Ford dealer They do not apply to deep tread, for assistance. winter-type snow tires,...
Page 203 Transportation-Tire quality to lowest are AA, A, B, and C. The grades: The U.S. Department of grades represent the tire’s ability Transportation requires Ford to stop on wet pavement as Motor Company to give you the measured under controlled following information about tire...
Page 204 Wheels and Tires Federal Motor Vehicle Safety PSI: Pounds per square inch, a Standard No. 139. Grades B and A standard unit of air pressure. represent higher levels of Cold tire pressure: The tire performance on the laboratory pressure when the vehicle has test wheel than the minimum been stationary and out of direct required by law.
Page 205 Wheels and Tires Information Contained on the A. P: Indicates a tire, designated Tire Sidewall by the Tire and Rim Association, that may be used for service on Both U.S. and Canada Federal cars, sport utility vehicles, regulations require tire minivans and light trucks.
Page 206 Wheels and Tires G. H: Indicates the tire's speed Letter Speed rating rating. The speed rating denotes rating the speed at which a tire is 168 mph (270 km/h) designed to be driven for extended periods of time under a standard 186 mph (299 km/h) condition of load and inflation Note: For tires with a maximum...
Page 207 Wheels and Tires J. Tire Ply Composition and *Traction: The traction grades, Material Used: Indicates the from highest to lowest are AA, A, number of plies or the number of B, and C. The grades represent the layers of rubber-coated fabric in tire's ability to stop on wet the tire tread and sidewall.
Page 208 Wheels and Tires The tire suppliers may have C. Maximum Load Dual lb (kg) additional markings, notes or at psi (kPa) cold: Indicates the warnings such as standard load, maximum load and tire pressure radial tubeless, etc. when the tire is used as a dual, defined as four tires on the rear Additional Information axle (a total of six or more tires on...
Page 209 Inflate all tires to the width of the tire in millimeters inflation pressure recommended from sidewall edge to sidewall by Ford Motor Company. edge. In general, the larger the number, the wider the tire. C. 80: Indicates the aspect ratio which gives the tire's ratio of height to width.
Page 210 Safety automatic service station gauges Compliance Certification Label may be inaccurate. Ford (affixed to either the door hinge recommends the use of a digital pillar, door-latch post, or the door or dial-type tire pressure gauge...
Page 211 Wheels and Tires When weather temperature 3. Add enough air to reach the changes occur, tire inflation recommended air pressure. pressures also change. A 10°F Note: If you overfill the tire, release (6°C) temperature drop can air by pressing on the metal stem cause a corresponding drop of in the center of the valve.
Page 212 Wheels and Tires Inspecting Your Tires and Tire Wear Wheel Valve Stems Periodically inspect the tire treads for uneven or excessive wear and remove objects such as stones, nails or glass that may be wedged in the tread grooves. Check the tire and valve stems for holes, cracks, or cuts that may permit air leakage and repair or replace the...
Page 213 LT-metric or all-season versus standardized information on the all-terrain) as those originally sidewall of all tires. This provided by Ford. The information identifies and recommended tire and wheel size Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 214 Use of any tire or wheel 2. Lubricate the tire bead and not recommended by Ford can wheel bead seat area again. affect the safety and performance of your vehicle, which could result 3.
Page 215 Highway Hazards The use of wheels or tires not No matter how carefully you drive recommended by Ford Motor there is always the possibility that Company may affect the you may eventually have a flat tire operation of your tire pressure on the highway.
Page 216 Wheels and Tires Tire and Wheel Alignment Tire Rotation A bad jolt from hitting a curb or WARNING pothole can cause the front end If the tire label shows of your vehicle to become different tire pressures for the misaligned or cause damage to front and rear tires and the vehicle your tires.
Page 217: Using Snow Chains
Wheels and Tires Rotating your tires at the TIRE PRESSURE MONITORING recommended interval (as SYSTEM indicated in the Scheduled Maintenance chapter) will help WARNING your tires wear more evenly, The tire pressure monitoring system providing better tire performance is not a substitute for manually and longer tire life.
Page 218 Wheels and Tires Changing Tires With a Tire Please note that the TPMS is not a Pressure Monitoring System substitute for proper tire maintenance, and it is the driver’s responsibility to maintain correct tire pressure, even if under-inflation has not reached the level to trigger illumination of the TPMS low tire pressure telltale.
Page 219 Wheels and Tires When Your Temporary Spare Tire is When You Believe Your System is Not Installed Operating Properly When one of your road tires needs to be The main function of the tire pressure replaced with the temporary spare, the monitoring system is to warn you when system will continue to identify an issue to your tires need air.
Page 220 Wheels and Tires Low tire pressure Possible cause Customer action required warning light Solid warning light Tire(s) under-inflated Make sure tires are at the proper pres- sure. See Inflating your tires in this chapter. After inflating your tires to the manufacturer’s recommended pressure as shown on the Tire Label (located on the edge of driver’s door or the B-Pillar),...
Page 221: Changing A Road Wheel
Wheels and Tires How Temperature Affects Your Tire pressure warning light is on, visually check Pressure each tire to verify that no tire is flat. If one or more tires are flat, repair as necessary. The tire pressure monitoring system Check the air pressure in the road tires.
Page 222: Lug Nuts
M12 x 1.5 100 lb.ft (135 Nm) *Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford recommended replacement fasteners. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 223: Capacities And Specifications
Capacities and Specifications MOTORCRAFT PARTS Component Part number Battery BXT-67R Windshield wiper blade WW-2802 (driver side) WW-2803 (passenger side) WW-1295 (rear) Cabin air filter FP-70 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 224: Vehicle Identification Number
Capacities and Specifications VEHICLE IDENTIFICATION NUMBER The vehicle identification number is located on the left-hand side of the instrument panel. E142477 World manufacturer identifier Brake system, Gross Vehicle Weight Rating, Restraint Devices and their locations Make, vehicle line, series, body type Engine type Check digit...
Page 225: Vehicle Certification Label
Capacities and Specifications VEHICLE CERTIFICATION TRANSMISSION CODE LABEL DESIGNATION E167469 E167814 The National Highway Traffic Safety The transmission code is on the Safety Administration Regulations require that a Compliance Certification Label. The Safety Compliance Certification Label be following table shows the transmission affixed to a vehicle and prescribe where code along with the transmission the Safety Compliance Certification Label...
Page 226: Capacities And Specifications
Capacities and Specifications Capacities WARNING The air conditioning refrigerant system contains refrigerant R-134a under high pressure. Opening the air conditioning refrigerant system can cause personal injury. Have the air conditioning refrigerant system serviced only by qualified personnel. Item Capacity Electric powertrain assembly coolant 15.9 qt (15 L) Brake fluid Between MIN and MAX on brake fluid...
Page 227 Penetrating and Lock Lubricant XL-1 Lock cylinders (Canada): Penetrating Fluid CXC-51-A Note: Ford recommends using DOT 4 Low Note: Automatic transmissions that require Viscosity (LV) High Performance Brake Fluid MERCON LV transmission fluid should only or equivalent meeting WSS-M6C65-A2. Use use MERCON LV transmission fluid.
Page 228: Audio System
Audio systems capable of recognizing and compact discs may not function correctly playing MP3 and WMA individual tracks when used in Ford CD players. and folder structures work as follows: • There are two different modes for MP3...
Page 229: Audio Unit - Vehicles With: Sony Audio System
Audio System • MP3 and WMA folder mode represents AUDIO UNIT - VEHICLES WITH: a folder structure consisting of one SONY AUDIO SYSTEM level of folders. The CD player numbers all MP3 and WMA tracks on the disc WARNING (noted by the MP3 or WMA file extension) and all folders containing Driving while distracted can result in MP3 and WMA files, from F001 (folder)
Page 230 Audio System E184903 Power: Press to switch the system on and off. CD slot: Insert a CD. TUNE: In radio mode, press to manually search through the radio frequency band. In SIRIUS mode, press to find the previous or next available satellite radio station.
Page 231: Media Hub
Audio System MEDIA HUB (If Equipped) You can locate the media hub inside the center console or on the instrument panel. E211463 See your SYNC information. Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 232: Accessories
• Vehicle security systems. vehicle through an authorized Ford dealer. • Wheel locks. Ford Motor Company will repair or replace any properly authorized dealer-installed Ford Original Accessory found to be defective in factory-supplied materials or workmanship during the warranty period, as well as any component damaged by the defective accessories.
Page 233: Focus (Cdh) Battery Electric Vehicle (Bev), Canada/United States Of America, Enusa, First Printing
Contact an authorized Ford dealer for the accessories or components to your manufacturer's limited warranty details, vehicle, you may adversely affect and request a copy of the Ford Licensed battery performance and durability. In Accessories product limited warranty addition, you may also adversely affect from the accessory manufacturer.
Page 234: Extended Service Plan (Esp)
2. ExtraCARE - Covers 113 components, and includes many high-tech items. Transferable Coverage 3. BaseCARE - Covers 84 components. If you sell your vehicle before your Ford 4. PowertrainCARE - Covers 29 critical Extended Service Plan coverage expires, components. you can transfer any remaining coverage Ford Extended Service Plan is honored by to the new owner.
Page 235 Service Plan. Ford Extended Service Plan wear items. The coverage is prepaid, so is the only service contract backed by Ford you never have to worry about affording Motor Company of Canada, Limited. your vehicle’s maintenance. It covers...
Page 236: Scheduled Maintenance
If you do not use Ford authorized parts they you sell or trade it. Keep all receipts for may not meet our specifications and completed maintenance with your vehicle.
Page 237 It is critical that systems are Additives and Chemicals flushed only with new fluid that is the same This owner's manual and the Ford as that required to fill and operate the Workshop Manual list the recommended system or using a Ford-approved flushing additives and chemicals for your vehicle.
Page 238 Scheduled Maintenance Check every six months Parking brake for proper operation. Safety belts and seat latches for wear and function. Safety warning lamps (brake, ABS, airbag and safety belt) for operation. Washer spray and wiper operation. Clean or replace blades as necessary. Multi-point Inspection In order to keep your vehicle running right, it is important to have the systems on your...
Page 239: Normal Scheduled Maintenance
Scheduled Maintenance Be sure to ask your dealership service your vehicle. Your checklist gives you advisor or technician about the multi-point immediate feedback on the overall vehicle inspection. It is a comprehensive condition of your vehicle. way to perform a thorough inspection of NORMAL SCHEDULED MAINTENANCE Normal scheduled maintenance Every 12 months or...
Page 240: Scheduled Maintenance Record
Only use pre-mixed coolant years or 50,000 mi (80,000 km). The that meets Ford Motor Company coolant must be exchanged as indicated specifications. See Capacities and in the Ford Motor Company Workshop Specifications (page 220). SCHEDULED MAINTENANCE RECORD Dealer stamp Repair Order #:...
Page 241 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 242 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 243 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 244 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 245 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 246 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 247 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 248 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 249 Scheduled Maintenance Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Dealer stamp Repair Order #: Distance: Engine hours (optional): Multi-point inspection (recommended): Signature: E146852 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 250: Appendices
COMPANY nor its suppliers shall be include software licensed or owned by liable for any damages arising out of Ford Motor Company and its affiliates errors in the speech recognition ("FORD MOTOR COMPANY"). Those process. It is your responsibility to...
Page 251 • Single EULA: The end user • Additional Software/Services: The documentation for the DEVICES and SOFTWARE may permit FORD MOTOR related systems and services may COMPANY, third party software and contain multiple EULAs, such as service suppliers, its affiliates and/or...
Page 252 DEVICES. electronic form, you may print one copy of UPGRADES AND RECOVERY MEDIA: such electronic documentation. If the SOFTWARE is provided by FORD EXPORT RESTRICTIONS: You MOTOR COMPANY separate from the acknowledge that the SOFTWARE is DEVICES on media such as a ROM chip, subject to U.S.
Page 253 Should you have any questions concerning are driving. Pull over in a safe and legal this EULA, or if you desire to contact FORD manner before attempting to access a MOTOR COMPANY for any other reason,...
Page 254 Appendices substitute for your personal judgment. Your Responsibilities and Assumptions of Any route suggestions made by this Risk system should never replace any local • You agree to each of the following:(a) traffic regulations or your personal Any use of the SOFTWARE while judgment or knowledge of safe driving driving an automobile or other vehicle practices.
Page 255 "AS IS" AND “AS AVAILABLE”, WITH ALL COMPANY SHALL BE FOUND IN THE FAULTS AND WITHOUT WARRANTY OF WARRANTY INFORMATION INCLUDING ANY KIND, AND FORD MOTOR COMPANY WITH YOUR OWNER GUIDE. TO THE HEREBY DISCLAIMS ALL WARRANTIES EXTENT THAT THERE IS ANY CONFLICT...
Page 256 Consumer-Related Disputes will also litigate any dispute in small claims court apply. To commence arbitration, submit a in your county of residence or FORD Commercial Arbitration Rules Demand for MOTOR COMPANY’S principal place of Arbitration form to the AAA. You may...
Page 257 AAA’s and arbitrator’s fees and expenses. If you reject FORD MOTOR (i) Severability. If the class action waiver COMPANY’S last written settlement (Section e) is found to be illegal or...
Page 258 Appendices 3. Software License (a) observe all traffic laws and otherwise drive safely; • Subject to your compliance with the (b) use your own personal judgment while terms of this Agreement, TeleNav driving. If you feel that a route suggested hereby grants to you a personal, by the TeleNav Software instructs you to non-exclusive, non-transferable license...
Page 259 Appendices ii. violates any law, statute, ordinance or is dependent on the accuracy of regulation, including but not limited to laws navigation, as the maps or functionality and regulations related to spamming, of the TeleNav Software are not privacy, consumer and child protection, intended to support such high risk obscenity or defamation, or applications, especially in more remote...
Page 260 Appendices REASON WHATSOEVER (INCLUDING, to the exclusive jurisdiction of the WITHOUT LIMITATION, ALL DAMAGES courts of the County of Santa Clara, REFERENCED HEREIN AND ALL California. The United Nations DIRECT OR GENERAL DAMAGES IN Convention on Contracts for the CONTRACT, TORT (INCLUDING International Sale of Goods shall not NEGLIGENCE) OR OTHERWISE), THE apply.
Page 261 Appendices conferred by implication, statute, inducement, estoppel or otherwise, and The headings in this Agreement are for TeleNav and its suppliers and licensors convenience of reference only, will not be hereby reserve all of their respective rights deemed to be a part of this Agreement, other than the licenses explicitly granted and will not be referred to in connection in this Agreement.
Page 262 Appendices HERE holds a non-exclusive license from positioning devices or any mobile or the United States Postal Service® to wireless-connected electronic or computer publish and sell ZIP+4® information. devices, including without limitation cellular phones, palmtop and handheld ©United States Postal Service® 2014. computers, pagers, and personal digital Prices are not established, controlled or assistants or PDAs.
Page 263 Appendices DAMAGES, DIRECT OR INDIRECT, WHICH Governing Law. The above terms and MAY RESULT FROM THE USE OR conditions shall be governed by the laws POSSESSION OF THE INFORMATION; OR of the State of Illinois [insert “Netherlands” FOR ANY LOSS OF PROFIT, REVENUE, where European HERE Data is used], CONTRACTS OR SAVINGS, OR ANY without giving effect to (i) its conflict of...
Page 264 Appendices If the Contracting Officer, federal Gracenote Data shall also apply to such government agency, or any federal official content and such content providers shall refuses to use the legend provided herein, be entitled to all of the benefits and the Contracting Officer, federal protections set forth herein that are government agency, or any federal official...
Page 265 Appendices Gracenote uses a unique identifier to track OF THE GRACENOTE SOFTWARE OR ANY queries for statistical purposes. The GRACENOTE SERVER. IN NO CASE WILL purpose of a randomly assigned numeric GRACENOTE BE LIABLE FOR ANY identifier is to allow Gracenote to count CONSEQUENTIAL OR INCIDENTAL queries without knowing anything about DAMAGES OR FOR ANY LOST PROFITS...
Page 266: Type Approvals
Appendices European Union TYPE APPROVALS E207828 E207834 Indonesia E207823 E207829 Canada Jordan E207827 E207833 China Mexico E207831 Morocco E206304 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 267 Appendices E206303 E206301 South Korea E207832 Singapore E206302 Taiwan E206300 South Africa E206305 Ukraine Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 268 Appendices E207830 United States Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 269 Focus (CDH) Battery Electric Vehicle (BEV), Canada/United States of America, enUSA, First Printing...
Page 270 Index Automatic Climate Control.......101 Dual Zone Temperature Control....102 Single Zone Temperature Control....102 Temperature Control.........102 See: Climate Control..........101 Automatic Transmission......123 About This Manual...........5 Brake-Shift Interlock..........123 If Your Vehicle Gets Stuck In Mud or See: Brakes............125 Snow..............124 ABS driving hints Understanding the Positions of Your See: Hints on Driving With Anti-Lock Automatic Transmission......123 Brakes..............126...
Page 271 Engine Immobilizer Cold Weather Precautions......147 See: Passive Anti-Theft System.....65 Collision, Damage or Fire Event....152 Environment............12 Event Data Recording Guidance for Ford Motor Company Electric and Hybrid-Electric Vehicles Equipped See: Data Recording..........7 Extended Service Plan (ESP)....231 With High Voltage Batteries.......152 Coolant Check..........174 EXTENDED SERVICE PLAN (CANADA Adding Coolant............175...
Page 272 Adjusting the Head Restraint......106 Flat Tire Inflation Tilting Head Restraints ........107 See: Tire Sealant and Inflator Kit....193 Heated Seats..........110 Floor Mats............147 Heated Windows and Mirrors....103 Ford Credit............9 Heated Exterior Mirrors........104 (U.S. Only)..............9 Heated Rear Window........103 Front Exterior Overview........13 Heating Front Passenger Sensing System....40 See: Climate Control..........101...
Page 273 Index Information Messages.........94 AdvanceTrac®............94 Alarm................95 Lighting Control..........73 Battery and Charging System (High Headlamp Flasher..........74 Voltage)..............95 High Beams.............73 Doors................96 Lighting...............73 Hill Start Assist............97 General Information..........73 Keys and Intelligent Access......97 Load Carrying..........138 Lighting..............97 Load Limit............138 Maintenance............98 Vehicle Loading - with and without a MyKey...............98 Trailer..............138 Park Aid..............99...
Page 274 Index MyKey Troubleshooting.......56 Rear Under Floor Storage......138 MyKey ..............51 Cargo Management System......138 Rear View Camera........132 Principle of Operation..........51 Using the Rear View Camera System..133 Rear View Camera See: Rear View Camera........132 Normal Scheduled Maintenance..236 Rear Window Wiper and Washers...72 Rear Window Washer..........72 Rear Window Wiper..........72 Remote Control..........47 Opening and Closing the Hood....173...
Page 275 Index Technical Specifications See: Capacities and Specifications....220 The Better Business Bureau (BBB) Auto Safety Canopy ..........44 Line Program (U.S. Only).......156 Scheduled Maintenance Record....237 Tire Care............199 Scheduled Maintenance......233 Glossary of Tire Terminology......201 Seatbelt Height Adjustment......33 Information About Uniform Tire Quality Seatbelt Reminder........34 Grading..............199 Belt-Minder ............34...
Page 276 Switching Cruise Control On......136 Battery Warning Lamp........84 Using MyKey With Remote Start Brake System Warning Lamp......84 Systems............55 Cruise Control Indicator ........84 Vehicles With Ford-Approved Aftermarket Direction Indicator..........84 Remote Start Systems........55 Door Ajar..............84 Vehicles With Non-Ford-Approved Fasten Safety Belt Warning Lamp....85 Aftermarket Remote Start Front Airbag Warning Lamp......85...

Ford 2016 FOCUS ELECTRIC Owner's Manual

Introduction

Environment

At a Glance

Child Safety

Seatbelts

Personal Safety System?

Supplementary Restraints System

Keys and Remote Controls

Mykey

Locks

Security

Steering Wheel

Wipers and Washers

Lighting

Windows and Mirrors

Instrument Cluster

Information Displays

Climate Control

Seats

Auxiliary Power Points

Storage Compartments

Starting and Stopping the Electric Motor

High Voltage Battery

Transmission

Brakes

Traction Control

Stability Control

Parking Aids

Cruise Control

Driving Aids

Load Carrying

Towing

Driving Hints

Roadside Emergencies

Customer Assistance

Fuses

Maintenance

Vehicle Care

Wheels and Tires

Capacities and Specifications

Audio System

Accessories

Extended Service Plan (ESP)

Scheduled Maintenance

Appendices

Quick Links

Need help?

Questions and answers

Related Manuals for Ford 2016 FOCUS ELECTRIC

Summary of Contents for Ford 2016 FOCUS ELECTRIC
